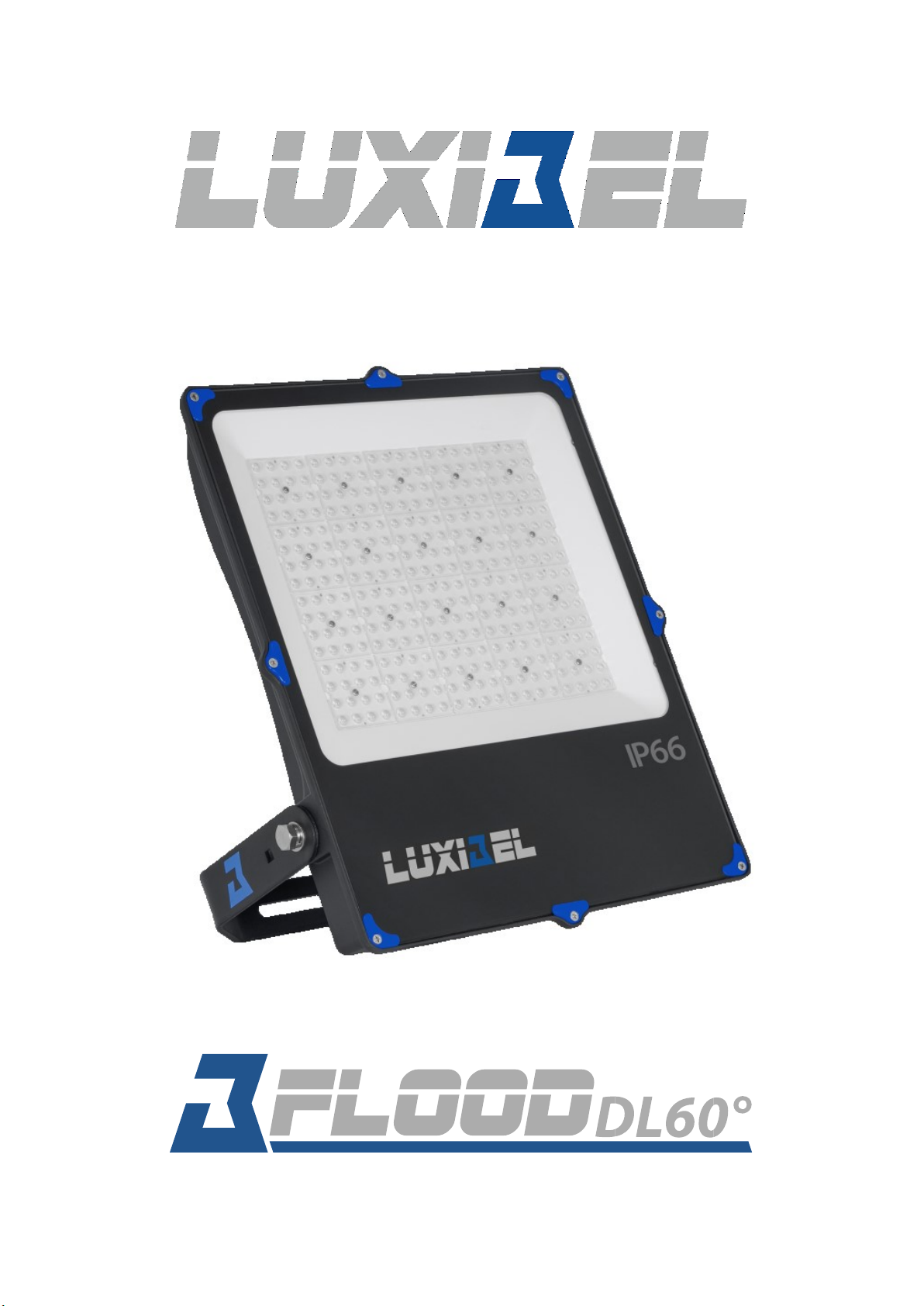

Luxibel B Flood DL60 Bedienungsanleitung
1
3
Product introduction
Thank you for purchasing our product. Before carrying out any
operations with the product, carefully read this instruction manual and
keep it with you for future reference. It contains important information
about the installation, usage and maintenance of the unit. Please strictly
follow it.
4
Safety Instructions
WARNING:Do not look at the light source when the device is on.
CAUTION: This housing may be hot during and after operation.
•To reduce the risk of electric shock, do not open the device.
•Install this device in a location with adequate ventilation, at least 20 inch
(50cm) from adjacent surfaces.
•Do not leave any flammable material within 20 inch (50cm) of this device
while operating or connecting to power.
•Do not cover any ventilation openings as this may result in overheating.
•Keep the unit away from children.
•The electric connection should be carried out by a qualified person only.
•Make sure that the available voltage is not higher than the one stated in
this manual.
•The power cord should always be in perfect condition. Switch the device
immediately off when the power cord is squashed or damaged. It must
be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•Do not connect this device to any dimmer pack.
•ONLY connect this device to a grounded and protected circuit.
•The maximum ambient temperature is 104° F (40° C). Do not operate this
device at higher temperatures.
•Always disconnect from the mains when installing, maintaining or
cleaning the unit.
5

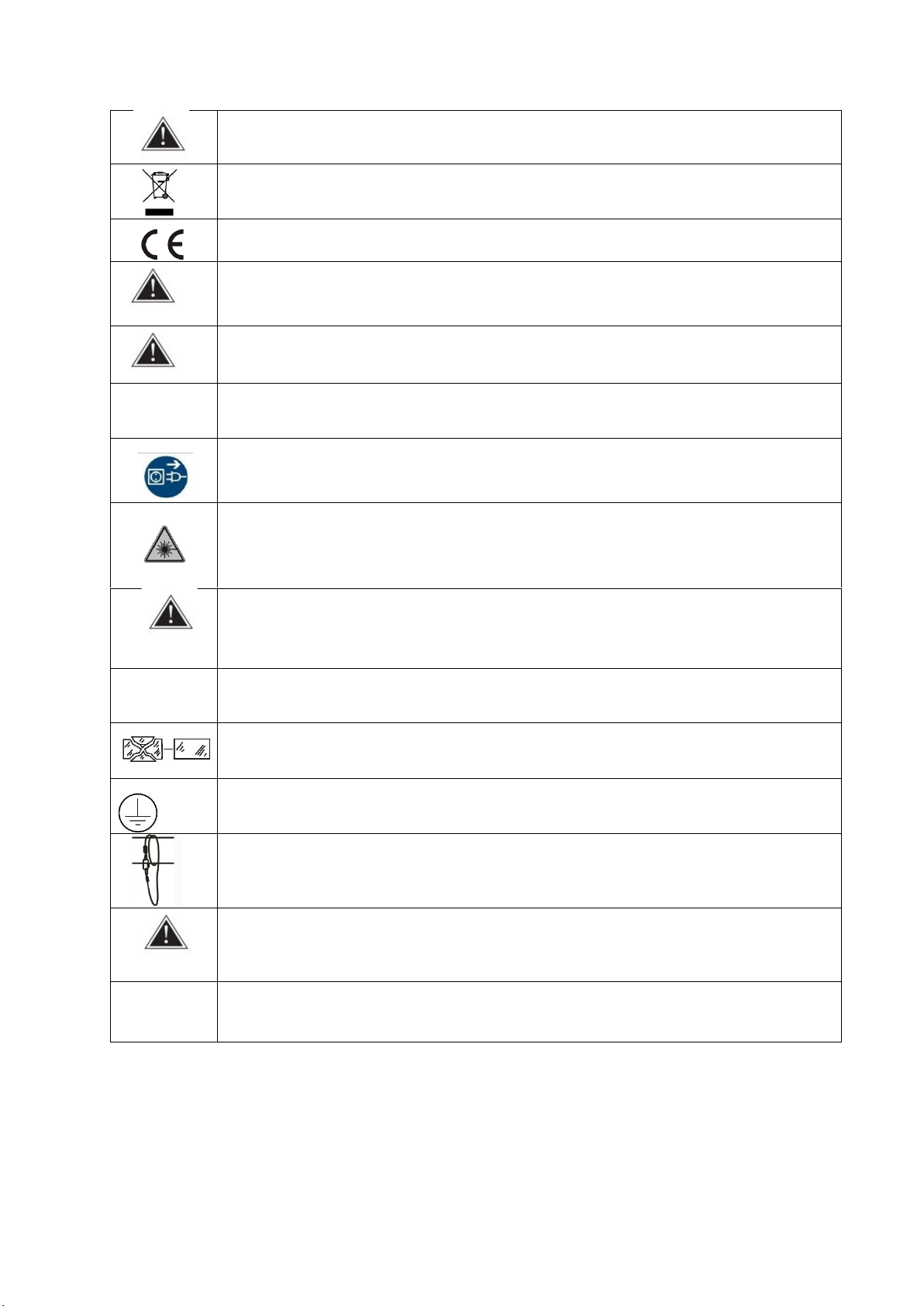

Before operate this unit, please carefully read this users guide and keep if
needed in future. It’s necessary to respect following rules.
The disposal of the device after lifecycle could damage the environment, need to
take it to special company for recycling or return to authorized dealer.
The products referred to in this manual conform to the European Community
Directives and are therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer
will not take responsibility for the damage due to any disregard of the
information provided in this manual and wrong operation.
Before operate the device, please make sure the fixture is in good housing,
ensure pan and tilt can rotate in its complete range.
--0.5m
Please make sure minimal 0.5m distance need to kept between the fixture to
any flammable material.
The device can only run with 100-240V voltage, 50/60 Hz power, don’t connect
to any other wrong power. Disconnect the device from main power before open
the shield or maintenance.
Never look directly into the projecting lens when the fixture is power on, the light
may trigger epileptic seizures in photosensitive persons or persons with
epilepsy. Especially at beam effect, extreme caution and observance of these
safety instructions is mandatory.
Don’t put or install the device on a surface that subject to vibration or bumps.
Ta=45℃
The device is supposed to work in the temperate range -15° C and +45° C, do
not use the device when the temperate exceed this range.
The lens, shield need to be replaced when obviously broken, never use the
device when the shield is not completed closed.
Safety I class device, need to be earth connected.
When the fixture is hanged overhead, the safety rope must be fixed to the
bottom of the device to the appropriate fixing point.
Always carry the device by the bracket, do not take the head directly for
transportation.
6
Overhead Rigging
The installation of the device has to be done in such a way that it can
hold 10 times the weight for 1hour without any deformation.
The operator has to make sure that all safety-related and machine-
technical installations are approved by an expert ,before taking the unit
in operation for the first time.
Please note: for overhead rigging in public or industrial areas, a series of
safety instructions as double safety have to be followed.
7
Electrical Operation
IMPORTANT: The electrical installation should be carried by qualified
person only.
Please note the wire color code while connecting the 2x mains cable:
G: green/yellow color = Ground earth connection
N: blue color = Neutral
L: brown color = Live
This device must be earthed to comply with regulations!
This device can NOT be dimmed, do not connect on a dimmer pack!
Maintenance and Cleaning
The following points have to be considered during the inspection:
* All screws and parts of the device have to be tight and may not be
corroded.
* There may not be any deformations on the housing, color lenses,
fixations and installation spots (ceiling, suspension, trussing).
* The electric power supply cables must not show any damage, material
fatigue or sediments.
In order to maintain the device in good condition and extend the life time,
we recommend to clean the device frequently.
The cleaning of heat sink and external optical lenses must be carried out
periodically to optimize light output. The frequency of cleaning depends
on the environment in which the fixture operates.
A detailed electric check by certified electrician each three month,
8
make sure that the circuit contacts are in good condition, to prevent the
circuit from overheating due to poor contact.
Clean with a soft cloth using glass cleaning products. Never use alcohol
or solvents.
Always dry the parts carefully.
9
Technical Specifications
Dimensions drawing
Physical
Dimensions (WxHxD): 49,7 x 41,6 x 63 cm | 19,6 x 16,4 x 2,5 in
Packaging dimensions (WxHxD): 54 x 42 x 11,5 cm | 21,3 x 16,5 x 4,5 in
4 pcs packing dimensions (WxHxD): 560 x 520 x 440 mm –22.0 x 20.5 x 17.3 in
Net weight: 6,4 kg | 14,1 lbs
Gross weight: 7.2 kg | 15,9 lbs
4pcs packing gross weight: 29.9 kg –65,9 lbs
10
Mounting options
Hanging: Dedicated hanging bracket with M12 mounting hole
Standing: n/a
2nd suspension / safety wire: 1x sleeve in bracket of the unit to pass carabiner
Control
Control: on/off by power
Tilt Movement: One hand tilt locking
Optical
Lamp type: LED Fresnel
Beam angle: 60°
Colours: 4.800K
Refresh rate: Flicker free
CRI: 95 Ra
Photometric data B Flooddl60°
Light angle: 60° Plano convex lens
Light output
Lux @ 2m: 4.719 lux
Lux @ 5m: 755 lux
Lux @ 10m: 189 lux
Electrical
Fixture rated power: 220W
Power factor: 0.98
LED engine: 320x 1W SMD LED
Input power: 100-240V ~ 50/60Hz | Auto switching power supply
In/Link: 1,5m cable bare ends (choose your plug) | max link current: 10A
IP rating IP66
Cooling Conventional, no fans
Accessories
1x Powercable with bare ends
