INSTRUCTION MANUAL

2-INPUT MATH FUNCTION MODULE

(PC programmable) MODEL M6SXF2

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Signal conditioner ...............................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

The M6SXF2 is programmable using the PC Conﬁgurator

Software. For detailed information on the PC conﬁguration,

refer to the M6CFG users manual. The M6CFG PC Con-

ﬁgurator Software is downloadable at M-System’s web site:

http://www.m-system.co.jp

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

•The equipment must be mounted inside a panel.

•The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

•Install lightning surge protectors for those wires connect-

ed to remote locations.

■POWER INPUT RATING & OPERATIONAL RANGE

•Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

24V DC rating: 24V ±10%, approx. 0.5W

■GENERAL PRECAUTIONS

•Before you remove the unit or mount it, turn off the power

supply and input signal for safety.

■ENVIRONMENT

•Indoor use.

•When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

•Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

•Environmental temperature must be within -20 to +55°C

(-4 to +131°F) with relative humidity within 30 to 90%

RH in order to ensure adequate life span and operation.

■WIRING

•Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

•Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

•The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

COMPONENT IDENTIFICATION

Body

Front Cover

DIN Rail Adaptor

Specifications

M6SXF2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7988 Rev.3 P. 2 / 5

INSTALLATION

Set the unit so that its DIN rail adapter is at the bottom. When the unit is installed to an Installation Base (model M6SBS),

refer to its instruction manual.

■MOUNTING THE UNIT ON A DIN RAIL

A)Hang the upper hook at the rear side of unit on the DIN

rail.

B)Push in the lower in keeping pressing the unit to the DIN

rail.

ADIN Rail

■REMOVING THE UNIT

A)Pull down the DIN rail adaptor using a minus screwdriv-

er.

B)Pull out the lower part of the unit.

C)Remove the upper part from the DIN rail.

DIN Rail Adaptor

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.

■EXTERNAL DIMENSIONS unit: mm (inch)

94 (3.70)

5.9 (.23)

DIN RAIL

35mm wide

DIN RAIL HOOK

*Use a minus screwdriver: tip width 3.8 mm max., tip thickness 0.5 to 0.6 mm

102 (4.02)

[0.5 (.02)]

SCREWDRIVER

INSERTION ANGLE

: approx. 40°

WIRE INSERTION ANGLE

: approx.35°

TEST PROBE

max. 2 (.08) dia.

SCREWDRIVER

INSERTION ANGLE

: approx. 35°

5678

1234

• When mounting, no extra space is needed between units.

M6SXF2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7988 Rev.3 P. 3 / 5

■CONNECTION DIAGRAM

–

OUTPUT

POWER

CONFIGURATOR JACK

–

INPUT 1

–

INPUT 2

POWER

CONNECTOR

■WIRING INSTRUCTIONS

 •Applicablewiresize

Solid: 0.2 to 2.5 mm2(0.55 to 1.75 dia.)

Stranded: 0.2 to 2.5 mm2(Tinning wire ends may

cause contact failure and therefore is not

recommended.)

Ferruled: 0.2 to 1.5 mm2(0.55 to 1.35 dia.)

 •Exposewireconductorsby8mm(0.31”).

Expose 8 mm

• How to Connect Wires

Screwdriver

Wire

1) Insert a minus screwdriver into the wire entry opening,

between the clamp and the housing, until its tip hits the

bottom where it is ﬁrmly held.

Tension Clamp

Screwdriver

2) Insert a wire. Push the screwdriver toward the direction

indicated with the arrow in the ﬁgure below to widen the

opening if necessary.

Wire Entry

Wire

3) Conﬁrm that the wire tip hits the bottom and pull out the

screwdriver in holding it in position.

Conﬁrm that the wire’s insulation tube is not caught in

the clamp.

M6SXF2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7988 Rev.3 P. 4 / 5

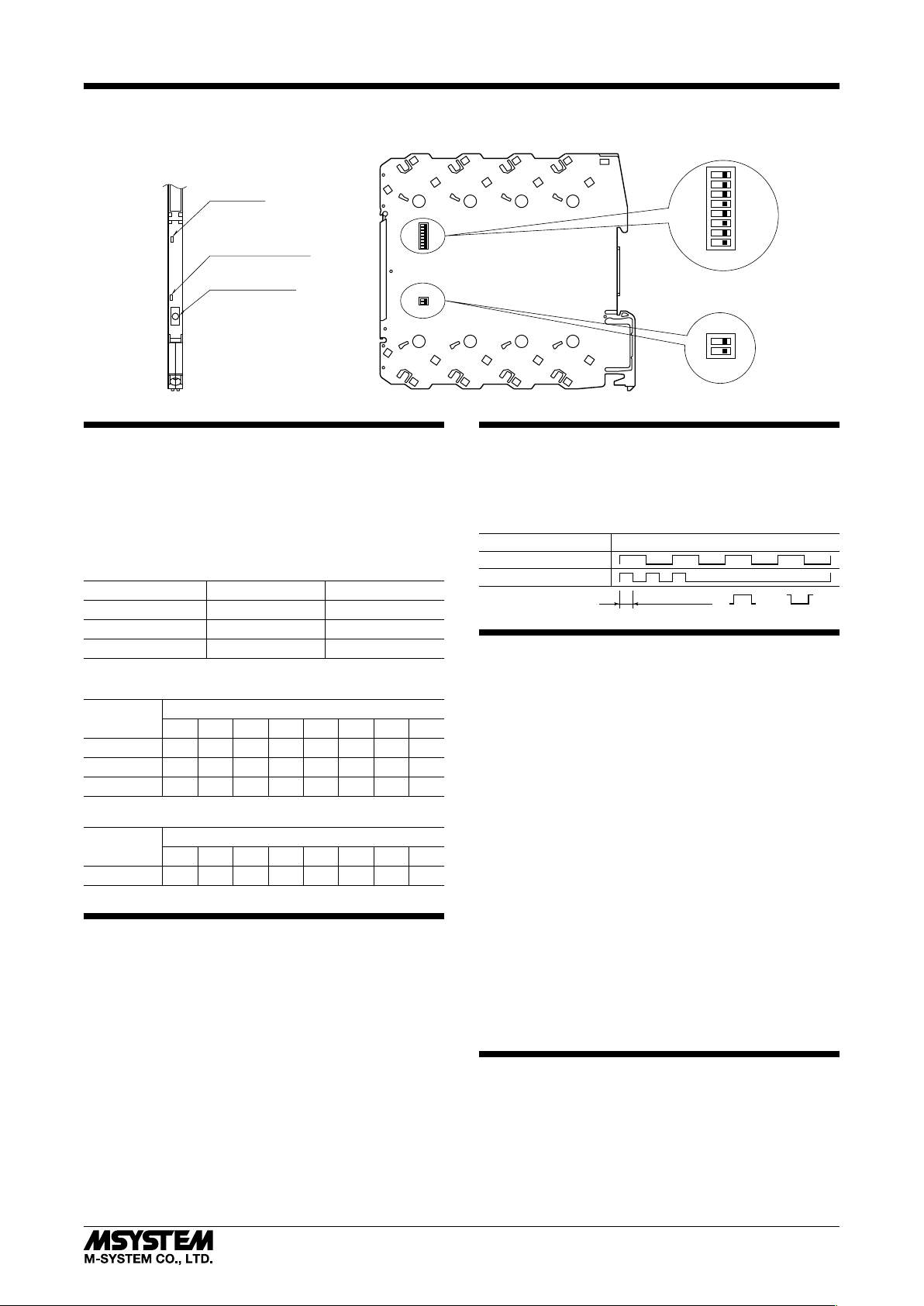

EXTERNAL VIEWS

■ FRONT VIEW (with the cover open) ■ SIDE VIEW

Output Range Selectors

Input Range Selectors

Status Indicator LED

Power LED

Configurator Jack

5678

1234

SW1

2345678

OFF

SW1

SW2

OFF

SW2

INPUT/OUTPUT RANGING

The internal DIP switch setting is required to select input

and output types before setting a precise range using PC

Conﬁgurator Software (model: M6CFG).

For detailed information on the PC conﬁguration, refer to

the M6CFG users manual.

Table 1. DIP switch setting: Input type

Input Type Input 1, SW2-1 Input 2, SW2-2

0 – 50 mA ON ON

-1000 – +1000 mV OFF OFF

-10 – +10 V OFF OFF

Table 2. DIP switch setting: Output type

Output

Type

SW1

12345678

0 – 20 mA*1ON ON OFF OFF OFF OFF ON OFF

-5 – +5 V OFF OFF ON OFF ON OFF OFF ON

-10 – +10 V OFF OFF ON OFF OFF ON OFF ON

*1. For 0 – 1 mA range, set switches as in the table below.

Output

Range

SW1

12345678

0 – 1 mA OFF OFF ON OFF OFF OFF ON OFF

CHECKING

1) Terminal wiring: Check that all cables are correctly con-

nected according to the connection diagram.

2) Conﬁrm that the wire insulation tubes are not caught in

the clamp.

3) Check DIP switch setting.

4) Power input voltage: Check voltage across the terminal

7–8withamultimeter.

5) Input: Check that the input signal is within 0 – 100% of

the full-scale.

6) Output: Check that the load resistance meets the de-

scribed speciﬁcations.

STATUS INDICATOR LED

The transmitter is provided with a status indicator LED

which blinks in different patterns indicating various oper-

ating status.

The following ﬁgure indicates typical patterns.

Normal operating mode

TRANSMITTER STATUS

ON OFF

LED ON-OFF PATTERNS

Abnormal operating mode

80 milliseconds

MAINTENANCE

Regular calibration procedure is explained below:

■CALIBRATION

Warm up the unit for at least 10 minutes.

•For math functions:

Apply the input signals which should lead the calculated

results as 0%, 25%, 50%, 75% and 100%.

•For Hi signal selector functions:

Apply 0%, 25%, 50%, 75% and 100% signal at Input 1

while maintaining 0% at Input 2. Then apply 0%, 25%,

50%, 75% and 100% signal at Input 2 while maintaining

0% at Input 1.

•For Lo signal selector functions:

Apply 0%, 25%, 50%, 75% and 100% signal at Input 1

while maintaining 100% at Input 2. Then apply 0%, 25%,

50%, 75% and 100% signal at Input 2 while maintaining

100% at Input 1.

Check that the output signal for the respective input signal

remains within accuracy described in the data sheet.

When the output is out of tolerance, recalibrate the unit us-

ing the PC Conﬁgurator Software (model: M6CFG).

LIGHTNING SURGE PROTECTION

M-System offers a series of lightning surge protector for

protection against induced lightning surges. Please contact

M-System to choose appropriate models.

M6SXF2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7988 Rev.3 P. 5 / 5

FUNCTIONS

■MATH FUNCTIONS

• Temperature compensation (w/o square root extraction)

X0= K1X1

√K2X2+ A2

where X0: Compensated ﬂow (linear characteristics)

X1: Uncompensated ﬂow

X2: Temperature

• Temperature compensation (with square root extraction)

X0= K1√

√K2X2+ A2

where X0: Compensated ﬂow (linear characteristics)

X1: Uncompensated ﬂow

X2: Temperature

• Pressure compensation (w/o square root extraction)

X0= K1X1√K2X2+ A2

where X0: Compensated ﬂow (linear characteristics)

X1: Uncompensated ﬂow

X2: Pressure

• Pressure compensation (with square root extraction)

X0= K1√

X1√K2X2+ A2

where X0: Compensated ﬂow (linear characteristics)

X1: Uncompensated ﬂow

X2: Pressure

• Addition / Subtraction

X0= K0{K1(X1+ A1) + K2(X2+ A2)} + A0

• Multiplication

X0= K0(K1X1+ A1) (K2X2+ A2) + A0

• Division

X0= K0(K1X1+ A1) + A0

(K2X2+ A2)

■SIGNAL SELECTOR FUNCTIONS

• High selector

X0= X1with X1≥ X2

X0= X2with X1< X2

• Low selector

X0= X2with X1≥ X2

X0= X1with X1< X2

Available range

X0: Output (%) -2 to +102%

X1through X2: Input (%) -2 to +102%

K0through K2: Gain (no unit) ±29.999

A0through A2: Bias (%) ±299.99%

Factory default setting: Addition / Subtraction

K0= 1, K1= 1, K2= 1, A0= 0%, A1= 0%, A2= 0%

Inhaltsverzeichnis

Andere M-system Steuereinheit Handbücher

M-system

M-system R7ML-YS2 Bedienungsanleitung

M-system

M-system R7L-EC8A Bedienungsanleitung

M-system

M-system R7E-DA16 Bedienungsanleitung

M-system

M-system R7L-DA16 Bedienungsanleitung

M-system

M-system Mini-M M2MNV Bedienungsanleitung

M-system

M-system R3-SV8C Bedienungsanleitung

M-system

M-system R7D-EC8B Bedienungsanleitung

M-system

M-system R3-SV4B Bedienungsanleitung

M-system

M-system R7M-DAC16C Bedienungsanleitung

M-system

M-system R5-NE1 Bedienungsanleitung

M-system

M-system MECHATROLINK R7K4FML3-6-DAC32B Bedienungsanleitung

M-system

M-system R7C-EC8A/UL Bedienungsanleitung

M-system

M-system R7L-YS2 Bedienungsanleitung

M-system

M-system R30SV2 Bedienungsanleitung

M-system

M-system R7HL-YS2 Bedienungsanleitung

M-system

M-system R30US2 Bedienungsanleitung

M-system

M-system R7HL-DAC15E Bedienungsanleitung

M-system

M-system R7HL-TS4 Bedienungsanleitung

M-system

M-system R5T-DA4 Bedienungsanleitung

M-system

M-system R3-PD16 Bedienungsanleitung

M-system

M-system R30MS4 Bedienungsanleitung

M-system

M-system R7G4FML3-6-DC16A Bedienungsanleitung

M-system

M-system R3-PA4 Bedienungsanleitung

M-system

M-system R7HL-DC16B-R Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
