M-TI FREEDOM MICRO II Bedienungsanleitung
FREEDOM MICRO®II POWER MANUAL
1
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
Product Manual for
FREEDOM MICRO®II Power
and MICRO®II HS POWER
DO NOT REMOVE FROM STORE
Contents
1. Components And Accessories 2
2. Baseplate Options 3
3. Speedplate™ Merchandising 5
4. Speedbracket™ Merchandising 8
5. SmartCable™ Merchandising 10
6. Technical Data 11
For additional support, please reach out to our
Contact Center at 800-426-6844
CONTENTS
WARNING: MTI products contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Proposition 65, California Health & Safety Code Section 25249.6 et seq. Visit oehha.ca.gov for more information.
FREEDOM MICRO®II POWER MANUAL
2
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844

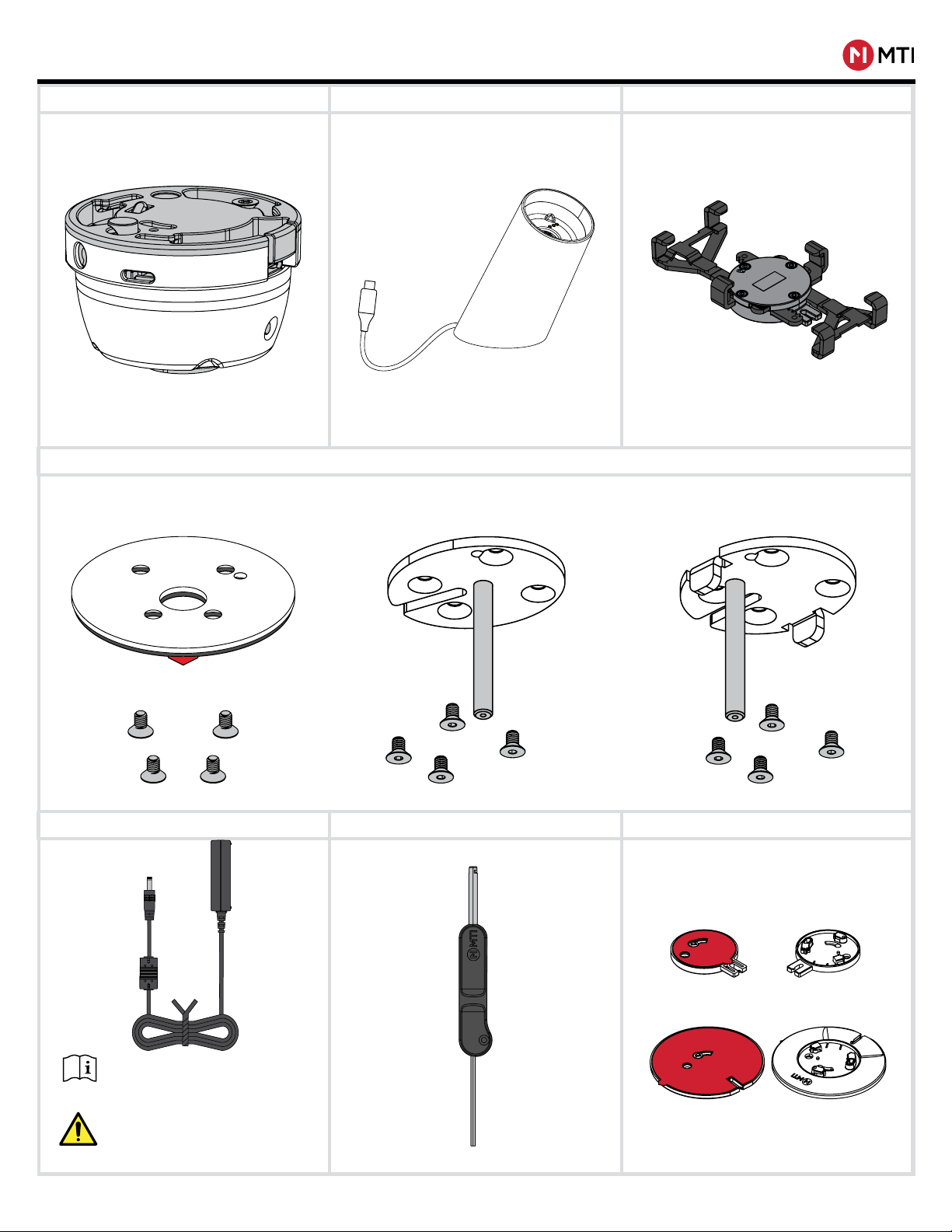

COMPONENTS AND ACCESSORIES
SpeedBracket™
Slot MountingThrough Hole MountingVHB Mounting
SpeedPlate™ OptionsPower Supply Freedom Micro®II Tool
Mounting Options
Freedom Micro®II RiserFreedom Micro®II Puck
Phones
Only use USB-C standard power supply
Tablets
FREEDOM MICRO®II POWER MANUAL
3
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
3
2
4

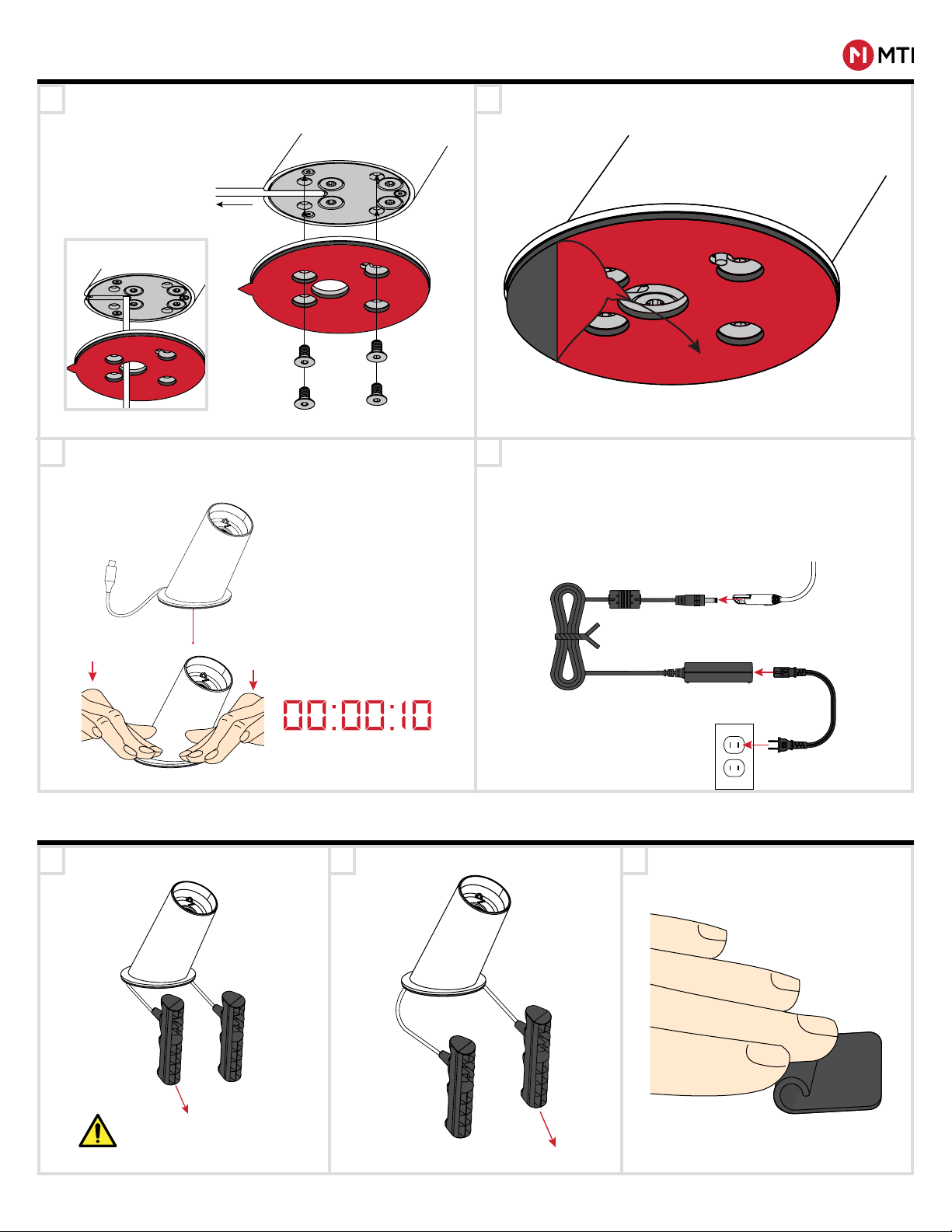

Route the cable as desired and attach the baseplate with
the included screws.
Routing out
the back
Routing out the bottom
Peel the red lm from the adhesive.
Place Micro position in desired location. Press down on
the base plate for 10 seconds for full adhesive contact.
Allow 24 hours for full adhesion.
Use the individual power supply and plug it into the
nearest outlet. The socket-outlet shall be installed near
the equipment and shall be easily accessible.
Utilisez l’alimentation individuelle et branchez-la dans la prise la
plus proche. La prise de courant doit être installée à proximité de
l’équipement et doit être facilement accessible.
BASEPLATE OPTIONS - ADHESIVE
1 2 3
Do not cut power cable.
ADHESIVE POSITION REMOVAL
4
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
3
2
4

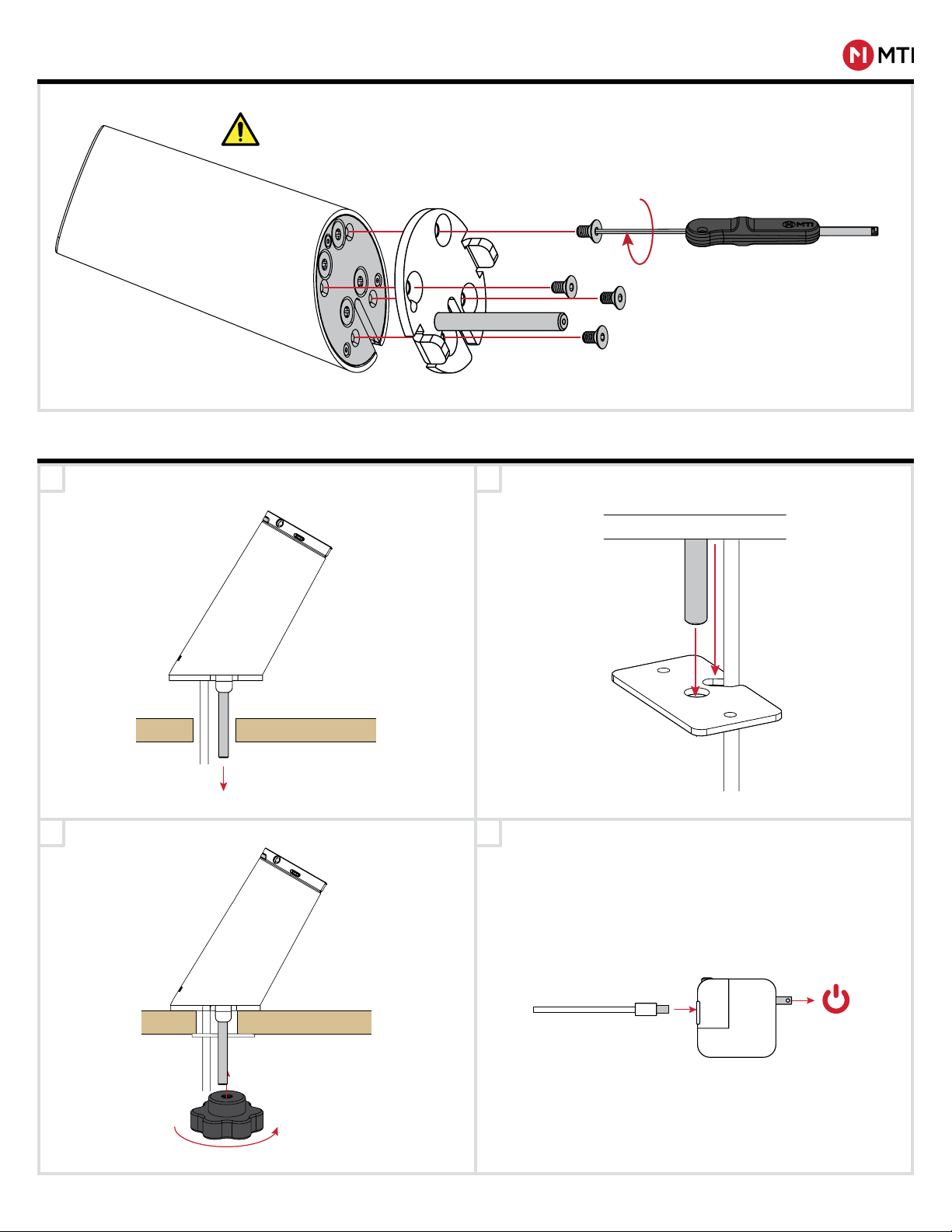

MOUNTING SLOT & THROUGH-HOLE ADAPTERS
Slot adapter shown. Through-hole adapter attaches in the same way.
BASEPLATE OPTIONS - SLOT & THROUGH-HOLE ADAPTERS
Place the power cable into the slot on the bottom
plate, then slide it up over the slot adapter post.
Insert the Freedom Micro®II position into the slot or
hole.
Secure the Freedom Micro®II position with the knob. Use the individual power supply and plug it into
the nearest outlet. Use an outlet installed near the
equipment that is easily accessible.
Utilisez l’alimentation individuelle et branchez-la dans la prise la
plus proche. La prise de courant doit être installée à proximité de
l’équipement et doit être facilement accessible.
FREEDOM MICRO®II POWER MANUAL
5
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
3
2
4

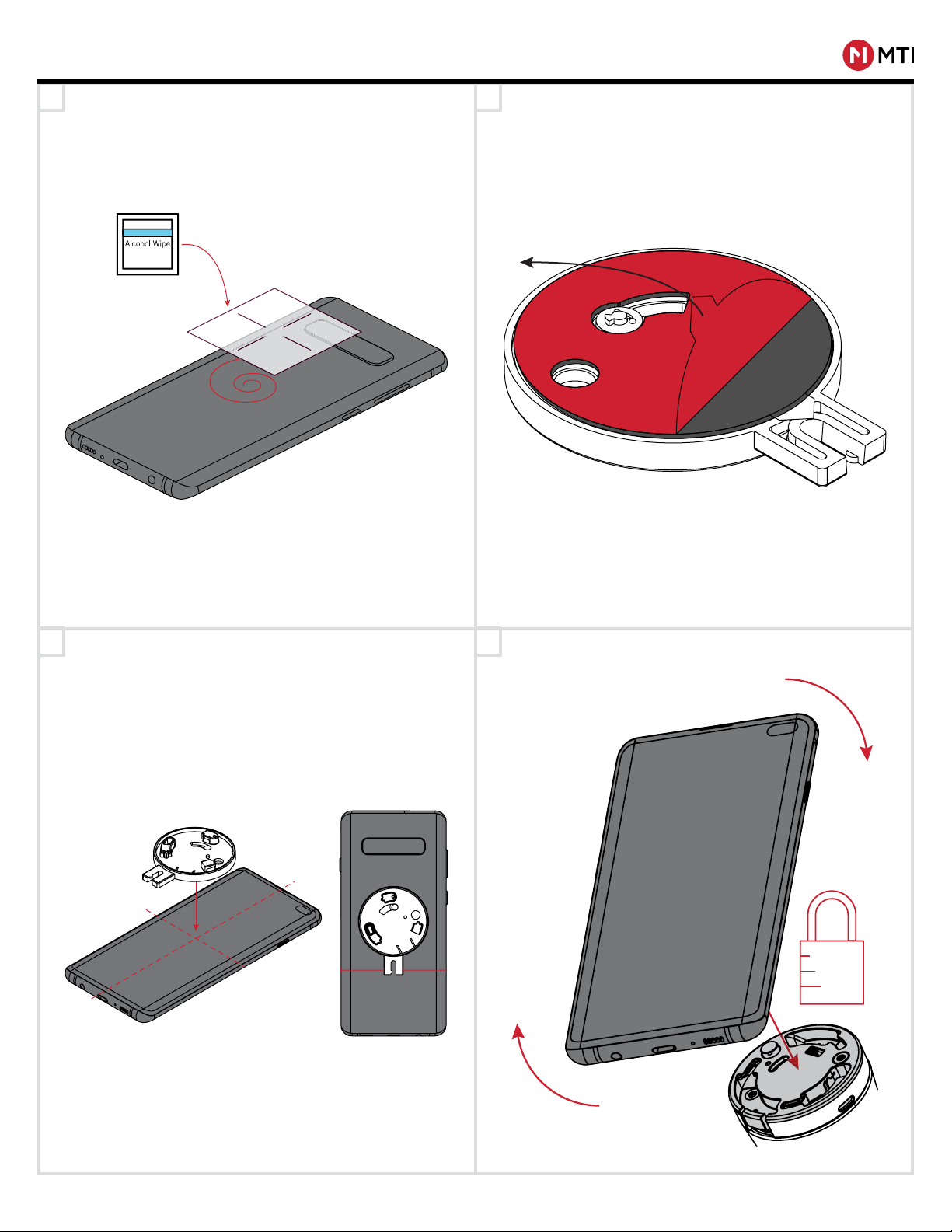

SPEEDPLATE™ MERCHANDISING
Peel red backing off of the adhesive on the
SpeedPlate™.
Clean the device with an alcohol wipe.
Apply the SpeedPlate™ to the phone, with the cable
retainer towards the charge port of the phone. Use the
SpeedPlate™ cable retainer as alignment reference.
Place the device onto the puck and rotate the device
clockwise on the puck until it locks into place.
FREEDOM MICRO®II POWER MANUAL
6
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
3
2
4Remove the SpeedPlate™ from the Freedom Micro®II
Puck, then release and remove the Freedom Micro®II
tool.
With the Freedom Micro®II tool held in the twisted
position, rotate the SpeedPlate™ counterclockwise.
Twist the Freedom Micro®II tool clockwise 45 degrees
and hold it in place.
Insert the crescent end of the Freedom Micro®II tool
into the opening to the right of the LED.
REMOVING SPEEDPLATE™ FROM PUCK
FREEDOM MICRO®II POWER MANUAL
7
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
1
3
2
2

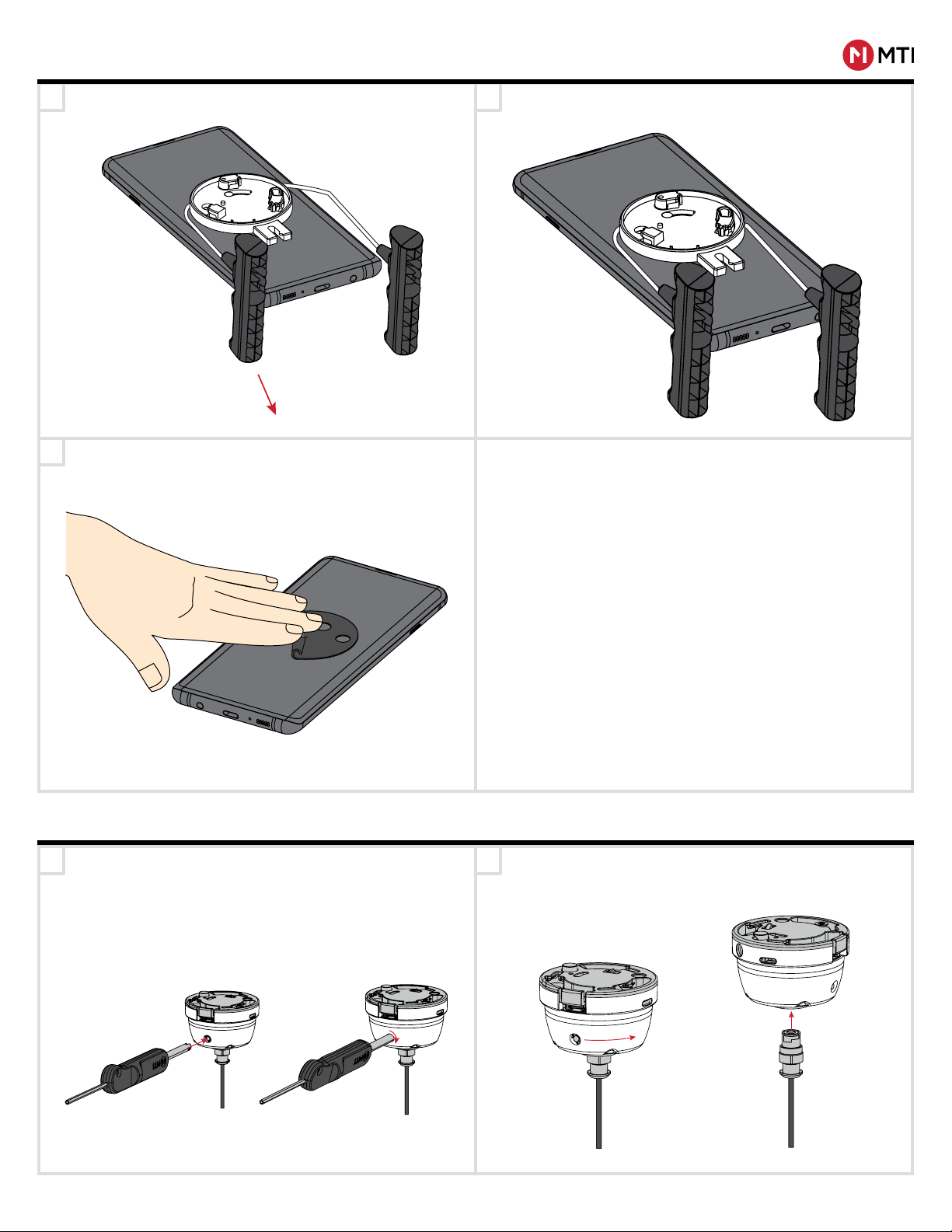

REMOVING PUCK FROM TETHER - (Applies to Micro II Power, Micro II HS Power)
REMOVING SPEEDPLATE™
Once the puck is loose, rotate the puck 45 degrees
counterclockwise in relation to the tether. Lift the puck
off of tether connection.
Lift puck out of riser, insert the crescent end of the
Freedom Micro II tool into the opening below the
charge port on the puck. Twist the Freedom Micro II
tool counterclockwise to unlock the puck from the
tether.
Place the VHB removal tool around the SpeedPlate™, Pull the tool, working it back and forth like a saw, until
the SpeedPlate™ comes off the devices
Roll any remaining adhesive off of the device.
FREEDOM MICRO®II POWER MANUAL
8
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
3
2
4
SPEEDBRACKET™ MERCHANDISING
Loosen the center screw on the universal bracket to
loosen the bracket arms.
Place the phone into the universal bracket.
Extend the bracket arms as far as needed. The bracket
arms move simultaneously in pairs (top & bottom, and
left & right).
Adjust the universal bracket to t the device snugly.
Open the top and bottom bracket arms,
then the side arms, in that order.
1.
2.
2.
1.
FREEDOM MICRO®II POWER MANUAL
9
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
7 8
65
SPEEDBRACKET™ MERCHANDISING
Tighten the center screw on the SpeedBracket™ to
secure the bracket arms in place around the device.
After tightening screw, wiggle the arms to ensure they
have fully engaged the lock teeth, then re-check screw
for tightness.
Place device back onto puck.
Rotate the device and bracket clockwise on the puck
until it locks into place.
*click*
FREEDOM MICRO®II POWER MANUAL
10
MTI P/N 063-00425 rev A ©2022 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
1
1
3
2
2
4

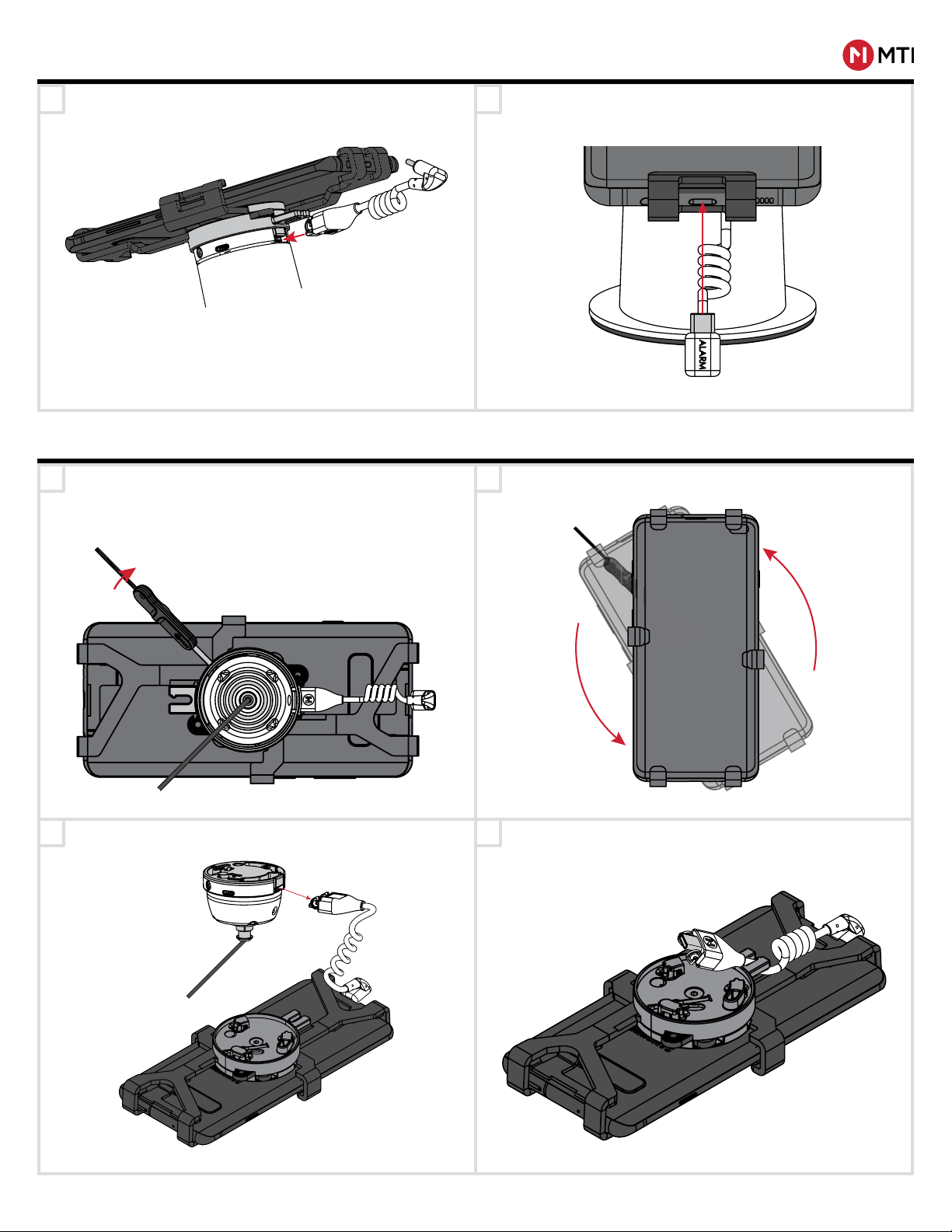

REMOVING SMARTCABLE
ATTACHING SMARTCABLE™
Plug SmartCable into the charge port of the device.
LED on back of puck will illuminate solid white
when plugged in.
Twist the device and bracket off of the position.
The loose cable can be clipped into SpeedBracket™
for easy storage.
Insert SmartCable into the charge port on the puck.
The hooks on cable should click when fully seated.
Insert the crescent end of the Freedom Micro II tool
into the opening to the right of the LED. Twist the
Freedom Micro II tool clockwise 45 degrees and hold
it in place.
Remove the SmartCable from the puck.
