M2 Antenna Systems FG170-230-5 Bedienungsanleitung

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Rev.00

M2 Antenna Systems, Inc.

Model No: FG170-230-5

FEATURES:

The M2 170-230-5 Helix antenna offers medium performance characteristics for specialized fixed and rapid de-

ploy operations within the 170 to 230 MHz band. It is perfect for either terrestrial or satellite applications. The antenna is

supplied with a manually adjustable Azimuth / Elevation mount and a counter weight. The antenna is shipped with the

helix assembled less ground plane. Finishes are optional. The steel adjustable mounting fixture and counterweight are

zinc plated. Optional arrays of 2 or more are available. Other frequency ranges and gains are also available down to 100

MHz. Complete motorized, computer controlled AZ-EL systems are also manufactured by M2.

Where circular polarity is not required but high bandwidth is, M2 offers a line of various log periodic antennas from 5 to

1300 MHz. If it is antenna related, we probably have made it. Call us with your requirements.

SPECIFICATIONS:

Model ........................................FG170-230-5

Frequency Range.......................170 To 230 mHz

*Gain..........................................8.2 dBic Nominal

Beamwidth ...............................150 mHz = 70°

Impedance. ................................50 Ohms Unbalanced

VSWR ........................................1.5 Typical

Polarity.......................................RHCP or LHC

(Customer Specified)

Elipticity ......................................<3db

Connector...................................Type “N” Female

Power Handling..........................1 kW, Higher avl.

Boom Length / Dia......................94” / 1-1/2”

Turning Radius:..........................76-5/8”

Mast Size....................................2” Nom.

Wind Survival .............................100 MPH

Weight / Ship Wt.........................31 Lbs. / 185 Lbs.

HELICAL 170-230-5 ASSEMBLY

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]

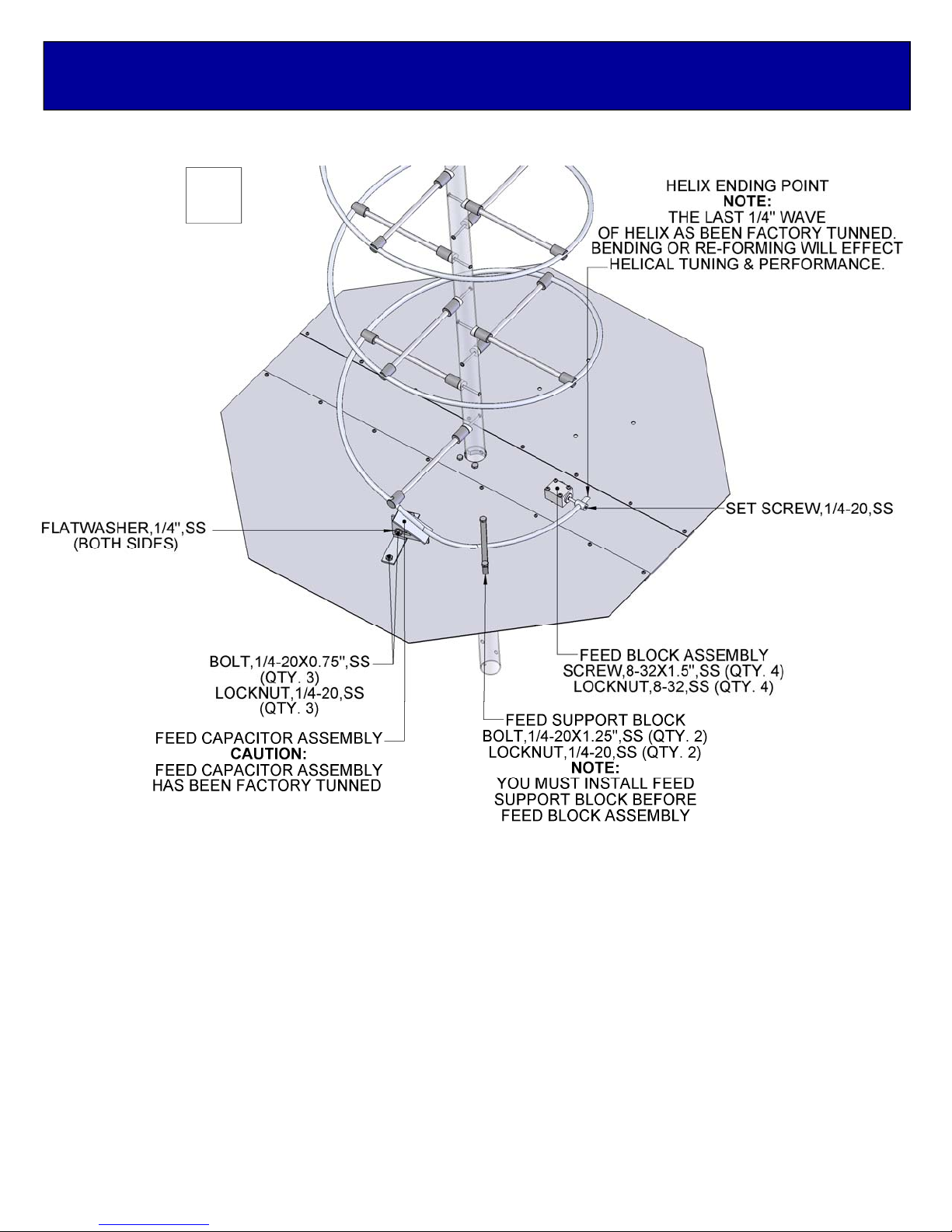

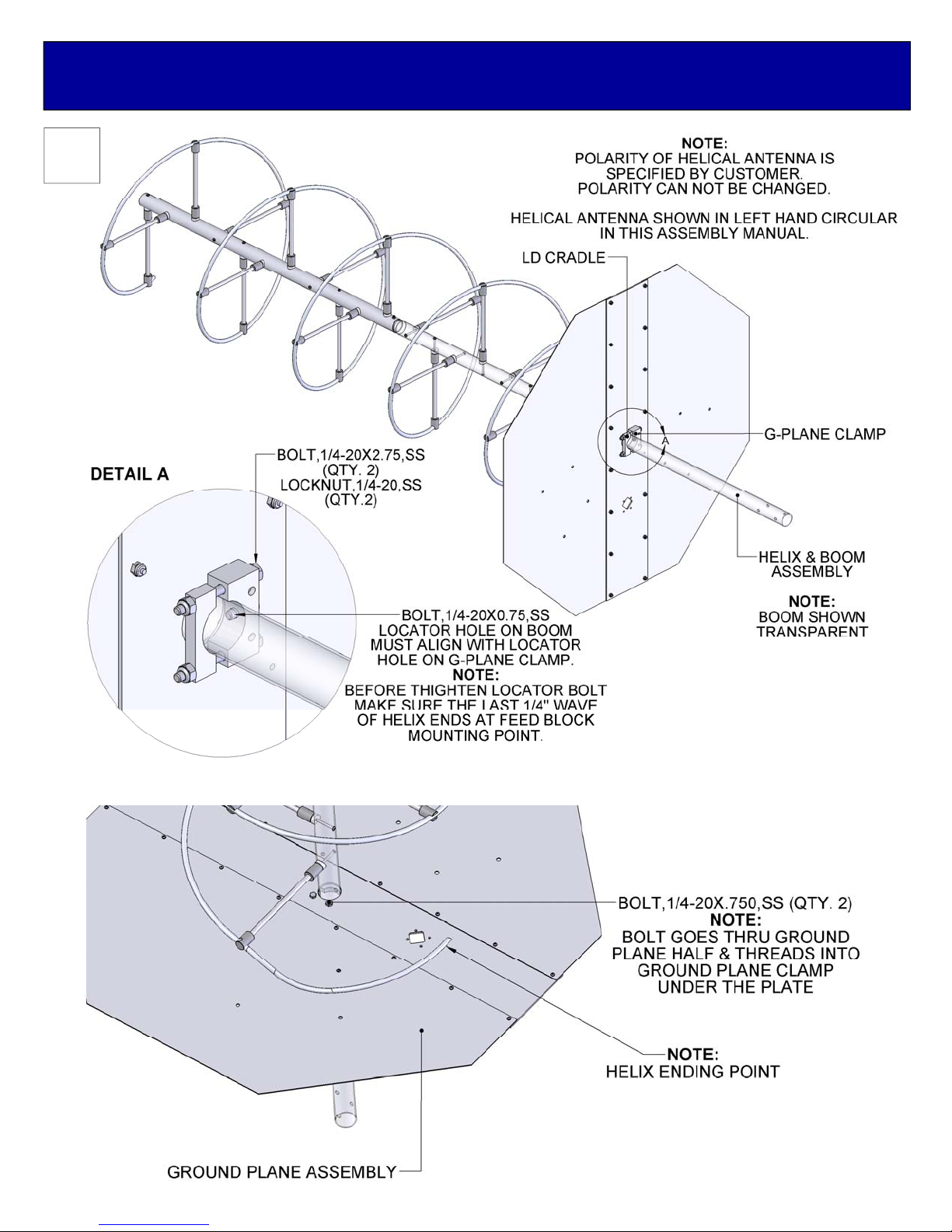

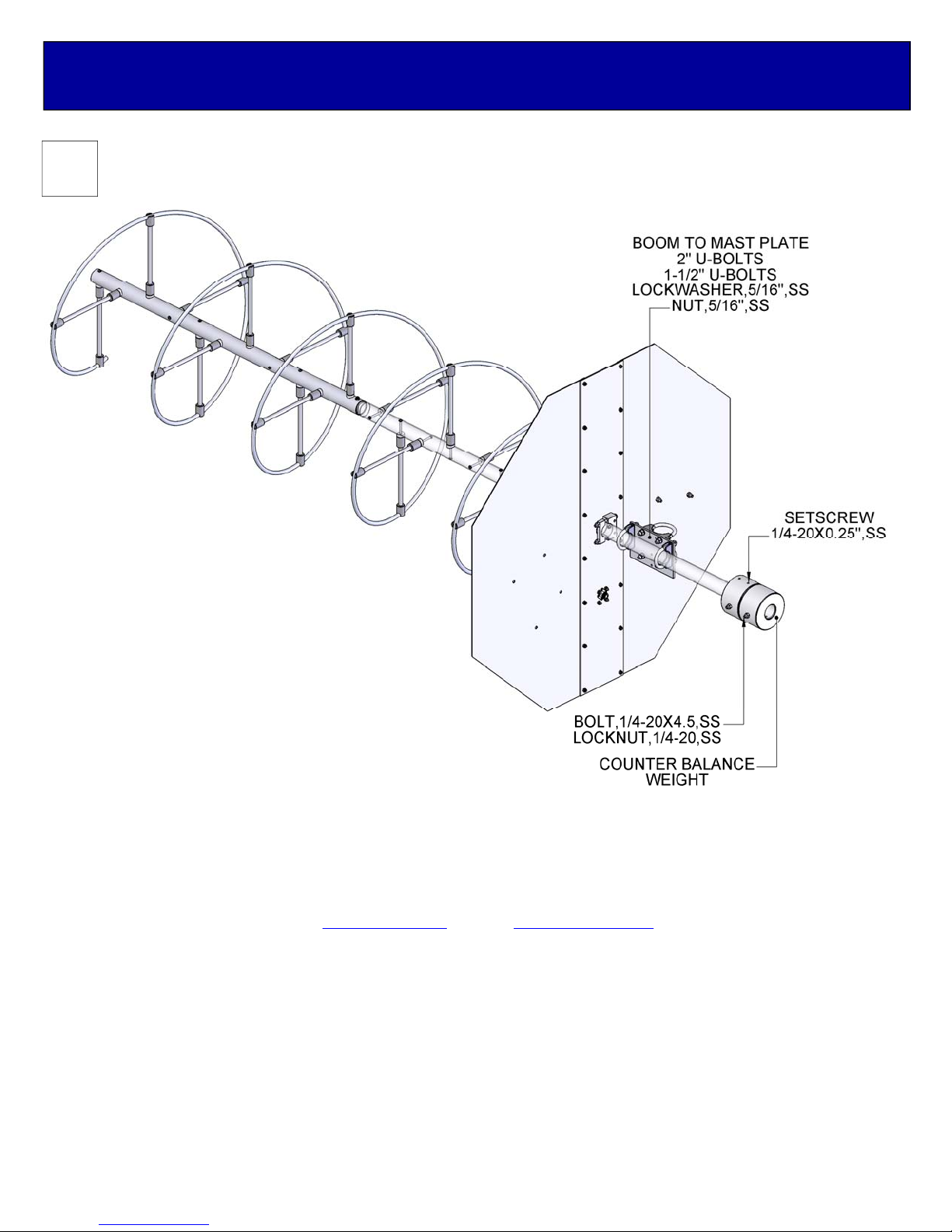

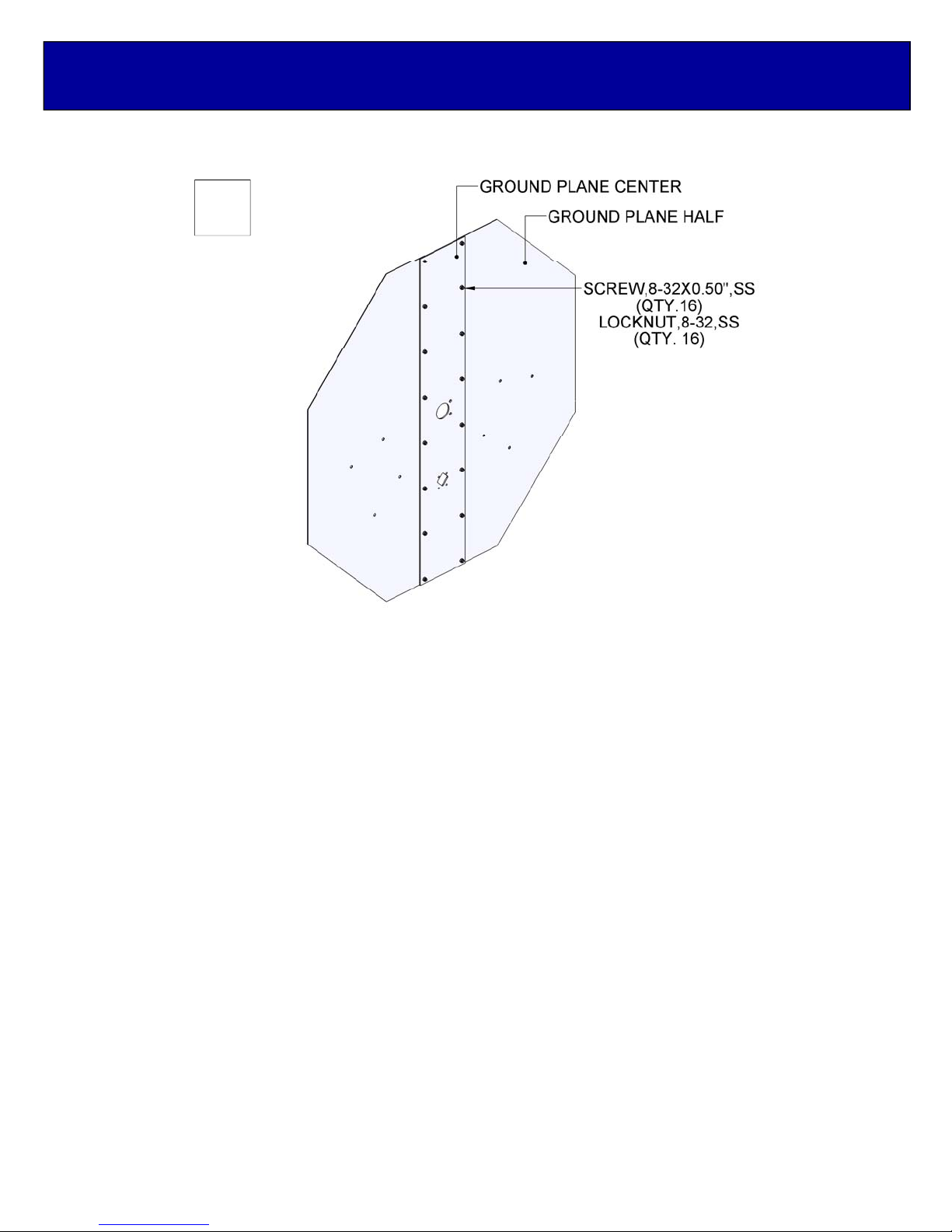

HELICAL 170-230-5 ASSEMBLY

HELICAL 170-230-5 PARTS & HARDWARE

DESCRIPTION......................................................................................... QTY

HELIX & BOOM ASSEMBLY ................................................................... 1

FEED BLOCK ASSEMBLY......................................................................1

FEED SUPPORT BLOCK........................................................................1

GROUND PLANE CENTER..................................................................... 1

GROUND PLANE HALF ..........................................................................2

G-PLANE CLAMP (R. 0.750) ...................................................................1

LD CRADLE. 1.5”..................................................................................... 1

BOOM TO MAST PLATE, 3/16” X 4” X 6”, (M2APT0022)........................ 1

FEED CAPACITOR ASSEMBLY (FACTORY TUNED)............................1

COUNTER BALANCE WEIGHT ..............................................................2

U-BOLT & CRADLE, 2.0”......................................................................... 2

U-BOLT & CRADLE, 1.5”......................................................................... 2

ASSEMBLY MANUAL..............................................................................1

HARDWARE:

LOCKWASHER, 5/16”, SS.......................................................................8

NUT, 5/16-18, SS.....................................................................................8

BOLT, 1/4-20 X 4-1/2”, SS....................................................................... 2

BOLT, 1/4-20 X 2-3/4”, SS....................................................................... 2

BOLT,1/4-20 X 1-1/4”, SS........................................................................ 2

BOLT, 1/4-20 X 3/4”, SS .......................................................................... 6

SET SCREW, 1/4-20 X 1/4”, SS ..............................................................5

FLATWASHER,1/4,SS.............................................................................2

LOCKNUT, 1/4-20, SS............................................................................. 9

SCREW, 8-32 X 1-1/2”, SS ......................................................................4

SCREW, 8-32 X 1/2”, SS .........................................................................16

LOCKNUT, 8-32, SS................................................................................20

ALLEN HEAD WRENCH, 1/8”.................................................................. 1

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]
