SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

SRM350v3 & SRM450v3

The most widely used portable speakers ever; the all-new

SRM450 and SRM350 deliver the unparalleled ease-of-use,

professional sound quality and indestructible portability that

made SRM a live sound legend. Now packed with 1000W of

power, the widest selection of truly useful sound-enhancing

DSP and setup-friendly audio tools, SRM is ready for your

high-output application.

SRMs feature modern tools like application-speciﬁc

speaker modes and an automatic feedback destroyer,

each with a single-button interface that gets you optimized

performance in just seconds. And with the integrated

2-channel mixer, you can easily mix multiple sources.

Only SRMs deliver this level of power and sound quality

in such an indestructible, portable package.

FEATURES:

■1000W system power paired with custom transducers

deliver gig-level volumes with room to spare

■10" high-output LF driver [SRM350v3]

■12" high-output LF driver [SRM450v3]

■1.4" titanium dome compression driver

■High-Deﬁnition Audio Processing for professional

sound with unmatched clarity

■Patented acoustic correction developed with

touring geniuses at EAW®

■Precision 2-way crossover

■Driver time alignment and phase correction

■Quick one-button Speaker Mode selection

for application-speciﬁc voicing (PA, DJ, Monitor

and Soloist)

■Effortlessly eliminate nasty feedback with one-button

automatic Feedback Destroyer

■Integrated 2-channel mixer featuring dual Wide-Z™

inputs

■Handles anything from mics to guitars to mixers

with a single twist of the gain knob

■Includes stereo RCA inputs for easy connection

to music source

■Perfect for the singer/songwriter, plug in and leave

the mixer at home

■Smart Protect™DSP kicks in to protect your

investment when things get pushed a little too hard

■Monitor-speciﬁc angle and voicing mode perfect

for cutting through on stage

■Flyable for permanent install

■Proven highly-durable, portable design

■23.0 lb / 10.4 kg [SRM350v3]

■37.0 lb / 16.8 kg [SRM450v3]

Like us

Watch our dang videos

2/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

SRMv3 LOUDSPEAKER SPECIFICATIONS

Acoustic Performance

Frequency Response (–3 dB) 55 Hz – 20 kHz [SRM350v3]

47 Hz – 20 kHz [SRM450v3]

Frequency Response (–10 dB) 50 Hz – 23 kHz [SRM350v3]

42 Hz – 23 kHz [SRM450v3]

Max peak SPL 126 dB [SRM350v3]

128 dB [SRM450v3]

Crossover Point 3 kHz

Dispersion (H x V) 90˚ x 80˚ [SRM350v3]

90˚ x 45˚ [SRM450v3]

High-Frequency Section

Compression Driver 1.4 in / 36 mm

Diaphragm Material Titanium

Magnet Material Ferrite

Low-Frequency Section

Woofer Diameter 10.0 in / 254 mm [SRM350v3]

12.0 in / 305 mm [SRM450v3]

Cone Material Paper

Magnet Material Ferrite

Power Ampliﬁers

System Power Ampliﬁcation

Rated Power 500 watts rms

1000 watts peak

Low Frequency Power Ampliﬁer

Rated Power 400 watts rms

800 watts peak

Rated THD < 1%

Cooling Convection

Design Class D

High Frequency Power Ampliﬁer

Rated Power 100 watts rms

200 watts peak

Rated THD < 1%

Cooling Convection

Design Class AB

Input / Output

Channel 1

Mic-Line 8 k balanced

1/4" TRS, Wide-Z™1 M unbalanced

Channel 2

Mic-Line 8 k balanced

1/4" TRS, Wide-Z™1 M unbalanced

RCA 25 k unbalanced

Thru Male XLR balanced

[Passive when the Ch 1 / Mix switch

is in the “out” (Ch 1) position]

[Active when the Ch 1 / Mix switch

is in the “in” (Mix) position]

Power

US detachable line cord 100 – 120 VAC, 50 – 60 Hz, 160W

EU detachable line cord 220 – 240 VAC, 50 – 60 Hz, 160W

AC Connector 3-pin IEC 250 VAC, 10 A male

Power Supply Type Switchmode

Operating Temperature 0 - 40 ˚C

[extended ambient temperature] 32 - 104 ˚F

Safety Features

Input Protection Peak and RMS limiting, power supply

and ampliﬁer thermal protection

Display LEDs Defeatable front power, input

signal/OL, speaker mode,

feedback destroyer on/off and

active ﬁlters, system limiter

Construction Features

Cabinet Polypropylene

Finish Black, textured ﬁnish

Grille Perforated metal with

weather-resistant coating

Fly Points Three M10 x 1.5 x 20 mm [SRM450v3]

Monitor Angle 50˚ [SRM350v3]

40˚ [SRM450v3]

3/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

Mounting Methods

SRM350v3: Floor mount, pole mount or ﬂy via optional bracket.

SRM450v3: Floor mount, pole mount or ﬂy via three integrated

M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder

eyebolts).

Physical Properties (packaged product)

SRM350v3

Height 25.0 in / 635 mm

Width 15.2 in / 386 mm

Depth 13.2 in / 335 mm

Weight 29 lb / 13.2 kg

SRM450v3

Height 29.0 in / 737 mm

Width 17.5 in / 445 mm

Depth 17.0 in / 432 mm

Weight 43 lb / 19.5 kg

Physical Properties (product)

SRM350v3

Height 20.8 in / 527 mm

Width 13.1 in / 333 mm

Depth 12.3 in / 311 mm

Weight 23 lb / 10.4 kg

SRM450v3

Height 26.1 in / 663 mm

Width 16.0 in / 406 mm

Depth 14.8 in / 376 mm

Weight 37 lb / 16.8 kg

SRMv3 LOUDSPEAKER SPECIFICATIONS CONT...

Options

SRM350v3 Loudspeaker Bag P/N 093-024-00

SRM450v3 Loudspeaker Bag P/N 0002843

SPM200 Loudspeaker Pole Mount P/N 2035170-01

PA-A1 Forged Shoulder Eyebolt Kit

(3 x M10 x 1.5 x 20 mm) P/N 0031943

SRM350v3 Bracket Kit P/N 0016404

Ordering Information

SRM350v3 1000W Powered Loudspeaker, US

P/N 2042789-00

SRM350v3 1000W Powered Loudspeaker, EU

P/N 2042789-01

SRM350v3 1000W Powered Loudspeaker, UK

P/N 2042789-03

SRM350v3 1000W Powered Loudspeaker, AU

P/N 2042789-04

SRM350v3 1000W Powered Loudspeaker, CN

P/N 2042789-05

SRM350v3 1000W Powered Loudspeaker, BZ (120V)

P/N 2042789-06

SRM350v3 1000W Powered Loudspeaker, BZ (230V)

P/N 2042789-16

SRM450v3 1000W Powered Loudspeaker, US

P/N 2042790-00

SRM450v3 1000W Powered Loudspeaker, EU

P/N 2042790-01

SRM450v3 1000W Powered Loudspeaker, UK

P/N 2042790-03

SRM450v3 1000W Powered Loudspeaker, AU

P/N 2042790-04

SRM450v3 1000W Powered Loudspeaker, CN

P/N 2042790-05

SRM450v3 1000W Powered Loudspeaker, BZ (120V)

P/N 2042790-06

SRM450v3 1000W Powered Loudspeaker, BZ (230V)

P/N 2042790-16

4/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.

2. WEIGHT APPROX. 23.0 lb [10.4 kg].

3. SHIPPING WEIGHT APPROX. 29 lb [13.2 kg].

FRONT SIDE TOP

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

10.6

[270]

12.3

[311]

13.1

[333]

5.7

[146]

7.0

[179]

20.8

[527]

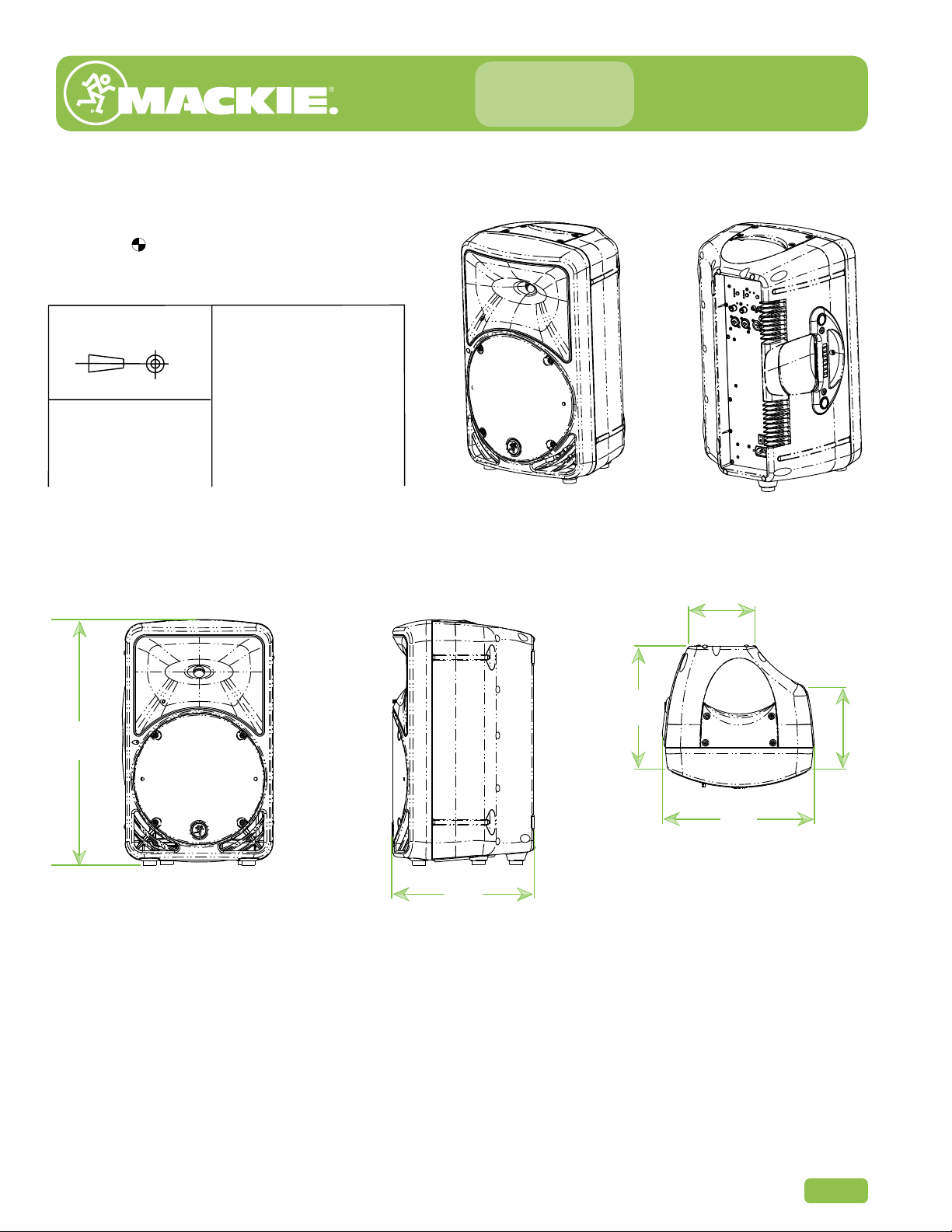

SRM350v3 LOUDSPEAKER DIMENSIONS

5/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.

2. WEIGHT APPROX. 37.0 lb [16.8 kg].

3. SHIPPING WEIGHT APPROX. 43 lb [19.5 kg].

FRONT SIDE TOP

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

12.6

[321]

14.8

[376]

16.0

[406]

8.6

[218]

8.1

[207]

26.1

[663]

SRM450v3 LOUDSPEAKER DIMENSIONS

6/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

OFF

POWER

SIG/OL SIG/OL

CH 1

MIX

MAXOFF

LINE MIC

MAXOFF

LINE MIC

MON

SOLO

1ON

HOLD TO

CLEAR

LIMIT

LED

OFF

POWER CONSUMPTION 160W

R L

GAIN GAIN

SPEAKER

MODE

FEEDBACK

DESTROYER MAIN

OFF

POWER

SIG/OL SIG/OL

CH 1

MIX

MAXOFF

LINE MIC

MAXOFF

LINE MIC

MON

SOLO

1ON

HOLD TO

CLEAR

LIMIT

LED

OFF

POWER CONSUMPTION 160W

R L

GAIN GAIN

SPEAKER

MODE

FEEDBACK

DESTROYER MAIN

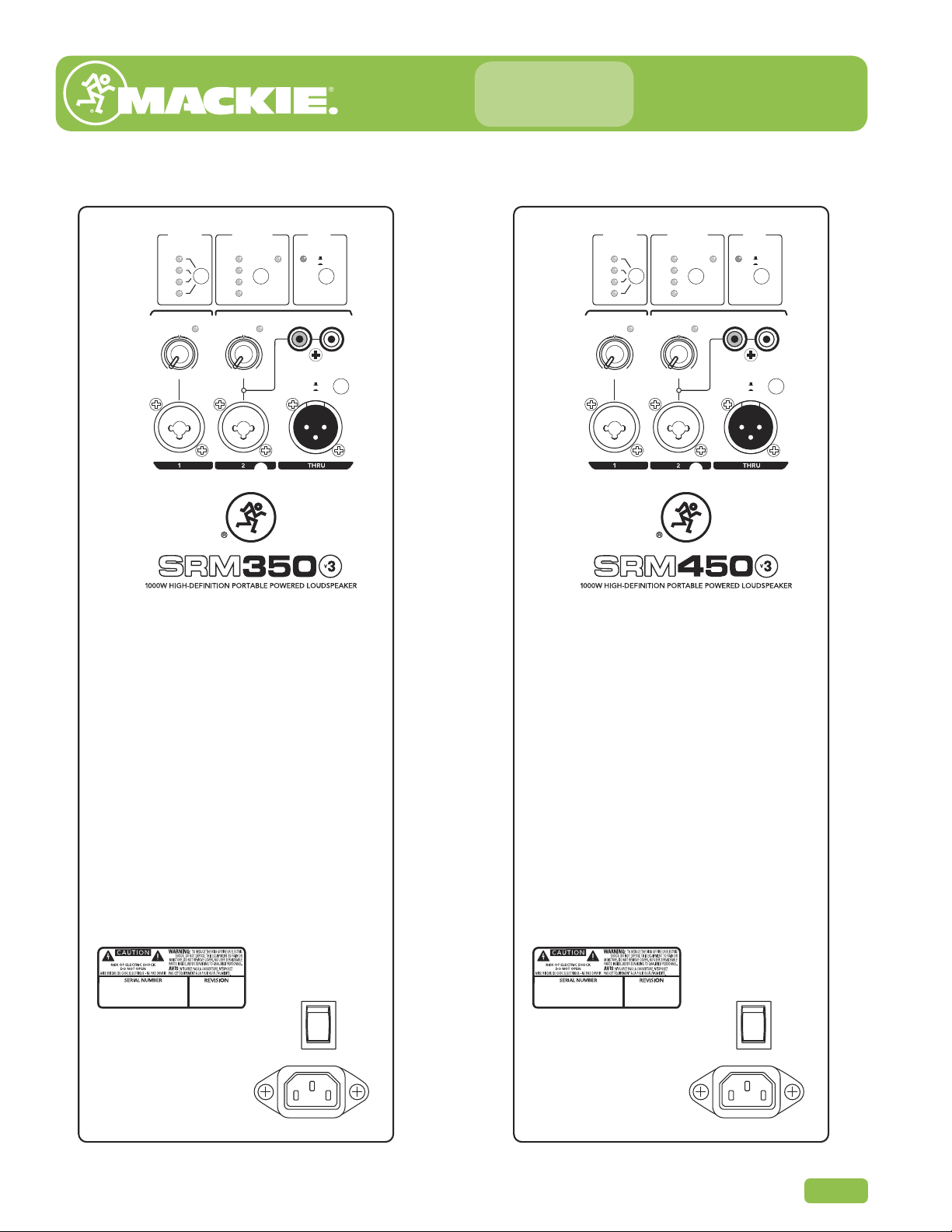

SRMv3 LOUDSPEAKER REAR PANEL

7/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

XLR + TRS COMBO

LEVEL

ADC

Limit

ADC

THRU

DAC

AMP

Limit

XOver

DAC

AMP STATUS

0 dB fixed gain

Feedback

Destroyer

Speaker

Mode

ON / OFF

HOLD TO CLR

ON1

SOLO

MODE

LIMIT

MON

LED

ON / OFF

MAIN

FEEDBACK

DESTROYER

SPEAKER

MODE

USER CONTROLS

FRONT LED

XLR: OFF | +20 dB | +40 dB

GAIN: CCW | 12:00 | CW

TRS (WIDE-Z): OFF | 0 dB | +20 dB

RCA

THRU

XLR + TRS COMBO

LEVEL

XLR: OFF | +20 dB | +40 dB

GAIN: CCW | 12:00 | CW

RCA: OFF | 0 dB | +20 dB

TRS (WIDE-Z): OFF | 0 dB | +20 dB

XLR

-20 dB

PAD

DSP

DIGITAL BUS

LEVEL

DETECT

LEVEL

DETECT

-20 dB

PAD

-20 dB

PAD

ADC

Limit

AMP

CH1

MIX

Acoustic

Correction

Acoustic

Correction

Smart

Protect

High Definition

Audio Processing

Smart

Protect

FIR

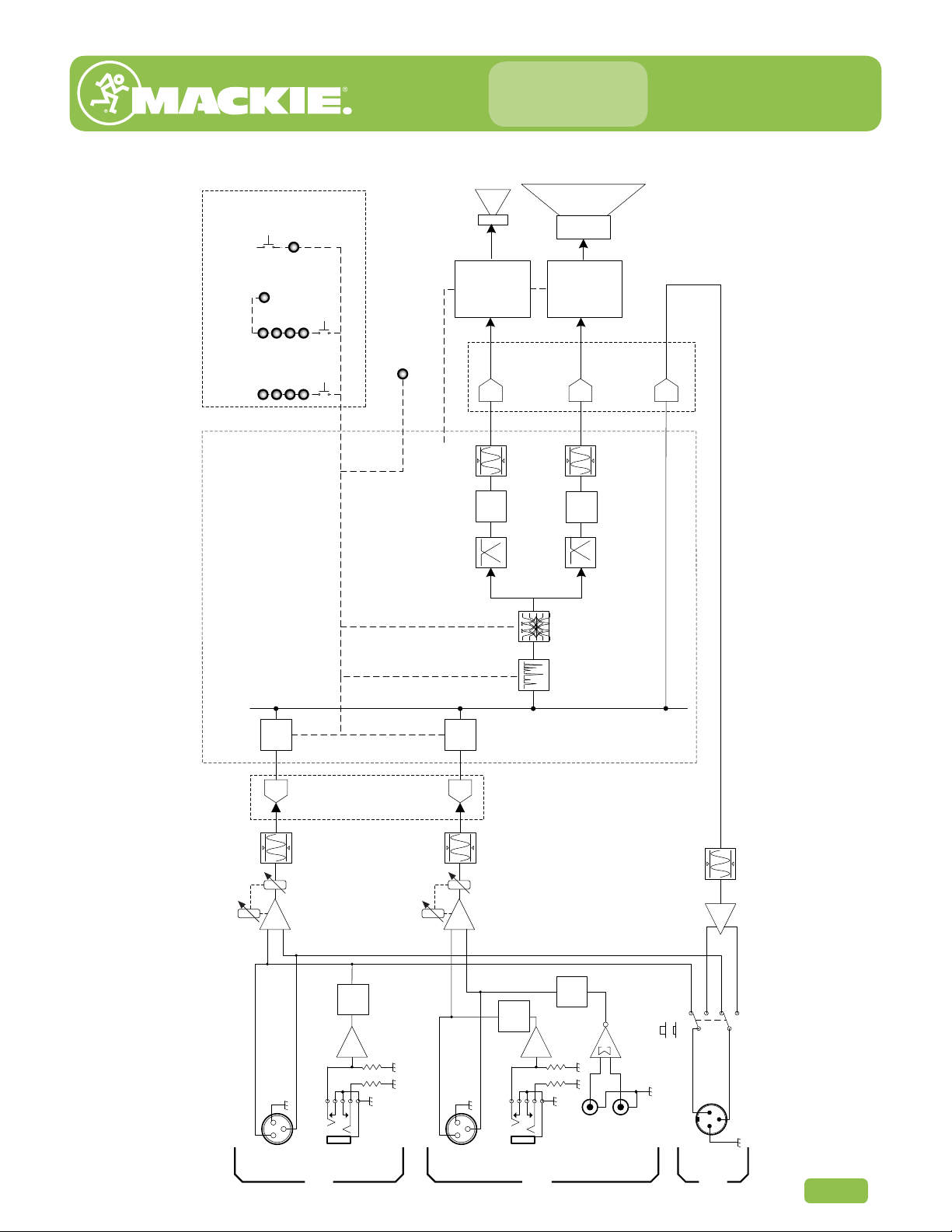

SRMv3 BLOCK DIAGRAM

8/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

Top

900Dispersion

up to 20 kHz

900

OFF

POWER

SIG/OL SIG/OL

CH1

MIX

MAXOFF

LINE MIC

MAXOFF

LINE MIC

MON

SOLO

1ON

HOLDTO

CLEAR

LIMIT

LOGO

OFF

POWERCONSUMPTION 160W

R L

GAIN GAIN

SPEAKER

MODE

FEEDBACK

DESTROYER MAIN

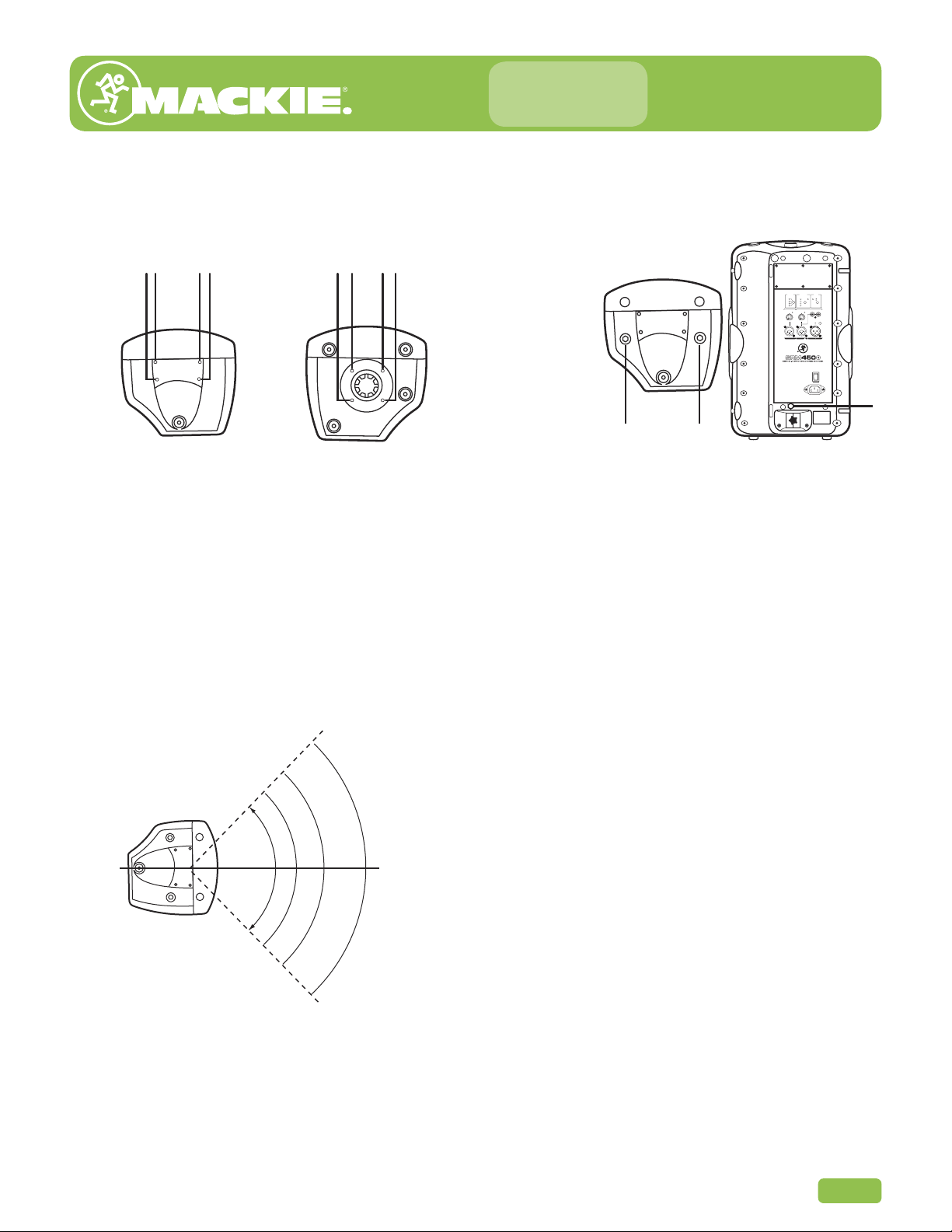

SRMv3 WIDE HIGH-FREQUENCY DISPERSION

SRM350v3 INSERTS SRM450v3 FLY POINTS

MP = Mounting PointM5 inserts for mounting optional hanging bracket

MPMP

TOP TOPBOTTOM REAR

9/9 PAGES

SRM350v3

SRM450v3 1000W High-Deﬁnition

Powered Loudspeakers

Part No. SW1063 Rev. A 03/14

■PA Speaker Mode – This mode is full range,

but focuses on mid-range clarity where vocals

often reside.

■Soloist Speaker Mode – This mode features a low

frequency roll-off to get rid of unwanted thumps

and adds boost and sparkle to mid-range and high

frequencies. This mode is perfect for plug-and-play

singer-songwriters.

■DJ Speaker Mode – This mode bumps the lows

and highs with a mild tuck to the mids, perfect

for music playback.

■Monitor Speaker Mode – This mode features a low

frequency roll-off and a reduction around 2 kHz

to ensure maximum gain before feedback in monitor

applications.

DLM LOUDSPEAKER FREQUENCY RESPONSE LEGEND

Frequency (Hz)

–20 dB

–10 dB

+10 dB

0 dB

100 1000 20000 10000

Frequency (Hz)

–20 dB

–10 dB

+10 dB

0 dB

100 1000 20000 10000

Electronic ﬁles for this product are available at:

www.mackie.com

Speciﬁcation Sheet SRMv3_SS.PDF

Owner’s Manual SRMv3_OM.PDF

www.mackie.com

16220 Wood-Red Road NE

Woodinville, WA 98072 USA

800-898-3211, Fax 425-487-4337

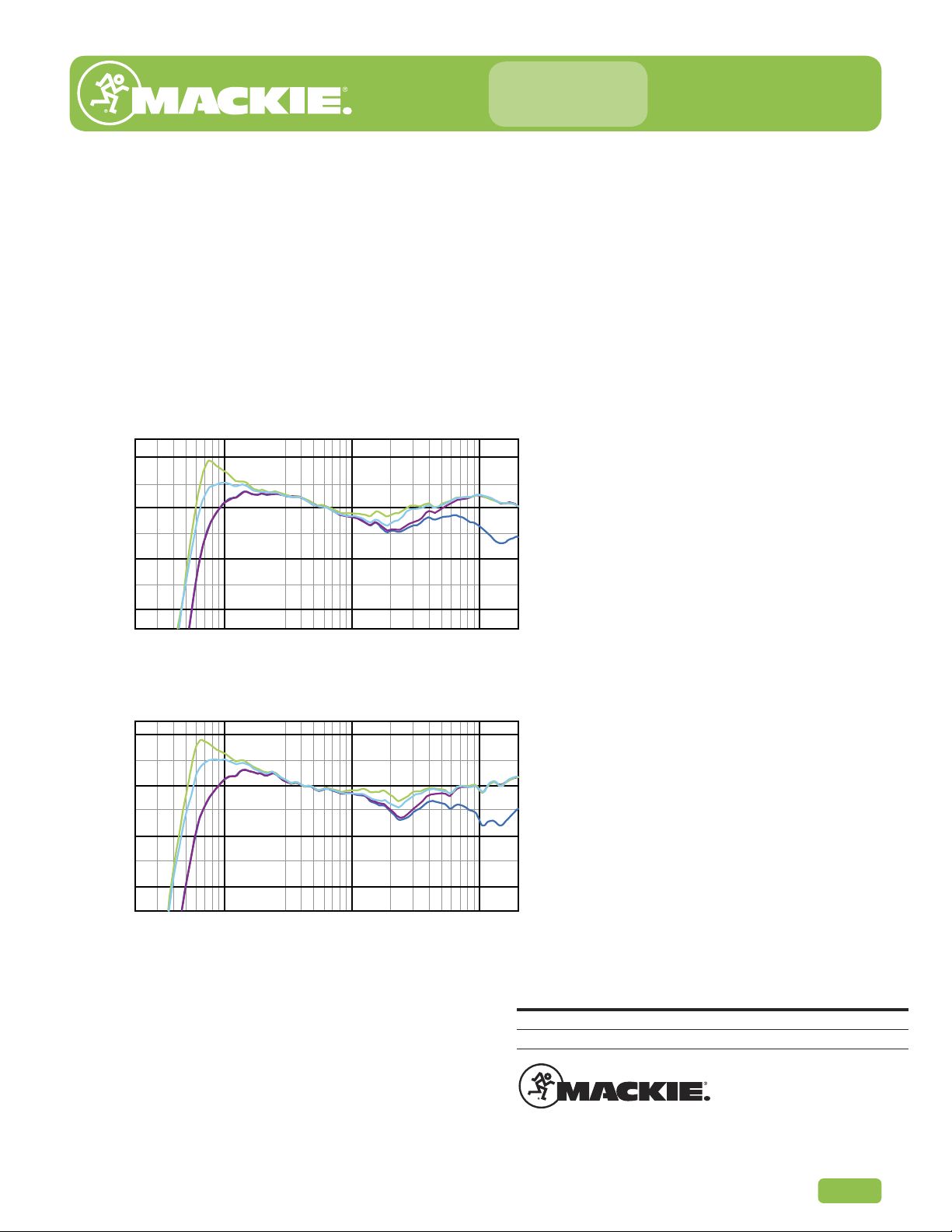

SRM350v3 LOUDSPEAKER FREQUENCY RESPONSE

SRM450v3 LOUDSPEAKER FREQUENCY RESPONSE

LOUD Technologies Inc. is always striving to improve our products

by incorporating new and improved materials, components, and

manufacturing methods. Therefore, we reserve the right to

change these speciﬁcations at any time without notice.

“Mackie” and the “Running Man” ﬁgure are registered trademarks of

LOUD Technologies Inc. All other brands mentioned are trademarks

or registered trademarks of their respective holders, and are hereby

acknowledged.

Dieses Handbuch passt für folgende Modelle

Andere Mackie Sprecher Handbücher

Mackie

Mackie S225 Wartungshandbuch

Mackie

Mackie DLM8 Bedienungsanleitung

Mackie

Mackie SRT21D Bedienungsanleitung

Mackie

Mackie FreePlay HOME Bedienungsanleitung

Mackie

Mackie Thump15BST Bedienungsanleitung

Mackie

Mackie SR1521Z Bedienungsanleitung

Mackie

Mackie SRM350 V2 Bedienungsanleitung

Mackie

Mackie TH-12A Bedienungsanleitung

Mackie

Mackie MR8 Bedienungsanleitung

Mackie

Mackie SRM450v3 Bedienungsanleitung

Mackie

Mackie HR824 MK2 Bedienungsanleitung

Mackie

Mackie S500 Series Bedienungsanleitung

Mackie

Mackie S408 Bedienungsanleitung

Mackie

Mackie SRM210 V-Class Bedienungsanleitung

Mackie

Mackie SRM 150 Compact Bedienungsanleitung

Mackie

Mackie CR-X Series Bedienungsanleitung

Mackie

Mackie SRM 150 Compact Bedienungsanleitung

Mackie

Mackie SRM550 Bedienungsanleitung

Mackie

Mackie S225 Bedienungsanleitung

Mackie

Mackie S408 Betriebsanleitung

Mackie

Mackie CR-X Series Bedienungsanleitung

Mackie

Mackie iP-10 Bedienungsanleitung

Mackie

Mackie HR824 Bedienungsanleitung

Mackie

Mackie MR3STK Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
