Mackie TH-12A Bedienungsanleitung

TH-12A

POWERED

LOUDSPEAKER

1/4 PAGES

FEATURES:

■

2-way bi-ampliﬁed, optimized powered loudspeaker

system

■

400W peak of ultra-efﬁcient Fast Recovery™

ampliﬁcation

 •LF300Wpeakpower(Class-D)

 •HF100Wpeakpower(Class-A/B)

■ High-outputtransducers

 •12"high-precisionwoofer

 •1"compression driver

■ MackieActiveelectronicsprovidetotalsystem 

optimization

 •Precision2-waycrossover

 •Transducertime-alignment

■ User-adjustable3-bandcontourEQwithsweepable 

mid-frequency

■ Mic/Lineinputfordirectconnectionofamicrophone 

or mixer output

■ Tough,impact-resistantpolypropyleneenclosure

■ Pole-mountableandoorwedge-able

■ Extremelylightweightandportable(25.5lb/11.6kg)

TH-12A

The Mackie TH-12A is a full-range, portable, powered

loudspeaker system providing high-output, ultra-wide

dispersion and low-distortion performance in a compact,

lightweight design. Two Fast Recovery™ ampliﬁers

independently power a 12-inch neodymium woofer and a

precision 1-inch compression driver. Mackie’s sophisticated

Active electronics provide phase correction, crossover, time

correction, equalization and protection circuitry.

Mackie-designed Active electronics provide a host of

processing designed to enhance the performance of the

TH-12A. Equalization, crossover, and time alignment

are working at all times to improve sonic performance.

Protective circuitry includes over-excursion protection,

thermal protection shutdown, auto reset, and driver

protection, including independent HF and LF compressors.

The TH-12A features a number of dedicated controls

including an EQ on/off switch, a 3-band EQ/contour section,

and a single microphone and line input level control.

The center of gravity, handle locations, handle design, and

ease of use have been ergonomically designed. There is also

an integrated pole mount cup and a weather-resistant steel

grille. The trapezoidal cabinet has been designed to provide

an ideal ﬂoor monitoring position.

The cabinet is constructed of high-pressure injected

polypropylene. The enclosure features reinforcement ribbing

and structural strengthening resulting in a strong, super-rigid

design providing ideal acoustical characteristics.

APPLICATIONS

Small club/band PA systems, houses of worship, DJs,

vocal/band monitor wedges, gymnasiums, banquet halls,

conference rooms and many, many more.

TH-12A

POWERED

LOUDSPEAKER

2/4 PAGES

TH-12A SPECIFICATIONS

Acoustic Performance

Frequency Response (–10 dB) 57 Hz - 20 kHz

Frequency Response (–3 dB) 70 Hz - 18.5 kHz

Horizontal Coverage Angle 90˚

Vertical Coverage Angle 60˚

Max SPL long-term 117 dB @ 1 m

Max SPL peak 120 dB @ 1 m

Input / Output

Input Type Female XLR Balanced/Unbalanced

Input Impedance 20 k balanced bridging

10 k unbalanced

Loop-through Male XLR Balanced/Unbalanced

(parallel with input)

Level Control Rotating knob

0 dB at center

Sensitivity +4 dBu for full output

(Level Control @ Center)

–36 dBu for full output

(Level Control @ Max)

Transducers

Low Frequency 12 in / 305 mm with steel frame,

paper cone woofer

High Frequency Horn-loaded 1 in / 25 mm exit,

compression driver

Power Ampliers

Low Frequency Power Ampliﬁer

Rated Power 150 watts, 8 load

300 watts peak

Signal-to-Noise Ratio >94 dB, 20 Hz to 20 kHz, unweighted,

referenced to 138 watts into 8

Design BTL Class D

High Frequency Power Ampliﬁer

Rated Power 50 watts, 4 load

100 watts peak

Signal-to-Noise Ratio >97 dB, 20 Hz to 20 kHz, unweighted,

referenced to 50 watts into 4

Design Class AB

Electronic Crossover

Crossover Type 24 dB / octave

Crossover Frequency 3 kHz

Equalization

Low ±15 dB @ 80 Hz

Mid ±15 dB sweep 100 Hz-8 kHz

High ±15 dB @ 12 kHz

Direct/EQ Switch Bypasses EQ section

Protection Features

Over-excursion Protection Second-order sub-sonic ﬁlter

Thermal Protection Independent ampliﬁer

shutdown, auto reset

Driver Protection Independent HF and LF compressors

AC Power Requirements

US 100 – 120 VAC, 50 – 60 Hz

320W

EU 200 – 240 VAC, 50 – 60 Hz

320W

AC Connector 3-pin IEC 250 VAC, 20 A male

Construction Features

Basic Design Trapezoidal

Material Polypropylene

Finish Textured

Handles One on each side, one on top

Grille Perforated metal with weather-resistant coating

Display LEDs

Front Power ON

Rear Power ON, OL (overload)

Operating Temperature 0˚ - 40˚C

32˚ - 104˚F

Physical Properties (packaged product)

Height 25.0 in / 635 mm

Width 15.2 in / 386 mm

Depth 13.2 in / 335 mm

Shipping Weight 30.2 lb / 13.7 kg

Physical Properties (product)

Height 23.5 in / 596 mm

Width 14.5 in / 367 mm

Depth 12.4 in / 314 mm

Net Weight 25.5 lb / 11.6 kg

Mounting Methods

Pole-mountable via the built-in socket on the bottom of the cabinet.

Be sure the pole is capable of supporting the weight of the TH-12A.

Options

SPM200 Loudspeaker Pole Mount P/N 2035170-01

Ordering Information

TH-12A 12" 2-Way Compact SR Loudspeaker, US

P/N 2035672-00

TH-12A 12" 2-Way Compact SR Loudspeaker, EU

P/N 2035672-01

3/4 PAGES

TH-12A

POWERED

LOUDSPEAKER

S1B?;

5aT`dT]Rh7i



(

'

&

%

$

!       :!:

596

[23.5]

160

[6.3]

357

[14.1]

152

[6.0]

522

[20.6]

314

[12.4]

367

[14.5]

579

[22.8] NOTES:

1. WEIGHT APPROX. 11.6 kg [25.5 lb]

2. SHIPPING WEIGHT APPROX. 13.7 kg [30.2 lb]

CONTOUR EQ

LEVEL

+15-15

600

8k100

MAX

FREQ

HIGH

12kHz

LOW

80Hz

MID

THRU

CONTOUR EQ

INPUT

POWER

OFF

TH-12A FREQUENCY RESPONSE TH-12A INPUT PANEL

TH-12A DIMENSIONS

Part No. SW0892 Rev. B 03/11

4/4 PAGES

TH-12A

POWERED

LOUDSPEAKER

Amp

Digital to

Analog

Converter

Digital to

Analog

Converter

Analog to

Digital

Converter

OL LED Limiter

Limiter

Mute

Level

Control

Loudspeaker

Processing

Loudspeaker

Processing

3-Band Contour EQ

80 100-8K 12K

LO MID HI

Thermal

Monitoring

Input

XLR

Loop

Out

XLR

Since we are always striving to make our products better by

incorporating new and improved materials, components, and

manufacturing methods, we reserve the right to change these

specications at any time without notice. “Mackie” and the “Running

Man” gure are registered trademarks of LOUD Technologies Inc.

All other brand names mentioned are trademarks or registered

trademarks of their respective holders, and are hereby acknowledged.

Electronic les for this product are available at:

www.mackie.com

Speciﬁcation Sheet TH-12A_SS.PDF

Owner’s Manual TH-12A_OM.PDF

www.mackie.com

16220 Wood-Red Road NE

Woodinville, WA 98072 USA

800-898-3211, Fax 425-487-4337, [email protected]

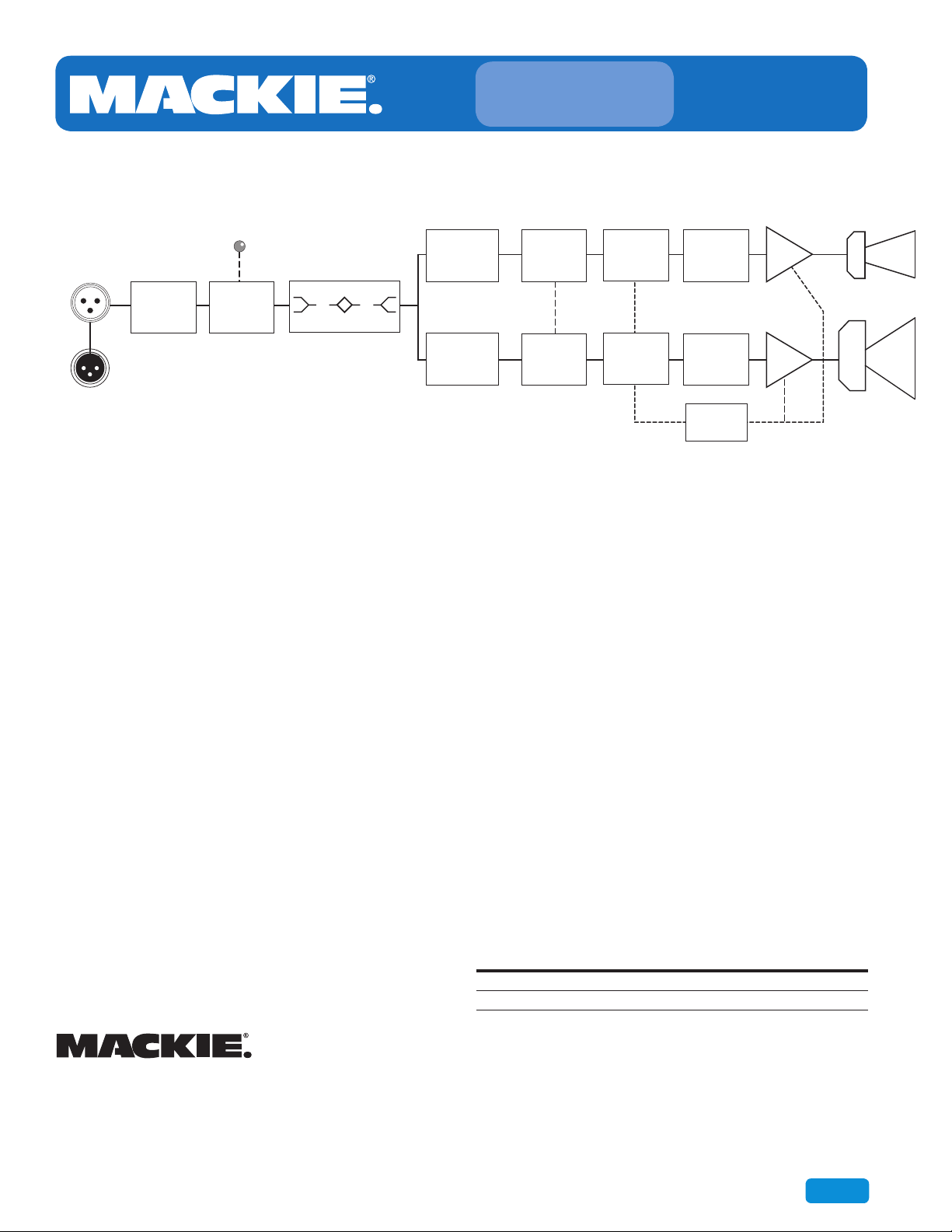

TH-12A BLOCK DIAGRAM
