Thump12

Thump15 1000W

Powered Loudspeakers

Thump12 and Thump15

Only Thump Powered Loudspeakers deliver the class-

leading, chest-thumping low end you deserve. Each Thump

loudspeaker delivers 1000 watts of power, providing the

high-output you need in a package that’s tough, lightweight

and portable.

Thump loudspeakers offer a 3-band EQ for dialing in the

ideal sound. And with a rugged enclosure and robust system

protection, you’re more than ready for the next gig.

Delivering real-world power levels, application ﬂexibility

and class-leading bass response, you can be conﬁdent that

Thump loudspeakers offers the best performance for your

money.

FEATURES:

■1000W Total System Power

■Gig-ready, high-output design

■Ultra-efﬁcient Class-D ampliﬁcation

■Class-leading, Chest-thumping Low End

■12" High-output woofer [Thump12]

■15" High-output woofer [Thump15]

■1.4" Titanium dome compression driver

■Dynamic bass response delivers amazing

lows at all volumes

■Total System Optimization

■Precision 2-way crossover

■Transducer time alignment

■System protection / limiting

■Application Flexible

■3-band EQ with sweepable mid to dial

in the perfect sound

■Mic/line input allows direct connection

of microphone

■Flexible mounting options including tripod

and pole-mounting

■Angled design perfect for use as a stage monitor

■Lightweight and Portable

■Rugged polypropylene construction designed

for heavy use

■29.0 lb / 13.2 kg [Thump12]

■33.2 lb / 15.1 kg [Thump15]

Like us

Watch our dang videos

2/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

THUMP12 / THUMP15 TECH SPECS

Acoustic Performance

Frequency Response (–3 dB) 57 Hz – 20 kHz [Thump12]

39 Hz – 20 kHz [Thump15]

Frequency Response (–10 dB) 50 Hz – 23 kHz [Thump12]

32 Hz – 23 kHz [Thump15]

Horizontal Coverage Angle 90˚

Vertical Coverage Angle 60˚

Maximum SPL Peak 125 dB SPL @ 1m [Thump12]

126 dB SPL @ 1m [Thump15]

High-Frequency Section

Compression Driver 1.4 in / 36 mm

Diaphragm Material Titanium

Magnet Material Ferrite

Low-Frequency Section

Woofer Diameter 12.0 in / 305 mm [Thump12]

15.0 in / 381 mm [Thump15]

Cone Material Paper

Magnet Material Ferrite

Power Ampliﬁers

System Power Ampliﬁcation

Rated Power 500 watts rms

1000 watts peak

Low Frequency Power Ampliﬁer

Rated Power 400 watts rms

800 watts peak

Design Class D

High Frequency Power Ampliﬁer

Rated Power 100 watts rms

200 watts peak

Design Class AB

Input / Output

Input Type Female XLR / 1/4" Balanced

Input Impedance 20 k balanced bridging;

10 k unbalanced

Thru Male XLR balanced

Level Control Rotating Knob

0 dB at center

Sensitivity +4 dBu for full output

(Level Control @ Center)

–36 dBu for full output

(Level Control @ Max)

Electronic Crossover

Crossover Type 24 dB/octave

Crossover Frequency 3 kHz

Equalization

Low Frequency EQ ±6 dB @ 80 Hz, shelving

Mid Frequency EQ ±6 dB sweepable from

100 Hz to 8 kHz

High Frequency EQ ±6 dB @ 12 kHz, shelving

Power

US detachable line cord 100 – 120 VAC, 50 – 60 Hz, 130W

EU detachable line cord 220 – 240 VAC, 50 – 60 Hz, 130W

AC Connector 3-pin IEC 250 VAC, 10 A male

Power Supply Type Switchmode

Operating Temperature 0 - 40 ˚C

[extended ambient temperature] 32 - 104 ˚F

Safety Features

Input Protection Peak and RMS limiting,

power supply and

ampliﬁer thermal protection

Display LEDs Front / rear power ON,

Rear OL (Overload)

3/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

Construction Features

Basic Design Trapezoidal

Cabinet Polypropylene

Finish Textured

Handles One on each side, one on top

Grille Perforated metal with

weather-resistant coating

Monitor Angle 50˚ [Thump12]

45˚ [Thump15]

Mounting Methods

Pole-mountable via the built-in socket on the bottom of the

cabinet. Be sure the pole is capable of supporting the weight

of the Thump loudspeaker.

Physical Properties (packaged product)

Thump12

Height 25.0 in / 635 mm

Width 15.2 in / 386 mm

Depth 13.2 in / 335 mm

Weight 32 lb / 14.5 kg

Thump15

Height 29.0 in / 737 mm

Width 17.5 in / 445 mm

Depth 17.0 in / 432 mm

Weight 36.0 lb / 16.3 kg

Physical Properties (product)

Thump12

Height 23.5 in / 596 mm

Width 14.5 in / 367 mm

Depth 12.4 in / 314 mm

Weight 29.0 lb / 13.2 kg

Thump15

Height 27.6 in / 702 mm

Width 16.8 in / 427 mm

Depth 15.5 in / 394 mm

Weight 33.2 lb / 15.1 kg

THUMP12 / THUMP15 TECH SPECS CONTINUED...

Options

SPM200 Loudspeaker Pole Mount P/N 2035170-01

Thump12

Loudspeaker Bag P/N 2036809-07

Thump15

Loudspeaker Bag P/N 2036809-06

Ordering Information

Thump12 1000W 12" Powered Loudspeaker, US

P/N 2042230-00

Thump12 1000W 12" Powered Loudspeaker, EU

P/N 2042230-01

Thump12 1000W 12" Powered Loudspeaker, UK

P/N 2042230-03

Thump12 1000W 12" Powered Loudspeaker, AU

P/N 2042230-04

Thump12 1000W 12" Powered Loudspeaker, CN

P/N 2042230-05

Thump12 1000W 12" Powered Loudspeaker, BZ (120V)

P/N 2042230-06

Thump12 1000W 12" Powered Loudspeaker, BZ (230V)

P/N 2042230-16

Thump15 1000W 15" Powered Loudspeaker, US

P/N 2042231-00

Thump15 1000W 15" Powered Loudspeaker, EU

P/N 2042231-01

Thump15 1000W 15" Powered Loudspeaker, UK

P/N 2042231-03

Thump15 1000W 15" Powered Loudspeaker, AU

P/N 2042231-04

Thump15 1000W 15" Powered Loudspeaker, CN

P/N 2042231-05

Thump15 1000W 15" Powered Loudspeaker, BZ (120V)

P/N 2042231-06

Thump15 1000W 15" Powered Loudspeaker, BZ (230V)

P/N 2042231-16

4/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.

2. WEIGHT APPROX. 29.0 lb [13.2 kg].

3. SHIPPING WEIGHT APPROX. 32 lb [14.5 kg].

TOPSIDEFRONT

BOTTOM

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

12.4

[314]

14.0

[357]

6.0

[152]

6.1

[155]

7.7

[196]

5.0

[127]

22.8

[579]

23.5

[596]

22.0

[559]

14.5

[367]

6.6

[168]

11.6

[295]

8.8˚

6.0˚

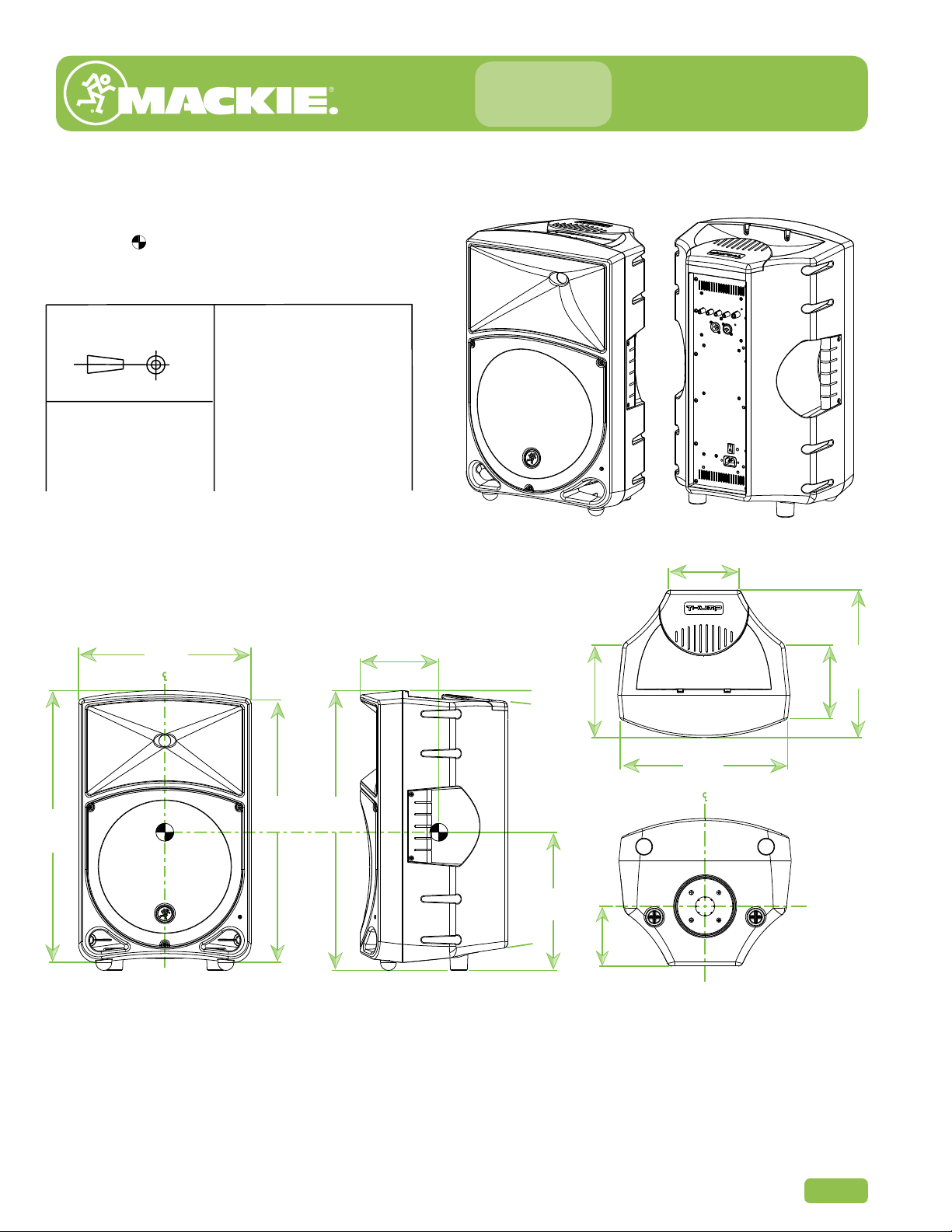

THUMP12 LOUDSPEAKER DIMENSIONS

5/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.

2. WEIGHT APPROX. 33.2 lb [15.1 kg].

3. SHIPPING WEIGHT APPROX. 36 lb [16.3 kg].

SIDE

BOTTOM

FRONT

TOP

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

15.5

[394]

16.4

[417]

5.9

[150]

8.8

[224]

10.5

[267] 6.8

[173]

27.6

[702]

24.9

[633]

27.7

[704]

26.2

[665]

16.8

[427]

8.0

[203]

13.6

[345]

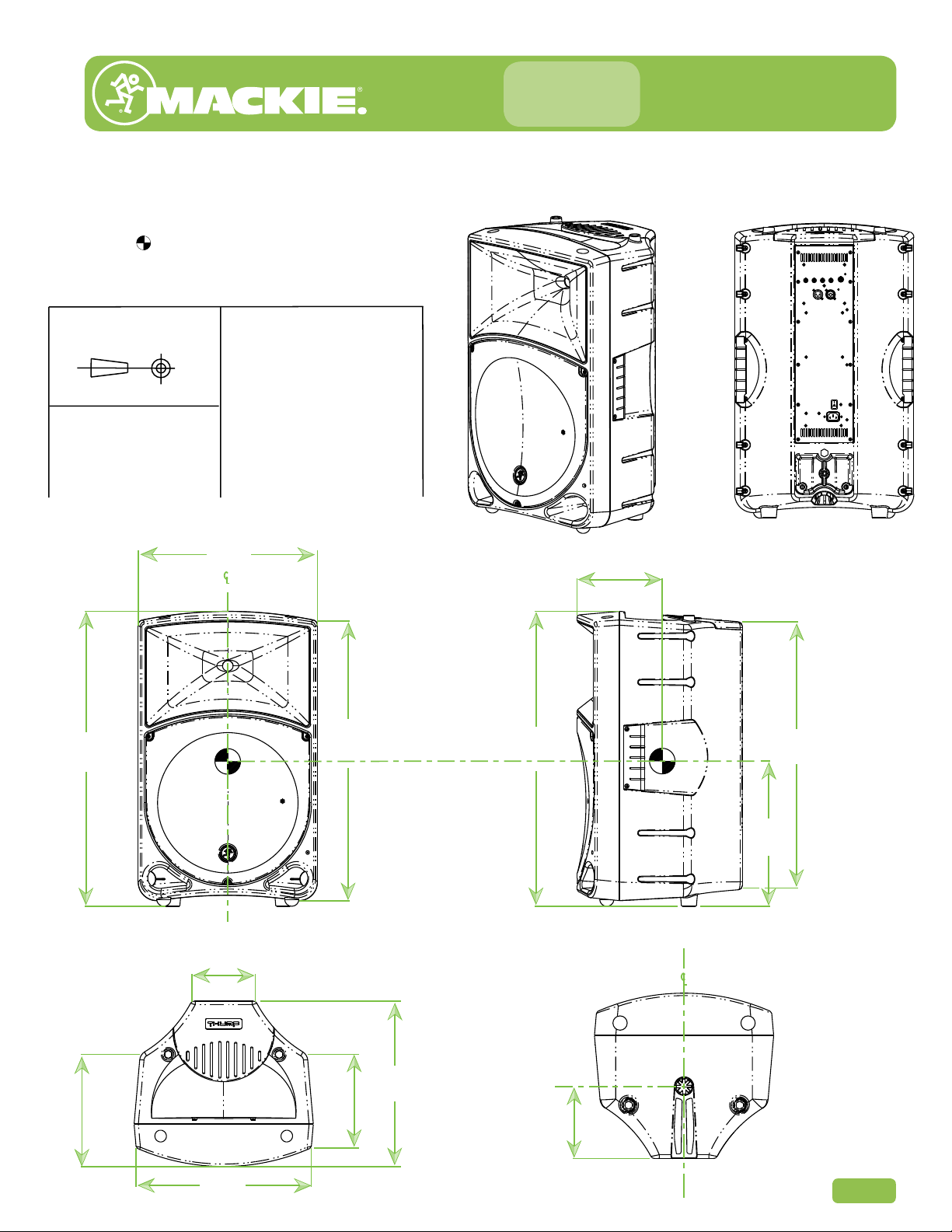

THUMP15 LOUDSPEAKER DIMENSIONS

6/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

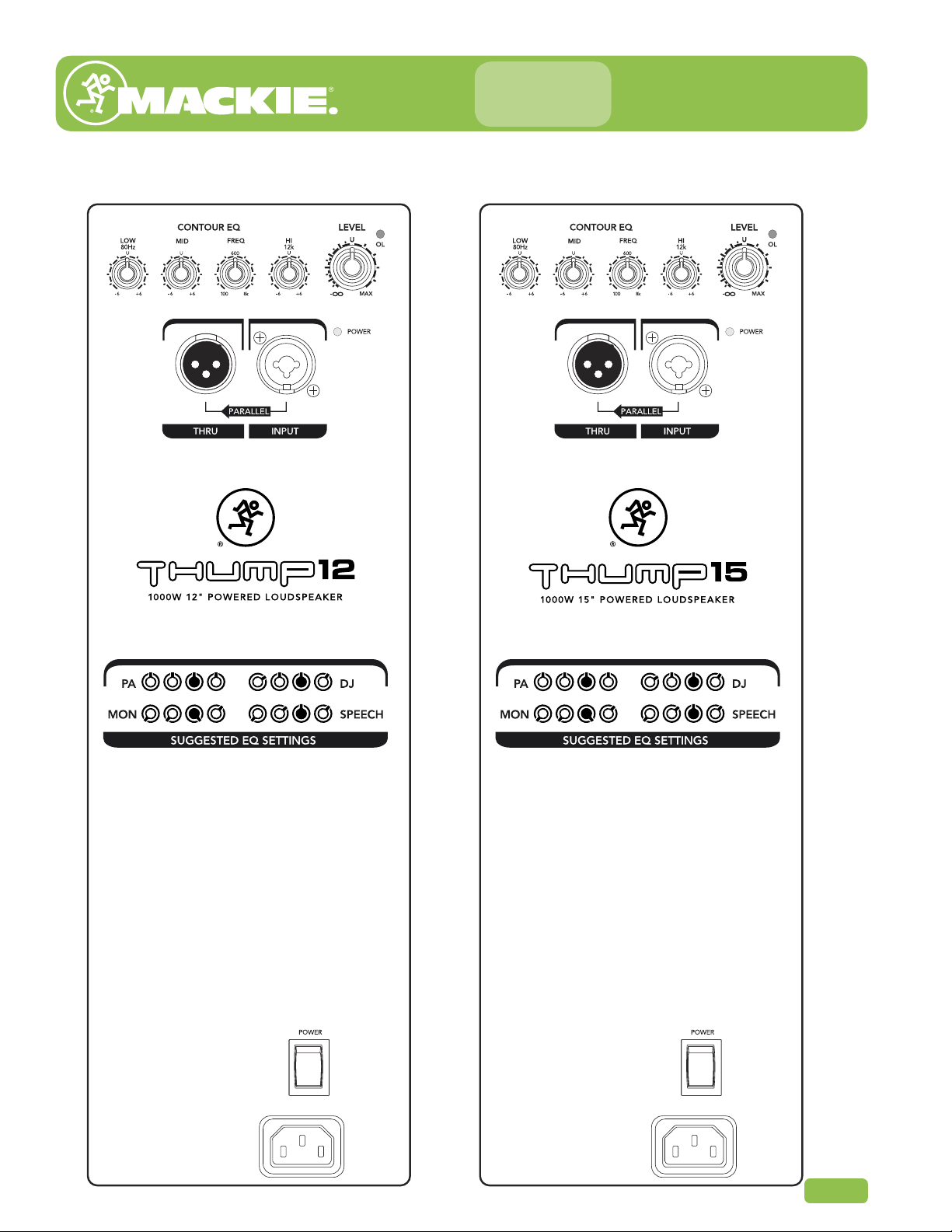

THUMP12 / THUMP15 LOUDSPEAKER REAR PANEL

7/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

Amp

OL LED

Limiter

Mute

Level

Control

Loudspeaker

Processing

Loudspeaker

Processing

3-Band Contour EQ

80 100-8K 12K

LO MID HI

Thermal

Monitoring

Input

XLR

Loop

Out

XLR

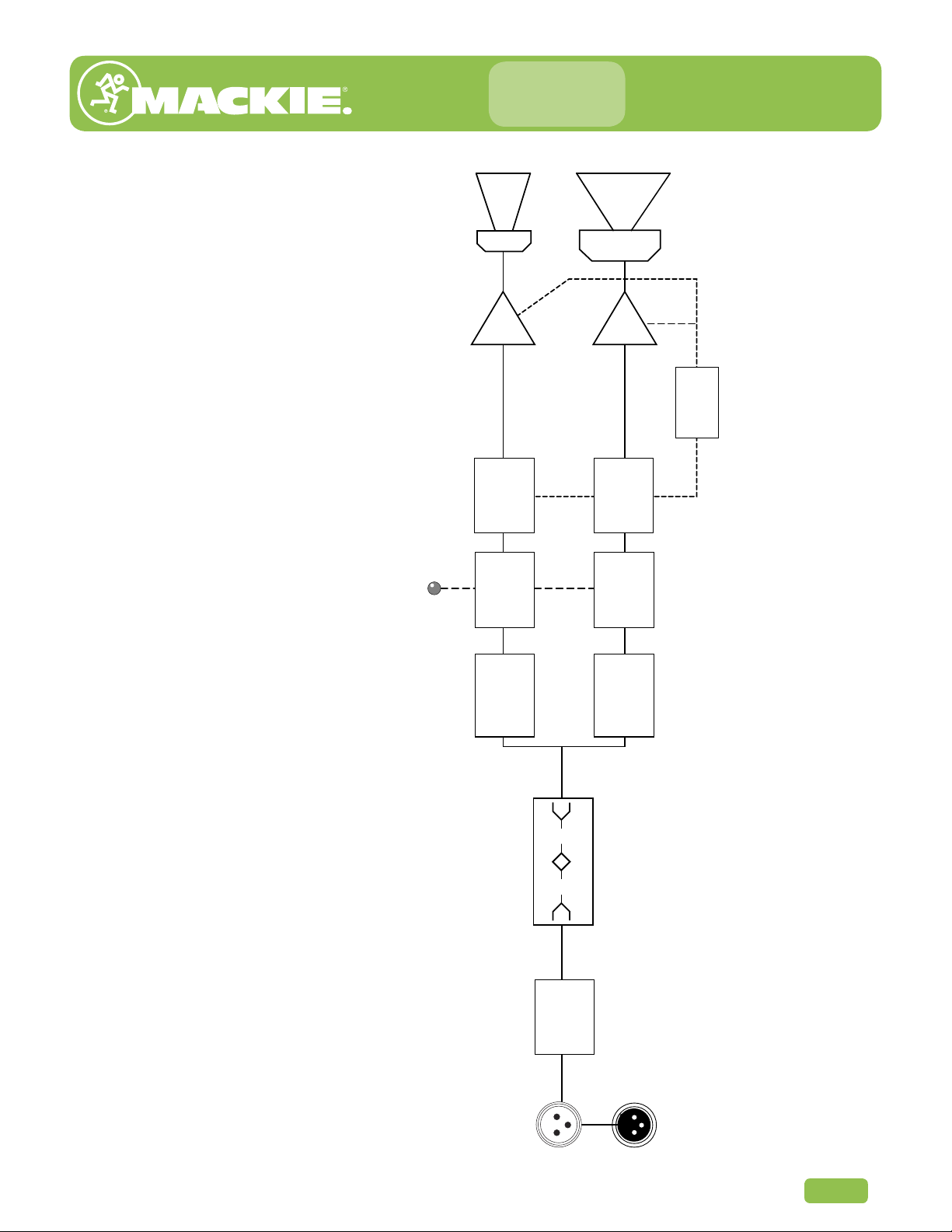

THUMP12 / THUMP15 BLOCK DIAGRAM

8/8 PAGES

Thump12

Thump15 1000W

Powered Loudspeakers

Part No. SW1061 Rev. A 03/14

Frequency (Hz)

–20 dB

–30 dB

–10 dB

+10 dB

0 dB

100 1000 20000 10000

Frequency (Hz)

–20 dB

–30 dB

–10 dB

+10 dB

0 dB

100 1000 20000 10000

Electronic ﬁles for this product are available at:

www.mackie.com

Speciﬁcation Sheet Thump12_Thump15_SS.PDF

Owner’s Manual Thump12_Thump15_OM.PDF

www.mackie.com

16220 Wood-Red Road NE

Woodinville, WA 98072 USA

800-898-3211, Fax 425-487-4337

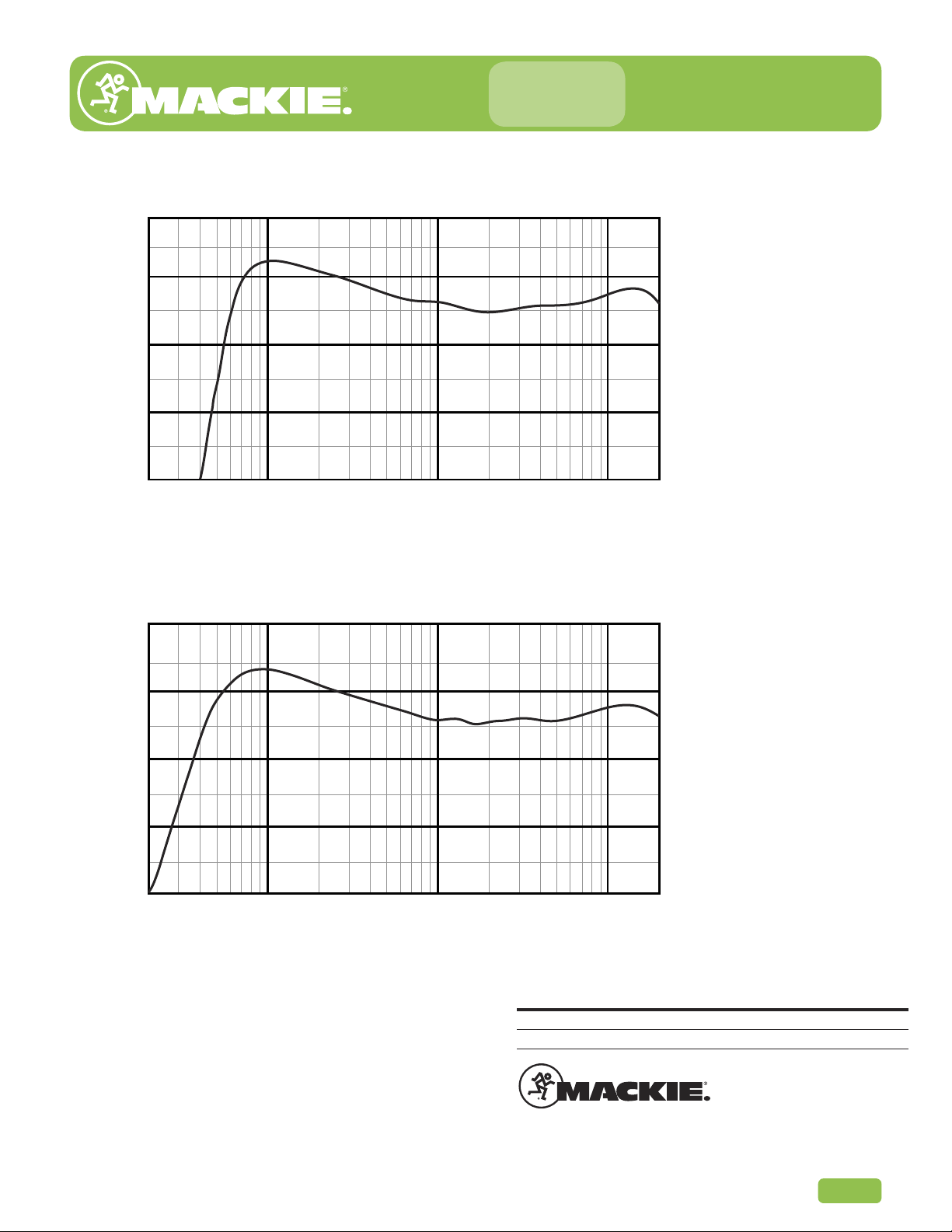

THUMP12 LOUDSPEAKER FREQUENCY RESPONSE

THUMP15 LOUDSPEAKER FREQUENCY RESPONSE

LOUD Technologies Inc. is always striving to improve our products

by incorporating new and improved materials, components, and

manufacturing methods. Therefore, we reserve the right to

change these speciﬁcations at any time without notice.

“Mackie” and the “Running Man” ﬁgure are registered trademarks of

LOUD Technologies Inc. All other brands mentioned are trademarks

or registered trademarks of their respective holders, and are hereby

acknowledged.
