End-Of-Life
This electrical device and its accessories need to be disposed of
properly. Do not throw the device into normal trash or household
waste. Please recycle packaging material whenever possible.
Usage
In general, this device is designed as a general-purpose input device for analog
input and Ethernet-based output over Art-Net or Streaming ACN for remote
control and interactivity. Do not use the interface for any other, deviating
purpose.Directlyconnectto a widerangeofcompatiblesensors,potentiometers,
switches, and triggers. Easily create interactive projects using sensors for light,
temperature, PIR, and many more. The device can be connected to and
disconnectedfrom USB orEthernetnetwork during use and without a reboot(Hot
Swapping & Plug and Play). Multiple interfaces can be used at the same time.
Technical Specifications

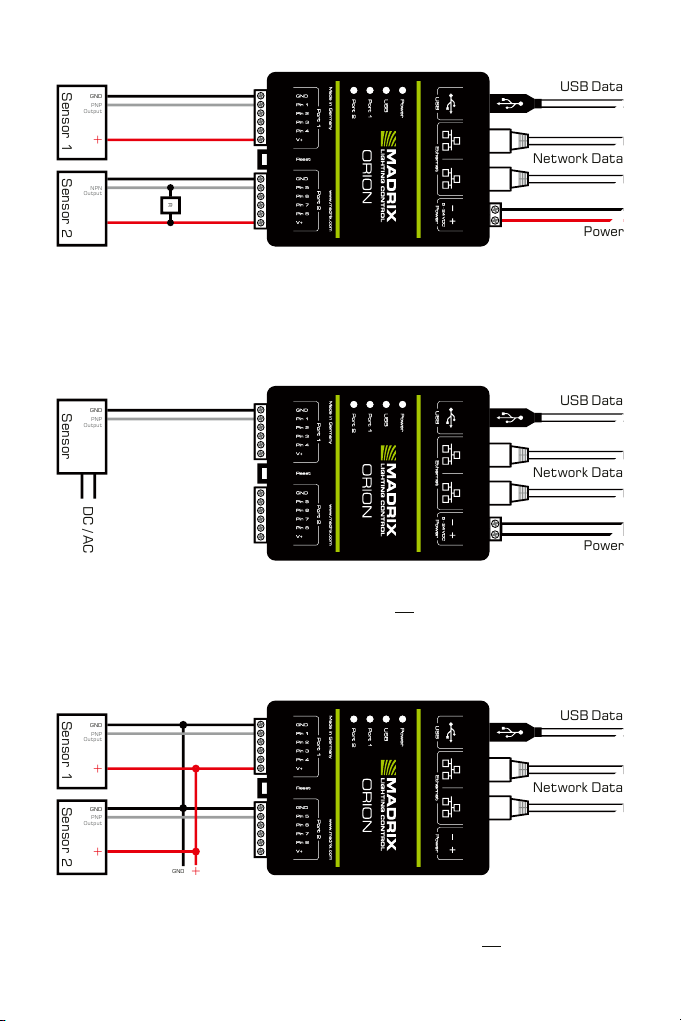

Supply Of Power:
(See p. 6 – p. 11)
Power Consumption:
Network Protocols:
Input Signals:
Ports:
Input Pins:
Ethernet:
Ethernet Switch:
USB:
Case:
Dimensions:
Weight:
Temperature Range:
Relative Humidity:
IP Rating:
Certificates:
Warranty:
DC 5 V – 24 V; over A) 2-pin pluggable screw terminal with
500 mA max. load per port when supplying through to the
ports, B) 5 V USB, C) Port 1 or Port 2
< 1.5 W (300 mA) during normal operation (500 mA max. fused)
Art-Net (I, II, 3, 4), Streaming ACN (sACN / ANSI E1.31)
0 V – 12 V, analog
2x ports (Via 2x 6-pin pluggable screw terminals)
2x 4 separate pins (8x in total)
2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s
(Compatible with 1 GBit/s)
Lookup Table (ALU) for 1024 unicast MAC addresses
1x port, USB 2.0, type-B female socket
Non-conductive, V-0 flammability rating (UL94 test method),
designed for 35 mm DIN-rails or wall mounting
90 mm x 70 mm x 46 mm (Length x Width x Height)
105 g | 120 g incl. screw terminals and wall mounts
-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)
5 % to 80 %, non-condensing (Operating / Storage)
IP20
CE, EAC, FCC, RoHS
5 years of limited manufacturer's warranty
