Magellan Triton 2000 Bedienungsanleitung

Map Screen Details

Track.

Data Field 2. Customize to display data type selected.

Data Field 1. Customize to display data type selected.

Route indicator.

Destination icon.

Battery level indicator

Present position cursor with direction of travel.

North indicator

Navigational Fields access

Satellite signal strength indicator

Satellite Signals

4 bars green: Strong signal

Blank: No satellite signals.

Unable to compute position.

Tips on improving satellite signal strength

Use the Page button to step

through the navigation

screens until the Satellite

Status screen is displayed.

This screen provides a visual

representation of the

satellites and signal strength.

Go outdoors and hold the receiver with the antenna (top of the

receiver) up so the GPS receiver has a clear view of the sky.

This receiver may not be able to get satellite signals while indoors. If you

are not getting strong satellite signals, go outside and follow the tips

provided above.

Move away from large structures or overhanging trees that may

interfere with satellite reception.

If still not receiving strong satellite reception, try moving slightly to

a new location.

Saving a Waypoint

Keep this Reference Card handy for quick reference to the basic

operation of the Magellan Triton.

Magellan®Triton™ 2000

Reference Card5

The Magellan logo, Magellan, and Triton are trademarks of Magellan Navigation, Inc.

-Z1-

ABacklight/Flashlight. Turns screen backlight, on or off.

(Press and hold to turn the ﬂashlight, located at the top of

the receiver, on or off.)

BHold Button. Disables touchscreen and buttons. Prevents

accidental screen presses while in a backpack or pocket.

CExternal Antenna. Provides a connection for the use of an

external antenna.

DPower Button. Press to turn the receiver on, press and hold

to turn the receiver off.

ESD Card Slot. The Magellan Triton can use SD cards to

transfer ﬁles and load maps.

FHeadphones. Access for the connection of headphones

with a 3.5mm audio jack.

GTouchscreen Stylus. Storage for a stylus that can be used

to access the touchscreen function of the Magellan Triton.

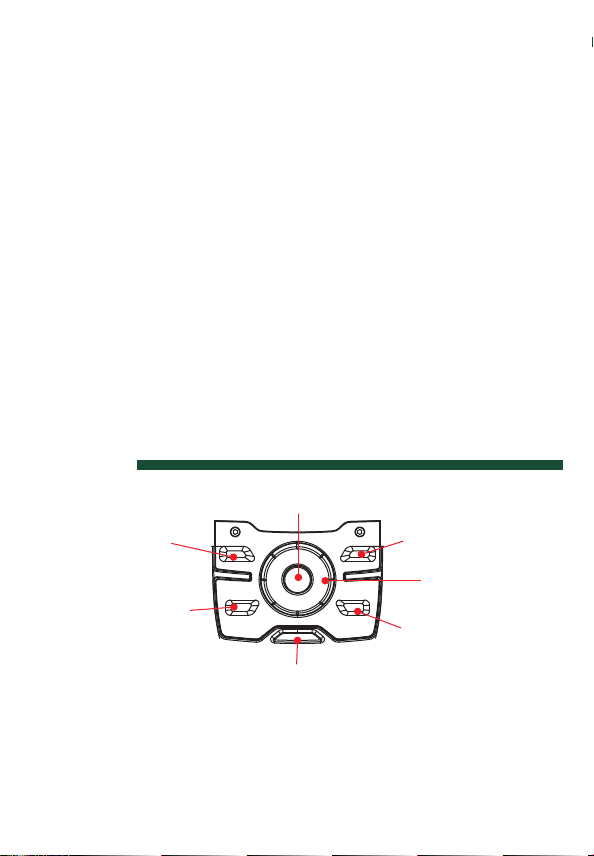

Keypad

Zoom Out Zoom In

Page / Goto

8-way Cursor

Contextual Menu

/Enter

Escape

The Page / Goto key is a dual function key. Press for the

Page function, press and hold for the Goto function.

Select baseline for the new

waypoint:

From your current location,

from a point on the map, or

from coordinates you enter.

To change the information in

a ﬁeld, tap on the ﬁeld.

To save the waypoint, scroll

down the page and tap ‘OK’.

CMY
