MAGICO S3 MKII Bedienungsanleitung
MAGICO S3 MKII USER’S GUIDE
A MESSAGE FROM ALON WOLF:
THANK YOU FOR PURCHASING THE MAGICO S3 MKII LOUDSPEAKERS.
THE S3 MKII INCORPORATES ALL WE HAVE LEARNED IN THE PAST 23 YEARS ABOUT
LOUDSPEAKER DESIGN AND MANUFACTURING. LIKE ALL MAGICO LOUDSPEAKERS, THE S3
MKII IS A PRECISION INSTRUMENT FOR MUSIC REPRODUCTION. PROPERLY SET UP AND
MAINTAINED, IT WILL PROVIDE YOU WITH A GREAT MUSICAL EXPERIENCE FOR MANY YEARS.
BEFORE UNPACKING AND PLAYING YOUR SPEAKERS, PLEASE READ THE FOLLOWING MANUAL
FULLY. IT WILL PROVIDE YOU WITH DIRECTIONS FOR PROPERLY SETTING UP, POSITIONING,
CONNECTING, AND CARING FOR YOUR SPEAKERS. FOLLOWING THESE INSTRUCTIONS WILL
ENSURE A SMOOTH INSTALLATION AND OPTIMUM SPEAKER PERFORMANCE.
IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT YOUR AUTHORIZED MAGICO DEALER.
MAGICO MAINTAINS A NETWORK OF DEDICATED DISTRIBUTORS WHO WILL BE ABLE TO HELP
YOU, SHOULD YOU HAVE ANY PROBLEMS YOUR DEALER CANNOT RESOLVE. FOR THE LATEST
INFORMATION ON ALL MAGICO PRODUCTS, PLEASE VISIT OUR WEBSITE,
WWW.MAGICO.NET.
I WISH YOU MANY HOURS OF LISTENING PLEASURE.
KINDEST REGARDS,
ALON WOLF, CEO
MAGICO, LLC

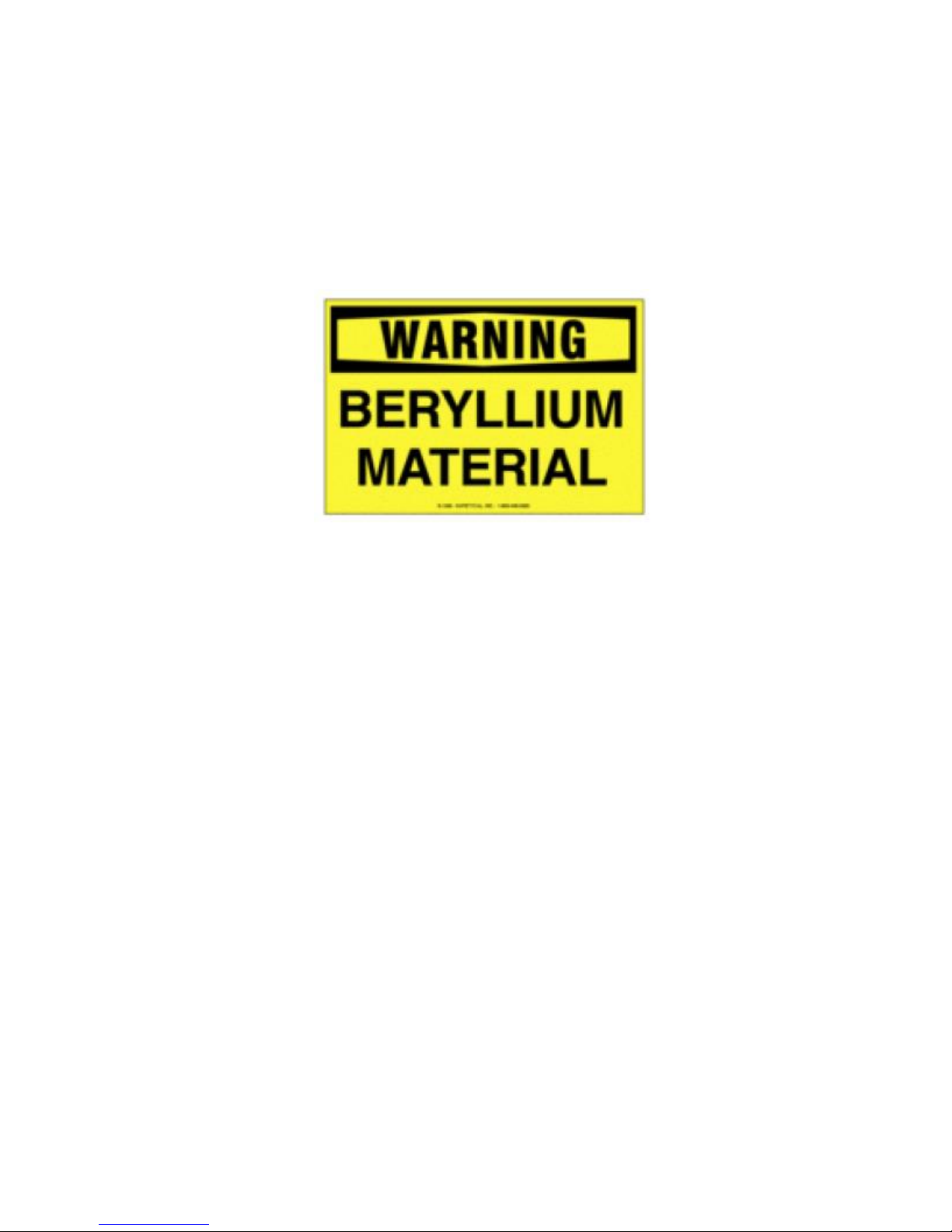

WARNING
• THE S3 MKII USES A TWEETER EQUIPPED WITH A DIAMOND COATED BERYLLIUM DOME,
ALLOWING A FREQUENCY RANGE EXTENDING BEYOND 40kHz. IN ITS SOLID FORM,
BERYLLIUM IS HARMLESS. HOWEVER, DUE TO ITS NATURE, CERTAIN SPECIAL PRECAUTIONS
SHOULD BE OBSERVED TO AVOID EXPOSURE TO UNNECESSARY RISK. SUCH AS:
• UNDER NO CIRCUMSTANCES SHOULD THE BERYLLIUM DOME BE SUBJECTED TO ANY FORM
OF ABRASIVE ACTION.
• IN THE UNLIKELY CASE OF DAMAGE TO THE DOME, OF ANY FORM, A WIDE PIECE OF
ADHESIVE TAPE SHOULD BE IMMEDIATELY USED TO SEAL THE WHOLE FRONT SURFACE OF
THE TWEETER. YOU SHOULD THEN INFORM THE DEALER WHO YOU PURCHASED THE
PRODUCT FROM, SO THAT THE TWEETER CAN BE REMOVED AND REPLACED BY A
PROFESSIONAL.
• IF THE DOME IS DAMAGED IN ANY CAUSING LOOSE PARTICLES OF BERYLLIUM, THESE
SHOULD BE CAREFULLY COLLECTED WITH THE USE OF ADHESIVE TAPE, PLACED IN A
SEALABLE BAG, AND RETURNED ALONG WITH THE TWEETER.
MAGICO S3 MKII USER’S GUIDE
UNPACKING INSTRUCTIONS
1. WARNING: UNDER NO CIRCUMSTANCES
SHOULD YOU ATTEMPT TO MOVE OR
TRANSPORT THIS SPEAKER BY PUSHING IT
FROM THE REAR. APPLYING FORCE TO THE
REAR OF THE SPEAKER WILL TIP THE
SPEAKER OVER AND DAMAGE IT.THE

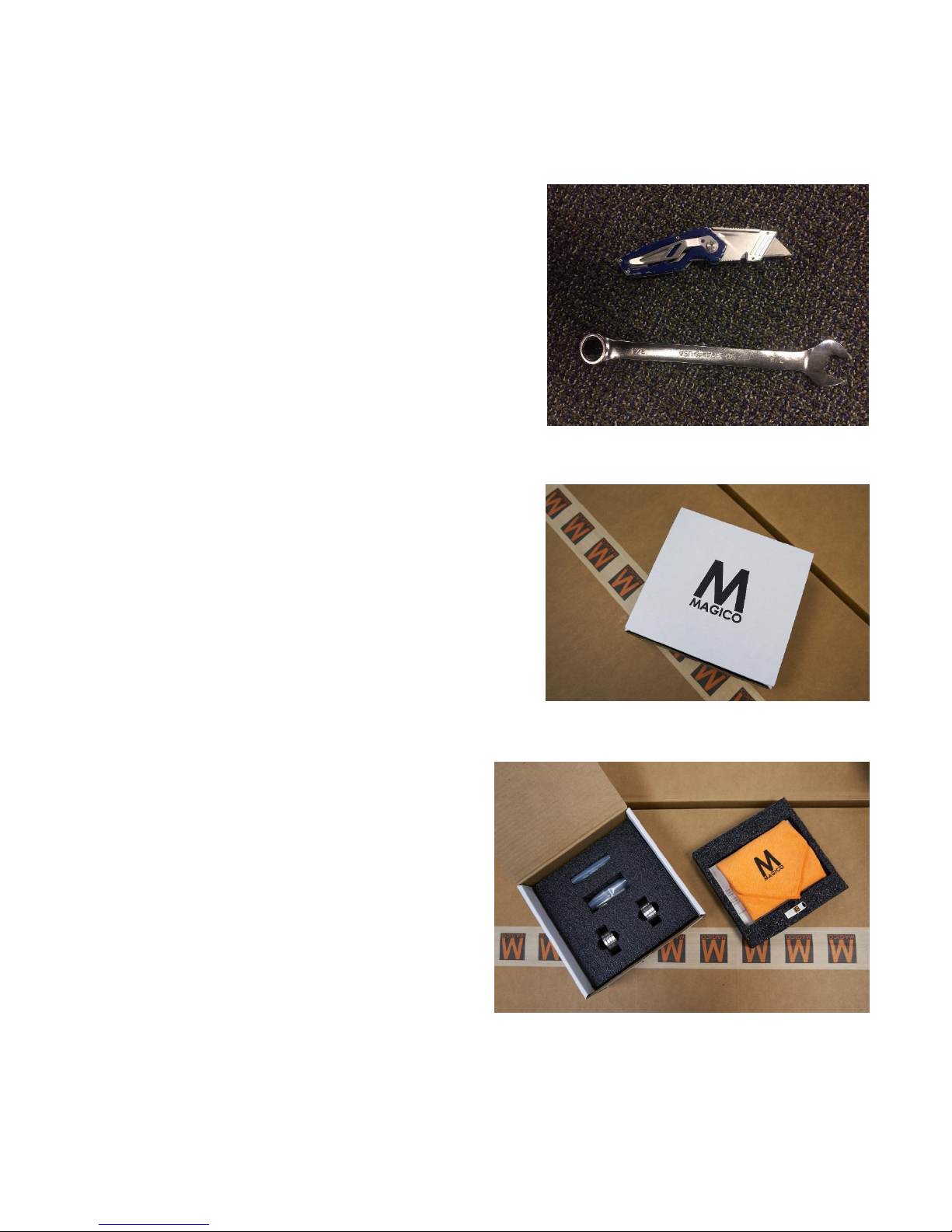

FOLLOWING TOOLS ARE REQUIRED: A
BOXCUTTER OR KNIFE, AND A ¾” CRESCENT
WRENCH
2. UNBOX THE S3 MKII ACCESSORY KIT. THIS
KIT WILL CONTAIN:
•A MAGICO MICROFIBER TOWEL
•A MAGICO WARRANTY CARD
•A MAGICO USB DRIVE WITH USER
MANUAL AND WARRANTY
INFORMATION
•(8) FLOOR SAVERS
•(8) S3 MKII SPIKES
•(8) S3 MKII SPIKE LOCK NUTS

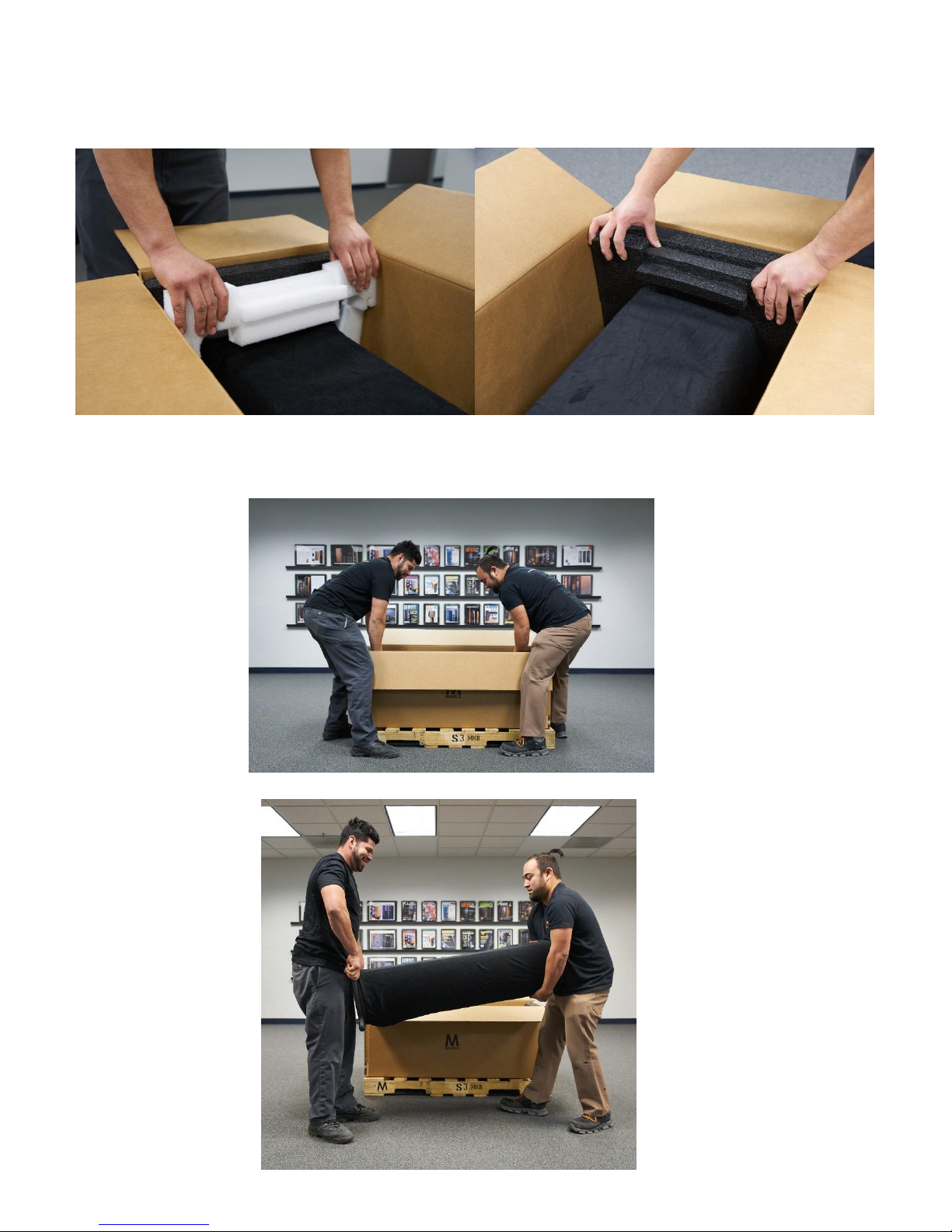

3. POSITION THE S3 MKII BOX IN A SPACIOUS AND CLEAN ENVIRONMENT.
4. USING THE BOXCUTTER/BLADE, CAREFULLY OPEN THE S3 MKII BOX AND
FOLD THE BOX FLAPS DOWN.
5. REMOVE THE PROTECTIVE HEX PAD
6. CAREFULLY REMOVE THE GRILL FROM THE PROTECTIVE FOAM.
7. REMOVE THE PROTECTIVE FOAM FROM THE TOP, MIDDLE, AND
BOTTOM OF THE SPEAKER.
8. WITH A PERSON AT BOTH ENDS OF THE SPEAKER, CAREFULLY LIFT AND
REMOVE THE SPEAKER FROM THE BOX.
9. GENTLY LET THE SPEAKER DOWN SO THAT IT IS STANDING ON ITS PUCKS.
10. CAREFULLY REMOVE THE BLACK FELT COVER.
11. REMOVE THE BLUE TAPE AND TWEETER PROTECTIVE FOAM.
12. THREAD THE LOCK NUT ON TO THE SPIKE TO PREPARE IT FOR INSTALLATION.

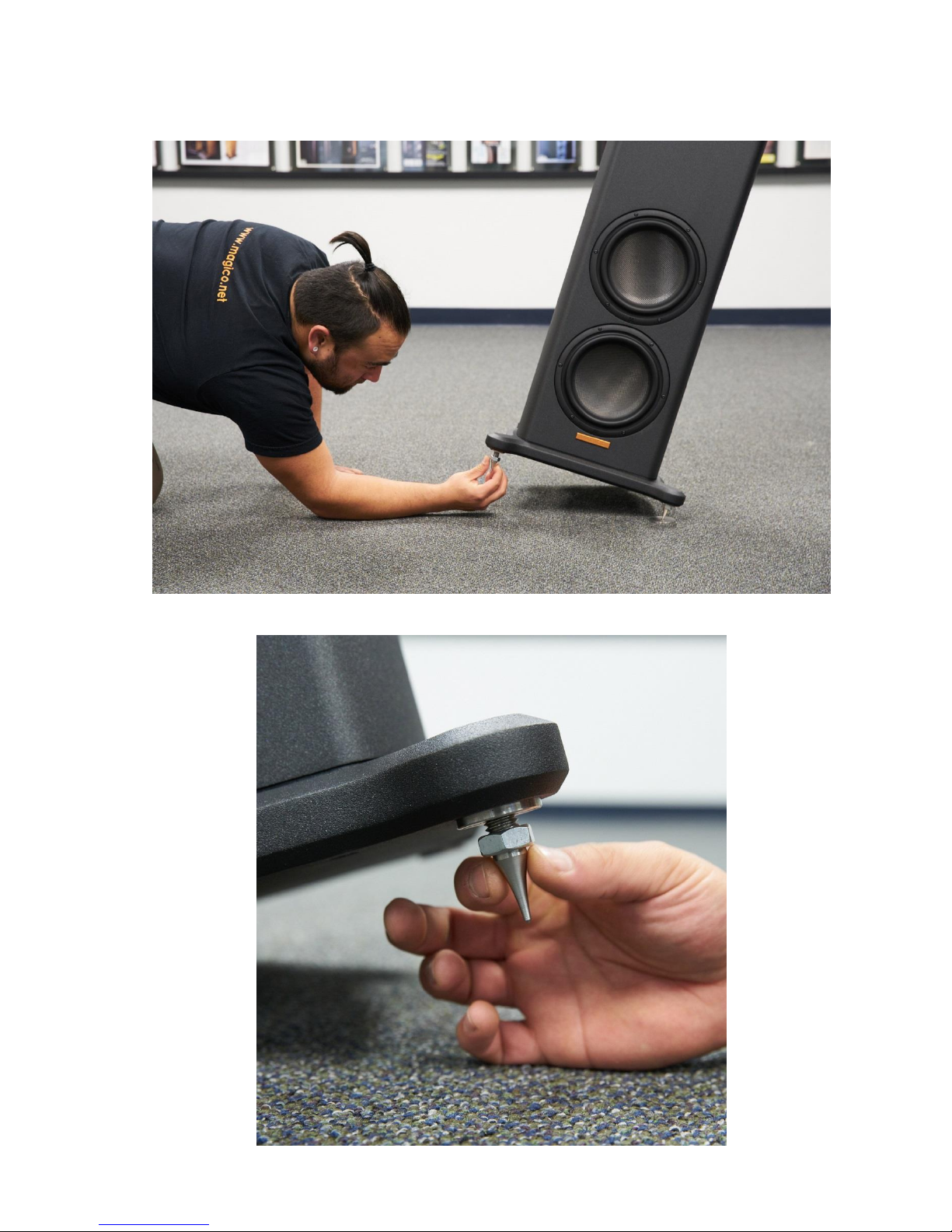

13. TWO PEOPLE REQUIRED. WITH THE SPEAKER SITTING FIRMLY ON THE FLOOR, ONE
PERSON (STANDING) TO ONE SIDE SHOULD LEAN THE SPEAKER TOWARD THEM
ALLOWING ENOUGH TILT FOR THE SECOND PERSON (KNEELING) TO INSTALL THE
THREADED SPIKE INTO THE RECEIVER PUCK. CAREFUL THREAD ALIGNMENT IS
REQUIRED FOR THIS PROCEDURE.
14. REPEAT THIS PROCEDURE UNTILL ALL (4) SPIKES ARE INSTALLED.
