Operation

and Installation

Manual

Models: MD-150

MD-250

MD-350

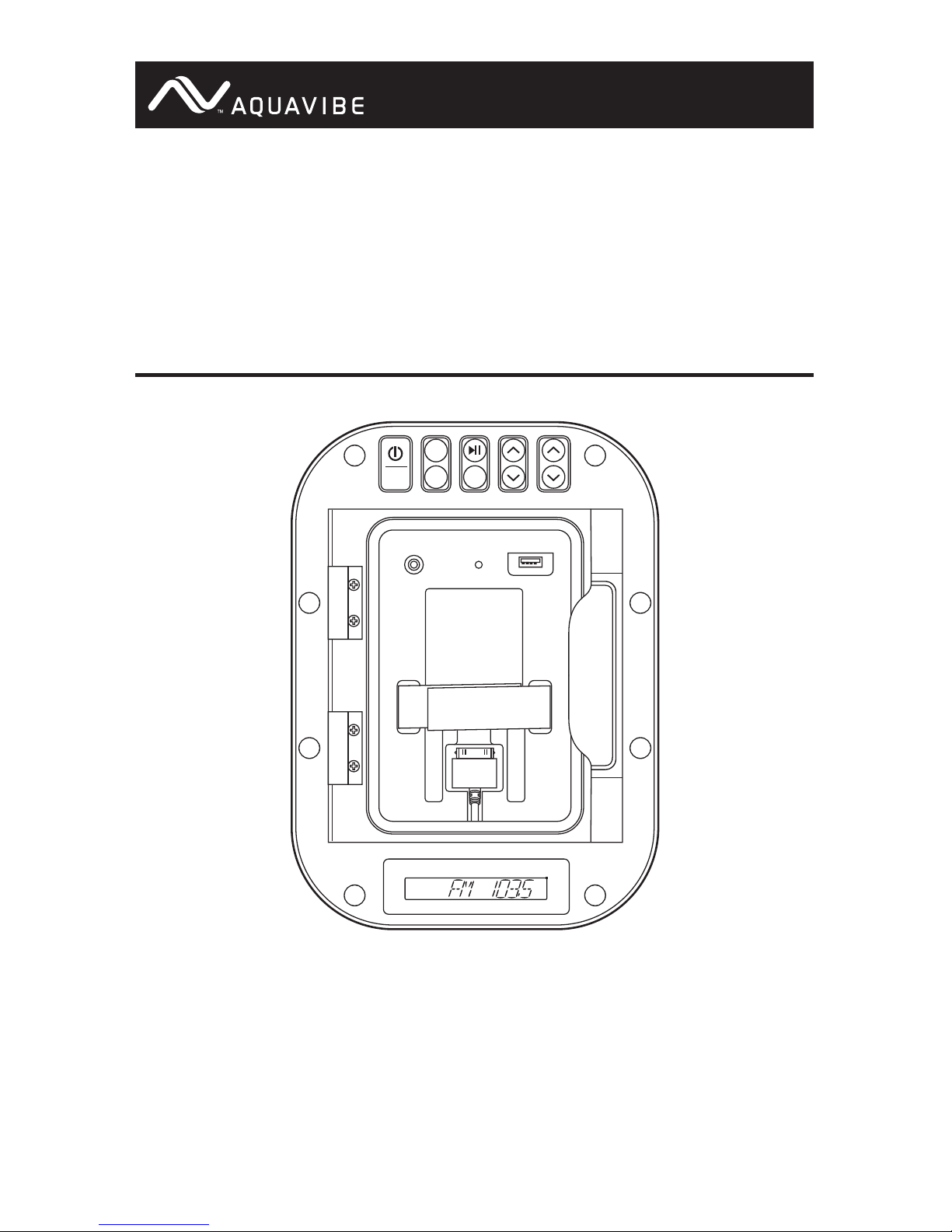

Deluxe Entertainment Center

with Docking Station

MODE

RDM

RPT SEL

TRACK VOL

Charge Only

Aux In 1

Reset

Please take the time to read all of the information in this manual. Familiarity with operation and installation

procedures will help you obtain the best possible performance from your new Entertainment Center.

Introduction

Index

Button Locations and Functions ..................................................... 3-4

Remote Control Button Locations and Functions ........................................ 4

General Operation ................................................................ 5

Sound Controls .................................................................. 5-7

Using an IPHONE or IPOD .......................................................... 7-9

Using a Device with 3.5mm Output ................................................... 8-9

Bluetooth Operation............................................................... 10

External Rear Audio Input .......................................................... 10

Radio Operations ................................................................. 11-12

Reset .......................................................................... 13

Inserting a Battery into Remote Controller ............................................. 13

Programming a Wireless Remote Controller ............................................ 13

Installation ...................................................................... 14

Wiring ......................................................................... 15

Warranty ....................................................................... 16

Warnings

• This unit is only IPX5 waterproof when the access

door is closed. When connecting a device avoid water

getting inside the waterproof compartment. Water in

the waterproof compartment may damage this unit,

cause electrical shock or fire.

• To prevent a short circuit never put or leave any

metallic objects or unconnected 3.5mm or USB cables

inside the unit.

• Use the proper power supply. This product is designed

for operation with a negative grounded 12V DC sys-

tem only. Never operate this product with other power

supplies, especially a 24V DC. If the product is used

with the improper power supply it may cause a fire.

• Thi

s product must be installed and used in accordance

with this manual. Magnadyne Corporation disclaims

any and all liability that may result from failure to

install and operate in any other manner in which this

unit was intended.

•

To prevent fire or electrical shock hazard, do not

remove cover or bottom screws. No user-serviceable

parts inside. Refer servicing to qualified person

nel.

• FCC REGULATIONS STATE THAT ANY UNAUTHORIZED

CHANGES OR MODIFICATIONS TO THIS EQUIPMENT MAY

VOID THE USER’S AUTHORITY TO OPERATE IT.

• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND

ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED

ACCESSORIES.

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

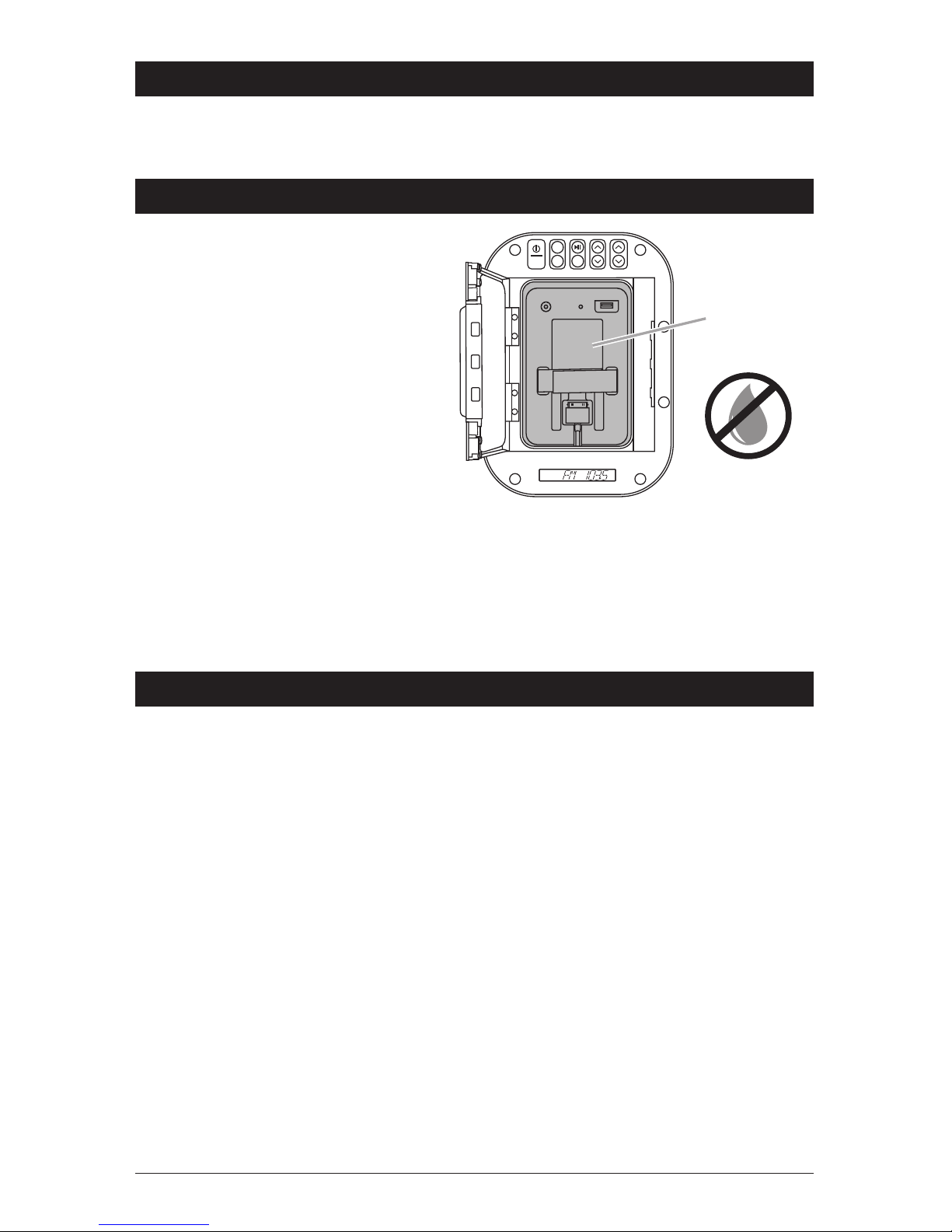

With the Door Open

the Interior

Compartment

IS NOT Waterproof

RDM

RPT

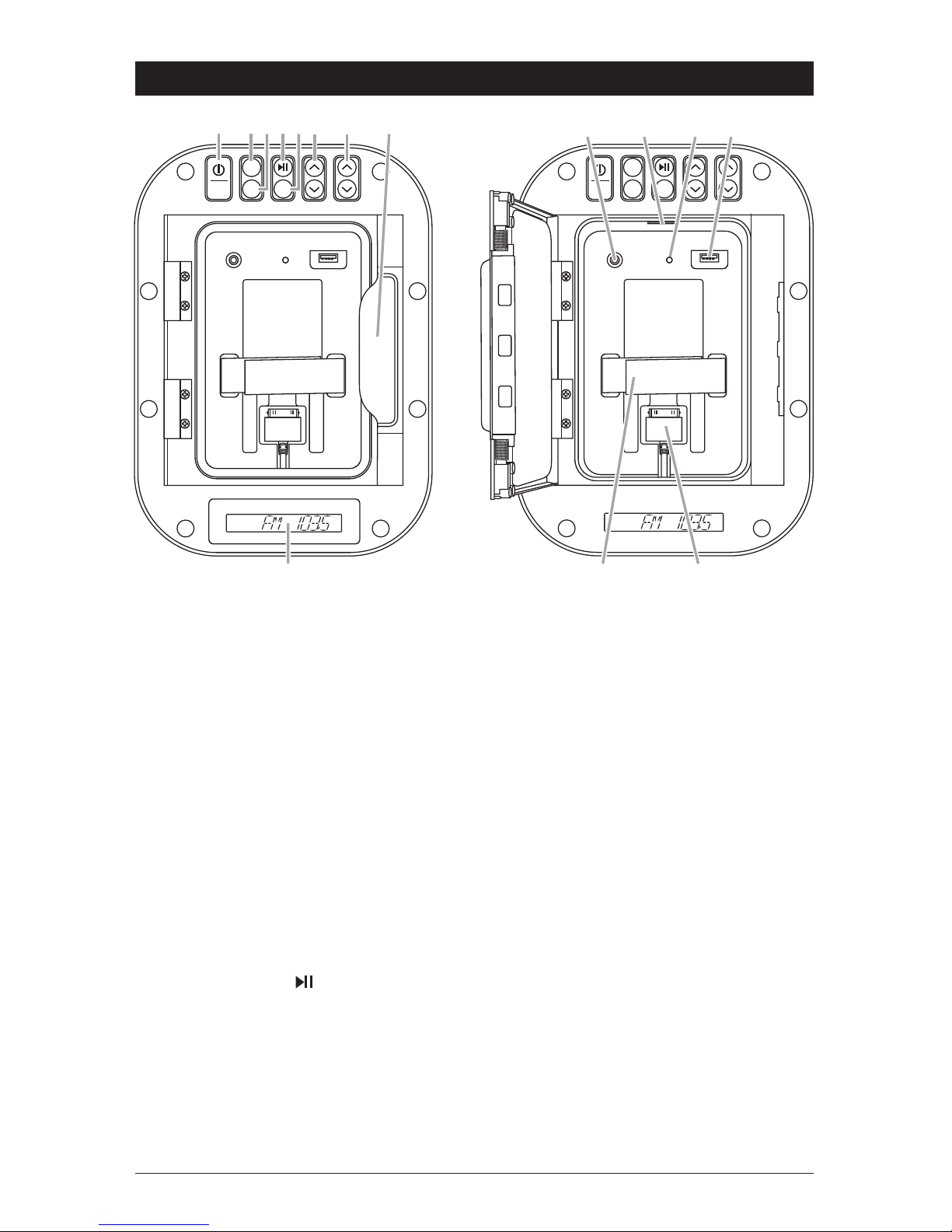

Button Locations and Functions

1. Power and Mode Button:

Power Button: Press to turn the entertainment

center on. Press and hold the button for 2

seconds to turn the unit off.

Mode Button: Press to select between input

sources:

Radio: FM tuner.

IPOD: 30-pin connector. (Can be selected

only when connected to a device).

Aux in 1: 3.5mm jack.

Aux in 2: Rear RCA connectors.

Bluetooth: Wireless connectivity.

2. Random Button (RDM): Press the button

for

random controls in IPOD and Bluetooth modes.

Repeat Button (RPT):

Press the button for

repeat controls in IPOD and Bluetooth modes.

4. Play/Pause Button (

Radio or Auxiliary Mode: Press to mute the

audio.

IPOD or Bluetooth Mode: Press to pause

playback.

Select Button: Press to toggle between: bass,

treble, balance, fader, equalizer, area, loudness

and local/distance settings.

6. Track Buttons:

Radio Mode: Press for automatic seek up or

seek down of radio stations. Press and hold

to activate manual tuning.

IPOD or Bluetooth Mode: Press to select the

next or previous tracks.

olume: Press to increase or decrease the

volume level

8. Door Release Handle: Lift up on the door

handle to open the door.

Display Area: This area displays mode infor-

mation, in the radio mode the radio frequency

and in IPOD and supported Bluetooth modes

song information is displayed.

10.

3.5mm Jack: Plug a cable into the 3.5mm jack

then into a device (MP3 player or phone) with

a 3.5mm socket. The unit will not control the

device, it simply allows the audio to be played

through the system.

11. Interior Light: When the unit is turned on the

LEDs will automatically illuminate the interior

compartment.

12. Reset/Pair Button (Reset): Press to reset the

microprocessor or pair a wireless remote.

Reset

MODE

RDM

RPTT SEL

TRACK VOL

Charge Only

Aux In 1

123456 7 8

MODE

RDM

RPT SEL

TRACK VOL

Charge Only

Aux In 1

10 11 13

14 15

Reset

Button Locations and Functions (Continued)

13.

USB Charging Socket: To charge a device plug

the cable into the USB socket then into the device.

Note: The unit will not control the device. The

cable will not transfer audio into the entertain-

ment center.

14. Mounting Straps: Holds your device securely

inside the unit.

15. 30-pin Connector for Apple Products: Plug

the 30-pin connector in an IPOD, ITOUCH or

IPHONE. Use the track button to select the

desired song.

Remote Control Button Locations and Functions (Optional)

Display Area: This area displays mode infor-

mation, in the radio mode the radio frequency

is dis

played.

2. Random Button (RDM): Press the button for

random controls in IPOD and Bluetooth mode.

3. Power and Mode Buttons:

Wired Remote Controller’s Power Button:

Press to turn the entertainment center on.

Press and hold the button for 2 seconds to

turn the unit off.

Wireless Remote Controller’s Power Button:

Press to turn on the entertainment center

on. Press again to turn the unit off.

Mode Button: Press to select between input

sources:

Radio: FM tuner.

IPOD: 30-pin connector. (Can be selected

only when a device is connected).

Aux in 1: 3.5mm jack.

Aux in 2: Rear RCA connectors.

Bluetooth: Wireless connectivity.

Repeat Button (RPT):

Press the button for

repeat controls in IPOD and Bluetooth mode.

Select Button: Press to toggle between: bass,

treble, balance, fader, equalizer, area, loudness

and local/distance settings.

Volume: Press to increase or decrease the vol-

ume level.

7. Track Buttons:

Radio Mode: Press for automatic seek up or

down for radio stations. Press and hold to

activate manual tuning.

IPOD or Bluetooth Mode: Press to select the

next or previous tracks.

8. Play/Pause Button (

Radio or Auxiliary Modes: Press to mute the

audio. Press again to restore audio.

IPOD or Bluetooth Mode: Press to pause play

back. Press again to resume play.

Note 1: The wireless remote controller’s display

will disappear after approximately 30 seconds of

no button activity to conserve it’s battery. Press

any button on the remote controller and the LCD

display will be restored.

Note 2: When the main unit is turned off, the

wireless remote controller’s display will disappear

to conserve it’s battery. Press any button on the

remote controller to restore the remote’s display.

Then press the

button to turn on the entertain-

ment center.

RPT SEL

VOL

MODE

RDM

Wired Remote Controller

Wireless Remote Controller

RPT SEL

MODE

VOL

RDM

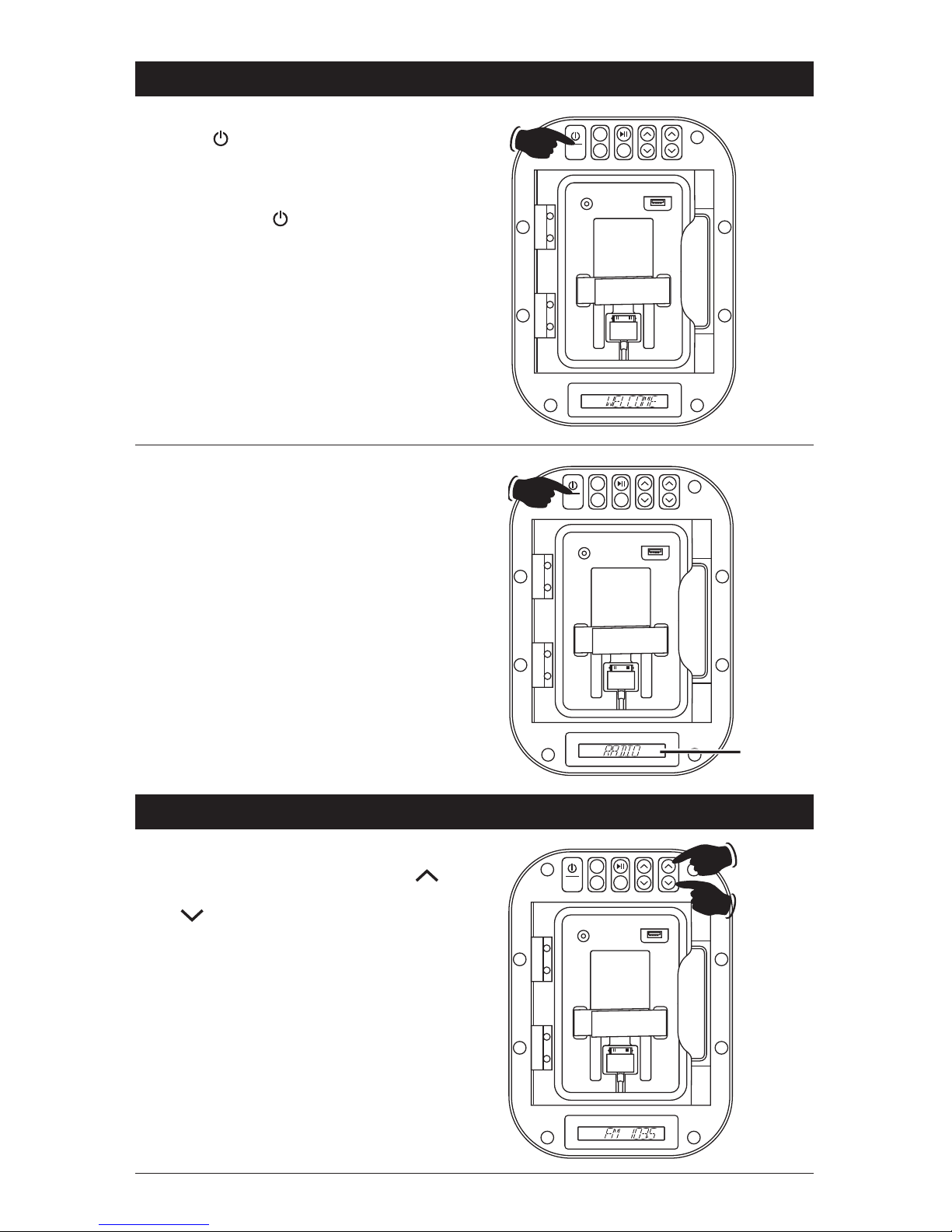

General Operations

Power On:

Press the / MODE button to turn the entertain-

ment center on.

Power Off:

Press and hold the / MODE button for 2 sec-

onds to turn the unit off.

Selecting a Play Source:

Press the MODE button to select between input

sources. The source will appear in the display.

Radio: FM tuner.

IPOD: 30-pin connector. (Can be selected

only when a device is connected).

Aux in 1: 3.5mm jack.

Aux in 2: Rear RCA connectors.

Bluetooth: Wireless connectivity.

Sound Controls

Volume:

Increase the volume by pressing the VOL

button. Decrease the volume by pressing the

VOL button.

MODE

RDM

RPT SEL

TRACK VOL

Charge Only

Aux In 1

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

Display

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

Increase

Decreas

RDM

RPT

RDM

RPT

Equalizer (EQ):

Select the Equalizer mode by pressing the SEL

button until “DSP OFF” appears in the display. To

change the equalizer setting press the

VOL

but-

ton. Select between: Flat, Pop, Jazz, Rock, Classic

and Equalizer Off (DSP OFF).

Note: When an Equalizer setting is selected (Flat,

Pop, Jazz, Rock or Classic) both the Bass and

Treble mode will become inactive and can not be

selected. To change the bass and treble settings set

the Equalizer to “DSP OFF”.

Loudness:

Loudness will boost high and low tones at low

volume levels. To turn on Loudness

press the

SEL button until “LOUD OFF” appears in the dis-

play. Press the

VOL

button and “LOUD ON”

will appear in the display

. Loudness mode is now

activated.

Sound Controls (Continued)

Bass:

Select the Bass mode by pressing the SEL button

and “BAS 0” will appear in the display. Increase the

Bass by pressing the VOL button. Decrease

the Bass by pressing the VOL button.

Bass, Treble, Balance, Fader and Equalizer Control

Select the desired sound mode by pressing the SEL button. The modes will be displayed in the following

order: Bass, Treble, Balance, Fader, Equalizer, Area Setting, Loudness, Distance/Local and Volume. After

5 seconds of inactivity control reverts back to volume control.

Treble:

Select the Treble mode by pressing the SEL button

until “TRE 0” appears in the display. Increase the

Treble by pressing the

VOL

button. Decrease

the Treble by pressing the

VOL

button.

Balance:

Select the Balance mode by pressing the SEL

button until “BAL L=R” appears in the display.

Adjust the Balance to the right speakers by press-

ing the

VOL

button. Adjust the Balance to the

left speakers by pressing the

VOL

button.

R -

- L = Equal sound Right and Left.

R 10R = Right speakers only.

L 10L = Left speakers only.

Fader:

Select the Fader mode by pressing the SEL

button until “FAD F=R” appears in the display.

Adjust the Fader to the front speakers by press-

ing the

VOL

button. Adjust the Fader to the

Rear speakers by pressing the

VOL

button.

F -

- R = Equal sound Front and Rear.

F 10F = Front speakers only.

R 10R = Rear speakers only.

MODE

RDM

RPT SEL

TRACK VOL

Charge Only

Aux In 1

Adjustment

Buttons

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

Display

RDM

RPT

Sound Controls (Continued)

Mute:

Press the

button to mute the volume level.

Press the

button again to restore the volume.

Note: If the unit is in either the IPOD or Bluetooth

mode pressing the

button will pause play-

back. Press the

button again will resume

playback.

Using an IPHONE or IPOD

Inserting an IPHONE or IPOD into Docking

Station:

1. Open the waterproof door.

2. Remove the 30-pin connector from its

recessed area.

Plug the 30-pin connector into the Apple device.

Secure the Apple device with the mounting straps.

Close the waterproof door

Note 1: If your Apple device uses a lightning

connector a lightning adapter will plug into the

30-pin connector and will allow you to operate

the device normally.

Note 2: If you use the USB cable that came with

your Apple device and plug it into the Charge

Only socket it will only charge the Apple device.

Operating an IPHONE or IPOD:

Selecting the IPOD Mode:

Press the MODE button until “IPOD” appears in

the display.

Note 1: The unit will automatically switch to the

“IPOD” mode when the IPHONE or IPOD is ini-

tially connected to the 30-pin connector.

Note 2: The display will show Track/Elapsed

Time, Title, Artist and Album.

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

RDM

RPT

MODE

SEL

Charge Only

Aux In 1

30-Pin

Connector

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

RDM

RPT

RDM

RPT

Using an IPHONE or IPOD

Changing the Track:

Press the

TRACK button to select a higher

track. Press the

TRACK button to select a

lower track.

Random Play Selection:

The default setting is the Random feature is off.

Random Track Selection:

To randomly play tracks press the RDM button

until “RDM TRK” appears in the display. The

tracks will now play in a random order.

Random Album Selection:

To randomly play albums press the RDM button

until “RDM TRK” appears in the display. Press

the RDM button again until “RDM ABM” appears

in the display. The albums will now play in ran-

dom order.

Cancelling Random Play:

To cancel random play keep pressing the RDM

button until “RDM OFF” appears in the display.

Repeat Play Selection:

The default setting is the Repeat feature is off.

Repeat Track Selection:

To repeatedly play a track press the RPT but-

ton until “RPT ONE” appears in the display.

The track will play repeatedly.

Repeat Album Selection:

To repeatedly play all tracks press the RPT

button until “RPT ONE” appears in the display.

Press the RPT button again until “RPT ALL”

appears in the display. All the tracks will play

repeatedly.

Cancelling Repeat Play:

To cancel repeat play keep pressing the RPT

button until “RPT OFF” appears in the display.

IPOD

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

Track

Number

Elapse

Time

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

IPOD

RDM

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

IPOD

RPT

RDM

RPT

RDM

RPT

RDM

RPT

Using an IPHONE or IPOD

Lingo Modes:

Lingo Mode 4 (default): Devices with iOS 6.1 software

or higher the touch screen for music is active. Devices

with non-iOS or older versions of iOS software, the

touch screen for music is inactive. In lingo mode 4

song information will be shown in the LCD display.

Lingo Mode 2: Devices with non-iOS or older versions

of iOS software the touch screen is active. In lingo

mode 2 song information will not be display. Only

play, pause and track buttons are active.

Changing the Lingo Mode:

1. Press and hold the SEL button until “LINGO

4” appears in the display.

2. Press the VOL

button and “LINGO 2”

appears in the display.

Press the SEL button to confirm your selec-

tion. The non-iOS software device can now be

directly accessed.

Using a Device with 3.5mm Audio Output

Inserting a Device with 3.5mm Audio Output

Jack into Docking Station:

1. Open the waterproof door.

2. Plug a 3.5mm cable (not supplied) into the

docking station and then into the device.

Plug a USB cable (not supplied) into the dock-

ing station and then into the device.

Secure the device with the mounting straps

Close the waterproof door

Note 1: The USB cable does not have to be

connected for proper operation. Connecting the

USB cable will only charge the device. No data

transfer will occur.

Note 2: If cables are not being used remove the

cable from the waterproof compartment.

Selecting the Input Mode:

1. Press the MODE button until “AUX IN1”

appears in the display.

2. Use the controls on the entertainment center

to adjust the volume.

Note 1: The unit will not automatically switch

to “AUX IN1” mode when the device is initially

connected to the 3.5mm cable. Select “AUX IN1”

using the MODE button.

Note 2: The entertainment center will not control

the device it just allows for the audio from the

device to play through the entertainment center.

Note 3: For optimum sound quality make sure the

media volume on the device is set at 75% or greater.

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

IPOD

RDM

RPT

MODE

SEL

TRACK VOL

Charge Only

Aux In 1 Charge Only

Aux In 1

RDM

RPT

MODE

SEL

Charge Only

Aux In 1

USB

Cable

3.5mm

Cable

RDM

RPT

Bluetooth Operation

Pairing Bluetooth Devices:

1. Open the Bluetooth setup program on the mobile

device and activate the Bluetooth feature.

Press the

button to turn on the entertainment center.

3. From you mobile device scan for available devices.

Select ”AQUAVIBE” to connect to the unit.

When the mobile device has been paired “ ”

will

appear in the entertainment center’s display

Press the MODE button until “BT AUDIO” appears in

the display. Bluetooth audio from your mobile device

can now be played through the entertainment center.

Note 1: A previously paired Bluetooth mobile device

will automatically connect to the entertainment center

when “BT AUDIO” is selected using the

MODE button

(if it is within range).

Note 2: If the Bluetooth mobile device is already

paired with the entertainment center, select

“AQUAVIBE” on your phone and touch “Connect”.

Bluetooth Operation:

Note: Devices with AVRCP 1.3 or above will display text,

all other device will simply show “BT AUDIO”

Play/Pause Button:

Press the button to pause the

Bluetooth playback. Press again to resume playback.

Note: The Entertainment Center display will not

show the playback is pause. The mobile device will

show that the playback is paused.

Changing the Track:

Press the

TRACK button to select a higher track.

Press the

TRACK button to select a lower track.

Sound Controls: Use the sound controls on the main

unit to adjust the volume and sound quality.

Note: For optimum sound quality make sure the

media volume on the device is set at 75% or greater.

Random Controls:

Press the RDM button for random

controls. Selecting “RDM ON” will randomly play

tracks. Selecting “RDM OFF” will cancel random play.

Repeat Controls:

Press the RPT button for repeat

controls. Selecting “RPT ONE” will repeatedly play a

track. Selecting “RPT ALL” will repeatedly play all the

tracks. Selecting “RPT OFF” will cancel repeat play.

External Rear Audio Input

Selecting the Input Mode:

1. Press the MODE button until “AUX IN2” appears in

the display.

2. Use the controls on the entertainment center to

adjust the volume.

Note 1: The entertainment center will not control the

device it just allows for the audio from the device to

play through the entertainment center.

Note 2: For optimum sound quality make sure the

media volume on the device is set at 75% or greater.

Note: During Bluetooth audio streaming the

multi-media device (IPHONE/smart phone)

can be placed in the dock and charged by

the USB socket.

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

RDM

RPT

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

MODE

SEL

TRACK VOL

Charge Only

Aux In 1

Display

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Magnadyne Dockingstation Handbücher

Magnadyne

Magnadyne RV-DOCK Bedienungsanleitung

Beliebte Dockingstation Handbücher anderer Marken

Sony

Sony Dream Machine XDR-DS12iP Bedienungsanleitung

Acer

Acer USB Type-C Dock II Bedienungsanleitung

ATEN

ATEN UC-2000 Bedienungsanleitung

Xcellon

Xcellon HDD-202 Bedienungsanleitung

Dok

Dok CR09 Bedienungsanleitung

Philips

Philips BTM630/12 Bedienungsanleitung

IOGear

IOGear Travel Pro GUD3C09 Bedienungsanleitung

RKI

RKI SDM-E2 Bedienungsanleitung

iHome

iHome iP15 Bedienungsanleitung

VITURE ONE

VITURE ONE MOBILE DOCK Bedienungsanleitung

Lindy

Lindy 42984 Bedienungsanleitung

CipherLab

CipherLab 8001 Bedienungsanleitung

Pyle

Pyle PIPDSP2 Bedienungsanleitung

Avol

Avol AS2350 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Philips

Philips DC190/79 Bedienungsanleitung

Targus

Targus DOCK315EUZ Bedienungsanleitung

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Bedienungsanleitung
