Model: RV-DOCK
Installation and User Manual
Any model of IPOD with a dock connector can fit perfectly into a single RV-DOCK through the use of Interchangeable Dock Adapters
and an Insert. Dock Housing connects to any cable with a connector.
Installation
The RV-DOCK has 2-way mounting capability: Surface or Dash
mount. The housing can be installed vertically or horizontally.
Choose a mounting location that provides easy access for the
user.
Surface Mounting:
1. Secure the Dock Housing in place by using the supplied
mounting screws.
2. Attach the IPOD connector to the bottom of the housing.
Mounting Screws
(supplied)
Dock Housing
Connector Cable (not
supplied)
Dash Mounting:
1. Use the enclosed RV-DOCK-TEMPLATE to mark where you
want to mount the Docking Station.
Note 1: Make sure there is enough room behind the dash
to mount the Dock Housing.
Note 2: When cutting the hole into the dash make sure
there are no cables or wires that can be accidentally cut.
2. Secure the Dash-Mount Housing to the Dock Housing
using the supplied screws.
3. Secure the Dock Housing to the dash using the supplied
mounting screws.
4. Snap-on the Bezel.
5. Attach the connector to the bottom of the housing.
4. Snap-on Bezel
3. Mounting Screws
(supplied)
2. Housing Screws
(supplied)
1. Hole in Dash
5. Connector Cable
(not supplied)
Front
Top
Vertical Mount Horizontal Mount
Dash-Mount
Housing
Dock Housing
RV-DOCK-INS Rev. A 8-6-10
© 2010 Copyright Magnadyne Corporation
Patent Pending
Installation and User Manual
Model: RV-DOCK
Adapters and Insert

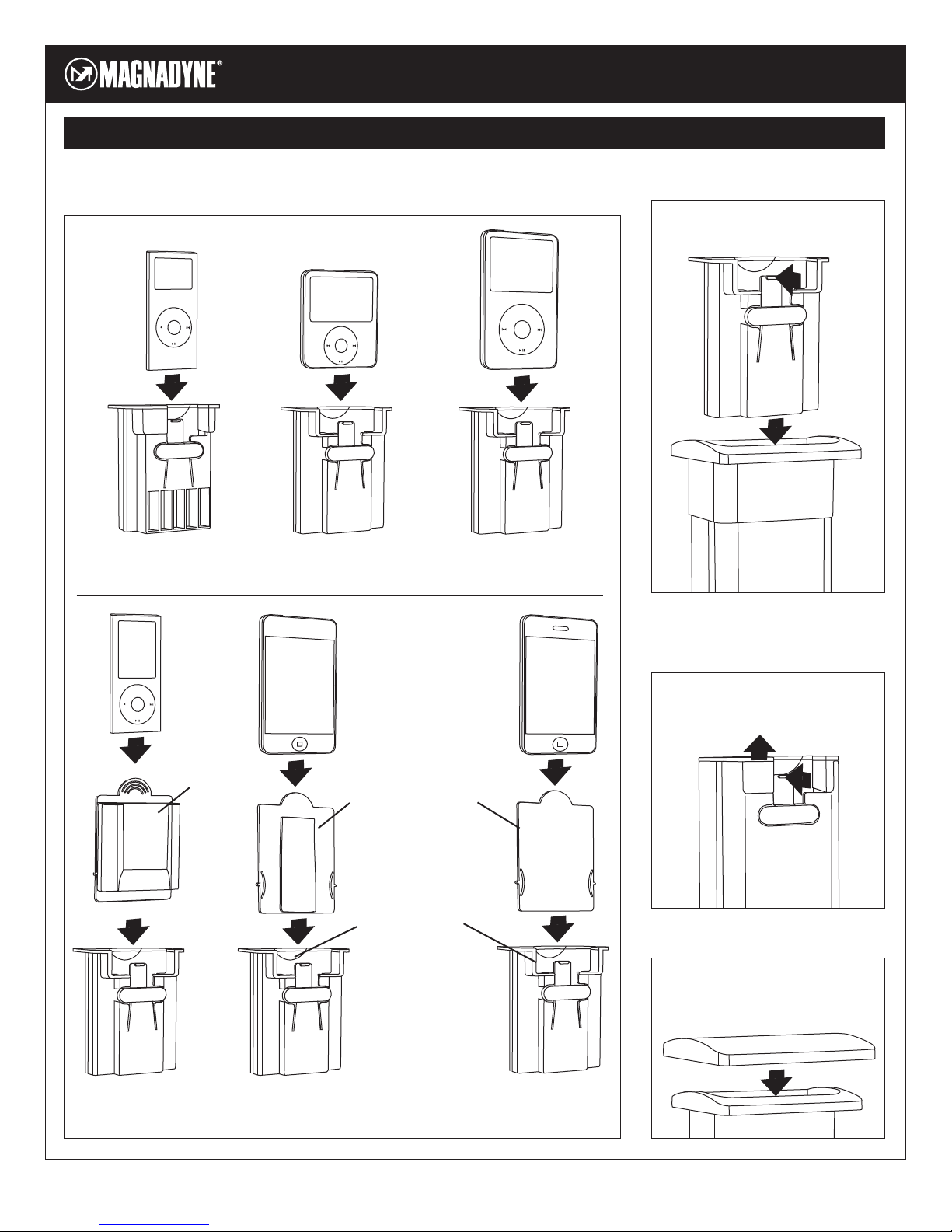

Use the diagram below to choose the Adapter/Insert that fits your player.
Identify the adapters by
the labels on the back of the adapter hous
ing.
MENU
MENU
MENU
ITOUCH
IPHONE
ITOUCH IPHONE
MENU
NANO (Gen 2)
Adapter NANO (Gen 3)
Adapter Classic
Adapter
Classic
Adapter
Classic
Adapter
Insert with
ITOUCH
Side
Facing
Out
Insert with
IPHONE
Side
Facing
Out
Place insert toward
back of adapter.
Then insert ITOUCH
or IPHONE
Inserting Adapter
Changing Adapter
Push the release lever, then insert
adapter into housing
Push the release lever, then
remove adapter from housing
Cover
When not in use place cover on
dash mounted docking station to
keep out dirt and moisture.
NANO
(Gen 4)
Adapter
Classic
Adapter
