MIEN2206

Unmanaged Industrial Ethernet Switch

User Manual

(Edition: V3.1)

Wuhan Maiwe Communication Co., Ltd.

MIEN2206 Unmanaged Industrial Ethernet Switch

Trademark

This trademark is owned by Wuhan Maiwe

Communication Co., Ltd.

Mwring is the trademark used for link redundancy and self-recovery

technology, owned by Wuhan Maiwe Communication Co., Ltd.

Microsoft and Windows is registered trademark owned by Microsoft.

Clarification

The user manual is applicable to MIEN2206 series of industrial unmanaged

Ethernet switch.

Please read the following license agreement carefully before using this manual.

The products described in this manual can be used only if you agree on the

following license agreement.

Important Statement

Any information provided by our company in this manual does not represent for

corresponding authorization on these information.

Our company attempts to ensure the accuracy and applicability for the

information provided in this manual, however our company does not assume

any responsibility for the use of these information, and does not assume any

joint responsibility for the use of these information. There may be a few

technical or typographical errors in the product and manual. The company

reserves the right to change all or part of this manual without prior notice.

Statement

Due to continuous update and improvement of products and

technology, the contents of this document may not be completely

consistent with the actual products, appreciate for your understanding.

If necessary to inquiry the updates of the product, please check our

official website or contact our representative directly.

Revision history:

Version

Date

Reason

V1.0

2011.08

Create files

V3.0

2017.07

Product update

MIEN2206 Unmanaged Industrial Ethernet Switch

Safe Use Instruction

This product performance is excellent and reliable in the designed range of use,

but it’s necessary to avoid man-made damage or destroy for the

equipment.

Read the manual carefully and keep this manual for reference if need

afterwards.

Do not put the device close to the water sources or damp places.

Do not put anything on the power cable, it should be placed out of reach.

To avoid causing fire, do not knot or wrap the cable.

Power connector and other device connectors should be firmly

connected with each other, frequently inspection is needed.

Please keep the fiber socket and plug clean. Do not look directly at the

fiber section when the equipment is working.

Please keep the equipment clean and wipe it with a soft cotton cloth if

necessary.

Please do not repair the equipment by yourself, unless there is clear

instructions in the manual.

Under the following circumstances, please cut off power immediately and

Equipment water damage.

The equipment is broken or the casing is broken.

The equipment works abnormally or the performance has completely

changed.

The equipment produces odor, smoke or noise.

Statement: Information requiring explanation in use of the managed software.

Attention: Matters requiring specific attention in the use of the managed

software.

MIEN2206 Unmanaged Industrial Ethernet Switch

III

Catalogue

1. Product Overview...................................................... - 1 -

1.1. Product Introduction.................................................................... - 1 -

1.2. Features......................................................................................... - 1 -

1.2.1. Industrial Network Performance.......................................................- 1 -

1.2.2. Industrial Application Design............................................................ - 1 -

1.2.3. Industrial Power Supply Design....................................................... - 1 -

1.3. Packing List................................................................................... - 2 -

2. Technical Index...........................................................- 2 -

3. Hardware Installation and Testing.........................- 3 -

3.1. Hardware Structure..................................................................... - 3 -

3.1.1. Machine Mechanism..........................................................................- 3 -

3.1.2. Front Panel and Side Panel..............................................................- 4 -

3.1.3. LED Indicator......................................................................................- 5 -

3.2. Hardware Installation.................................................................. - 6 -

3.2.1. Din-rail Installation............................................................................. - 6 -

3.2.2. Cable Connection.............................................................................. - 7 -

3.2.3. Fiber Connecting................................................................................- 7 -

3.2.4. System Self-check............................................................................. - 7 -

3.2.5. Copper Port Test................................................................................ - 8 -

3.2.6. Fiber Port Testing............................................................................... - 8 -

4. Maintenance and Service........................................ - 9 -

4.1. Internet Service............................................................................ - 9 -

4.2. Technical Support Phone Services.......................................... - 9 -

4.3. The Poduct Repair or Replacement........................................ - 9 -

MIEN2206 Unmanaged Industrial Ethernet Switch

- 1 -

1. Product Overview

1.1. Product Introduction

The MIEN2206 series products produced by Maiwe are high-performance

industrial Ethernet switches. The products provide industrial din-rail installation

methods, which can adapt to various harsh working environments and have

stable communication performance.

The product provides 2 fiber 4 copper, among which the optical port is

100Base-FX single mode or multi-mode fiber interface, and the electrical port

is 10Base-T/100Base-TX Ethernet RJ45 port, each RJ45 port has an adaptive

function, can be automatically configured to 10Base-T or 100Base-TX state

and full-duplex or half-duplex operation mode, and can automatically perform

MDI / MDI-X connection.

1.2. Features

1.2.1. Industrial Network Performance

Support 6-channel 100M Ethernet interface

Support 1 configurable alarm output

Store and forward mechanism, the switching bandwidth is 1.2Gbps

100Mbps electrical port 10 / 100M self-adaptive, full / half duplex, MDI /

MDIX self-adaptive mode

Meet the requirements of trouble-free work under strong electromagnetic

interference environment

1.2.2. Industrial Application Design

Fast recovery of port connection

Din-rail installation

1.2.3. Industrial Power Supply Design

Various power supply options are available:

DC power standard input DC12 ~ 48V, optional DC48V (36 ~ 72V)

AC power input DC110 ~ 370V and AC85 ~ 264V

DC power supply models support dual power supply redundant input, AC

power supply models support only single power supply input

Power supply has reliable over current, over voltage protection and EMC

protection

Relay alarm output function, can be connected with other sound and

light alarm equipment

MIEN2206 Unmanaged Industrial Ethernet Switch

- 2 -

1.3. Packing List

The package of MIEN2206 series products contains the following items. If

any of the following items are lost or destroyed, please contact the agent or the

customer service center of Maiwe, who will assist you in replacing or making

up.

Packing list

Item

Number

MIEN2206 series switch

User manual

Available

models

Port

Voltage rage

Standard

models

100M

copper

port

100M Fiber port(SC/ST/FC)

Single

mode

Single

mode

fiber

Muti

mode

MIEN22

1. DC power

supply:DC12

~ 48V,

DC48V (36 ~

72V).

2. AC power

supply:

DC110 ~

370V or

AC85 ~ 264V

adaptive

MIEN22

06-2S

MIEN22

06-TS2

MIEN22

06-2M

Attention

Among the above models, MIEN2206GE supports DC12 ~ 48V power

supply, other models can choose one of the three power supplies according

to demand.

2. Technical Index

System

indicators

MIEN2206

RJ45 port

10Base-T/100Base-TX

MIEN2206 Unmanaged Industrial Ethernet Switch

- 3 -

Fiber port

100Base-FX

System

parameters

Support standards: IEEE 802.3i, IEEE 802.3u

Switching bandwidth: 1.2Gbps

Packet forwarding rate: 1.19Mpps

MAC address table: 1K

Exchange method: store and forward

Copper port

parameters

Physical interface: RJ45 with shield

RJ-45port:10Base-T/100Base-TX,support

auto-negotiation function

Interface standard: comply with IEEE802.3 standard

Transmission distance: 100 meters

Fiber port

parameters

Luminous power:> -12dBm (single mode)> -17dBm

(multi-mode)

Receiver sensitivity: <-38dBm (single mode)

<-35dBm (multi-mode)

Wavelength: 1310nm (single mode); 1550nm (single

mode); 1310nm (multi-mode)

Transmission distance: 20 - 80Km optional (single

mode); <5Km (multi-mode)

Connector type: SC / FC / ST

Transmission rate: 155Mbps

Power

parameters

Input voltage:

DC power input range: DC12 ~ 48V and DC48V (36 ~

72V) (support dual power redundant input)

AC power input range: AD220V (AC85 ~ 264V /

DC110 ~ 370V) (single power supply)

Input power consumption: <5W @ 24VDC

Over current protection: built-in

Working

environment

Working temperature: -25~+70 ℃(AC power supply

model)

-40~+85 ℃(DC power supply model)

Storage temperature: -40~+85 ℃

Humidity: 5~95%(no condensation)

3. Hardware Installation and Testing

3.1. Hardware Structure

3.1.1. Machine Mechanism

The chassis of MIEN2206 series switches is DIN rail structure, and the

whole machine adopts a six-sided fully enclosed structure. Among them, the

dimensions of MIEN2206 (excluding DIN rail) are: 144mm x 33mm x97mm (H

xW x D,).

MIEN2206 Unmanaged Industrial Ethernet Switch

- 4 -

3.1.2. Front Panel and Side Panel

There are three types of front panel structure types for MIEN2206 as

shown in below:

MIEN2206 front panel

MIEN2206GE front panel

MIEN2206 switches are equipped with a 6-position 5.08mm pitch

terminal on the side panel, as shown in below:

power input

The DC power supply models of MIEN2206 series switches support DC12

~ 48V power supply by default, users can choose DC48V, support dual power

input, and two power supplies are mutually backup.

The AC power models of MIEN2206 series switches support DC110 ~

370V and AC85 ~ 264V. When using AC models, V can only be input from V1 +

and V1-, V1 + is connected to the live wire L, and V1- is connected to the

neutral wire N. Do not connect V2 + and V2-, and pay attention to safety to

prevent electric shock.

Power-down alarm output

MIEN2206 series switches support alarm function. MIEN2206 have

normally closed nodes, When the switch works normally, the normally closed

node is opened and the normally open node is closed. When the system is

MIEN2206 Unmanaged Industrial Ethernet Switch

- 5 -

powered off, the normally closed node is closed and the normally open node is

opened. The recommended switch load capacity of the relay is 1A (24VDC).

Users can use relay contact output to connect other sound and light alarm

devices.

3.1.3. LED Indicator

The LED indicators on the front panel of MIEN2206 series switches can

show the system operation and the status of ports, which is convenient for

finding and solving faults.

Description of LED indicator

LED

Conditions

State

System status LED

PWR1/

PWR2

power connected and operating normally

Off

power unconnected or the system is

abnormal

RUN

Blinking

The system is operating normally (some

models are always on to indicate normal)

Off

The system is abnormal

Fiber port status LED

LINK

The port has established a valid network

connection

Blinking

Network activity on the port

off

No valid network connection

Ethernet RJ45 port status LED

Each Ethernet RJ45 port has two indicators. The yellow indicator is the

port rate indicator and the green indicator is the port connection status

indicator.

10/100M

（Yellow）

100M working state ( 100Base-TX)

MIEN2206 Unmanaged Industrial Ethernet Switch

- 6 -

Off

10M working state (10Base-T)

LINK/ACT

（Green）

The port has established a valid network

connection

Blinking

Network activity on the port

Off

The port doesn’t establish a valid network

connection

3.2. Hardware Installation

3.2.1. Din-rail Installation

For most industrial applications, it is very convenient to install with 35mm

standard DIN rail. When you remove the device from the packing box, the DIN

rail connection seat should be fixed on the rear panel of the MIEN2206 series

switch. If MIEN2206 series switches need to be mounted on DIN rail, you

should check the installation of DIN rail before installation. It includes the

following two contents:

Whether the DIN rail is fixed and strong, whether other equipment is

installed on the DIN rail, and whether there is enough space for installing the

switch.

Weather Is there any power supply suitable for the work of this switch on

the DIN rail.

After selecting the installation location of the switch, install the switch on

the DIN rail as follows:

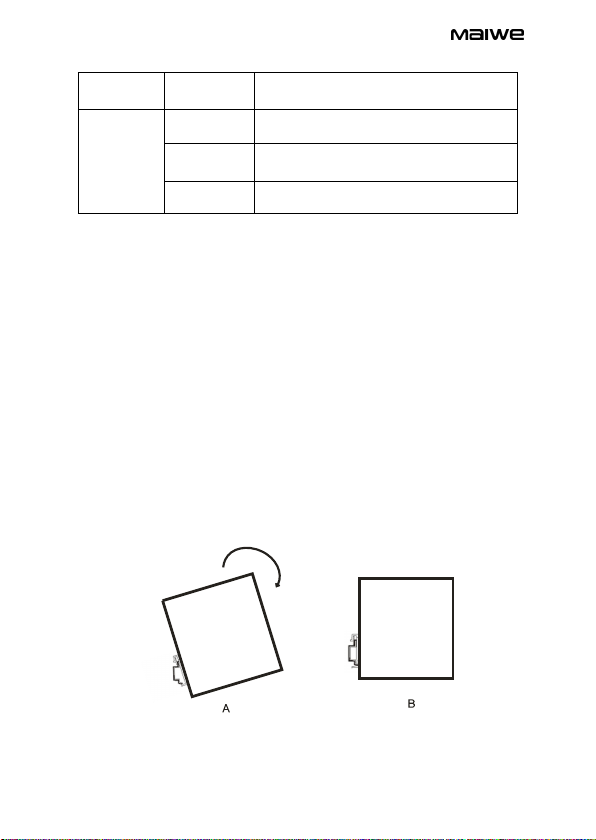

Insert the upper part of the DIN rail into the snap groove of the upper part

of the DIN rail connection seat with a snap spring. Push down slightly on the

top panel of the switch and rotate the device as shown in below

Install MIEN2206 series switches to Dil-rail

Inhaltsverzeichnis

Andere Maiwe Schalten Handbücher

Maiwe

Maiwe MIEN5208 Series Bedienungsanleitung

Maiwe

Maiwe MISCOM7028GX Series Bedienungsanleitung

Maiwe

Maiwe MIEN2205 Bedienungsanleitung

Maiwe

Maiwe MIEN6208 Series Bedienungsanleitung

Maiwe

Maiwe MIGE3028-4GF Bedienungsanleitung

Maiwe

Maiwe MIEN2016 Bedienungsanleitung

Maiwe

Maiwe MISCOM8028GX-4XGF-16GF-8GC Bedienungsanleitung

Maiwe

Maiwe MIEN2208-F Bedienungsanleitung

Maiwe

Maiwe MIGE2206G-2GF-4GT Bedienungsanleitung

Maiwe

Maiwe MIEN3024 Bedienungsanleitung

Maiwe

Maiwe Admas2208P-M12-8TPOE Bedienungsanleitung

Maiwe

Maiwe MIEN2216 Bedienungsanleitung

Maiwe

Maiwe MISCOM7212GP Series Bedienungsanleitung

Maiwe

Maiwe MIEN1203 Bedienungsanleitung

Maiwe

Maiwe MIEN2204 Series Bedienungsanleitung

Maiwe

Maiwe MIEN2205 Bedienungsanleitung

Maiwe

Maiwe MIGE2210 Series Bedienungsanleitung

Maiwe

Maiwe MIEN2205 Bedienungsanleitung

Maiwe

Maiwe MIEN2208 Series Bedienungsanleitung

Maiwe

Maiwe MIEN2208 Series Bedienungsanleitung

Maiwe

Maiwe MIEN3020G-4GC-16GT Bedienungsanleitung

Maiwe

Maiwe MISCOM8028-4GF Bedienungsanleitung

Maiwe

Maiwe MISCOM7220G-4GF-16GT Bedienungsanleitung

Maiwe

Maiwe MISCOM8220G Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
