PAM-FMT

USER

MANUAL

Manual to download in PDF format on

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

PAM-FMT PAM-FMT

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufficient magnitude to constitute a risk of elec-

tric shock to persons.

This symbol is intended to alert the user to the presence of im-

portant operation and maintenance (servicing) instructions in

the literature accompanying the appliance.

Caution: These servicing instructions are for use by qualified service person-

nel only. To reduce the risk of electric shock, do not any perform

any servicing other than that contained in the operating instructions

unless you are qualified to do so.

Attentions: Pour prévenir les chocs électriques ne pas utiliser cette fiche

polarisée avec un prolongateur, une prise de courant on une

autre sortie de courant, sauf si les lames peuvent étre insérées

à fond sans en laisser aucune partie à découvert.

Warning

*Do not install this equipment in a confined space such as a book case or

similar unit.

*The apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such vases, shall be placed on the apparatus.

*Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE

FOLLOWING-WATER AND MOISTURE: Unit should not be used near

water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet

basement, or near a swimming pool, etc). Care should be taken so than

objects do not fall and liquids are not spilled into the enclosure through

openings.”

NOTE : This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a com-

mercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in ac-

cordance with the instruction manual, may cause harmful interfer-

ence to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

* It can be heated up if you use this product in closed box or ill-ventilated place.

Contents

Welcome .............................................................................4

Unpacking ...........................................................................4

Installation

Environment.........................................................................5

Important Safety Instructions ...............................................5

Features ..............................................................................7

Contents and Accessories ..................................................7

Part Names and Function ...................................................8

How to Use the Tuner .......................................................10

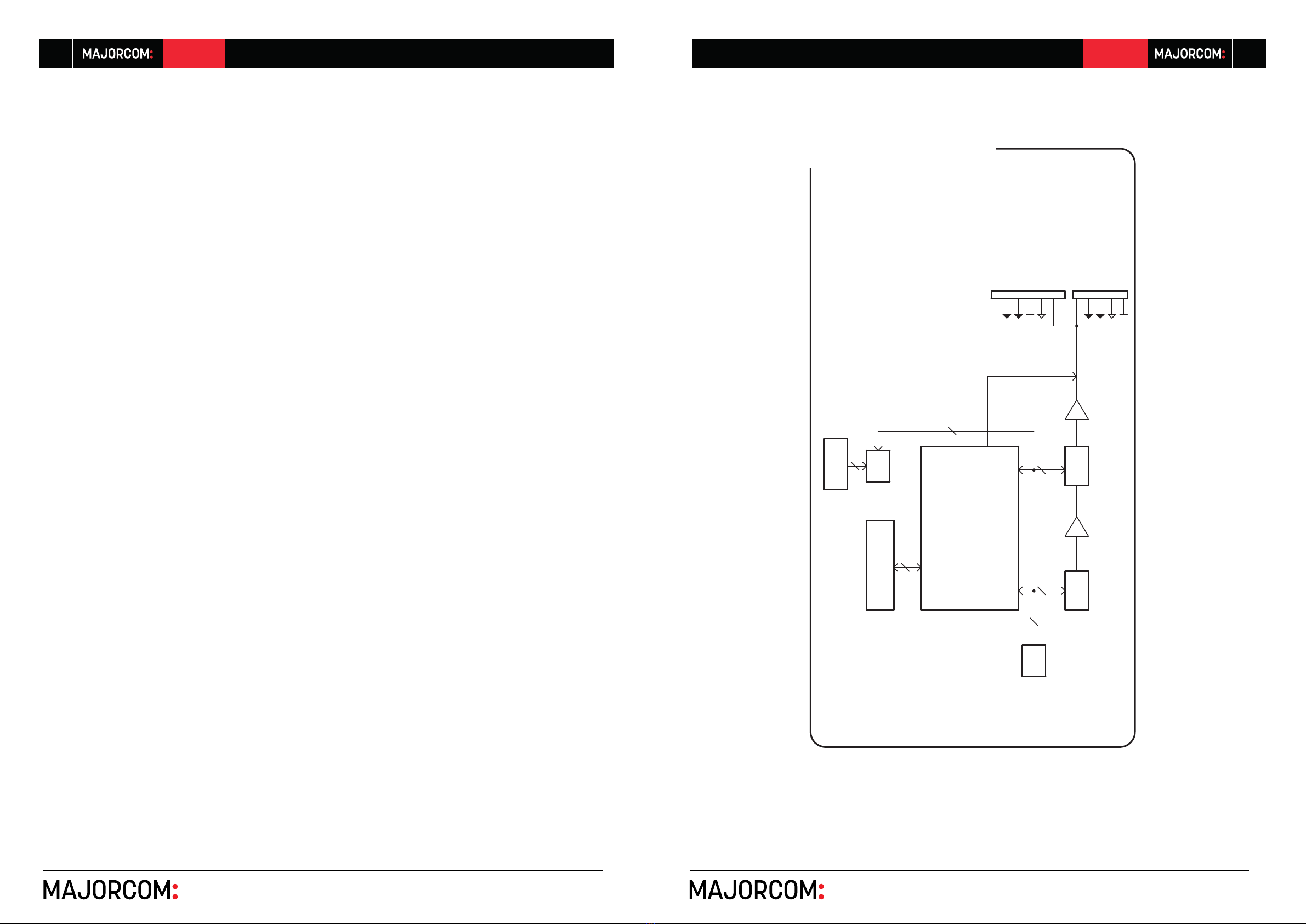

Block Diagram...................................................................13

Specification......................................................................14

Service

Procedures ........................................................................15

Schematic ..........................................................................15

Parts List............................................................................15

Warranty ...............................................................................15

Usermanual V1.1 Usermanual V1.1

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

PAM-FMT PAM-FMT

Unpacking

Please take a few minutes to read this manual to famil-

iarize yourself with important information regarding in-

stallation, product features, and operation.

As with most electronic devices, ORIGINAL PACKAG-

ING (OR EQUAL) IS REQUIRED in the unlikely event

that the product needs to be returned for servicing.

Welcome

A personal welcome to you from the management

and employees of Inter-M

All of the co-workers here at Inter-M are dedicated to

providing excellent products with inherently good

value, and we are delighted you have purchased

one of our products.

We sincerely trust this product will provide years

of satisfactory service, but if anything is not to your

complete satisfaction, we will endeavor to make

things right.

Welcome to Inter-M, and thank you for becoming

part of our worldwide extended family!

Installation

Environment

Never place this product in an environment which

could alter its performance or reduce its service life.

Such environments usually include high levels of heat,

dust, moisture, and vibration.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus (in-

cluding amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are pro-

vided for your safety. If the provided plug does not

fit into your outlet, consult an electrician for replace-

ment of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience recep-

tacles, and the point where they exit from the ap-

paratus.

11. Only use attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the ap-

paratus. When a cart is used, use

caution when moving the cart/ap-

S3125A

Usermanual V1.1 Usermanual V1.1

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

PAM-FMT PAM-FMT

paratus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

- AVOID EXCESSIVE HEAT, HUMIDITY, DUST AND VI-

BRATION

Keep the unit away from locations where it is likely to

be exposed to high temperatures or humidity-such as

near radiators, stoves, etc. Also avoid locations which

are subject to excessive dust accumulation, or to vi-

bration that could cause mechanical damage.

- AVOID PHYSICAL SHOCKS

Strong physical shocks to the unit may cause damage.

Handle the unit with care.

- DO NOT OPEN THE CASE OR ATTEMPT REPAIRS

OR MODIFICATIONS YOURSELF

This product contains no user-serviceable parts. Refer

all maintenance to qualified Inter-M service personnel.

Opening the case and/or tampering with internal cir-

cuitry voids the warranty.

- ALWAYS POWER OFF BEFORE MAKING CONNECTIONS

Always turn the AC mains OFF before connecting or

disconnecting cables. This is important to prevent dam-

age to the unit itself as well as other connected equip-

ment.

- HANDLE CABLES CAREFULLY

Always plug and unplug cables (including the AC

mains power cord) by gripping the connector, not the

cord.

- CLEAN WITH A SOFT DRY CLOTH

Never use solvents such as benzine or paint thinner to

clean the unit. Wipe clean with a soft, dry cloth.

Features

■

■MODULE FOR MOUNTING PAM SERIES

This is a module for mounting and is used with connecting to

PAM-SERIES.

■

■SYSTEM INFORMATION VIA OLED DISPLAY

The system information can be checked through the OLED

display which is easy to operate.

■

■40 TOTAL MEMORIES OF TUNER

40 total memory functions exist. It is possible to conveniently

memorize frequency of the desired broadcasting stations for

convenient use.

■

■RADIO FREQUENCY AUTO SCAN FUNCTION

It is possible to automatically scan the radio frequency.

■

■AUDIO VOLUME ADJUSTMENT AND MUTE FUNCTION

It is possible to adjust and mute the audio volume.

■

■SLIDING MOUNTING METHOD (PAM-312/324/336/348)

It is convenient to install in PAM-Series by applying sliding

mounting method.

※ The PAM-510/520/120A/340A/480A systems are not sliding

mounting types. Open the top cover for this model and con-

nect it with the inner connector.

※ It cannot be used in No.1 bay of PAM-120A.

1. PAM-FMT x 1EA

2. Screws for PAM-Series x 4EA

3. Power and Audio Cable x 1EA

4. FM Antenna x 1EA

5. Operation Manual x 1EA

Contents and Accessories

Usermanual V1.1 Usermanual V1.1

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

PAM-FMT PAM-FMT

1 3 42

765 9

1. FM ANTENNA TERMINAL

This is a terminal to connect with FM antenna.

※ Decide the installation location and direction to make the

reception the best, and fix it firmly.

2. OLED DISPLAY

This is a window to display tuner operation information.

3. PRESET BUTTON

These are the buttons to call saved PRESET. You can call the

saved PRESET from 1 to 5.

4. MUTE BUTTON, STATUS LED

This is a button to mute the tuner. Press the button to turn on

the RED LED and mute the output. Press the button again to

turn off the LED and output the tuner sound source.

5. FREQUENCY TUNING BUTTON

This is a button to set the radio frequency as you wish by in-

creasing or decreasing it.

Part Names and Function

6. PRESET SELECTION BUTTON

These are buttons to browse saved PRESET. You can select

your desired PRESET from P01 to P40.

7. MEMORY BUTTON

This is a button to set PRESET.

※ For detailed information, refer to “How to Use the Tuner” on

page 10 of this manual.

8. AUTO BUTTON

This is a button to select the frequency automatically.

※ For detailed information, refer to “How to Use the Tuner” on

page 10 of this manual.

9. VOLUME BUTTON

This is a button to adjust the tuner volume. You can control the

volume between 0 and 100.

Usermanual V1.1 Usermanual V1.1

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

10 11

PAM-FMT PAM-FMT

How to Use the Tuner

1. HOW TO INSTALL THE MODULE

1) Turn off the PAM-Series amplifier before installation.

2) Connect the PAM-FMT module to the terminal of the PAM-

Series main body using the enclosed 5-pin connector. Then,

slide the module into the slot until it is fully mounted. Terminal

information by product is as follows:

※ PAM-312/324 does not require an enclosed connector.

Slide the module all the way into the slot to connect the

internal connector to the module.

- PAM-340A/480A

PAM-340A/480A

HEAT SINK

MAIN B’D

PAM-FMT

CN10

CN7

OPT PT

CP701

- PAM-510/520

3) Fix the module by using the enclosed screw and turn on

the PAM-Series main body.

4) Turn on the device and check whether relevant module in-

formation is provided on the front OLED DISPLAY.

5) Adjust the volume appropriately and check whether the

sound source is output.

2. BROWSING RADIO FREQUENCY

1) Browsing Frequency

- Connect the enclosed FM antenna to the antenna con-

nection terminal.

- Press the FREQUENCY TUNING button to browse the

frequency above/below the currently displayed fre-

quency and move to the radio frequency.

※ Each time you press the button, the frequency is

changed by 0.05 MHz(0.1MHz for Americas). You can

set the frequency from 87.5 MHz to 108 MHz.

- When the radio frequency is detected, TUNED is dis-

played in the upper-left area of the screen and the corre-

sponding broadcast is output.

PAM-510/520

HEAT SINK

MAIN B’D

PAM-FMT

CN_CD

OPT PT

CP701

Usermanual V1.1 Usermanual V1.1

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

12 13

PAM-FMT PAM-FMT

※ If there is a lot of noise in the radio frequency, adjust and

fix the antenna position appropriately.

2) Auto Scan

- Press the AUTO button to move to Auto Scan mode.

- When Auto Scan mode is activated, AUTO is displayed

in the upper-left area of the OLED DISPLAY.

- Press and hold the FREQUENCY TUNING button to au-

tomatically search for the best-received radio frequency

up/down the current radio frequency.

- When the search is completed, the current radio fre-

quency is displayed and the broadcast is output.

- To deactivate Auto Scan mode, press the AUTO button

again.

3. USING THE PRESET FUNCTION

1) PRESET SETTING

- Search for the radio frequency to save.

- When the search is completed, press the MEMORY but-

ton to go to PRESET Setting mode.

- When PRESET Setting mode is activated, P is displayed

in front of the frequency and the relevant number is blink-

ing.

- Press the PRESET button (1–5) to specify the PRESET

number to save.

※ You can save up to 40 numbers.

- If the PRESET number (P##) is one digit, specify your

desired number and press the MEMORY button to save

the PRESET. If the PRESET number is two digits, your

desired PRESET number is specified and saved at the

same time.

- When the saving process is completed, the message

PRESET SAVE OK appears on the OLED DISPLAY.

- Check the number in front of the current PRESET num-

ber (P##) to confirm whether the PRESET is correctly

set.

2) BROWSING AND CALLING PRESET

- Press the PRESET selection button to select your de-

sired PRESET from P01 to P40.

- Press the PRESET button (1–5) to call the radio fre-

quency of the saved PRESET.

MCU

EEPROM

Tuner Module Elec. Volume

I2C I2C

Mute ctrl

OLED IO Extender

SPI/Ctrl IO

Front key

+24VD

+24VA

+24VD

+24VA

20p connector for new PAM series

5p connector for old PAM series

Audio

Block Diagram

Usermanual V1.1 Usermanual V1.1

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

14 15

PAM-FMT PAM-FMT

Specification

* Design and specification are subject to be changed for the improvement

of product quality without pre notice.

PAM-FMT

TUNER Specification

Receiving Frequency Range 87.5~108MHz

Antenna Input 75Ω Unbalanced

Frequency Response 50Hz~12KHz

THD + N (20KHz LPF) Less than 1%

S/N Ratio More than 60dB

Output Signal Level 0dBV ±3dBV

Operating temperature -10˚C~+40˚C

Power Source DC 24V

Weight(Set) 0.49kg/1.08lb

Dimensions(Set) 184(W) x 55(H) x 182(D)mm

7.24(W) x 2.16(H) x 7.16(D)in

Service

Procedures

Ensure the problem is not related to operator error, or ex-

ternal system devices, Once it is certain that the problem

is related to the product contact your warranty provider as

described in the warranty section of this manual.

Schematic

A Schematic is available by contacting your warranty

provider.

Parts List

A Parts List is available by contacting your warranty

provider.

Warranty

Warranty terms and conditions vary by country and may not

be the same for all products. Terms and conditions of war-

ranty for a given product may be determined first by locating

the appropriate country which the product was purchased

in, then by locating the product type.

To obtain specific warranty information and available serv-

ice locations contact Inter-M directly or the authorized Inter-

M Distributor for your specific country or region.

Usermanual V1.1 Usermanual V1.1

PAM-FMT

56, chemin de la Flambère · 31300 Toulouse · FRANCE · T é l . 3 3 (0)5 61 31 86 87

F a x 3 3 ( 0 ) 5 6 1 3 1 8 7 7 3 · commercial@majorcom.fr · www.majorcom.fr

User manual V1.1

Inhaltsverzeichnis

Andere Majorcom: Tuner Handbücher

Majorcom:

Majorcom: TU-220 Bedienungsanleitung

Beliebte Tuner Handbücher anderer Marken

Tunersys

Tunersys WS16 1 Bedienungsanleitung

Arcam

Arcam DT91 Bedienungsanleitung

Magnum

Magnum MD 102T Bedienungsanleitung

HDHomeRun

HDHomeRun 20121008 Bedienungsanleitung

Crestron

Crestron C2N-TXM Bedienungsanleitung

Eico

Eico HFT-92 Bedienungsanleitung

MFJ

MFJ MFJ-928 Bedienungsanleitung

NAD

NAD C 445 Bedienungsanleitung

Sony

Sony ST-SA5ES Bedienungsanleitung

Sirius Satellite Radio

Sirius Satellite Radio SC-FM1 Bedienungsanleitung

Antique Automobile Radio

Antique Automobile Radio 283501B Bedienungsanleitung

Monacor

Monacor PA-1200R Bedienungsanleitung

Technics

Technics ST-X301L Bedienungsanleitung

Manhattan

Manhattan 176156 Bedienungsanleitung

Marantz

Marantz ST-15S1 Bedienungsanleitung

Korg

Korg HA-40 Bedienungsanleitung

Harman Kardon

Harman Kardon TU915 Bedienungsanleitung

Teac

Teac T-1D Bedienungsanleitung
