MANGO POWER Union

User Manual

02 03 04 05

06 07 08 09

10 11 12 13

14 15

Introducon

Abbreviaon

Safety Instrucons

MP Union App

Features

What’s in the Box

How to Connect

Let’s Get Started

Touchscreen

Technical Speciﬁcaons

FAQ

Storage and Maintenance

Declaraon

Appendix

Contents

............................................................................................. 1

................................................................................

1.............................................................................................

........................................................................................ 3

...................................................................................

3...................................................................................................

.................................................................................. 5

................................................................................. 8

.......................................................................................... 8

.............................................................. 12

...................................................................................................... 14

.............................................................. 14

..........................................................................................

02 03 04 05

06 07 08 09

10 11 12 13

14 15

Introduction

Congratulaons on your purchase of the MANGO POWER Union.

The MANGO POWER Union consists of 2 parts: the main base – the Power Home – and the detachable

Power Move. It can output power at 4000W from its pure sine wave inverter, 100W PD USB-C port,

two MPPT controllers which handle up to 2000W solar input for single MPPT. You can use your

MANGO POWER Union to back up essenal circuits and important appliances at home.

Furthermore, the MANGO POWER Union supports both Wi-Fi and Bluetooth connecons, you can

remote control via the MP Union App (iOS & Android)

Here is a brief breakdown of the system’s speciﬁcaons:

Abbreviation

MPU: MANGO POWER Union

mUnion: Unique and ultra-fast linking between Power Home and Power Move

AC: Alternating Current

DC: Direct Current

SOC: State of Charge

Grid: Home Power Supplied by Utility

MPPT: Maximum Power Point Tracking

Informacje MANGO POWER Union

Baery Capacity :6.9kWh

Power Modes : Backup Mode/Time-based Control Mode/Economical Mode

Output :120V～,Max 4000W,5V~20V , Max 350W

AC Input : 2 x (120V～, 20A), Max 3300W

PV Input : 2 x (60V~150V , 20A), Max 4000W

MANGO POWER Move

Baery Capacity :2.3kWh

Power Modes : N/A

Output :120V～,Max 2000W,5V~20V , Max 350W

AC Input : 120V～, 20A, Max 1300W

PV Input : 60V~150V , 20A, Max 2000W

MANGO POWER Home

Baery Capacity :4.6kWh

Power Modes : Backup Mode/Time-based Control Mode/Economical Mode

Output :120V～,Max 2000W

AC Input : 120V～, 20A, Max 2000W

PV Input : 60V~150V , 20A, Max 2000W

MANGO POWER mPanel, MANGO POWER mSocket, MANGO POWER APP, and other trademarks or service names are the trademarks of MANGO POWER, Inc. Date subject to change.

02 03 04 05

06 07 08 09

10 11 12 13

14 15

Safety Instructions

MANGO POWER Union should be installed by a professional engineer cerﬁed to carry out high

voltage installaons of 48Vdc, and 120Vac to 240Vac in residenal homes.

Carefully read this document before installaon and use. Otherwise, serious damage or personal

injury may result.

This baery contains compounds which may be harmful, carcinogenic, or cause ferlity disorders

if improperly handled. Do not remove the internal baery without the express permission of the

manufacturer or one of its designated suppliers.

We’re proud of the MANGO POWER Union’s lightweight design, but it is sll a 70kg+ product.

Please be careful when handling and use an auxiliary transport tool if necessary.

If you noce any extrusion, deformaon, or other defect of your MANGO POWER Union, immediately

stop use of the product, and contact our support staﬀ.

Before undertaking any installaon or wiring, ﬁrst make sure the MANGO POWER Union’s Power

Buon and Breaker are in the “oﬀ” posion.

Do not dismantle or aempt to dismantle the MANGO POWER Union without the express permission

of the manufacturer. Some of its parts are not replaceable. If you have any issue with your

MANGO POWER Union, contact our support staﬀ. If maintenance is required, professional

maintenance engineers will be required.

To protect the product during transportaon, please do not stand or sit on the MANGO POWER Union's

packing boxes. When opening and unpacking, be sure to handle with care. Do not place other items

on top of the MANGO POWER Union.

Do not install the MANGO POWER Union near a heater or other heat source. It is prohibited to place

or operate this equipment in an environment with any ﬂammable, explosive gas, or smoke.

Do not install the MANGO POWER Union any place where it will be directly exposed to the rain, and

do not allow it to soak in water or any other liquid.

Please do not use chemical cleaners or expose the MANGO POWER Union to any other ﬂammable or

volale chemicals.

Do not use spray products to clean the MANGO POWER Union.

This product should only be installed in environments that stay within its operang temperature

range: Charging: 0°C~55°C（32°F~131 °F ), Discharging: -30°C~60°C（-22 °F~140 °F ）

Strictly follow guidelines laid out in this user manual when installing or using your

MANGO POWER Union.

Only use oﬃcial accessories from MANGO POWER to use in conjuncon with your

MANGO POWER Union.

Do not insert foreign objects into any of the MPU ports (whether AC or DC or venlaon holes).

This power staon generates the same potenally lethal AC power as a household wall outlet.

Please use it carefully and keep children away from it.

MANGO POWER mPanel, MANGO POWER mSocket, MANGO POWER APP, and other trademarks or service names are the trademarks of MANGO POWER, Inc. Date subject to change.

02 03 04 05

06 07 08 09

10 11 12 13

14 15

This product must be grounded. If it should malfuncon or breakdown, grounding provides a path

of least resistance for electric current to reduce the risk of electric shock. This product is equipped

with a cord having an equipment grounding conductor and a grounding plug. The plug must be

plugged into an outlet that is properly installed and grounded in accordance with all local codes

ordinances.

WARNING - Improper connecon of the equipment grounding conductor is able to result

in a risk of electric shock. Check with a qualiﬁed electrician if you are in doubt as to whether

the product is properly grounded. Do not modify the plug provided with the product - if it will not

ﬁt the outlet,have a proper outlet installed by a qualiﬁed electrician.

Features

321 4 5 6

7 8 9

MANGO POWER mPanel, MANGO POWER mSocket, MANGO POWER APP, and other trademarks or service names are the trademarks of MANGO POWER, Inc. Date subject to change.

02 03 04 05

06 07 08 09

10 11 12 13

14 15

MP Union App

The MANGO POWER Union, Power Home, and Power Move

all support both Wi-Fi and Bluetooth connecons.

Please download the MP Union from the iOS App Store

or Google Play before installing the

MANGO POWER Union. MP Union MP Union

11 12 1310

14 15 16

17 18

MANGO POWER mPanel, MANGO POWER mSocket, MANGO POWER APP, and other trademarks or service names are the trademarks of MANGO POWER, Inc. Date subject to change.

02 03 04 05

06 07 08 09

10 11 12 13

14 15

2x DC 5521 12V/5A output Tradional ports for routers, cameras,

old laptops, etc.

Can be used to charge most devices currently

on the market at 65W/100W Max.

Can be pressed/tapped to control the

MANGO POWER Union

Breaker for home backup circuit

Standard AC receptacle: widely used in areas that

use 100-120V; generates almost same AC power

as a household wall outlet

USB-C 65W/100W output

Quick charge USB-A ports6x USB-A 27W output

Touch Screen

Can charge your phone or other devices

which support wireless charging

2x Wireless charging 15W

Output port for devices with a corresponding

plug such as vehicle-use vacuums, refrigerators, etc.

DC 12V/10A cigaree lighter port

Short press to turn the Power Move ON/OFFPower buon for Power Move

NEMA TT-30: standard recreaonal vehicle

connector (120V/30A), also known as RV 30

US AC TT-30A

AC output 20A x4

Can be connected to solar panelsSolar input for Power Move

To fully backup your home’s essenal circuitsHome backup outlet

Can be connected to solar panelsSolar input for Power Home

Communicaon Interface for several

MANGO POWER Union Extensions

Communicaon Interface

of Extension

Can connect the Power Move to grid for

AC charging

Grid AC Input for Power Move

Can connect the Power Home to grid for

AC charging

Grid AC Input for Power Home

Short press to turn the Power Home ON/OFFPower buon for Power Home

Home backup breaker

Long press (>3s) to turn the Power Home’s AC

output ON/OFF (with 40A Home Backup

Cable connected)

AC ON/OFF buon

Long press (>3s) to turn the Power Home’s

smart charge ON/OFF

Smart charge buon

No. Name Descripon

Mediaspołecznościowe

How to connect

Before connecng the MANGO POWER Union to solar, the grid, or your home’s essenal circuits,

please conﬁrm the following:

MANGO POWER mPanel, MANGO POWER mSocket, MANGO POWER APP, and other trademarks or service names are the trademarks of MANGO POWER, Inc. Date subject to change.

What’s in the Box

MANGO POWER Union

AC Charging Cable

Solar Charging Cable

40A Home Backup Cable

User Manual

Warranty Card

QC PASS Cerﬁcate

1 1

02 03 04 05

06 07 08 09

10 11 12 13

14 15

No. Category Quanty

Mediaspołecznościowe

Both the Power Home and the Power Move have Grid AC input ports on the backside of the device.

The MANGO POWER Union supports a maximum 3300W input. Connect the AC input ports to home

sockets using the included charging cables. (Please be sure the home sockets you connect to support

a current of more than 20A).

Connect with the Grid

MANGO POWER mPanel, MANGO POWER mSocket, MANGO POWER APP, and other trademarks or service names are the trademarks of MANGO POWER, Inc. Date subject to change.

Both the Power Home and the Power Move have PV input ports on the backside of the device.

The MANGO POWER Union supports 60V-150V solar panels. You can connect it to a roof solar system

or to portable solar panels. Please use the included PV Charging Cable (MC4 Port to Aviaon Port)

if necessary. Up to 2x solar MPPTs can be plugged in.

For home use, you can connect both the Power Home and the Power Move to maximize solar input.

The maximum solar input of the enre MANGO POWER Union is 4000W,

with 2000W coming from each module.

When using outdoors, you can independently connect the Power Move to your home solar system

or connect to portable solar panels for a maximum input of 2000W.

Connecng with Solar

02 03 04 05

06 07 08 09

10 11 12 13

14 15

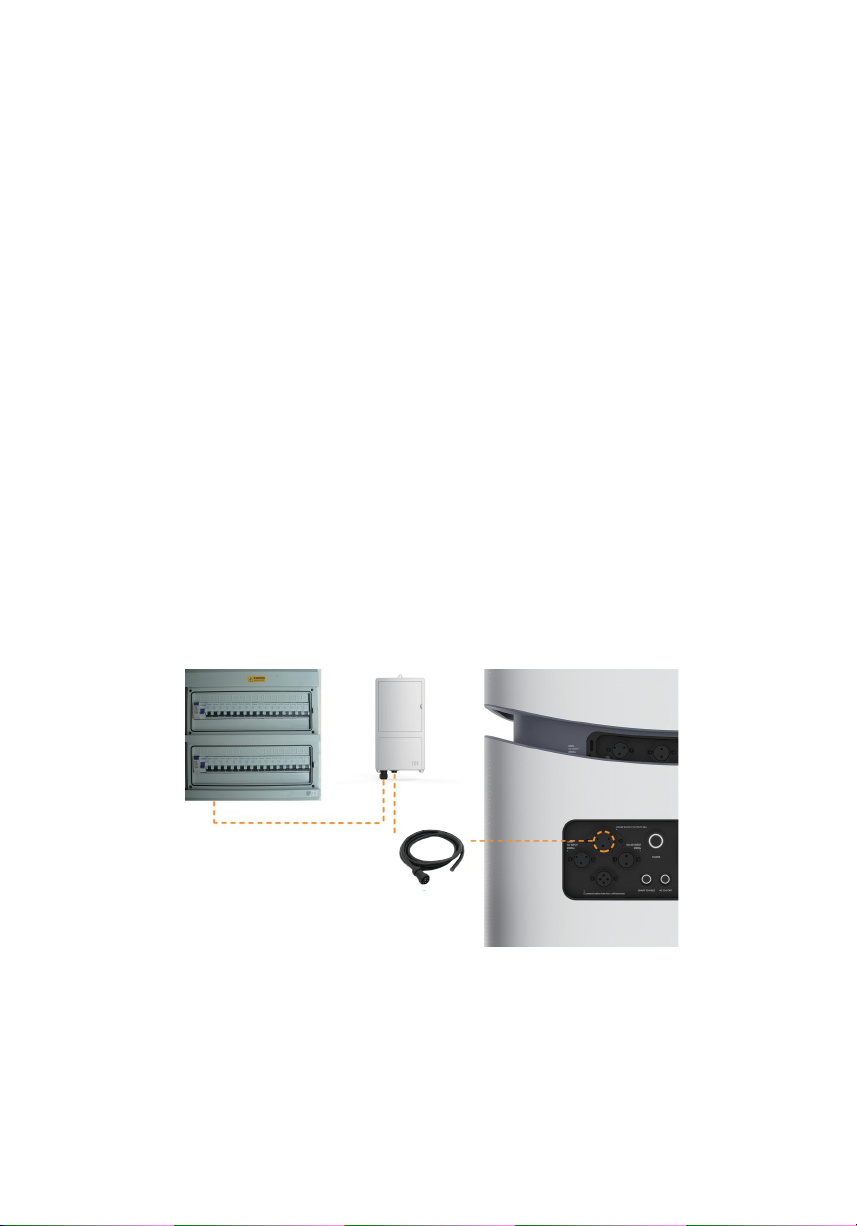

To fully back up your home’s essenal circuits, we recommend using the mPanel accessory

(not included) capable of supporng up to 4x circuits with a total load of 4000W/40A per single

MANGO POWER Union unit.

To test the home backup power supply and UPS (Uninterrupted Power Supply) features without the

mPanel, you can connect the MANGO POWER Union or Power Move with the gird and connect your

essenal circuits or devices with the output ports on top of the Power Move.

Turn on the Home Backup Breaker on the backside of the device and tap the UPS buon on the

Power Move’s touchscreen. The backup power supply will start working.

Now when a power outage occurs, the power supply for all the appliances connected to the backup

circuit will automacally and immediately begin powered by the

MANGO POWER Union and/or Power Move.

Please note this method (connecng via the output ports instead of the mPanel) can only support

2000W/20A for each AC port. If you use the MANGO POWER Union to connect several devices with

several AC ports for the test, make sure the total power needed is less than 4000W. If you want to

increase the overall capacity and back up all your home’s essenal circuits, we recommend

connecng several MANGO POWER Unions and running them in parallel.

Aer connecng the MANGO POWER Union to solar, the grid, or your home’s essenal circuits ,

your overall connecon will be as shown below:

Connect with Your Home’s Essenal Circuits
