Manhattan 308250 Bedienungsanleitung

DISPLAYPORT

TO VGA

CONVERTER

QUICK

INSTALL

GUIDE

Model 308250

Thank you for purchasing this

MANHATTAN®DisplayPort to VGA

Converter, Model 308250.

This handy device helps establish a

fast, simple and convenient link between

newer DisplayPort-equipped desktop

or notebook computers and other

media sources with existing VGA

monitors. (See back for connection

instructions and specications.)

MAN-308250-miniQIG-0209-03

•

Delivers a high-quality digital

video signal – ideal

for extending the

service of legacy

VGA equipment

•

Supports Deep Color,

high-bandwidth 10.8 Gbps

applications and resolutions up

to 1080p on 1920 x 1200 (WUXGA) displays

•

Integrated design simplies connections and eliminates cable tangles

and clutter

•

Plug and Play – Windows and Mac compatible

•

Lifetime Warranty

All products mentioned are trademarks or registered trademarks of their respective owners.

MANHATTAN®offers a complete line of PC Components, Peripherals, Cables and

Accessories. Ask your local computer dealer for more information or visit us online at

www.manhattan-products.com

SPECIFICATIONS

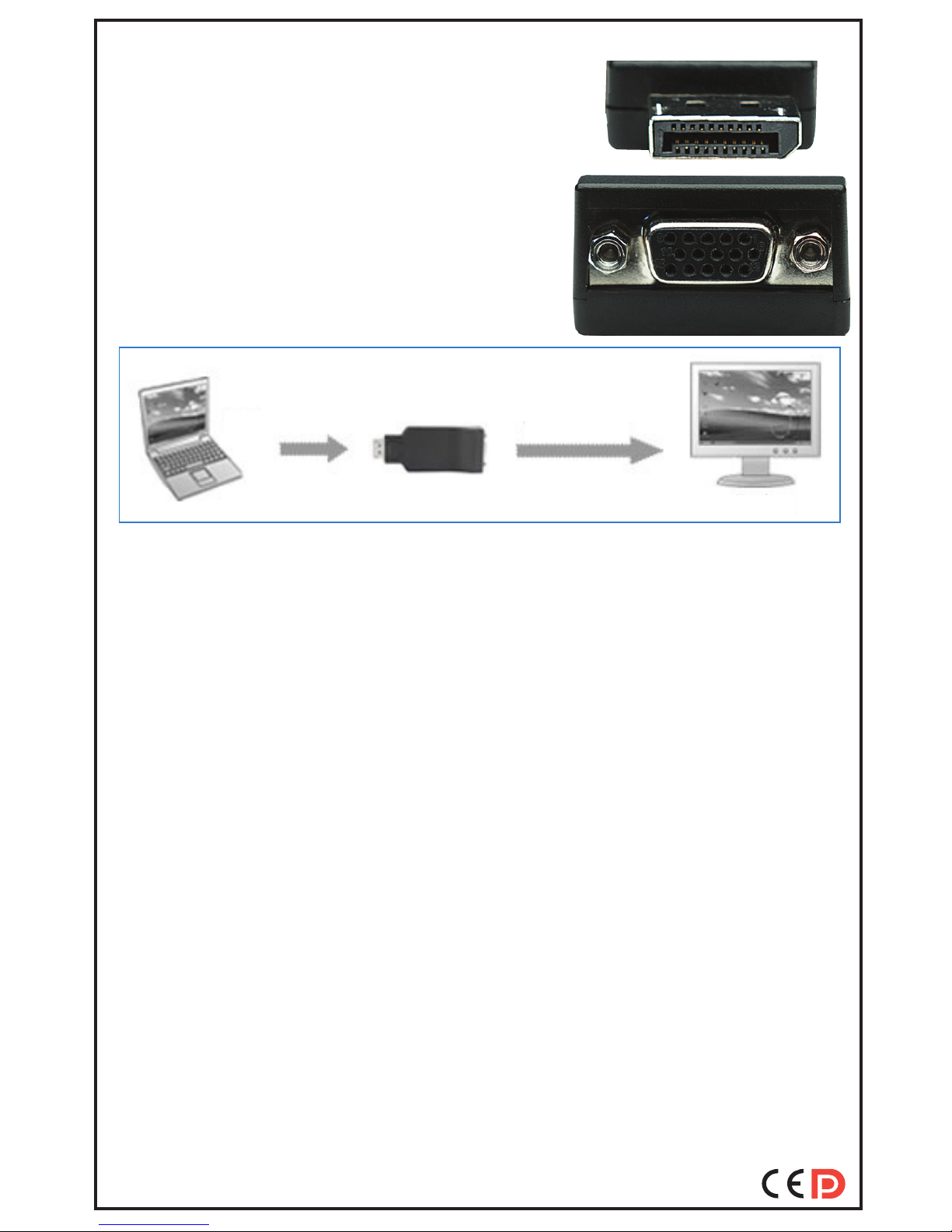

CONNECTIONS

1. Connect the male (DisplayPort) end of

the converter (right) to the DisplayPort

source device.

2. Connect the female (VGA) end of the

converter (right) to the display unit.

NOTE: Always insert and remove cable

connectors gently to avoid possible

damage to the connectors or the devices.

Standards and Certications

• UL, FCC, CE, DisplayPort 1.1

Contacts

• (1) DisplayPort 20-pin male

• (1) HD 15-pin female

• Nickel plated

General

• Power supply: +3.3 V (from DisplayPort

source)

• Measured power: active, 1.4 W;

standby, 100 mW

• Automatic sink detection (based on

DDC return) and standby mode

• EDID pre-fetch (VGA EDID conversion)

Signal Input/Output

• Single link range, 1920 x 1200, 1080p

(max.)

• Supports VGA video, 1920 x 1200

(max.)

• Analog video output (RGB): 700 mV

swing

• Display resolution up to 1920 x 1200

(WUXGA-R), 60 Hz, 8 bpc; 154 MHz

• Supports up to 10.8 Gbps bandwidth

• Deep Color support, 8-bit and 10-bit

• Auxiliary channel support, 1 Mbps

• 1 lane, 1 direction, 4-line connection

support

• Video amplier bandwidth, 8 bpc /

10 bpc

Operating Frequency

• Frequency, 154 MHz / 144 MHz

• Vertical range, 60 Hz

Environmental

• Temperatures: operating, 0–70°C;

storage, -10–80°C

• Humidity: operating, 10–85% RH (no

condensation); storage, 5–90% RH

(no condensation)

Physical

• Plastic housing

• Length: 116 x 39 x 20.5 mm

(4.5 x 1.5 x 0.8 in.)

• Weight: 40 g (1.4 oz.)

Package Contents

• DisplayPort to VGA Converter

• Quick install guide

MANHATTAN

DisplayPort to VGA

Converter

PC VGA

cable

Display
