Manhattan 177078 Bedienungsanleitung

MLBX WIRELESS

LASER MOBILE

MINI MOUSE

USER

MANUAL

Model 177078

MAN-177078-UM-1208-01

Thank you for purchasing the MANHATTAN®MLBX

Wireless Laser Mobile Mini Mouse, Model 177078.

The easy-to-follow instructions in this user manual help

make installation of the mouse quick and simple, so you’ll

also soon be enjoying the benets of these features:

• Precision laser performance that easily connects and

operates without a receiver

• Bluetooth technology that offers wireless freedom with

effective range up to 10 m (33 ft.)

• Auto power management and retractable cable that help

maintain proper battery levels — recharges while in use

for uninterrupted operation

• Top-mount, push-button control that instantly shifts

resolution from 800 to 1600 dpi

• Compact size, ambidextrous shape and no-slip texture

for a secure grip

• Low-friction base that smoothly glides over work surfaces

• Plug and Play installation and Windows compatibility

• Lifetime Warranty

FCC Statement

This equipment has been tested and found to comply with

the limits for a class B digital device, pursuant to part 15

of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception — which can

be determined by turning the equipment off and then back

on — the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit other

than that to which the receiver is connected.

• Ask your MANHATTAN dealer or an experienced radio/

TV technician for help.

Operating Tips

• To save battery power, operate the mouse on a bright

surface with a ne texture. A very dark surface will result

in higher power consumption.

• Avoid using the mouse on glass, mirrored or glossy

surfaces, as it may work improperly or not at all.

• To ensure optimal transmission distance, don’t use the

mouse on a metal surfaces (as elements such as iron and

aluminum can interfere with its performance).

HARDWARE INSTALLATION

Batteries

1. Slide the battery

cover off the mouse.

2. Insert the 2 included

AAA batteries, matching the

+/– polarity as marked inside the

battery compartment.

3. Replace the battery cover.

4. On the underside of the mouse,

set the Power switch to On. (The

LED will light.)

Connecting to a Dongle/Drive

Before installing the MLBX Wireless Laser Mobile Mini

Mouse, make sure that the Bluetooth protocol is available

on your computer — either on the hard drive or through a

Bluetooth dongle inserted in a USB port — as indicated

by the Bluetooth icon (right), which typically appears

in the lower-right section of your desktop system tray.

Different software is available to enable installation, such

as Widcomm or IVT (whose screen images are presented

in the procedures below as examples); otherwise, the built-

in Microsoft software can be used (the second connection

procedure of the three listed below).

Power switch

Laser

Connect

button

Connecting with Widcomm (recommended):

1. Double-click the Bluetooth icon and click “Next” on the

Setup screens until the system nds the mouse and the

Bluetooth Device Selection screen displays (below).

2. Select “Bluetooth Wireless Mouse” and click “Next.”

3. When the Conrmation

Required prompt displays,

click “Click here.” The

mouse is now operational

and ready for use.

If unused for 10 minutes, the mouse transfers to the Power

Save mode. Double-click the left button to reactivate the

mouse. Once connected, double-clicking the left button will

reactivate the mouse on subsequent power-ups without

the need to reconnect.

Bluetooth Device Selection

Bluetooth

Wireless

Mouse

Conrmation Required

If a disconnection occurs during

the procedure, just reconnect the

mouse. It may be necessary to open

the Bluetooth Dongle Software window,

disable the mouse, then reconnect.

If you’re using the Widcomm Bluetooth software, click the

right mouse button and select “Status” (below) to check the

battery power status and set up the low battery alarm.

Bluetooth Connection Status

Status

Disable

Connecting with Built-in Microsoft Software:

1. Double-click the

Bluetooth icon to

display the Bluetooth

Devices screen;

then click “Add” to

display the Add

Bluetooth Device

Wizard welcome

screen.

2. Select “My device is set up and ready to be found” (or

“facility is ready for searching,” depending on the OS).

Add Bluetooth Device Wizard

Bluetooth Devices

3. Select “Bluetooth Wireless Mouse” and click “Next.”

4. Select “Don’t use a passkey” (or “No Password”) and

click “Next,” then “Finish” to complete the procedure.

Add Bluetooth Device Wizard

Bluetooth Wireless Mouse

New Device

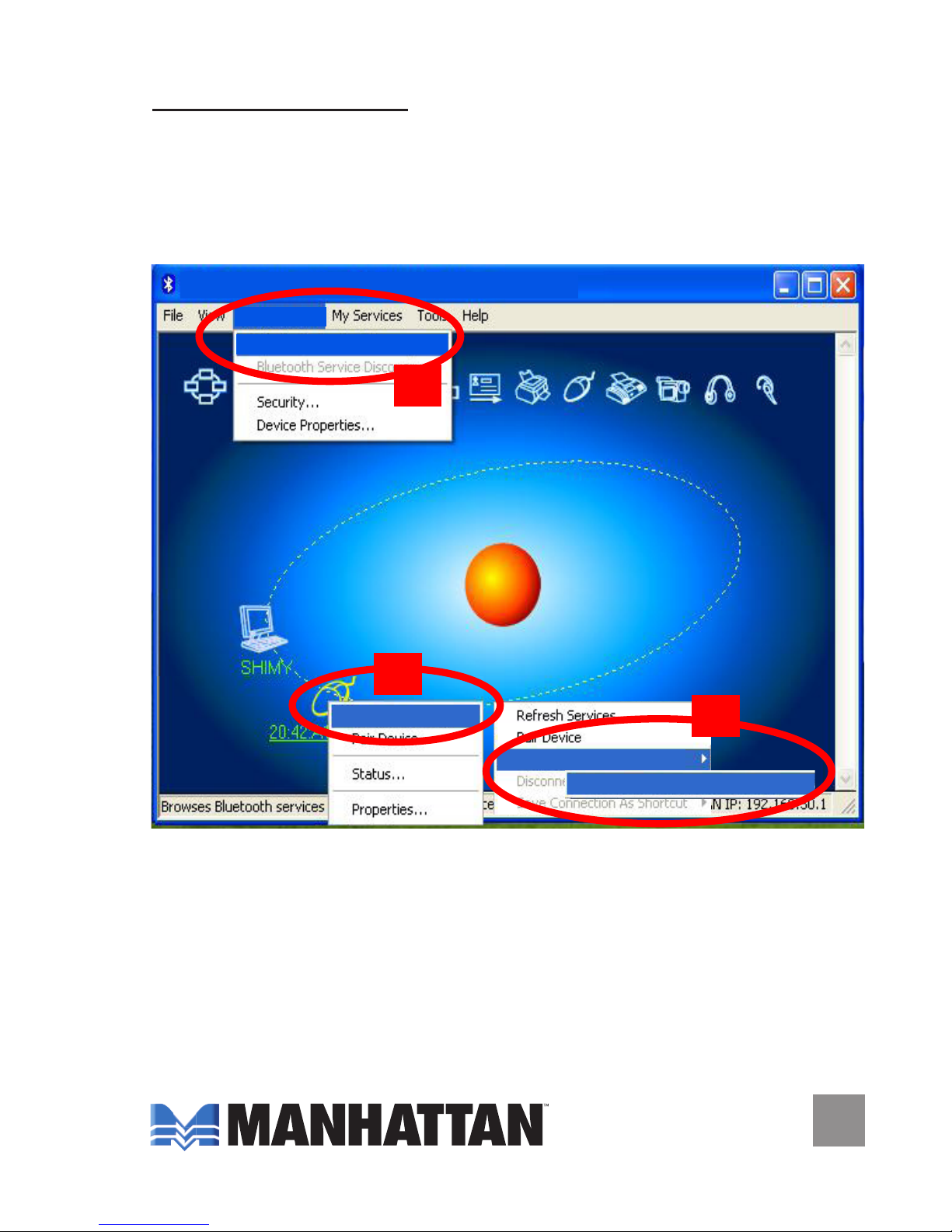

Connecting with IVT:

1. Double-click the Bluetooth icon to open the management

window; from the My Bluetooth menu, select “Bluetooth

Device Discover” (or “Search for Bluetooth facilities”), or

click the orange ball on the screen.

2. When the mouse icon appears on the screen, highlight it

and right-click, then select “Refresh Services.”

3. Highlight the mouse icon again, right-click and select

“Connect” then “Bluetooth Input Service” (or “Bluetooth

Human Interface Device Service”) to complete the install.

Bluetooth Device Selection

IVT Corporation BlueSoleil - Main Window

My Bluetooth

Refresh Services

Connect

Bluetooth Human Interface Device Service

FAQ

If you’re unable to connect the MLBX Wireless Laser Mobile

Mini Mouse to the computer, or if the mouse works erratically,

check the possible corrective measures below.

• Before installing the mouse, make sure the Bluetooth

dongle has been installed and activated.

• Press and release the Connect button on the underside

of the mouse and conrm that the red LED lights.

• Make sure the mouse is within the effective operating

range of 10 M (approx. 33 feet).

• Make sure no change has been made to the Bluetooth

installation since the mouse installation. If so, re-install

the mouse.

• If your Bluetooth is connected to other Bluetooth devices,

conrm that the Bluetooth speed is adequate.

• Check the batteries.

SPECIFICATIONS

Standards and Certications

• USB 1.1 (recharge only), FCC, CE

General

• 2.4 – 2.48 GHz Bluetooth Class II; effective range up to

10 m (33 ft.)
