Marantz SC-8 Bedienungsanleitung

MARANTZ

DESIGN

AND

SERVICE

Using

superior

design

and

selected

high

grade

components,

MARANTZ

company

has

created

the

ultimate

in

stereo

sound.

Only

original

MARANTZ

parts

can

insure

that

your

MARANTZ

product

will

continue

to

perform

to

the

specifications

for

which

it

is

famous.

Parts

for

your

MARANTZ

equipment

are

generally

available

to

our

National

Marantz

Subsidiary

or

Agent.

ORDERING

PARTS:

Parts

can

be

ordered

either

by

mail

or

by

telex.

In

both

cases,

MARANTZ

part

number

has

to

be

specified.

If

you

order

by

mail,

fulfil

MAR

ANTZ

order

forms.

MARANTZ

S.A.

EUROPEAN

PARTS

DEPARTMENT

2,

Avenue

Léopold

ill

B-7120

PERONNES-lez-BINCHE

BELGIUM

TWX:

57589

SEPLT

B

The

following

information

must

be

supplied

to

eliminate

delays

in

processing

your

order:

Complete

address

Complete

part

numbers

and

quantities

required

Description

of

parts

Model

number

for

which

part

is

required

Way

of

shipment

Signature:

any

order

form

or

telex

must

be

signed

otherwise

such

part

order

will

be

considered

as

null

and

void.

OOS

Ne

PARTS

ORDERING:

Parts

may

be

ordered

from

the

following

addresses:

EUROPE

MARANTZ

S.A.

MARANTZ

NORSKE

A.S.

MARANTZ

DENMARK

MARANTZ

GMBH

AUSTRIA

European

Parts

Department

Refstadalleen

13

Bregnergdvej

132b

Wiedner

Hauptstrasse

98

2,

Avenue

Léopold

Il

Oslo

5

3460

Birkergd

1050

Wien

B-7120

Péronnes-lez-Binche

Norway

Denmark

Austria

Belgium

Telex:

19659

Telex:

39137

Telex:

113583

Telex:

57589

MARANTZ

S.A.

MARANTZ

FRANCE

MARANTZ

BELGIUM

MARANTZ

SVENSKA

A.B.

326

Avenue

Louise

Bte

32

4

Rue

Bernard

Palissy

45

Rue

Auguste

Van

Zande

Svartviksvangen

56

1050

Brussels

92600

Asniéres

1080

Brussels

Traneberg

-

Box

12016

Belgium

France

Belgium

16112

Bromma

Telex:

26602

Telex:

611651

Sweden

Telex:

13449

MARANTZ

GERMANY

GMBH

MARANTZ

AUDIO

U.K.

LTD.

Max

Planckstrasse,

22

Unit

15/16

6072

DREIEICH

1

Saxon

Way

Industrial

Estate

West

Germany

Moor

Lane

Telex:

4185316

Harmondsworth

UB7

OLW

Great

Britain

Telex:

935196

AUSTRALIA

MARANTZ

AUSTRALIA

PTY.,

LTD.

32

Cross

Street

Brookvale,

N.S.W.

2100

Australia

Telex:

24121

All

of

the

above

locations

are

fully

equipped

to

take

care

of

your

total

service

needs.

Because

various

countries

have

dé

ffering

configuration

requirements,

it

is

necessary

that

you

contact

the

service

facility

in

your

particular

country.

In

the

ev

nt

that

there

is

no

service

location

listed

for

your

country,

please,

contact

the

nearest

facility

for

the

necessary

assistance.

In

case

of

difficulties,

do

not

hesitate

to

contact

the

Technical

Department

at

abovementioned

address.

ERR

en

Been

ERE

ZZ’

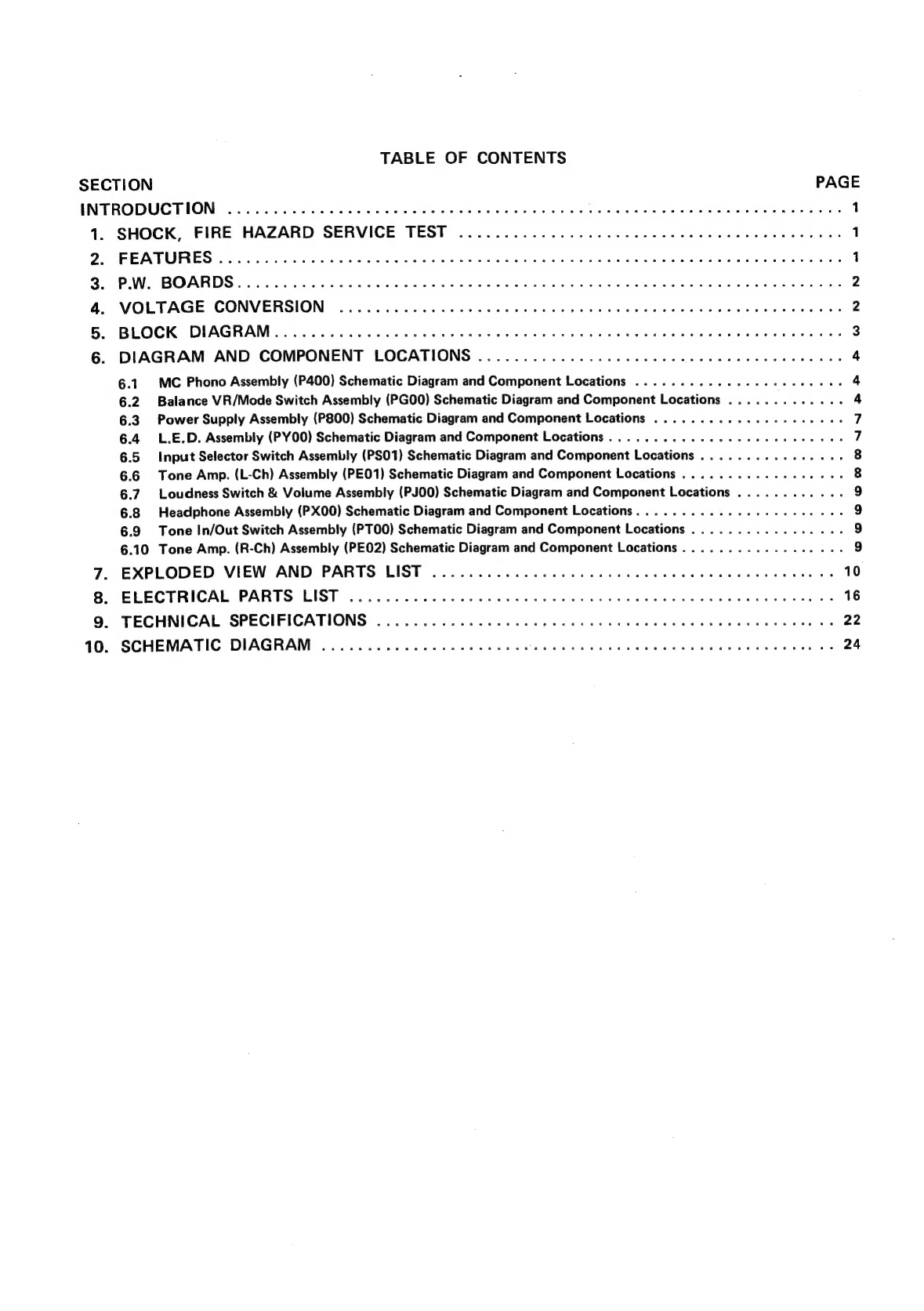

TABLE

OF

CONTENTS

SECTION

PAGE

INTRODUG

TION:

ecco

oie

Sn

ia

Sees

RE

Ee

GR

AS

BAe

eg

Re

Sees

Be

RASS

1

1.

SHOCK,

FIRE

HAZARD

SERVICE

TEST

...........

ccc

eee

1

Ds

FEATURES

io

cs5

boob

bsiehek Saharan

BR

wba

whe

outs

Ga

sewed

ean

canes

(2a

aha

ge

wee

aw

he,

SIGE

Nees

A

ores

ats

1

3)

BAW:

BOARDS

e036

coe

fea

ke

hie

Saeed

Ate

baa

Rowenta

aad

Raean

Ch

Aa

ee

ere

2

4.

VOLTAGE

CONVERSION

.....

0.0...

ce

ee

een

e

teen

tee

e

ee

eas

2

5B.

(BLOCK:

(DIAGRAM

oiicek

ik

ieee

oe

Berea

Pee

eek

le

ete

ko

We

SE

Sore

WS

we

ae

3

6.

DIAGRAM

AND

COMPONENT

LOCATIONS

............

0.0.2.0.

cece

eee

eee een

nes

4

6.1.

MC

Phono

Assembly

(P400)

Schematic

Diagram

and

Component

Locations

...........--

000+

eee

4

6.2

Balance

VR/Mode

Switch

Assembly

(PGOO)

Schematic

Diagram

and

Component

Locations

.............

4

6.3.

Power

Supply

Assembly

(P800)

Schematic

Diagram

and

Component

Locations

...............-022005

7

6.4

L.E.D.

Assembly

(PY00)

Schematic

Diagram

and

Component

Locations

...............00

ees

eee

7

6.5

Input

Selector

Switch

Assembly

(PSO01)

Schematic

Diagram

and

Component

Locations

..............+.-:

8

6.6

Tone

Amp.

(L-Ch)

Assembly

(PEO1)

Schematic

Diagram

and

Component

Locations

...........-.+.005

8

6.7.

Loudness

Switch

&

Volume

Assembly

(PJ00)

Schematic

Diagram

and

Component

Locations

............

9

6.8

Headphone

Assembly

(PX00)

Schematic

Diagram

and

Component

Locations..............02

0000

eee

9

6.9

Tone

In/Out

Switch

Assembly

(PTOO)

Schematic

Diagram

and

Component

Locations

................-

9

6.10

Tone

Amp.

(R-Ch)

Assembly

(PE02)

Schematic

Diagram

and

Component

Locations

...............65.

9

7.

EXPLODED

VIEW

AND

PARTS

LIST

...........

0...

cece

eee

ne

10

8°

‘ELECTRICAL:

PARTS:

EIST:

scxc5

ike

aecttuctitsie

te

tik

oe

et

csi

Bees

ee

16

9.

TECHNICAL

SPECIFICATIONS

.......

0...

ccc

cc

cect

terre

eee

een

e

tne

tenes

ae

22

10.

SCHEMATIC

DIAGRAM

..............-.02000

6:

Fcc

aa

en

Mkt

Ub

cee

ras

Sa

Dace:

CANS

1S

Leelee

24

MARANTZ

MODEL

Sc-8

STEREO

CONSOLE

AMPLIFIER

INTRODUCTION

This

service

manual

was

prepared

for

use

by

Authorized

Warranty

Staions

and

contains

service

information

for

the

Marantz

Model

Sc-8

Stereo

Console

Amplifier.

Servicing

information

and

voltage

data

included

in

this

manual

are

intended

for

use

by

knowledgeable

and

ex-

perienced

personnel

only.

All

instructions

should

be

read

carefully.

No

attempt

should

be

made

to

proceed

without

a

good

understanding

of

circuitry

operation.

The

parts

list

furnishes

complete

ordering

information.

Most

replacement

parts

should

be

ordered

from

the

Marantz

Company.

However,

a

simple

description

is

included

for

parts

which

can

be

obtained

locally.

1.

SHOCK,

FIRE

HAZARD

SERVICE

TEST

CAUTION:

After

servicing

this

appliance

and

prior

to

returning

to

customer,

measure

the

resistance

between

either

primary

AC

cord

connector

pins

(with

unit

NOT

connected

to

AC

mains

and

its

Power

switch

ON),

and

the

face

or

front

Panel

of

product

and

controls

and

chassis

bottom.

Any

resistance

measurement

less

than

1

Megohms

should

Cause

unit

to

be

repaired

or

corrected

before

AC

power

is

applied,

and

verfied

before

return

to

user/customer.

Ref.

UL

Standard

No.

1270.

Para.

66.

3.

D

(Mandatory

Test

after

servicing

Electrical

Appliances,

effective

7-1-83).

2.

FEATURES

@

MC

Head

Amplifier

(13

transistors

for

each

channel)

The

MC

head

amplifier

uses

a

push-pull

amplifier

in

the

first

stage

which

consists

of

4

very

low

noise

NPN

tran-

sistors

and

4

very

low

noise

PNP

transistors.

It

uses

also

push-pull

transistors

in

the

second

stage

and

an

SEPP

circuit

in

the

output

stage.

The

feedback

circuit

impedance

is

reduced

és

much

as

possible

to

improve

the

S/N

ratio,

and

a

voltage

gain

of

26

dB

(20

times)

is

obtained

at

a

rated

input

level

of

110

uV.

@

PHONO

Amplifier

(11

transistors

for

each

chamel!)

The

PHONO

amplifier

uses

full

push-pull

citcuits

con-

sisting

of

11

transistors

for

each

channel,

sc

low

TIM

distortion

and

a

high

S/N

ratio

are

obtained.

The

first

stage

is

a

push-pull

circuit

consisting

of

very

low

noise,

high

Gm

N

channel

and

P

channel

FETs,

combined

with

a

cascode

current

Miller

circuit

so

that

degradation

of

characterisitics

of

following

crcuits

due

to

input

stage

impedance

fluctuations

is

prevented.

The

second

stage

consists

of

an

emitter

follower

buffer

amplifier

and

a

push-pull

voltage

amplifier.

The

output

stage

uses

an

SEPP

circuit

which

s

adequate

to

any

type

of

load.

The

equalizer

elements

have

very

low

impedance

compared

with

conventiona

equalizer

circuits,

so

a

S/N

ratio

of

90

dB

is

obtained

a

the

rated

input

level.

The

equalizer

elements

used

are

metal

filn

resistors

with

tolerance

of

1%

and

polypropylene

capei

tors

with

tolerances

of

2%,

so

RIAA

phono

equalizationaf

/0.2

dB

is

obtained

over

the

audio

range

from

20

Hz

to?O

kHz.

The

input

impedances

of

27

kQ,

47

kQ

and

00

kQQ

are

provided

to

allow

different

cartridges

to

be

connected

when

the

PHONO

1

input

is

selected.

The

output

stage

is

provided

with

a

relay

tc

snute

un-

desireable

noise

when

the

power

is

switched

ON

and

OFF,

and

with

an

EQ

subsonic

filter

to

reduce

turnta

#e

rumble

and

flutter

noise.

e@

TONE

Switch

The

TONE

switch

allows

the

number

of

coupling

capa-

citors

to

be

reduced

to

one

by

applying

the

PHONO

amplifier

output

signal

directly

to

the

line

amplifier

when

the

switch

is

set

to

the

TONE

OUT

position.

The

gain

and

input

sensitivity

are

not

changed

by

operating

this

switch.

TONE

OUT

HEADPHONE.

OUT

@

Line

Amplifier

The

line

amplifier

consists

of

15

transistors

for

each

channel,

and

uses

push-pull

circuits

which

operate

in

class

A

in

all

stages

to

reduce

TIM

distortion

and

im-

prove

the

S/N

ratio.

The

input

stage

uses

a

source

follower

with

dual

FETs

to

prevent

it

(the

input

stage)

from

affecting

following

stage

characteristics.

The

source

follower

output

signal

is

applied

to

the

differential

amplifier

through

dual

transistors.

One

of

the

differential

amplifier

output

signals

is

phase-

inverted,

then

both

output

signals

are

applied

to

the

second

stage

push-pull

amplifier

through

buffer

amplifiers.

The

power

amplifier

stage

uses

newly

developed,

super

high

f7

(200

—

250

MHz)

power

transistors

which

are

connected

in

a

Darlington

configuration.

This

power

amplifier

stage

operates

in

pure

class

A,

and

features

flat

frequency

response

and

low

TIM

distortion.

This

amplifier

can

drive

headphones

in

class

A

operation,

as

well

as

a

main

amplifier.

3.

P.W.

BOARDS

As

can

be

seen

from

the

circuit

diagram

the

chassis

of

Model

Sc-8

consists

of

the

following

units.

Each

unit

mounted

on

a

printed

circuit

board

is

descrided

within

the

square

enclosed

by

a

bold

dotted

line

on

the

circuit

diagram.

1.

MCPhono.........

mounted

on

P.W.

Board

P400

2.

Power

Supply

......

mounted

on

P.W.

Board

P800

3.

Tone

Amp.

(L-Ch)

...

mounted

on

P.W.

Board

PEO1

4.

Tone

Amp.

(R-Ch)

...

mounted

on

P.W.

Board

PEO2

5.

Balance

VR/i

Mode

Switch

..

....

mounted

on

P.W.

Board

PGOO

6.

Loudness

Switch

&

Volume

......+-55

mounted

on

P.W.

Board

PJOO

7.

Input

Selector

Switch

.

mounted

on

P.W.

Board

PS01

8.

Tone

In/Out

Switch

..

mounted

on

P.W.

Board

PTOO

9.

Headphone

........

mounted

on

P.W.

Board

PX00

10.

L.ED.

.

.......-

mounted

on

P.W.

Board

PY00O

4.

VOLTAGE

CONVERSION

@

EUROPEAN

MODEL

ONLY

CAUTION

To

convert

the

unit

to

a

different

power

source

voltage,

DISCONNECT

POWER

SUPPLY

CORD

FROM

AC

change

the

position

as

illustrated

in

the

drawing

below.

OUTLET

BEFORE

CONVERTING

VOLTAGE.

Voltage

Conversion

Chart

VOLTAGE

SELECTOR

Note

on

safety:

Symbo!

A\

Fire

or

electrical

shock

hazard.

Only

orignal

parts

should

be

used

to

replace

any

part

marked

with

symbol

A\

.

Any

other

component

substitution

(other

than

original

type),

may

increase

risk

of

fire

or

electrical

shock

hazard.

:

fe)

FLAT

AMP

MUTING

O

EQ

SUBSONIC

Hi

FILTER

PRE

OUT1

PHONO

2

:

IN

Q

PRE

OUT

2

HEAD

BALANCE

|

PHONES

INPUT

SELECTOR

TUNER

PHONO

TV/AUX

VOLUME

o

+8dB

OFF

+4dB

Y

LOUDNESS

STEREO

Zz

¥

O

©

REVERSE

©

oL+R

1

*L

i

SOURCE

oR

2

TAPE

MONITOR

1>2

SOURCE

2-1

TAPE

COPY

g

WVHYDVId

4901E

6.

DIAGRAM

AND

COMPONENT

LOCATIONS

6.1

MC

Phono

Assemiily

(P400)

Schematic

Diagram

and

Component

Locations

woso

Y

:

OS

A

I

eG

9.9200

0

ad

ed

aba

bd

Bo

vosv

—

APM43

47012)

2

RMO7

~

at

Caos:

RM25

+8)

85y

470

0.0022

68

ee

9.04

ARLE!

10

SUSY

4

PHONO

|

RUBS

ache

4

©

|

2108

Fo.or

Me

ES

oy

ie

Vv

47k

[S

RLOS

ERLO7

Neva

a

OL35

27k

100k

2.20 F228

2e4y

ne

Cf)

ores

ata

aR)

ae

plo]

”

“|

Ke

MC

PHONO

2

{)

23

S

clos

AL4I

RL57

100

PHONO

SELECTOR

100P

56

RL6I]

cuss

ciar

RM2I

470

ese

Fe

1

|

00/25

725v

(cMOI

220/6.3V

ov

RM23

FA

vw

M4

Laas

H

‘<

uN

Fe

19

<4

OM25

finn

4

70

"4

N

tp

GQ

e

4

N

bey

POL)

|

-asv

HAM

9

|

ass

aa

sese

|

a

ewe

9

)#

—

;

(8)

are

5

3

T

tO)

al

gle

A\RMaS

5

es

0.90

:

O

el

8

RMI3

io:

‘470

2W)

RL39

z

Oosieor

me

ies

2

cmos

RMo9

S20

|

cw

amar

ONT

she

ues

56k

a

nS:

aI

|

ote?)

puowo2jz]

$

0.0018:

Aporeh

46)

J

0.0022

2

a70/i6y|

4a

Bas

wens

7

RLS

RLe9,

867)

fe

4

100

O

iy’

RLS9

100

Py

i

2

Ree

nwo

[7

tag

cla

nd

&

“Se

©)

-

eT

$

M

47016)

022

s

33

-anT

aes

$401

es

8

Stools

bens

°

Armas

8

RL27

(P\oL27

0

loL37

s

90187)

aoe

|

”)

om20

3

S78

12M)

3

:

)

UN

a

Se

S|

g

~8.5v

S

sf

+

2

pried

QL

33

ie

21

(88)

weet

ov

©)

&)

ce

an

=

a

cuz

Rua

sek

“3

*

H

RM22

12

g

470/16)

93

cMoe

I

!

bid

220/6.3¥

470

(6)

wey

ia

Wy

+euis

HSV

oat

i

Reh

are

mos]

£20050.

Te

oF

220/35V

SOV

i

100

OF

000/35

‘

Si

roe

RUS

27k

CL45

i

PHONO

2

22x

=

eMos

[+

Rmzo

A5

RL6S

(6)

Y/

FE

4706)

fl

5

63

CLI3

Op

|

~0.6V

|

A

2

muses

2am

@

“le

:

Ks

&

{)

2

op

Leh

Mos

8.5v_QMO6

SQ

J

poled

Mio

JARMee

/

-

99

G14

wos

war?

47016)

Jo.oozz

6s

[so

caw)

4

;

Go2ed

eens

w——

[se

88)

7376

+

ia?

SLOl-3

Stoi-4

so,

Js:

sz

les

o

Rags

2.20

Tico

(96)

m5

78

OO—=50

tor

7)

79

ARLB2

10

onl:

:

ke

TIS,

usy

|

:

330

:

;

Hl

28.50

Rech

Ratt

RAIS,

R423

Raa3

R437

Te

QL06

waLos

RL26

PHONO)

id

ia

tgp

gel

te

ag

ew

ne

AMP

26.5V

P

Loe

B.g8

:

caor7_

27¥

17

av

4

s

—

pe

2408)

4

0.0022

9413

TAK

)

94

oe

set

ue

7

P 4 :

090—=0

®

:

A466

2

4

a)

&)

€Q)

oaes

ik,

os

7

Fs

ay

Pros

;

é

©

Ra01

30K(6)

caso)

cae?

RLS@

pig2

PE

g

4

ow-e

nae

:

>

o-W-2

e

raos]

(9

wa

eres,

2225v

°

56K

woo

Ae

clas

yi

a.

a

Do

®

i :

f

ye

F

.

7 <

kG)

040!

ae

P

©

io

rs

t

a

GES

|

3

(sew

1oo/2sv

sf

a

_|

“Pho,

B

a

oWi—e8:

E

mm

3

a

H—+f-0-6

O86

.

=

&

©

R403

0K

S

cas

10447

Rage

RAG?

!

OY)

48

+

1

a,

. s A

eatent

fe

a

2}

o»

[oS

tele

yf

E

T

|||

Q#

ott

~

4

RLSO

QLBAaLa2

I

R405

WOK(G)

=

T

cap

|

Raa

&

Ria

i

:

‘uf

°

z

e

id

Base

at

4

oe

0403

oss

ae

Sov

I

a

rico

(vem)

RL70

ware

r

“

Mr

:

id

cara

Fa

R453

1

100

:

ae

i

©

Ra02

39k

(6)

a

680p=—

22K)

%

'

O

*

&

cat

mn

H

RL

6

i

3

fond}

oo

es

€h)

ar

6.03316)

my

|

mse

110

r---4

L440

Reh

oF404

WoKs)

8

S

2418

ear

w|

SOV

‘

'

3

++

20

$

ea

A

Ras7/5

|

Fy

1

—_

‘

3

ot

R404

160K1G)

|

©

gai

|

8

3

0425

'°)

side

I

g

4

QL

38

:

t

re

Quis

sie

é

Ra35

Ra39

Reo

Te

|

g

\

zZ

raixs

Lo

Raia

IRazs

275

82

<

Aras

|

OL

34]

9

5

a

—_

3

Lo

«eS

bax

130

130.

L

o

82

(1/2W)

|

as]

nL 24

104

Zz

‘

a

]

g

cao

+

bry

=

:

es

100p

He

ASS

PAS

—

8)

H

F

cL20

“a

SV

47

:

8

Cc

2

=)

Sov

220/38¥

i

z

ot

@

C436

t

? ‘

$

asl?

|

ne

are

U9

5.9.

QL09

88)

aaa

;

an

Ws

®

E

150

R470

einen

|

CLI4

10p

1

J

4

aes

5

Perr

!

yc

LI3

Ra58.

rot

i]

ge

eS

Se

ea

a

ee

7

828

sw

REST!

ee

CT

Pe

z

“e

5

(0420

[sues

:

zeo/s0v

|

i

8,

&

We

T

caez

$

|

1

<

|

I

eur)

oe

|

a

'

esen

I

t

60

(31),

=

ser

i

1

ae

Yl

[se

fi395

!

aul

He

4

ir

Pine

'

a6

t

é

’

5

a

38

[

[ee

aa

ROT

Fa

8

lek

;

"Ssle|

'

Qo oO

9

oO

S2_(/)

ate

:

%

a2

78

be

q

H

[risa

RLS

SRL92

§1

33

5

oh

:

nS

‘

BL2I

4

:

zrtzs

LLO

OS

RLSI

470Ky

22k

seakdnat

teal

dy

Rg

AS,

ae

|

Lr}

‘eee

"9

eye

‘k

OL4s

S/Slolg

NOt

Poe

nar

ess

‘y

Q

:

42%

44

52

56

©

Bh

bas

iad

bol

SLOI-2

a

Ea

>

ere

i

ee

Wivamrege

ae

7

.

“@®

CB

as

O—vi-ose

errr)

:

t

)

oo

ee

ASRLBI

10

SUSv

OL3I

OL35;

arr

Vv

ig

RLS7

100

ALE!

10

(v2

ov

N07

25v

ctor

_e

Hl

3

e

:

oa

,

;

.

ds

‘

i

cate

' :

e

a

: ;

i

\

‘¢

: ‘

ie

mec

i

i :

mk

C)

nS

me

wy

a

LG

~~

@e)x

fz

°

i

lav37

o

2

:

ans

Sa

u

oc

°

2.

2k

KC)

Ct

:

§

4

Me

:

‘©

&

—29.5V

a

ae

F

7

OL

33

i L

3

LOLi7

rust

L

RL3S

“3

j

;

ae)

o

om

er

2.2k

330

RLes

oA

[ie

!

;

cea

oe

+CLI9

=SSV

OG

—

738)

35V

{

"

4

22073!

a

220/

t

+

Laed

=

oe

se

$+

CL4E

Pere

27k

eS?

RLS

cut

»

CLA2

ALES

7

:

AoE

eR

ee

Aa!

eg

S

Ld

"

e.

e

op

o

a

/

Fa

SLOI-3

ARL82

10

FSV

J

pe

RL34

EPS

iy

2850

)

.

pias

)

WS

B

ue

oY

oL26

eL22

meee

if

R58

RL62

2070

5.6x

og

CLoeyRi3e

ew

100°

|

sé

4

Ht

(Pr

18

av

QL30

()

a

RLaO

ol

3

’

r1

RL64

2

Zi

10

aI

aL24

Rigo

(vam

o

100

|

[al

@

Qc

)au'e

Ruso

yee

E

28

“28.5V

8

QL28

a

28

z

ase

SY

283v

a

ne

Baan

SNe

aL34

2

RL84

OA

2

cuze

ob

cL20

“tb

aha:

220/35

+

220/35V

RL76

27k

V-

CLI4

10p

6.3

Power

Supply

Assembly

(P800)

Schematic

Diagram

and

Component

Locations

6.5

Input

Selector

Switch

Assembly

(PS01)

Schematic

Diagram

and

Component

Locations

6.7

——o

—

Qua

Pies

3?

~

Piae

16

ty)

15.412)

PSOO

4)

Rows

:

5

>

TUNER

oe

rT

PHONO

|

Su0rm1

mot!

Ace

eS

ee

|

=

9006

=

TV/AUX

soi

=

a

eg

OFO

o

a

A

o3

TT

ton

CB15-VC818

(UNIONLY

Rau

Oo

805

5.6

uw)

OBIT

m

bald

H6

°

a

T

a

hk

sso2

e

“s

A

Oo

7

2]

3

el

a

oa

ee oo

Cle

me)

=

28

33

Sst)

)

ee]

oe

So,

a

38]

3s

ra

oe

=

se

ey

Re19

Oo

Leh

_

‘S6i

oe

FO

=

8

|8

2

reir

4803

Lsvornm2

A;

al

|*

i

OFr©

a

|

PJOO

\

|COO3

oa

re)

oo

J

=~

ea

|

3

us

3}

=

Oo

Rech

4

23]

28

Om

|

88]

ee

°

ee

a

35]

8&8

ea

NO]

©>O

ReIB

820}

F

iw2

SSTPFl,

Sex

rhs

5

O

ROIS

_

ams

|

8

o

Reh

“OFF

g

ail

813

°

fa

RSO!

560

9.

ry

2-1

184%

AlA

Wass

220

oO

ee

2

ee

oF

oiset

wz

L___t

O

[J

a

C6}

I0

23.54,

O

50

BSH

i

'

re)

6,4,

16

:

7

©

Rso2

560

es

O-—-O—-W

i

Reh

F801!

3802

6.6

Tone

Amp.

(L-Ch)

Assembly

(PEO1)

Schematic

Diagram

and

Component

Locations

6.10

a

“ge

#4,

fo

TREBLE

Oolress

PEOO

t.]

RE49

470

wwew

PEOO(L)ch

cee

\/50y

+

33C

6.4

L.E.D.

Assembly

(PY00)

Schematic

Diagram

and

Component

Locations

|

PYOO

|

(AN

STINIGOD

}

4

AN

Oro

atAW

lREo2

220k

a!

RES3

S0x(8)

RE37

82k

®

ey

“a

=

_

boo

REG:

390

REA3

a7K

AW

ce25

ce27

0.039

0.0047

z

a)

os

sly

a

JEo2

i

oe

ee

rc

)

{

RESS

20K(W)

|

6.5

Input

Selector

Switch

Assembly

(PS01)

Schematic

Diagram

and

Component

Locations

6.7

Loudness

Switch

&

Volume

Assembly

(PJ00)

6.8

Headphone

Assembly

(PX00)

fe

a

os

—

=

Schematic

Diagram

and

Component

Locations

Schematic

Diagram

and

Component

Locations

ey)

1812)

[F500

al

:

ae

3

I]

in

on

tea

'

|

syn

orto,

a

JXOL

|

sso

|

PXOO

Waso6

220

RS04

220

6.9

Tone

In/Out

Switch

Assembly

(PTO0)

Schematic

Diagram

and

Component

Locations

6.6

Tone

Amp.

(L-Ch)

Assembly

(PE01)

Schematic

Diagram

and

C

6.10

Tone

Amp.

(R-Ch)

Assembly

(PEO2)

Schematic

Diagram

and

Component

Locations

Bi

see

:

|

PEOO

(R}ch

and

O

t.[RE49

470

aw

oFcez

(007

5

100/35

ceoe

‘soy

REO4|

3.

me

100/35¥

Vv

E30

|

RES2

470(72W)

ces2

Wworsy

IREOa|

220K

KUTA

qyanee

RERO

RES3

SOK(8)

8.2K

RE37

82k

1-¥be

JEO?

rm

onto?

RESE

20k

(Ww)

bocce

oOo

JEI2

JEIO

Marantz SC-8 Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken
