Marantz EXT10 Bedienungsanleitung

Upper Pipe

Secure to

Ceiling

Base Plate

Hole for

cabling

1/4" Bolts

To secure pipes

Adjustable

Lower Pipe

and Plate

1/4" bolt

with nut

ADJUSTABLE PROJECTOR MOUNT EXTENSION POLE KIT

Marantz America, Inc.

1100 Maplewood Drive, Itasca, IL 60143

Phone: 630 741-0300 Fax: 630 741-0301

WARNING:

THERE IS A POSSIBILITY OF SERIOUS INJURY IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

INSTRUCTIONS

Step 1.

Separate the Upper Pipe and Lower Pipe. Secure Upper Pipe to the Plate #1 ceiling plate of the Mount10 or Mount20 Projector

Mount. Slide the tube through the opening of the ceiling plate and secure with provided screws and washers and nuts. Now

secure the Ceiling Plate to the ceiling structure using commercial standards and commercially available suitable hardware.

Step 2.

Secure the Lower Pipe to the Plate #2 of the Mount10 or Mount20 Projector Mount. Raise the projector mount with the Lower

Pipe attached and slide the Lower Pipe on to the Upper Pipe and secure with provided hardware. (This will require two or more

qualified people). Check all hardware for proper tightness and security.

ADJUSTABLE RANGE OF 12" TO 24" INSTRUCTIONS

Step 3.

The Upper Pipe has multiple through holes. This allows you to change the normal 24" to 46" adjustable range to 12" to 24"

Adjustable range with a simple cut of the pipe. We recommend cutting 5/8" from the center of the first hole of the second

set of holes on the Upper Pipe. Cut between the 8th and 9th hole from the mounting plate.

TO CEILING STRUCTURE

MAKE SURE THAT THE CEILING STRUCTURAL MEMBERS CAN SUPPORT A TOTAL WEIGHT OF FIVE TIMES

THE TOTAL WEIGHT OF THE PROJECTOR AND BRACKET ASSEMBLY. PROPER INSTALLATION PROCEDURE

BY QUALIFIED PERSONNEL AS OUTLINED IN THE INSTALLATION INSTRUCTIONS MUST BE ADHERED TO.

FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY. MAXIMUM LOAD 450 lbs.

Model EXT10

1 - 1 inch locking pin

4- 1/4 inch X 3/4 bolts

2 - 2 foot tubes with plates

1 - 1/4 inch nut and bolt

Parts List

2 - 1/4 inch bolts with nuts

Inhaltsverzeichnis

Andere Marantz Rack & Stand Handbücher

Marantz

Marantz AS4250 Bedienungsanleitung

Marantz

Marantz WB6001T Bedienungsanleitung

Marantz

Marantz RMK7132VST Bedienungsanleitung

Marantz

Marantz AS6150 Bedienungsanleitung

Marantz

Marantz RMK7504BD Bedienungsanleitung

Marantz

Marantz RMK9004UD Bedienungsanleitung

Marantz

Marantz RMK5003PCD Bedienungsanleitung

Marantz

Marantz WB4001T Bedienungsanleitung

Marantz

Marantz RMK8003MM Bedienungsanleitung

Marantz

Marantz RMK4001CC Bedienungsanleitung

Marantz

Marantz RMK8003AV Bedienungsanleitung

Marantz

Marantz RMK8702SR Bedienungsanleitung

Marantz

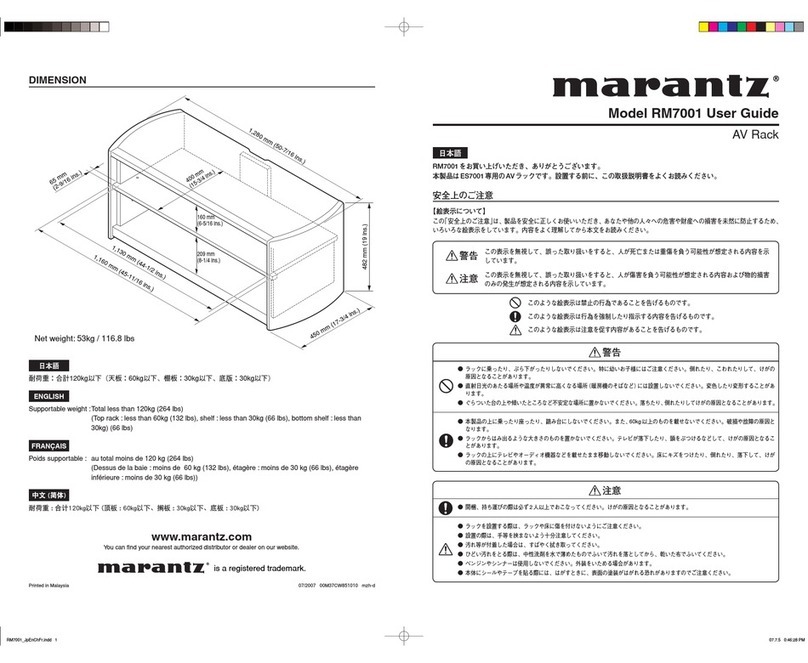

Marantz RM7001 Bedienungsanleitung
