Marshall Electronics V-LCD70MD-3G Bedienungsanleitung

MarshallElectronics

Model No. V-LCD70MD

7” Camera-Top Monitor with Modular Input/Output

Operating Instructions

Edition 3 Revision 7W

This page intentionally left blank

Table of Contents

Installation and Initial Setup ------------------------------------------------------------------------------------------------------5

Top and Front Panel Features ----------------------------------------------------------------------------------------------------6

Rear Panel Features-----------------------------------------------------------------------------------------------------------------7

Compatible Input Formats---------------------------------------------------------------------------------------------------------8

MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9

Using the menu buttons........................................................................................................................................................................9

Using the RotoMenu (BRIGHT) knob.....................................................................................................................................................9

Scaling Submenu .................................................................................................................................................................................10

Color Submenu....................................................................................................................................................................................13

Markers Submenu ...............................................................................................................................................................................15

Filters Submenu...................................................................................................................................................................................17

Audio Submenu ...................................................................................................................................................................................22

Signal Analysis Submenu .....................................................................................................................................................................23

User Settings Submenu .......................................................................................................................................................................24

System Submenu.................................................................................................................................................................................26

Specifications----------------------------------------------------------------------------------------------------------------------- 28

Dimensions-------------------------------------------------------------------------------------------------------------------------- 29

Maintenance------------------------------------------------------------------------------------------------------------------------ 30

Warranty ---------------------------------------------------------------------------------------------------------------------------- 30

This page intentionally left blank

Installation and Initial Setup

■Unpacking

Carefully unpack the V-LCD70MD monitor and verify that the following items are included:

• V-LCD70MD Monitor

• V-PS12V-2A-R/APower Supply

• Operating Instructions

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately

contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-

0606.

■Connections, Power-On and Initial Setup

Plug the power supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the monitor.

Connect the required cables for video signal input and output. (Power must be applied to the V-LCD70MD for the active loop-

though output to be activated.) The monitor defaults to ‘ON’ when power is supplied. Video will automatically be detected and

displayed on the screen.

Top and Front Panel Features

Power Button

Turn the display ON or OFF by pressing the power button. In

the ON state, the LED on the power button will dim. In the

OFF state, the LED will on the button will be at full power.

Input Select Button

Use the Input select button to switch between the on-board

HDMI input or (if available) the module Input.

User-Definable Function Buttons

Four user-definable function buttons can be used for direct

access to various settings. Functions are assigned using the on-

screen menu or by highlighting a function and pressing one of

the function buttons. See User Settings Submenu for

information on changing Functions.

Menu Navigation Buttons

Use the Menu, ↑, ↓, and Select buttons to display and

navigate the on-screen menu. See MAIN MENU AND

NAVIGATION for details on using the Menu.

Image Adjustment Knobs

Use the image adjustment knobs to adjust color saturation,

brightness and contrast of the image. The status of each image

adjustment parameter is shown on the bottom left of the

screen, with values ranging from 0 to 100. Pressing a knob

once displays the current value. Pressing a knob twice resets

the value to the default setting.

User Control Knob

The USER control knob can be customized to control multiple

functions. Change the function of this knob in the MENU. See

the User Settings Submenu for more information.

Stereo Headphone Jack

The 1/8” Headphone jack on monitor’s side takes two

channels of embedded HDMI or SDI audio and provides an

audio signal. See the Audio Submenu for information on

working with audio capabilities.

Power Switch

This power switch controls power to the monitor from the DC

Power Connector or the custom Battery Adaptor. The monitor

will always attempt to draw power from the DC connector first

if both the DC Power Connector and a Battery are installed

simultaneously.

Rear Panel Features

Power Connector

Insert the included Power Supply Coax end in this location.

Power can be supplied from the included power supply or

from a variety of DC sources supplying the appropriate

voltage. See the Specifications section for more information.

HDMI Input and Output

The V-LCD70MD has one HDMI input and one active loop-

through output. The HDMI Output is HDCP Compliant and will

NOT pass through HDCP protected content. See Compatible

Input Formats for details on accepted formats.

Module Slot

Us the Module slot to install any of the compatible MD Series

modules. This will function as your second video input or

output.

Battery Adaptor Mount

Use this area to attach an optional battery mount. Several

popular batteries are supported. Contact Marshall Electronics

for a complete list of supported mounts.

Upgrade Port

For upgrade / debugging purposes ONLY. Please contact

Marshall Electronics before attempting to use this port.

Compatible Input Formats

MD-3GE

525i/60, 625i/50

720p/25, 29.97, 30, 50, 59.94, 60

1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30

1035i/59.94, 60

1080i/ 50, 59.94, 60

3G – Level A

YCbCr, RGB

1080p/ 60, 59.94, 50

MDO-3G (converted from HDMI to SDI)

720p/ 50, 59.94, 60

1080p/23.98, 24, 25, 29, 30

1080p/50, 59.94, 60

1080i/50,59.94,60

HDMI Input

480p59.94, 576p50

720p/25, 29.97, 30, 50, 59.94, 60

1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30

1080p/ 50, 59.94, 60

1035i/59.94, 60

1080i/ 50, 59.94, 60

*MDO-3G Module Output is converted from HDMI Input. HDCP protected content will not be looped through

MAIN MENU AND NAVIGATION

Access and navigate the main menu using the 4 menu buttons or the RotoMenu™knob:

Using the menu buttons

• Press the MENU button to enter the main menu.

• Use the and buttons to scroll through the main menu or each submenu.

• Press the SELECT button to enter a submenu or choose a setting.

• Press the MENU button to exit the main menu, or return to the main menu from a submenu.

Using the RotoMenu (BRIGHT) knob

The Marshall Electronics RotoMenu concept has been brought to our line of camera top monitors to make navigating the Main

Menu easier than ever. To RotoMenu functionality has been integrated into the BRIGHT knob, so that whenever the Main Menu

is up,

• Press the MENU button to enter the main menu.

• Rotate the BRIGHT knob to scroll up or down in the main menu or each submenu.

• Press the BRIGHT knob to enter a submenu or choose a setting.

By default, the menu automatically times out after 15 seconds of being idle.

Main Menu

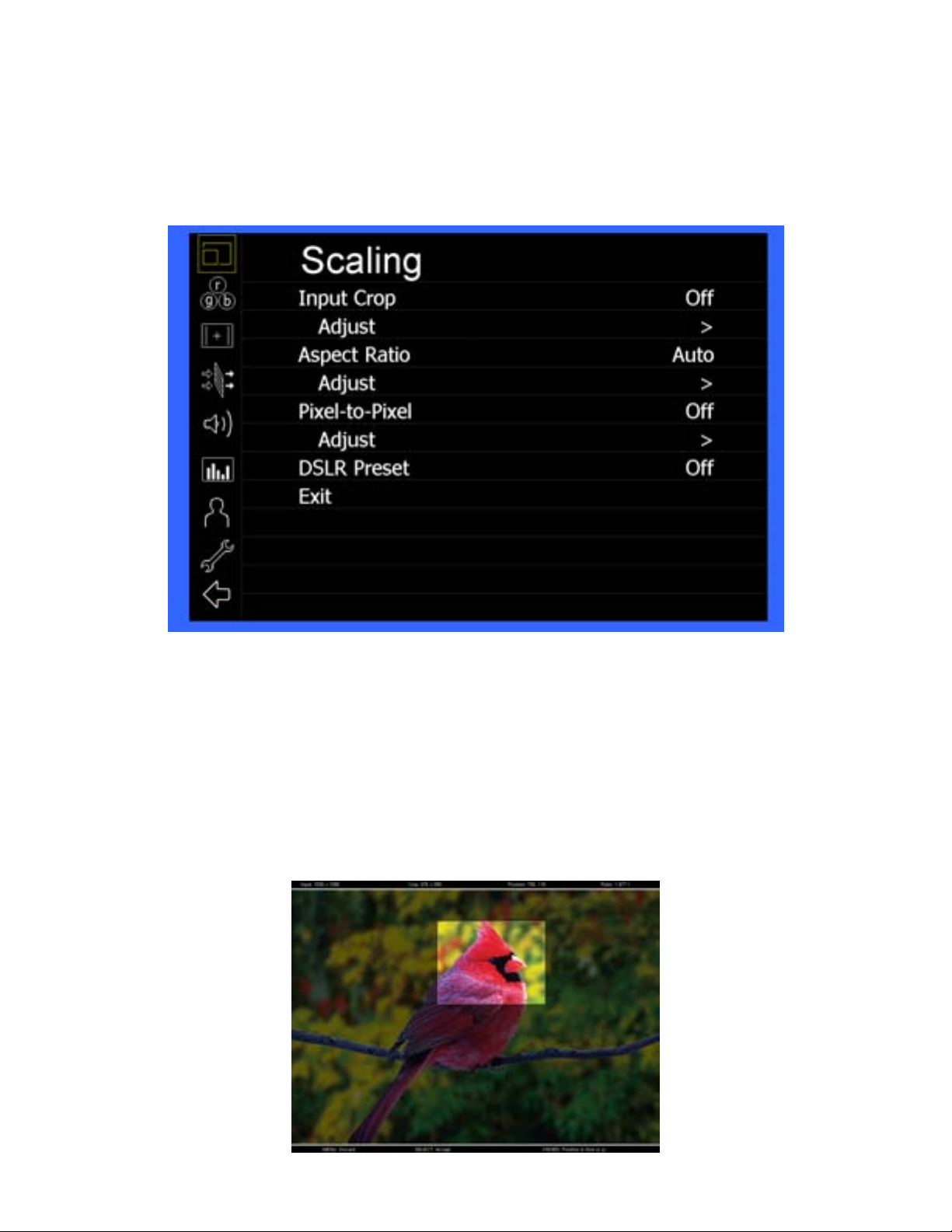

Scaling Submenu

Use the Scaling submenu to adjust various scaling options and to allow greater control of how your video signal is shown on the

display.

■Input Crop

Enable the Input Crop function to select the area of active video that you would like shown on the image display. Select the

desired Input by accessing the Adjust option below the main function:

Adjust

Use the BRIGHT knob to move the selection box LEFT and RIGHT.

Use the COLOR knob to move the selection box UP and DOWN.

Use the CONTRAST knob to move the right border LEFT and RIGHT.

Use the USER knob to move the bottom border UP and DOWN.

Scaling Submenu
