V-R70P-HDSDI

Users Guide

V-R70P-HDSDI Users Guide Marshall Electronics

The V-R70P-HDSDI features Marshall’s proprietary TFT-MegaPixel™ display system and represents leading edge technology in

LCD imaging for broadcast and professional video applications. This is a low cost HDSDI stand alone monitor and is constructed

with a durable enclosure featuring an optical grade polycarbonate protective cover for the antiglare/antireflective screen. A V-Mount

battery adapter is also included and the monitor can be powered for over 5 hours with a 50WH battery. The 1.2-million pixel TFT

screen has 130 degree viewing angles and incorporates completely digital signal processing to provide image reproduction that

exceeds all CRT displays available in a similar form factor. All SMPTE/ITU High Definition and Standard Definition digital video

standards and signal types are accepted and displayed on this model. All video formats are scaled to fit on screen in the highest

resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the

best images available. Additional features include, three LED tally, setup memory, Blue Gun, and direct access for all adjustment

and selection functions.

1Product Overview

2Features

High Definition Displays Capable of displaying more than 900 TV Lines resolution. Standard definition is internally up converted to High

Definition. All signals remain completely digital to provide the most exact images available.

Standard Input (BNC) • HDSDI (SMPTE292M/296M) (reshaped and re-clocked output)

• SDI (SMPTE259M) (ITR-U601) (reshaped and re-clocked output)

Durable metal enclosure • Protection for all connections and controls with strategically placed ventilation for use in harsh environments

Protective Screen Cover • Optical grade polycarbonate screen cover with Antireflective / Antiglare coating

Display Multiple Screen

Formats and Frame Rates

• 525 –60i / 625 - 50i (Interlaced)

• 720 x 1280 - - 23.97P, 24P, 25P, 50P, 59.94P, 60P (Progressive)

• 1035 x 1920 - 59.94i, 60i (Interlaced)

• 1080 x 1920 – 50i, 59.94i, 60i / 23.973Psf, 24Psf, 25Psf, 29.97Psf, 30Psf

Memory Function • Adjustment Settings Memory stored on shutdown and recalled when power is applied

Blue Screen • Use for adjustment to SMPTE color Bars

Built in color bars • For screen testing purposes

Tally (DB-15) • Three LEDs (Red, Green, Amber) produce 7 different tally indications

3Standard Accessories Accessories Supplied with the V-R-70P-HDSDI

4Optional Accessories

Stand V-LCD4-ST Use for table top mount

Camera Hot Shoe Mount V-LCD4-MT Attaches monitor to camera

Sun Hood V-H700P Use for viewing in bright lighting or outdoors

• Users manual

• “Brick” type 12vdc power supply with 4 Pin Female XLR connector

• “V” Mount battery adapter

• ¼”-20 mounting plate

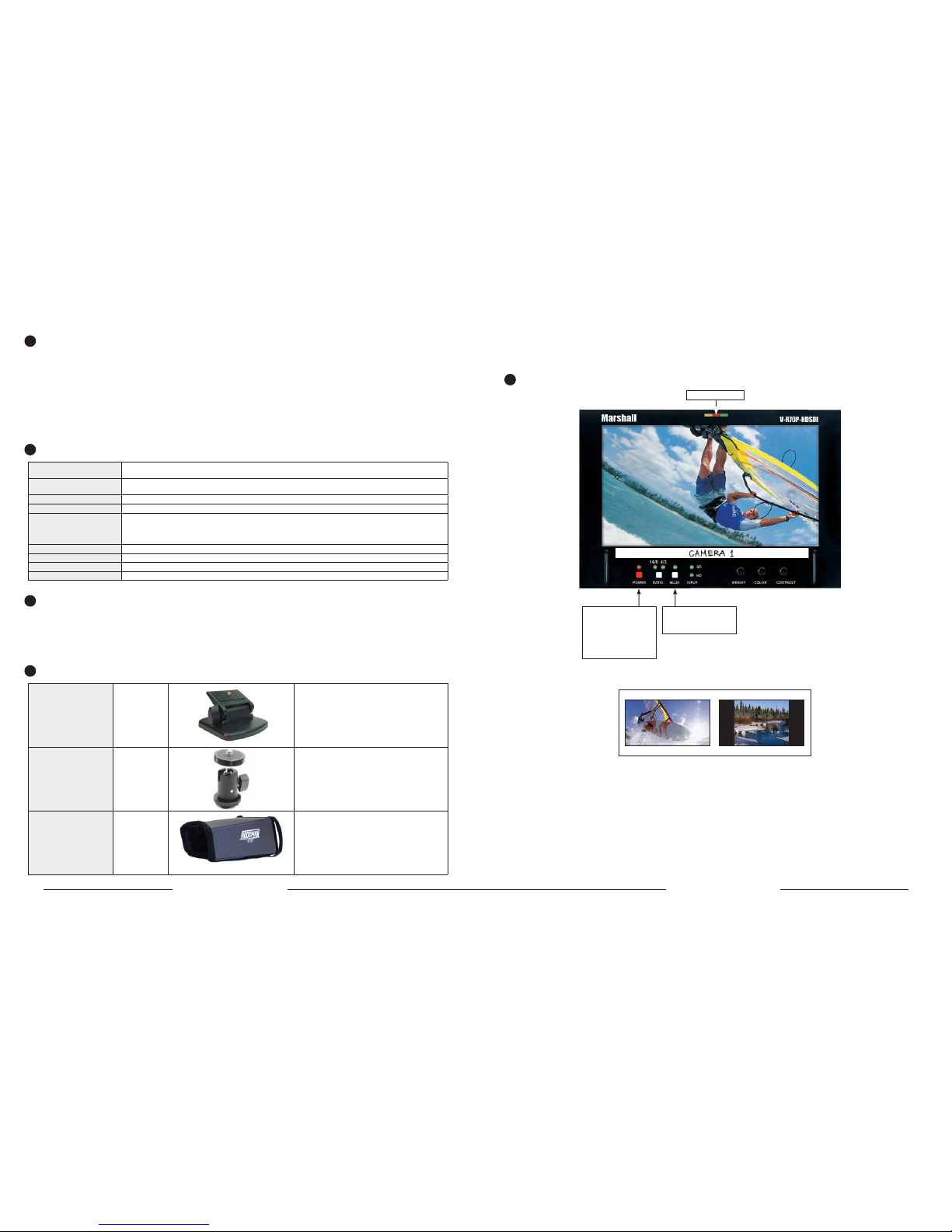

10 Switch Settings, Functions and Indicators

Tally Indicators

Power On/Off switch

Illuminates red when

system power is

present

Illuminates Green when

monitor is ON

BLUE GUN for

adjustment using

SMPTE color bars

HDSDI/SDI Signal indication Lights for active format

Screen aspect ratio switch 4:3 or 16:9 selector and indicators

16:9 Aspect 4:3 Aspect

Marshall Electronics

Optional Accessories (continued)

Power Adapter Cable V-PAC-D-XLR Use with Anton Bauer D-type connection

Power Adapter Cable V-PAC-XLR-1 Use with 4 Pin XLR connections

Sequential 2 channel charger IDX-VL-2Plus

2-channel sequential charger with a built-in 60W power sup-

ply. Charges 2 ENDURA E series batteries in fewer than 5

hours. One 10’ XLR cable included.only 2 lbs

Sequential 4 channel charger IDX-VL-4

Economically charges 4 ENDURA E series batteries in

under 6 hours using Full Power Charge (FPC) method

Simultaneous 4 channel charger IDX-VL-4S Charges 4 ENDURA E series batteries in 2.5 hours or less

55 W Lithium Battery IDX-E50S V-Mount battery pack with 3 LED power Indicator

55 W Lithium Battery

with Power Link IDX-E50 V-Mount Battery Pack with PowerLink includes accurate

Power Status Display and supports Digi-View

82 W Lithium Battery IDX-E80S V-Mount battery pack with 3 LED power Indicator

82 W Lithium Battery

with Power Link

IDX-E80

V-Mount Battery Pack with PowerLink includes accurate

Power Status Display and supports Digi-View

Protective Carry Case V-CC1 Manufactured by Storm Case

Analog to Digital Converter BC-0909-AD Converts analog Composite, YC, or component to

HDSDI/SDI

Mounting Plate Attaches to any side for mount to ¼-20 threaded component

Cleaning Wipes V-HWP-K Package of 10 non-toxic, antistatic, alcohol and ammonia

free cleaning wipes.

6V-R70P-HDSDI Users Guide

Signal Frames per Second Aspect Active Lines Scanning Method Data Rate

525-60i 30/29.97 4:3/16:9 483 Interlaced 270Mb/s

625-50i 25 4:3/16:9 576 Interlaced 270Mb/s

1280x720P 60/59.94/30/29.97/24/23.97 16:9 720 Progressive 1.5Gb/s

1920x1035 60/59.94 4:3/16:9 1035 Interlaced 1.5Gb/s

1920x1080 60/59.94/50 4:3/16:9 1080 Interlaced 1.5Gb/s

1920x1080 30/29.97/25/24/23.97 4:3/16:9 1080 Progressive 1.5Gb/s

TABLE-1 HDSDI/SDI Input BNC Connector Signals

Marshall Electronics

5Electrical Speciﬁcations

Display (Viewing Area) 7” (6.14”H × 3.27”V) (156.0mm x 83.28mm)

Viewing Angles 130°H x 120°V

Resolution (RGB Dots) 800H x RGBx480V (1.2 million pixels)

Contrast Ratio 400:1

Color temperature D65 (65000 Kelvin)

Dot Pitch 0.163 mm

Pixel Response 30ms average

Screen Refresh Rate 50/60 Frames per second

Brightness 400 cd/m²

System NTSC/PAL auto recognition via SDI

Inputs HDSDI/SDI with re-clocked output (BNC)

6Mechanical Speciﬁcation

Dimensions 7.44”W x 5.0”H x 2.5”D (18.89cm x 12.7cm x 6.35cm)

Approx. Weight 3 lbs

Power Consumption 12VDC, 9.6Watt nominal, 3.0Amps max - UL Class 2 (supply included)

7Faceplate Cleaning

When cleaning the faceplate it is very important to use non-abrasive and ammonia free cleaning agents and a clean

micro fiber clothe, or cheese clothe. Do not use paper towels. Paper towel fibers are coarse and may scratch the sur-

face of the Polycarbonate faceplate. Paper towels may also leave streaks on the surface. Antistatic and fingerprint

resistant cleaning agents are recommended.

V-R70P-HDSDI shown with V-LCD4-MT camera hot shoe mount attached plus rear mount

conﬁguration of V-R65-BA adaptor and IDX-E50S battery

IDX-E50S

V-R70P-HDSDI shown with V-H700P hood attached

4V-R70P-HDSDI Users Guide

1.Unpack the V-R70P-HDSDI and accompanying power supply. Physically inspect for any damage that may have

occurred during shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608.

If you are not located within the continental united states call +1 310-333-0606.

2.Connect required cables for signal input and output.

Please note that power must be applied to the V-R70P-HDSDI for the HDSDI/SDI outputs to be activated. All BNC

connectors should be rated for 75Ω.

3. Plug the power supply into the A.C. source

Please note that power can be supplied from a variety of DC sources, such as batteries or Vehicle power. Input

power range is 10.7 to 15 Volt D.C. In operation, the V-R70P-HDSDI will draw approx. 0.8 amp.

Attach twist lock power connection from V-PS12-V-5 power supply to the back of the unit.

4.Turn on the V-R70P-HDSDI by depressing the power switch located on the front of the unit.

8Operational Setup

* Tally lamps active when connected to ground

HDSDI or SDI in.

270Mbs to 1.5Gbs

Automatically terminates to 75Ω

Refer to Table 3 for signal types

Re-Clocked

HDSDI/SDI Output.

Signal in equals

signal out

10.7 to 15 VDC.

V-PS12-V-5 power supply is included

Left Pin - Pos

Right Pin- Neg

Input Connectors

Pin1- Green

Pin2- Red

Pin3-Amber

Pin4 Gnd -

Pin5-

Pin6-

Pin7-

Pin8-

Pin 9-

Pin10-

Pin11-

Pin12-

Pin13-

Pin14-

Pin15-

Tally IN DB-15 Female
