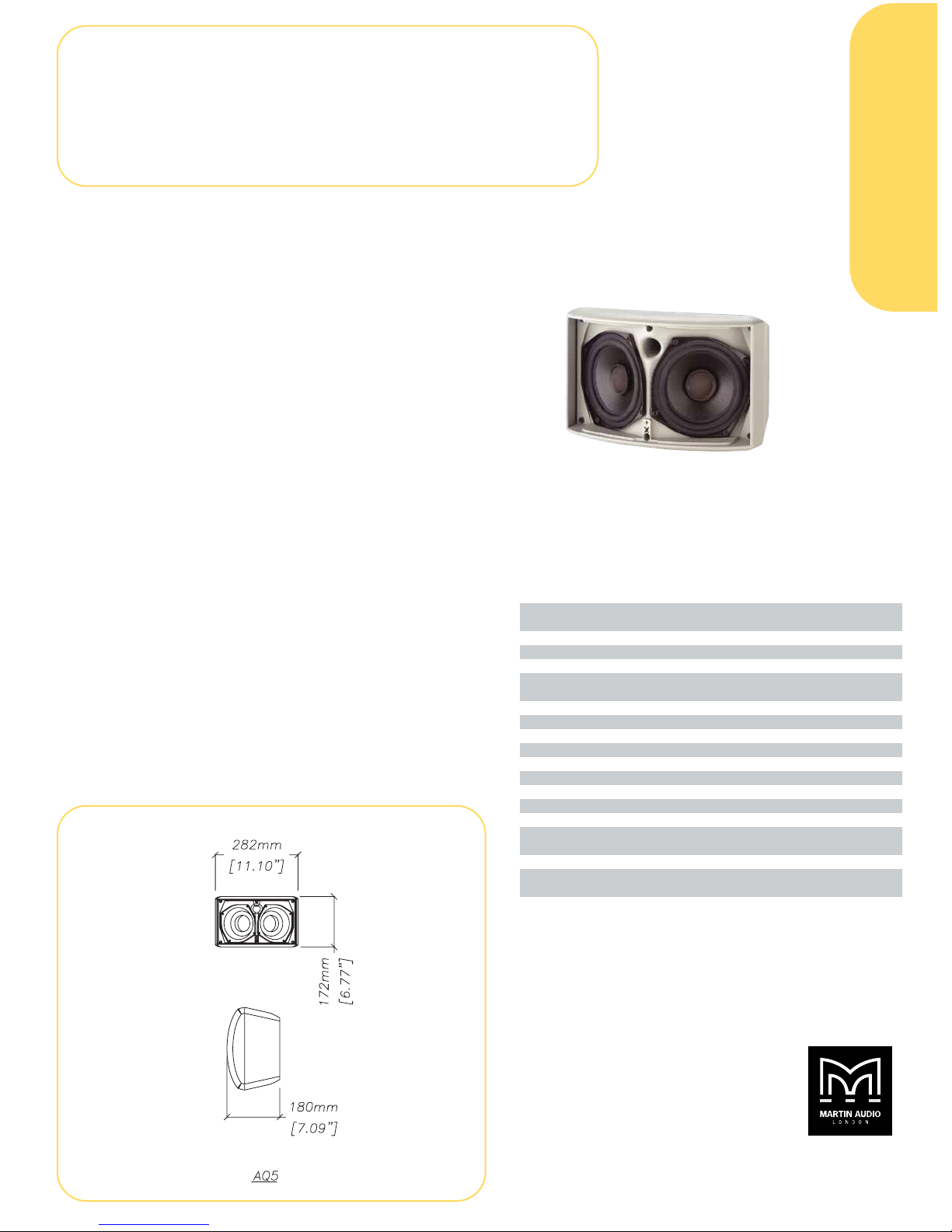

AQ5

Ultra-compact, wide angle system

features

!Very wide 120° x 60° dispersion

!Dual 5.25" (130mm) ICT™

!Light weight structural foam enclosure

!1st & 2nd fix wall and ceiling brackets available

!Five year limited warranty

applications

!Clubs, bars and restaurants

!Theatres

!Places of worship

Century Point, Halifax Road, Cressex Business Park,

High Wycombe, Buckinghamshire HP12 3SL, England.

Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669

E-mail: [email protected]

All information is Copyright © 2003 Martin Audio Ltd.

The ultra-compact AQ5 is equipped with two 5.25" (130mm)

ICT™ (Inductively Coupled Transducer) drivers optimally splayed

for smooth, very wide coverage. The AQ5’s HF diaphragms are

driven via inductive coupling, avoiding the tweeter burn-out

commonly associated with miniature loudspeakers. ICT™

technology also eliminates the need for a crossover as the

inductive coupling provides a complementary transfer function

for the tweeter.

architectual

www.martin-audio.com

overall dimensions

technical specifications

TYPE Ultra-compact, Dual ICT™, wide dispersion

vented trapezoid

FREQUENCY RESPONSE (1) 120Hz-20kHz ± 3dB

DRIVERS 2 x 5.25" (130mm) ICT™ full-range drivers

RATED POWER (2) 75W AES, 300W peak

RECOMMENDED 75-150W into 4 ohms

AMPLIFIER

SENSITIVITY (6) 91dB

MAXIMUM SPL (7) 109dB continuous, 115dB peak

NOMINAL IMPEDANCE Externally switchable 4 or 16 ohms

DISPERSION (-6dB) 120º horizontal, 60º vertical

CROSSOVER ICT™

ENCLOSURE 5 litre, structural foamed ABS

FINISH Textured light grey paint

PROTECTIVE GRILLE Light grey perforated steel

CONNECTORS Low profile 12 amp push-lock

FITTINGS 4 x M6 inserts for bracket

1 x M6 insert for safety point

OPTIONS 30W 100/70V line transformer

DIMENSIONS (W) 282mm x (H) 172mm x (D) 180mm

(W) 11.1ins x (H) 6.8ins x (D) 7.1ins

WEIGHT 5kg (11lbs)
