BLADE(BP) Series Amplifiers
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
1
BLADE(BP)
BLADE(BP)
1 Ohm Stable Design (Mono Amps-BP1200.1, BP2000.1)
2
2 Ohm Stable Design (Full Range Mono Amps-BP600.1,
BP1000.1, BP4000.1, BP6000.1)
3
is 9V to 200mv(250mV). This is NOT a volume control!
4
18. Dual Internal Cooling Fans(BP4000.1,BP6000.1)
16. NO Indicator
Indicator the amplifier is grounded, and receiving +12V and REM power.
17. CLIP Indicator(BP4000.1,BP6000.1)
This LED indicates when clipping is present while playing source material. If the
CLIP LED is flashing it also indicates the clip limiter is engaging. At this point it is
suggested to adjust the amplifiers gain level until the CLIP LED is only flashing on
peak bass notes. The clip limiter protection can be overdriven resulting in possible
damage to your speakers and/or the amplifier.
When the device is running, the fan starts to run at a speed of 3500 per second
when the device surface temperature reaches 50 degrees. If the device temperature
reaches 80 degrees, inside of the thermal protection starts automatically, the device
will stop working. But, the fan will still keep the same running speed for the device
cooling.
5
BP600.1/BP1000.1
Fig 2. Mono amplifier panel layout
BP
BP500.2/BP1000.2/BP1500.2
Fig 1. 2-ch amplifier panel layout
Fig 2. Mono amplifier panel layout
BP1200.1/BP2000.1
BP4000.1/BP6000.1
50Hz
HPF
20 16KHz
LPF
50
BANDPASS
LEVEL
750Hz
BOOST FREQ
50
BASS
0DB 12DB 0.25V9V
BP
REMOTE
GAIN
2 MINIMUM
6
7
Fig 3. 4-CH amplifier panel layout
BP
BP800.4/BP1000.4
Fig 4. 5-ch amplifier panel layout
BP1500.5

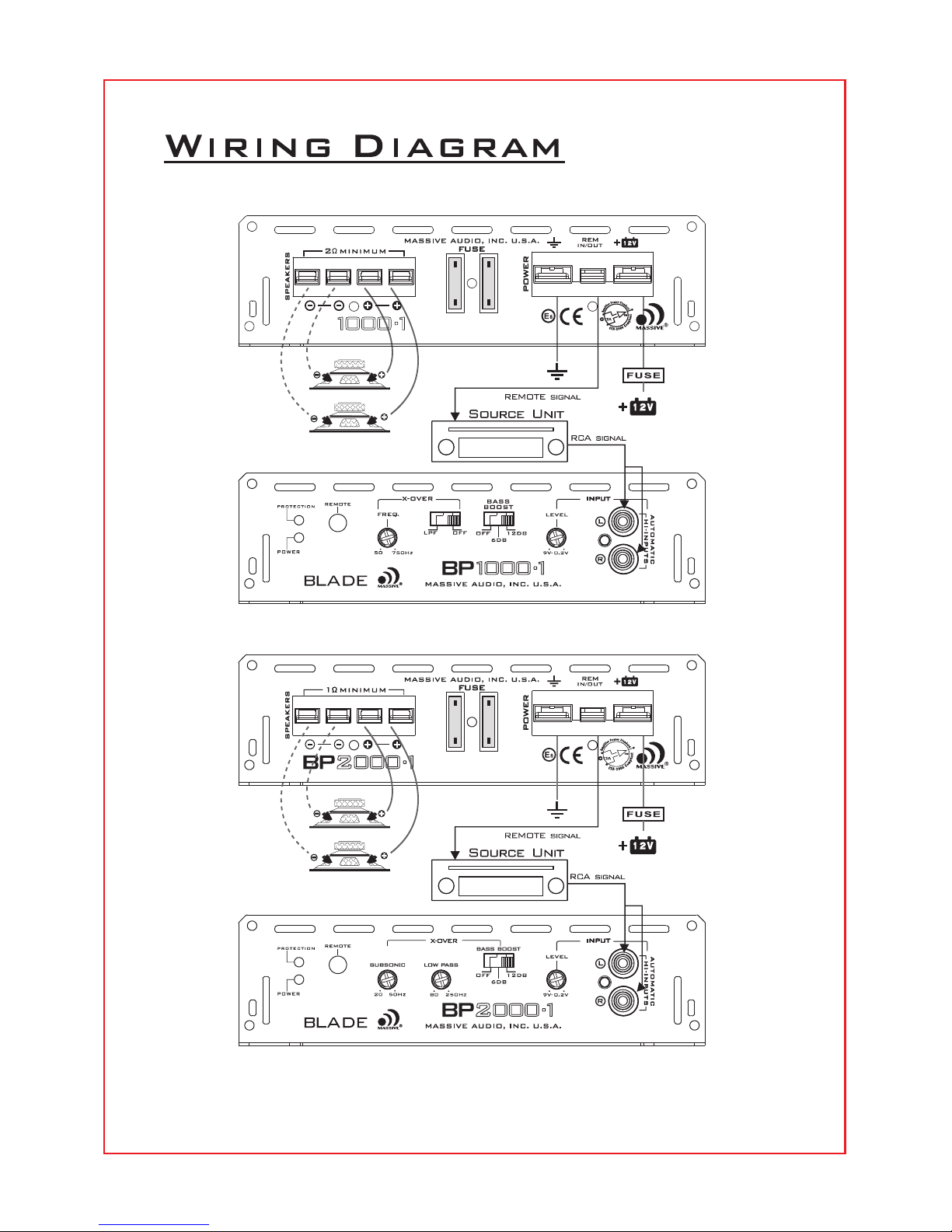

Fig 5. Mono amplifier Wiring
BP1200.1/BP2000.1
BP600.1/BP1000.1
2 OHM MINIMUM
1 OHM MINIMUM
BP
8
4 OHM MINIMUM
2 OHM MINIMUM
Fig 6. Mono Amplifier Wiring
BP1200.1/BP2000.1
BP600.1/BP1000.1
BP
9
*Subwoofer loads cannot be less than the minimum stable impedance rated
in this manual.
The two negative and positive speaker terminanls are wired internally.
Only one neagative and one positive terminalis required when wiring to bp
mono amplifiers.
