XPressEthernetBridge™

Product Manual - Industrial/Outdoor XEB09-I

Create long range wireless links in minutes!

Connect any Ethernet device to the XPress Ethernet Bridge

RF Modems and the bridge will function in place of

an Ethernet cable. The Ethernet bridge provides a

transparent wireless point-to-point cable replacement.

www.maxstream.net

Introduction

This manual provides step-by-step instruction on how to setup a wireless link and test the

Ethernet Bridge’s ability to transport data over varying ranges and conditions.

Included with the XPress Ethernet Bridge (Industrial)

(2) XPress Ethernet Bridge RF Modems

(2) 6 VDC/80-240 VAC power adapters (not included w/ version XEB09-I-AU (Australia))

(2) Power over Ethernet Injectors

(2) 30’ CAT5e Outdoor Cables

(2) CAT5e outdoor cables, 30’ (9m)

Quick Setup

Hardware Setup

Each RF Modem automatically selects the best radio channel, encrypts the Ethernet traffic and

transports the data wirelessly to its matched pair. Cross-over cables are not necessary since the

RF modems automatically sense the device (client vs. switch).

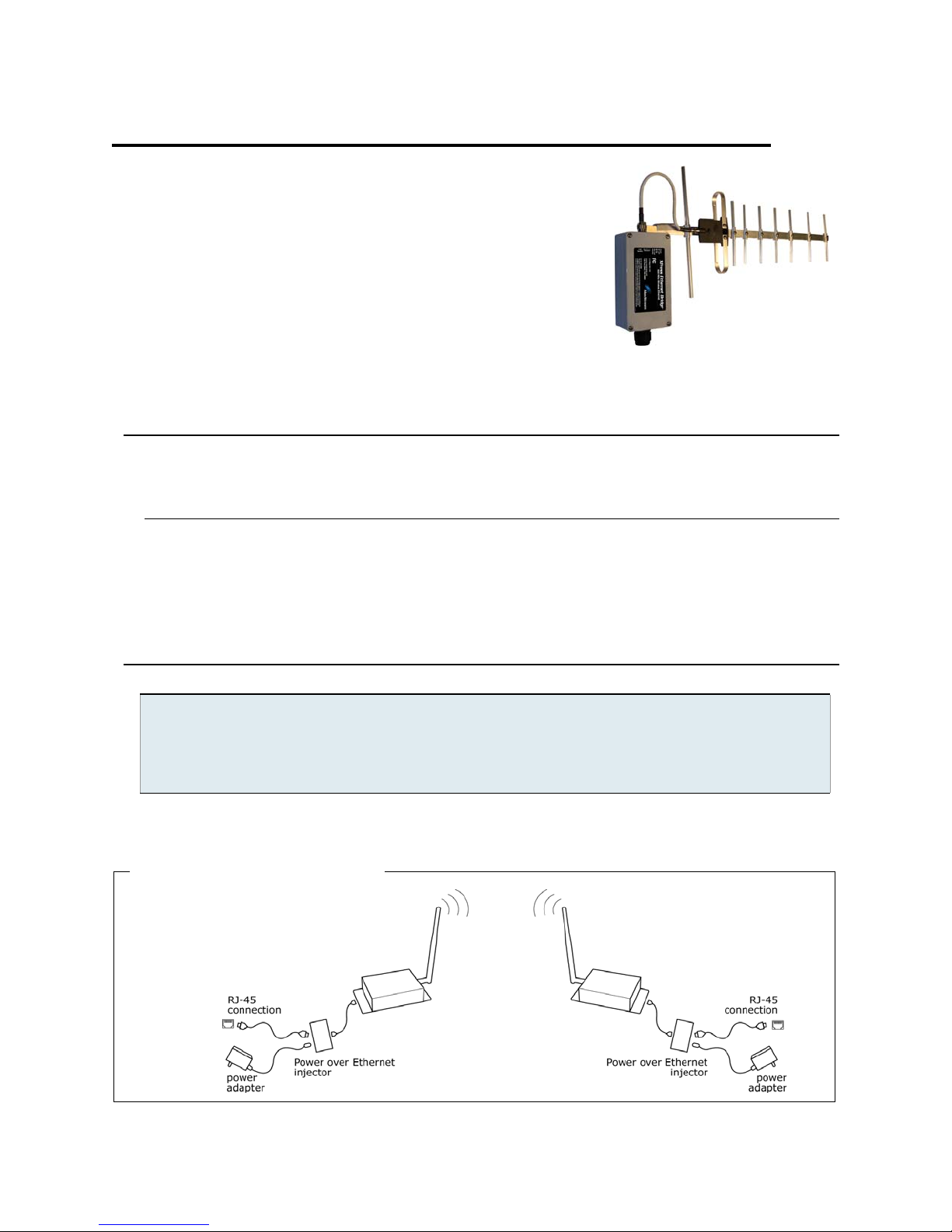

Figure1. EthernetBridgeSetup

1. Using the power adaptors, plug in each of the XPress RF Modems to an outlet.

2. Connect an Ethernet cable from each XPress RF Modem to a network device.

3. Send Ethernet traffic through the wireless Ethernet Bridge [for troubleshooting, refer to

the following page].

LED Display

The XPress RF Modem has 16 LEDs that display the status of the device.

Troubleshooting

No Power LED:

Check the power connections.

No Radio Link LED:

The radio is looking for its matched partner. If both units are powered up and the Power LEDs

are active they may be too far away to create the radio connection. Try other locations that may

have a less obstructed path or try to reorient the antennas.

Yagi-type antennas get their best range when they are both oriented to point directly at each

other with the antenna elements oriented in the same plane (e.g. vertically or horizontally).

Radio Link LED on but Quality Indicator is low:

The units may be too far away to create a good radio connection. Try other locations that may

have a less obstructed path or try to reorient the antennas.

No Ethernet Link LED:

Check your network connections.

Still not working?

If practical, temporarily use an Ethernet cable to see if the network is working over a wired con-

nection. If a wire does not work then the problem is with the network.

PRODUCT LIMITED WARRANTY:

This product is warranted to the original purchaser for normal use for a period of 30 days from

the date of purchase. If a defect covered under this warranty occurs, MaxStream will repair or

replace the defective part, at its option, at no cost. This warranty does not cover defects result-

ing from misuse or modification of the product.

LED Name Function Color

1 Power Unit has power and has successfully booted. Red

2 RF Link RF modem has successfully linked with its partner. Green

3 RF TX Radio transmission is occurring. Green

4 RF RX Radio reception is occurring. Green

5 Eth Link Ethernet port has a valid Ethernet connection. Green

6 Activity RF modem is processing data. Green

7 1 (channel) To determine the current radio channel, add the numbers that are lit.

1 - 903 MHz 7 - 915 MHz

2 - 905 MHz 8 - 917 MHz

3 - 907 MHz 9 - 919 MHz

4 - 909 MHz 10 - 921 MHz

5 - 911 MHz 11 - 923 MHz

6 - 913 MHz 12 - 925 MHz

Green

8 2 (channel)

9 4 (channel)

10 8 (channel)

11 Link Quality Excellent link quality – No retransmissions Green

12 Link Quality Very good link quality – Few retransmissions Green

13 Link Quality Good link quality – Occasional retransmissions Amber

14 Link Quality Fair link quality – Some retransmissions Amber

15 Link Quality Weak link quality – Many retransmissions Red

16 Link Quality No link quality - No link available Red

Advanced Settings

Automatic Frequency Selection Mode (All DIP Switches OFF (up))

<Default Configuration> The RF modem is designed to automatically select and continuously

optimize the performance of its radio channel. The radio channel is monitored to ensure it is

providing low error rates necessary for successful radio transmission. In the event that the

error rate rises, the RF modem will autonomously change to a new channel. There are 12 non-

overlapping channels.

Figure2. DIPSwitches‐AutomaticFrequencySelectionMode(AllOFF(up))

Australia only: In order to comply with Australian regulations, all modems intended for use in

Australia are pre-configured to operate on 6 channels and DIP Switches are disabled.

Manual Frequency Selection Mode

To restrict the operation of the RF modem to a subset of the 902-928 band, the user may acti-

vate a manual selection mode that allows the radio to automatically choose the best channel

within a grouped subset of the 12 available channels. This is enabled by the 8-position DIP

switch on the master unit. These settings allow the RF modem to operate on the optimal chan-

nel in one of three subsets: LOW 4, MID 4 or HIGH 4.

Or - the user may wish to select a specific channel. This can be done by setting DIP switches 5-

8 as shown in the table below. [Turn DIP 2 Off / 3 Off]

Site Survey Mode (DIP Switch 4 is ON (down))

In this mode the RF modem can perform a site survey. With this mode activated the radios send

and receive at 100% capacity by transceiving self-generated simulated data. The installer can

monitor the Link Quality display to assess channel quality while optimizing antennae orienta-

tion. The installer can manually select each channel to evaluate performance and identify the

best channels for operation. By identifying channels with poor performance it is possible to

identify possible interferers and use "Manual Frequency Selection Mode" to avoid portions of

the band or select a fixed operating frequency.

Important Note: Ethernet traffic does not get transported while the RF modems are in Site Survey Mode.

Channels Frequency Range DIP Settings

LOW 4 - 1,2,3 or 4 903-909 MHz 2 ON / 3 OFF

MID 4 - 5,6,7 or 8 911-917 MHz 2 OFF / 3 ON

HIGH 4 - 9,10,11 or 12 919-925 MHz 2 ON / 3 ON

Channel Frequency DIP Settings

1 903 MHz 5 On / 6 Off / 7 Off / 8 Off

2 905 MHz 5 Off / 6 On / 7 Off / 8 Off

3 907 MHz 5 On / 6 On / 7 Off / 8 Off

4 909 MHz 5 Off / 6 Off / 7 On/ 8 Off

5 911 MHz 5 On / 6 Off / 7 On / 8 Off

6 913 MHz 5 Off / 6 On / 7 On / 8 Off

7 915 MHz 5 On / 6 On / 7 On / 8 Off

8 917 MHz 5 Off / 6 Off / 7 Off / 8 On

9 919 MHz 5 On / 6 Off / 7 Off / 8 On

10 921 MHz 5 Off / 6 On / 7 Off / 8 On

11 923 MHz 5 On / 6 On / 7 Off / 8 On

12 925 MHz 5 Off / 6 Off / 7On / 8 On

Technical Specifications

FCC Compliance

Contact MaxStream

Phone: (801) 765-9885

OnLine Chat: www.maxstream.net

e-mail: rf-xpert[email protected]

Specification Description

Power Output 125 mW (21 dBm) conducted, 4 Watts EIRP w/ 15 dBi antenna

RF Data Rate 1.5 Mbps

Throughput Data Rate 935 Kbps

Receiver Sensitivity -97 dBm @10e-4 BER (-112 dBm w/ 15 dBi antennas)

Latency < 1ms - assuming a dedicated wireless link to client device

Jitter ±0.5 ms - depending upon packet size, interference and SNR

Radio channels 12 Non-overlapping

Automatic frequency select Yes - radio channel automatically selected and adaptively optimized

Manual frequency mode Yes

Status LEDs Power, RF Link, Ethernet Link, Traffic, RF RX, RF TX, 4/Channel and 6/Link Quality

Error-correction technique Sub-block error-detection and retransmission

Adjacent band rejection SAW receiver filter attenuates cellular and pager interference

Transmit current consumption 350 mA

PoE (Power over Ethernet) Proprietary 9V system - includes injectors and power supplies

Supply Voltage (Temperature range) 4.5 - 9.0 VDC (for -40°-70° C temperature range)

up to 16.0 VDC (for -40°-35° C)

Industry Canada (IC) 5303A-AW900M

United States (FCC part 15.247) R4N-AW900M

Compliance Statement (Part 15.19)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Warning (Part 15.21)

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

RF Exposure (OET Bulletin 65)

To comply with FCC RF exposure requirements for mobile transmittingdevices, this transmitter should only beused or installed

at locations where there is at least 20 cm separation distance between the antenna and all persons.

Information to the User - Part15.105 (b)

Note: This equipment has been tested and found to comply with the limits for aClass B digitaldevice, pursuant topart 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particularinstallation. If this equipment does cause harmful interference to radioor television reception, whichcan be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

This product should be installed ONLY by experienced, professional installers who are familiar with local building and safety

codes, and wherever applicable, are licensed by the appropriate authorities. Failure to do so may void the warranty and may

expose the user or the service provider to legal and financial liabilities.
