Maxtor SATAII/300 INTERNAL HARD DRIVE Bedienungsanleitung

Installation Guide

MAXTOR SATAII/300 INTERNAL HARD DRIVE

ACK SIDE

PN: 20300101

One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. One terabyte, or TB, equals 1,000 gigabytes when referring to hard drive capacity. Accessible capacity may

vary depending on operating environment and formatting. Quantitative usage examples for various applications are for illustrative purposes and are based on the following assumptions: each

hour of DVD-quality video is 2.1GB, each digital photo is 1MB, and each MP3 is 4 minutes long. Actual quantities will vary based on various factors, including file size, file format, features and

application software. Specifications subject to change without notice.

Computer, Inc., registered in the U.S. and other countries. Microsoft, Windows and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. Other trademarks are the property of their respective holders. Actual product may vary from photo shown.

Seagate Technology, 920 Disc Drive, Scotts Valley, CA 95066 U.S.A.

Contents

Warranty Registration Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Included in this Kit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Required Tools

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About Serial ATA

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Back Up Your Data

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remove System Cover

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mount the Hard Drive

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Attach Serial ATA and Power Cables

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Check BIOS Message

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Format the Hard Drive

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Set the Boot Sequence

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Getting Help

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

PAGE 1 Warranty Registration Information

Warranty Registration Information

Before installing the hard drive, please write down the serial number and the model number information. If you

ever need to contact Maxtor Support, you must provide this information about your hard drive prior to

assistance.

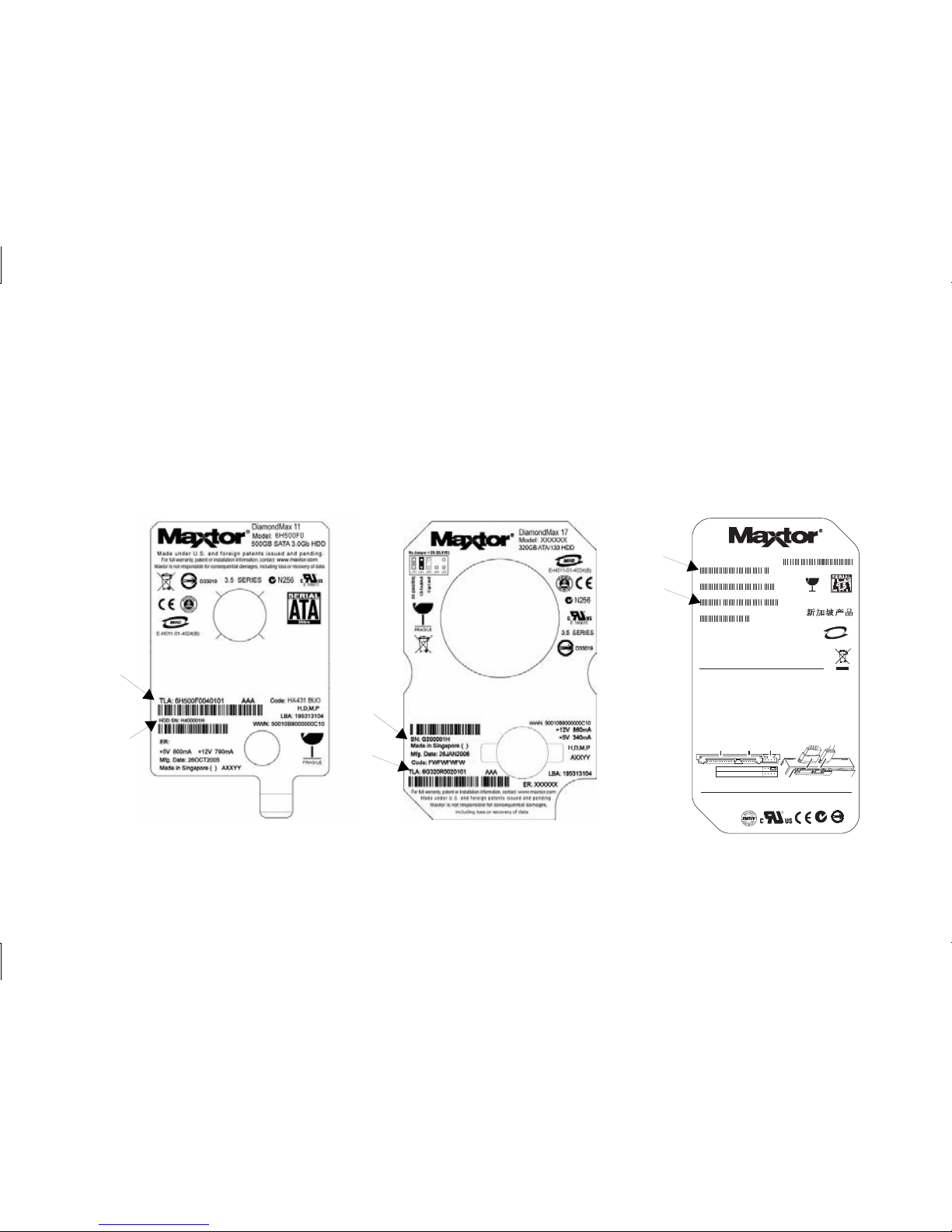

Several hard drive models are illustrated below to help you identify where these numbers are located. Use the

drawing that looks like your hard drive, then locate the model and serial numbers from your hard drive and

write these numbers in the space provided.

Limit to 1.5 Gb/s Operation

3 Gb/s Operation

MIC

XXX

XXXXX

(

)

Product of Singapore

S/N: XXXXXXXX

XXXXXXXXXX

P/N: XXXXXX-XXX

Firmware: X.XXX

Date Code: XXXXX Site Code: XX

Caution. Product warranty is void if any seal

or label is removed, or if the drive experiences

shock in excess of 350 Gs.

+5V x.xx A

+12V x.xx A

N176 D33027

For technical support and regional contact

information, please visit www.maxtor.com

E106814

7200

1. Attach the cables. The data interface and power cables are keyed.

2. Mount the drive using two screws per side. Do not over tighten the screws.

3. Serial ATA controllers or systems may have custom device drivers. See your

controller or system documentation for specific installation instructions.

4. Prepare the drive for use with your Operating System. See your OS instructions

for details. Be careful to select the correct drive. Always backup critical data

before making changes. Windows XP or 2000 prepares the drive during

installation. Windows ME or 98 uses FDISK and Format commands.

For easy installation use MaxBlast software, available at www.maxtor.com.

*One Gbyte equals one billion bytes when referring to hard drive capacity.

Accessible capacity may vary depending on operating environment and formatting.

hno

odu

xxxxxx

ond

XXX

XXXXXXX

Model Number ___________________ Serial Number (S/N)___________________________

Serial

Number

Model

Number

Serial

Number

Model

Number

Serial

Number

Model

Number

Introduction PAGE 2

Introduction

Thank you for selecting a Maxtor hard drive product. This guide will

lead you through the installation of your new drive.

If you encounter any difficulties with installation, please visit us online

www.maxtor.com

and click on

Worldwide Support

The Maxtor SATA Hard Drive Kit includes the components shown in

Figure 1. Your computer may need some or all of these parts to

complete the installation. You will also need the tools shown in

Figure 2 on page 3 to install the hard drive in your computer.

Precautions

Drive should be at room temperature before installing.

Do not touch circuit board on drive.

Unplug system from electrical outlet before connecting

cables to drive or motherboard.

Do not drop, bump, or jar drive.

Max•Blast™

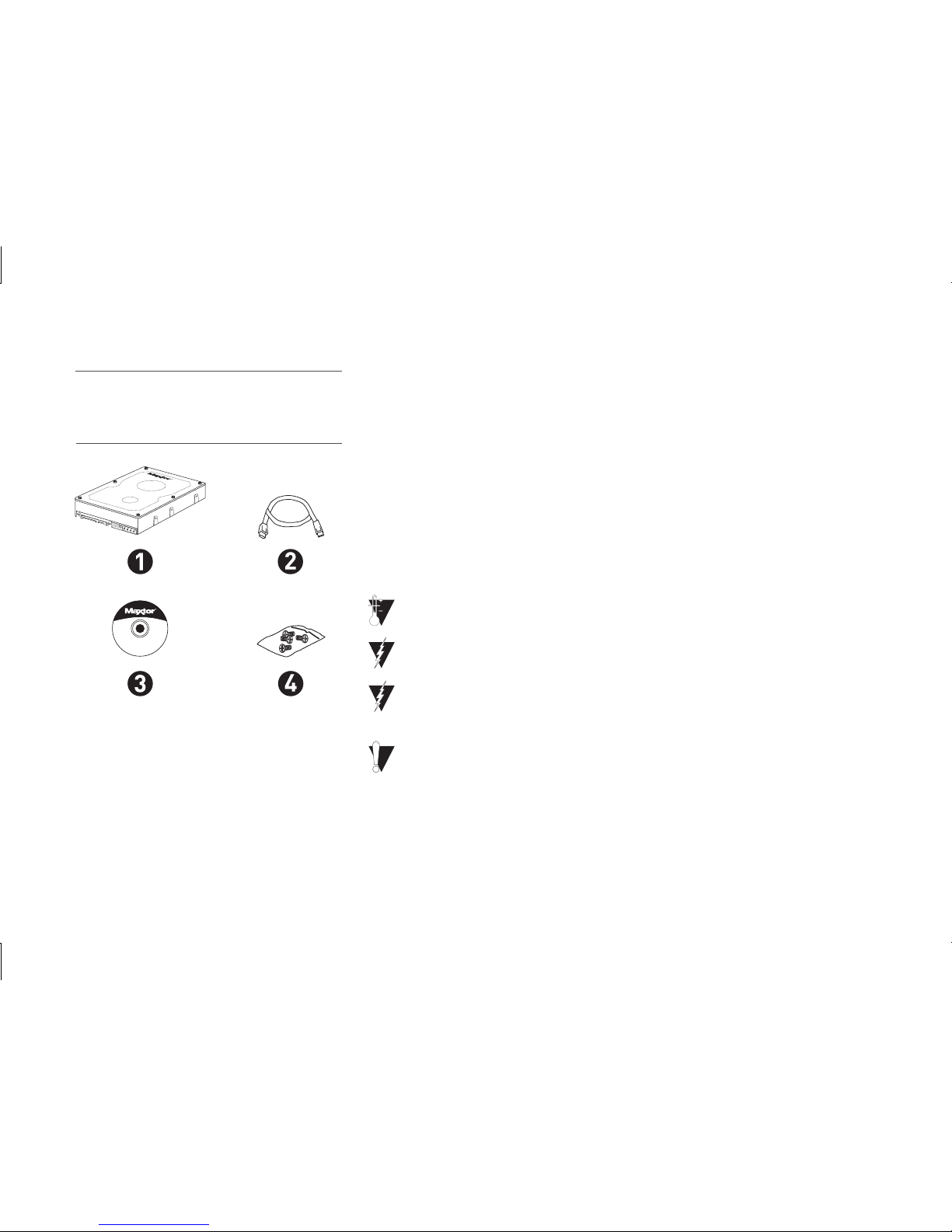

FIGURE 1 INCLUDED IN THIS KIT

1. Maxtor Serial ATA (SATA) Hard Drive

2. SATA Interface Cable

3. Driver CD or Diskette

4. Mounting Screws

PAGE 3 Introduction

About Serial ATA

Serial ATA (SATA) technology offers you the following benefits:

– World’s fastest ATA interface

– Ideal for high-performance RAID

– Thin, easy-plug cables for improved airflow

Visit

www.maxtor.com

and click on

Worldwide Support

for the latest

SATA information and software updates.

Back Up Your Data

Protect your data by backing up existing hard drives before installing

your new Maxtor hard drive.

System Manual

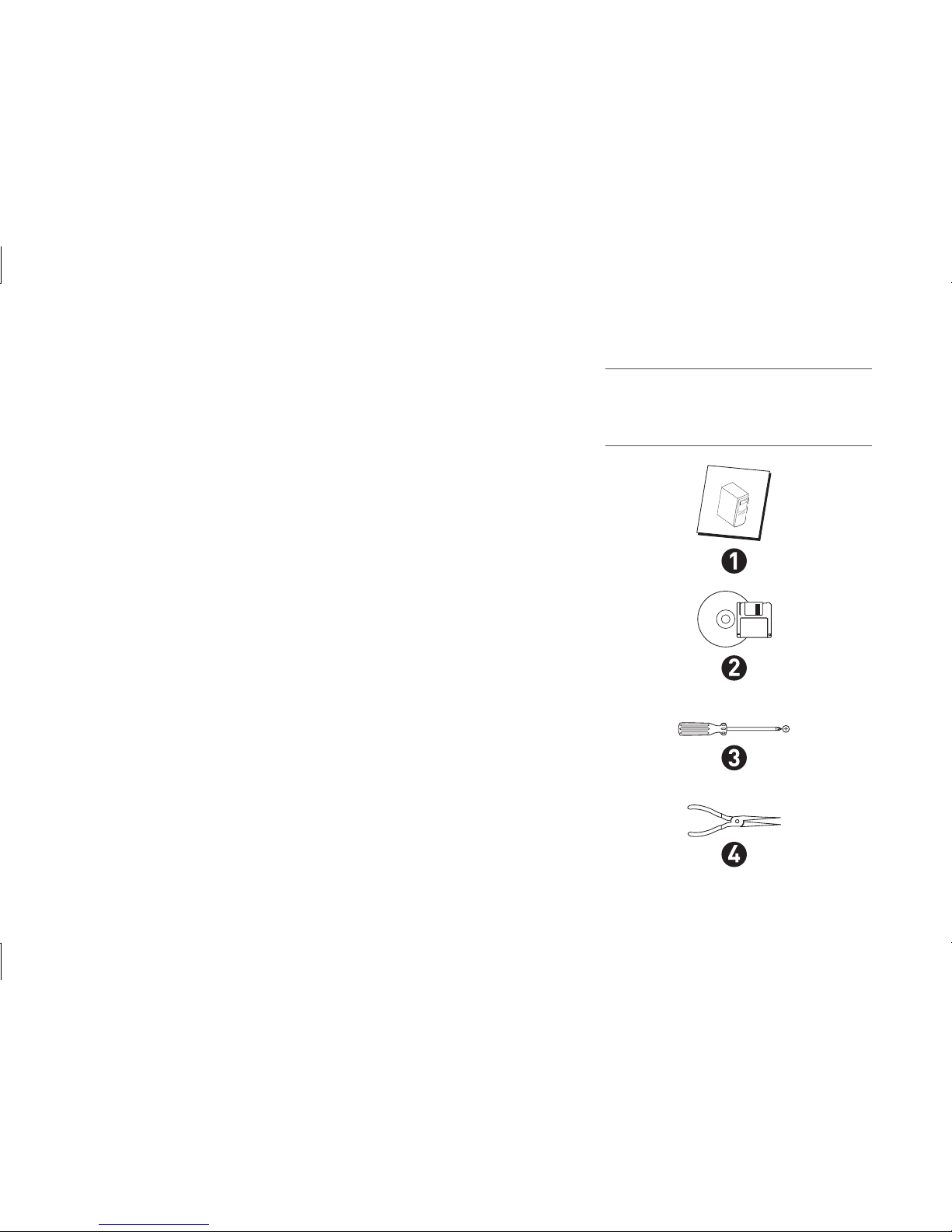

FIGURE

REQUIRED

TOOLS

1. System User Manual

2. Operating System CD and Boot Disk

3. Philips Screwdriver

4. Small Needle-Nose Pliers

PAGE

Remove System Cover

1. Turn your computer off.

2. Unplug your system from the electrical outlet.

3. Remove the cover from your system case. See Figure 3.

4. Attach a grounding strap or touch a metal portion of your computer case. This will

ground you to minimize the risk of exposing the hard drive to electrostatic discharge.

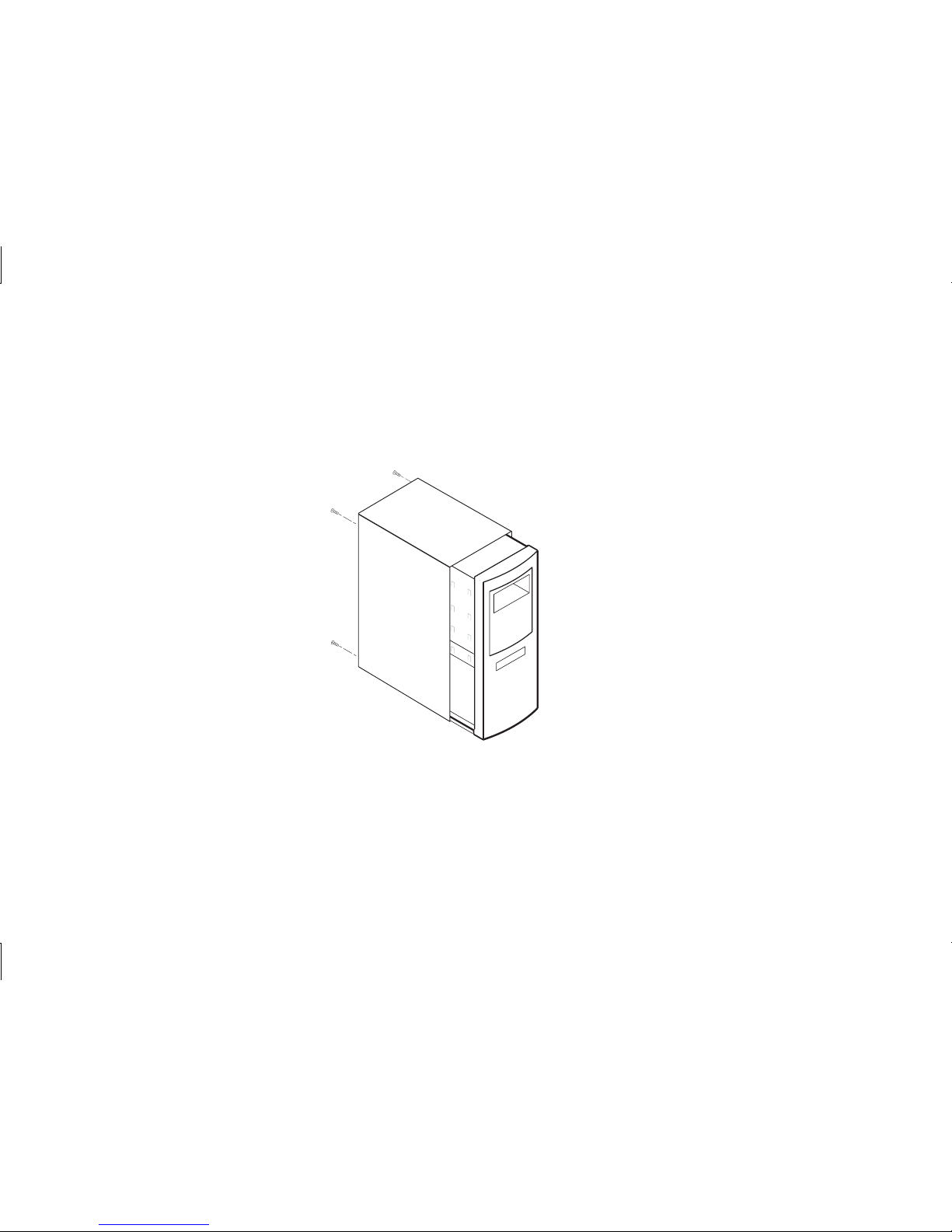

FIGURE 3

REMOVING THE SYSTEM COVER

Refer to your system user

manual for instructions on

removing the cover, or obtain

the services of a qualified

installation technician.

PAGE

Mount the Hard Drive

Before mounting the hard drive in your system, determine whether you are installing the hard drive in a 3.5-inch

or 5.25-inch device bay. If you are unable to locate an available device bay, consult your system manual or

system manufacturer.

3.5-inch Device Bay Installation

Many systems have an available 3.5-inch bay located adjacent to the floppy drive.

– Mount the hard drive in the 3.5-inch bay using the screws provided. See Figure 4.

Mounting

Screws

Some systems may not have

enough room to plug in the

cables after the hard drive is

mounted. You may need to

attach the SATA and power

supply cables first.

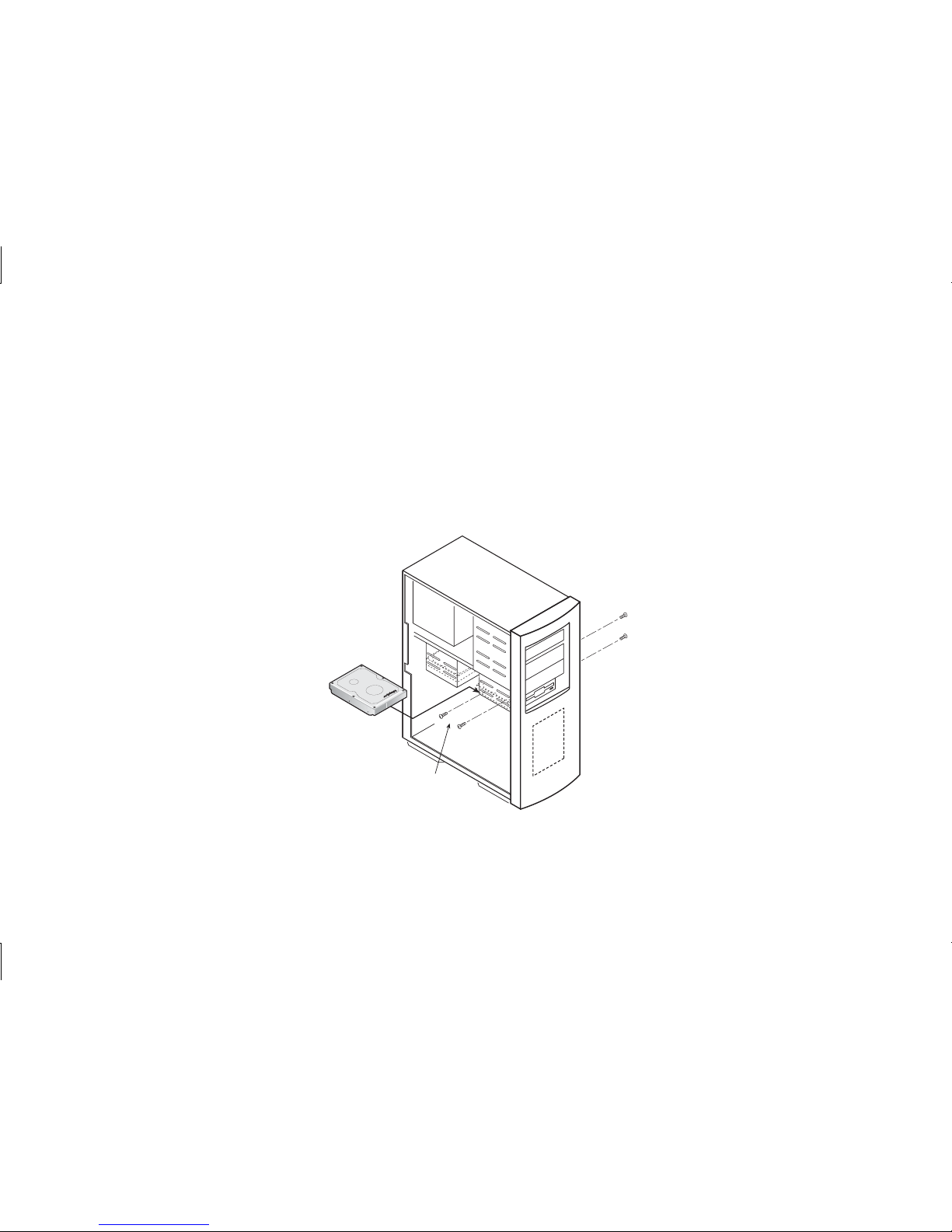

FIGURE 4

TYPICAL 3.5-INCH DEVICE BAY INSTALLATION

PAGE

5.25-inch Device Bay Installation

When installing the hard drive in a 5.25-inch bay (such as where CD-ROM drives are typically installed), you first

need to attach mounting brackets (not included) to the hard drive. Mounting brackets are available from your

local computer hardware store.

1. Attach the mounting brackets to the hard drive using the screws included with this kit. See Figure 5 for

details.

2. Mount the hard drive in the 5.25-inch bay using the screws provided with the mounting brackets.

Position the hard drive as close to the bottom of the device bay as possible with the label facing up.

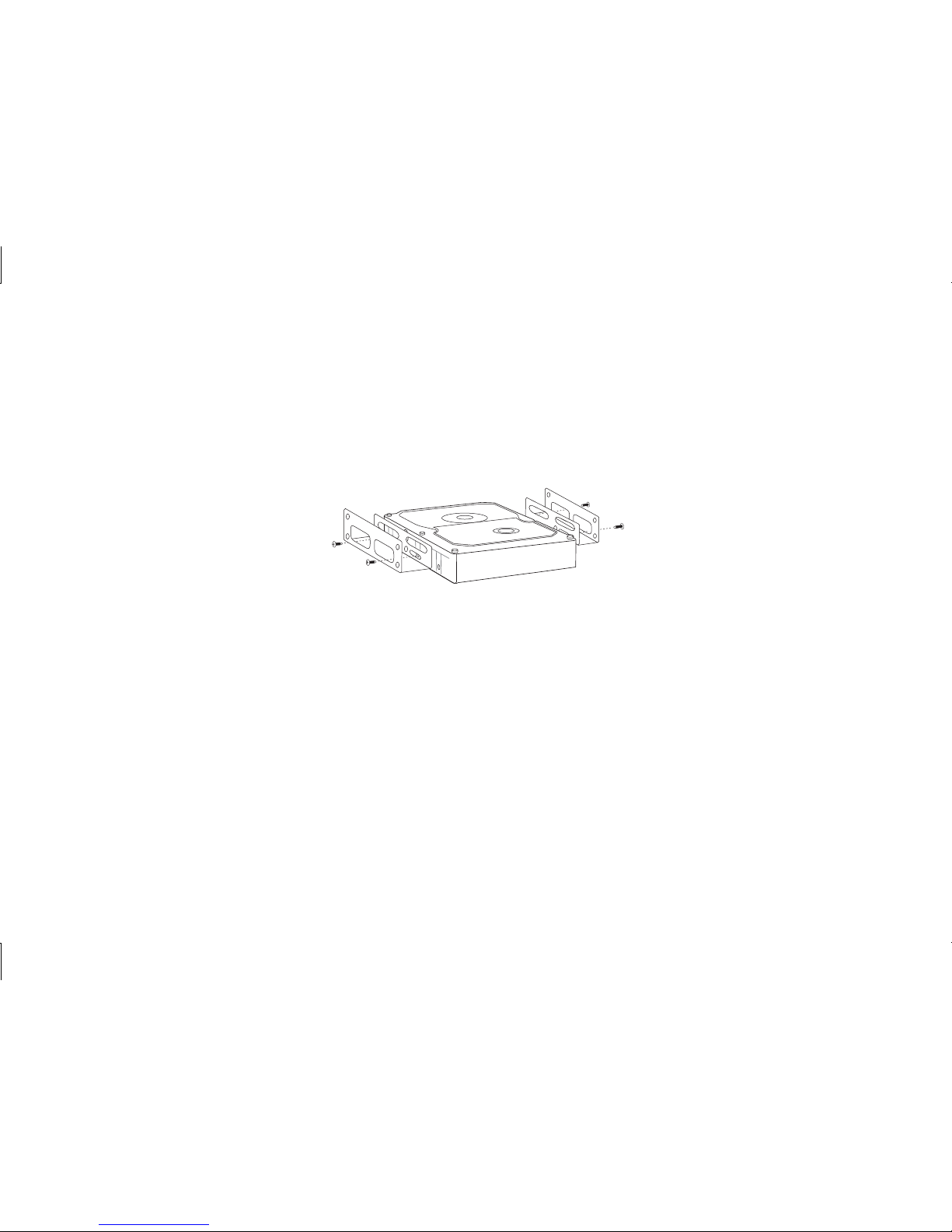

FIGURE 5

MOUNTING THE BRACKETS ON THE HARD DRIVE

PAGE

Attach Serial ATA and Power Cables

1. Locate an available Serial ATA (SATA) port on your motherboard or on a SATA PCI card and plug in

one end of the SATA interface cable.

2. Locate the SATA port on the rear of the hard drive and plug in the SATA interface cable as shown.

3. Connect the 15 pin SATA power connector.

SATA Interface

Connector

Power

Connector

POWER SATA

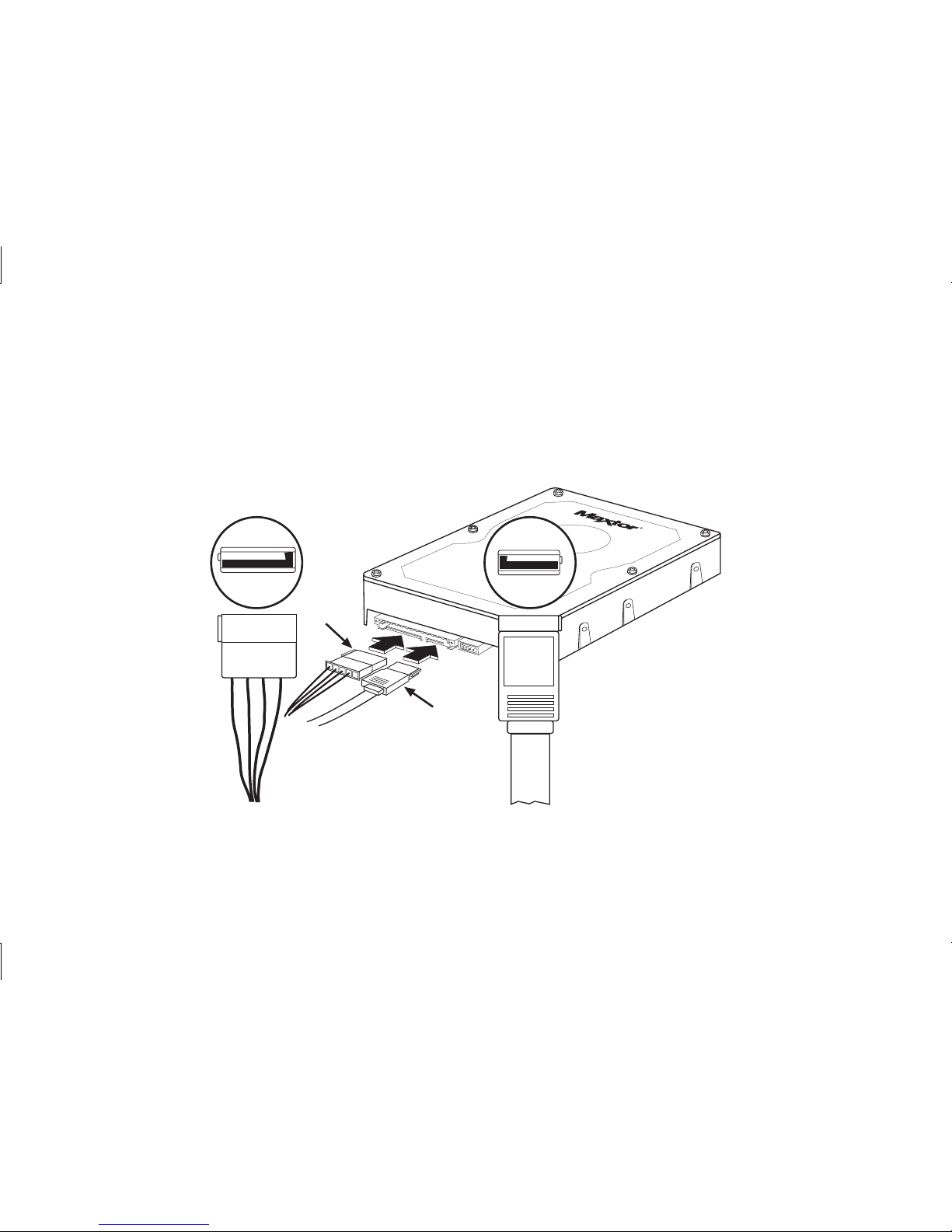

FIGURE 6

ATTACHING THE CABLES TO THE HARD DRIVE

PAGE

If you have an existing installation of Windows 2000 or XP, you must install a Windows driver for the SATA interface before

connecting the drive. See “Format the Hard Drive” on page 10 for details.

Important Note:

Motherboards and host controllers equipped with VIA, VT8237, VT8237R, VT6420, VT6421L, SIS760, and

SIS964 do not support SATA 300 transfer speeds. For Maxtor SATA 300 drives to function properly on the VIA chipsets, the

Force 150 jumper must be used. For more information about your system chipset, please refer to the motherboard or host

controller manufacturer’s documentation or web site.

no connect

Force 150

transfer speeds Force 150

transfer speeds

no connect

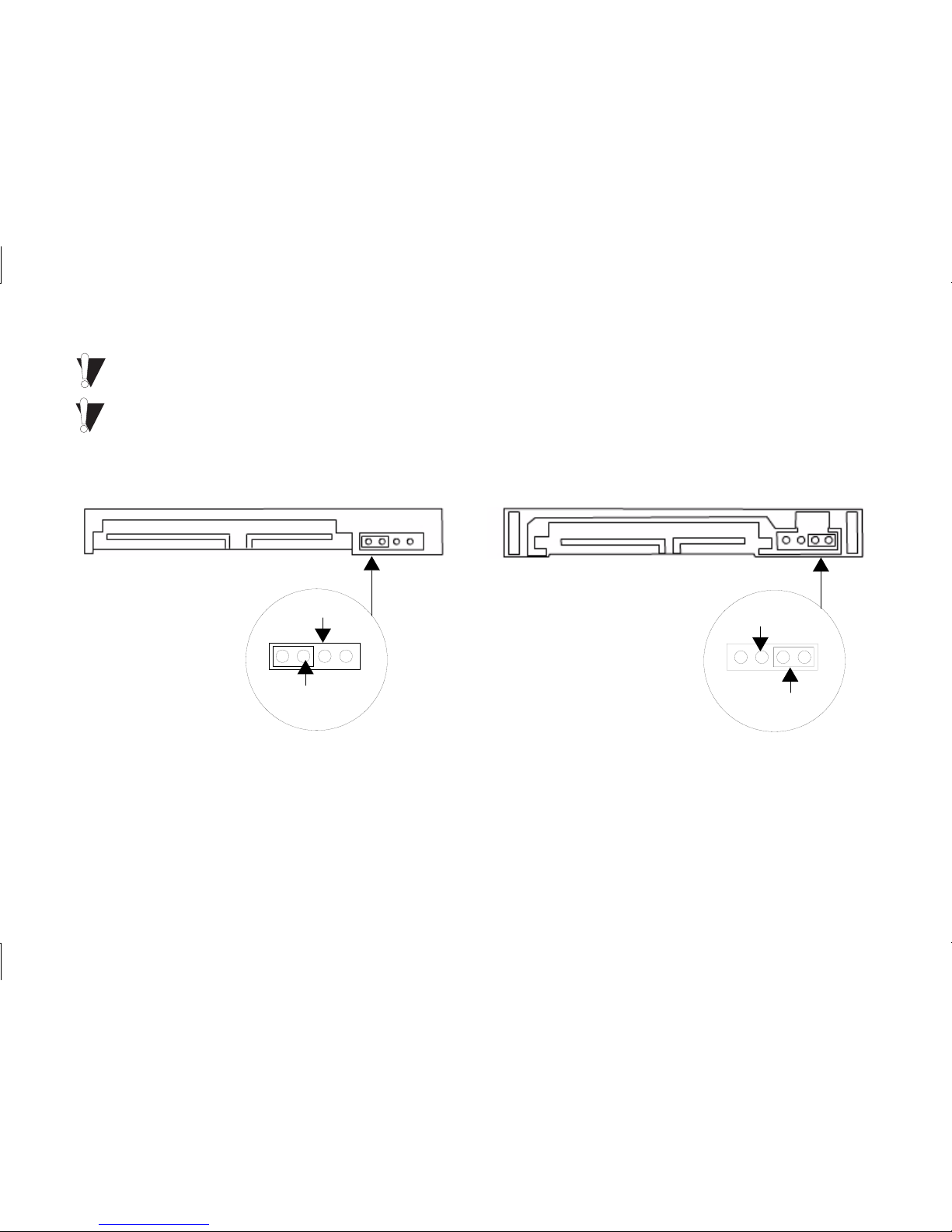

FIGURE 7

HARD DRIVE JUMPER PINS

M Type S Type
