DOOR AND PANEL PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

5−08 Litho In U.S.A. (CJJ) (eeb) Part No. W10208589 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10158012

Instructions,

Installation

W10184365

Energy Guide

Y6920186 Guide, Use & Care

2 Bracket, Hinge

W10163109

Left

W10163108

Right

3 99001075 Screw

Y99002587

Pad, Foam

5 Panel, Front

99002768 Black

99002770 White

99002769 Bisque

99002771 Stainless

6 Screw

912366 Black

99001194 White

7 Panel, Toe

99002765 Black

99002766 White

99002767 Bisque

8 Support, Front

99003152 Black

99003153 White

CONTROL PANEL PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION

1 99002575 Housing, Board

(Top)

W10169323

Board, Fontrol

3 99002576 Housing, Board

4 Panel, Control

99003382 Black

99003384 White

5 99002751 Switch, Door

6 99003347 Latch, Assembly

DOOR AND LATCH PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 99003537 Harness, Wiring

W10169387

Grill, Air/Water

Inlet

3 99002186 Seal, Air/Water

Inlet

4 99003243 Cap, Rinse Aid

5 99003322 Dispenser, Rinse

Aid

6 99002645 Inlet, Air/Water

7 Y912620 Screw, Door

W10170234

Inner Door

w/Damper

9 99003316 Bracket, Dispenser

10 912615 Screw

LOWER WASHARM PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION

1 99003083 Cap, Wash Arm

2 99003144 Wash Arm, Lower

(Includes Item 3)

W10167918

Shield, Radiant

HEATER PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION

1 99002971 Heater Element

Assembly

W/ Gasket

2 99002972 Nut, Heater

NOTE:

If heater element is

removed, it must be replaced.

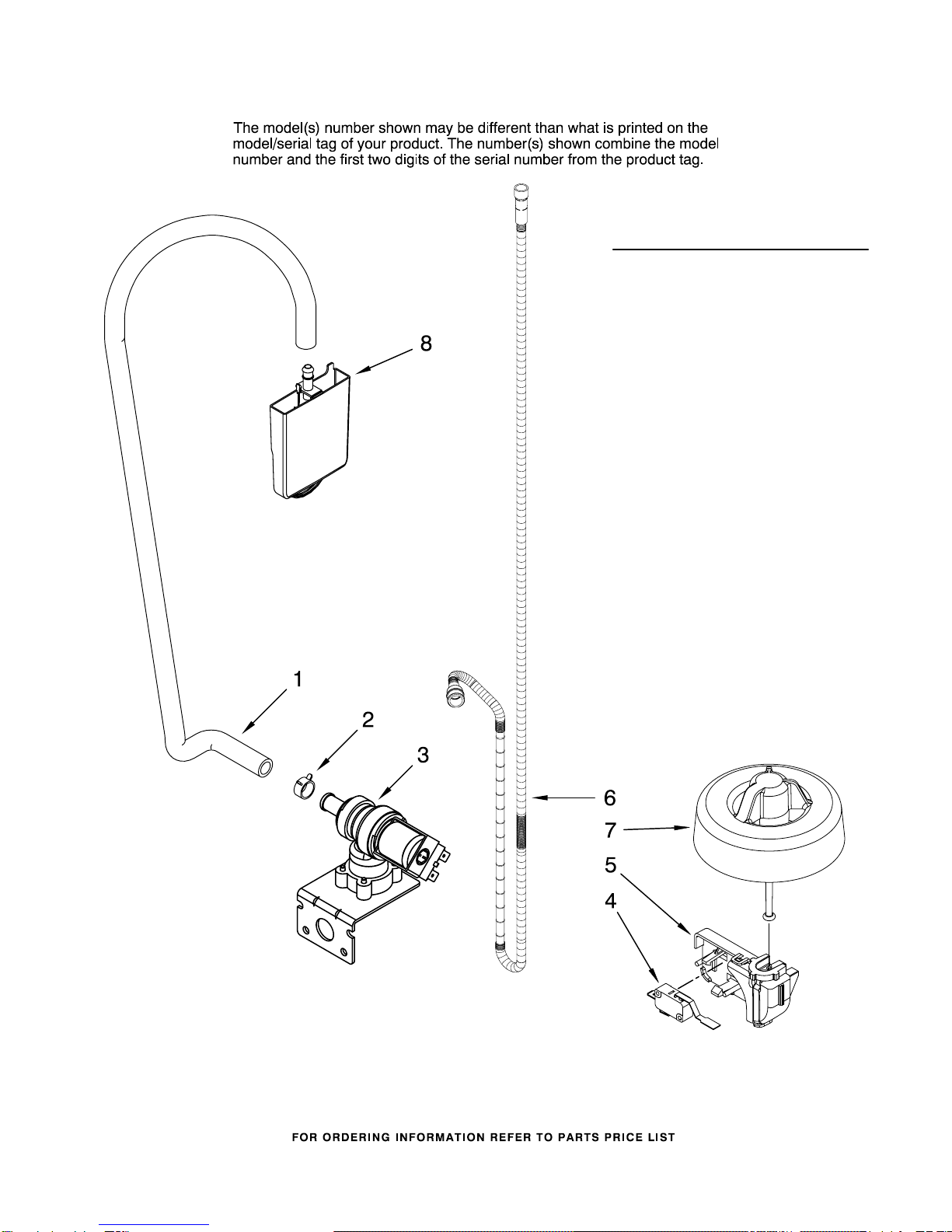

FILL AND OVERFILL PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION

1 99002852 Hose, Inlet

2 911856 Clamp, Spring

3 99002975 Valve, Water

4 99002631 Switch, Float

5 99002943 Plate, Switch

Mounting

6 99002652 Hose, Drain

7 99003080 Float

8 99002645 Inlet, Air/Water

TUB AND FRAME PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

TUB AND FRAME PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION

W10119337

Strike, Door

2 99002648 Bracket, Cabinet

Mounting

3 99002640 Fastener

4 99002610 Bracket, Spring

Adjustment

5 Bracket, Support

99002636 Left

6 99003688 Nut

W10173920

Bracket, Cable

8 99002608 Roller, Cable

Bracket

9 99003687 Bolt, Shoulder

10 99002598 Spring, Door

11 99003446 Door Cable Assy.

12 99002849 Insulation, Tub

13 99002588 Seal, Door

W10142297

Tub Assembly

15 99002633 Thermostat

Limiting

16 99002634 Clip, Thermostat

17 99002692 Screw, Trim

Mounting

18 99002637 Bracket, Junction

Box

W10143258

Leg, Leveling

20 99003306 Strip, Trim

21 99002638 Cover, Junction

Box

22 Support, Hinge

W10137496

Left

W10137495

Right

23 Backer, Hinge

Seal

99002761 Left

99002762 Right

24 99002723 Strip, Trim Top

25 99003307 Strip, Trim Right

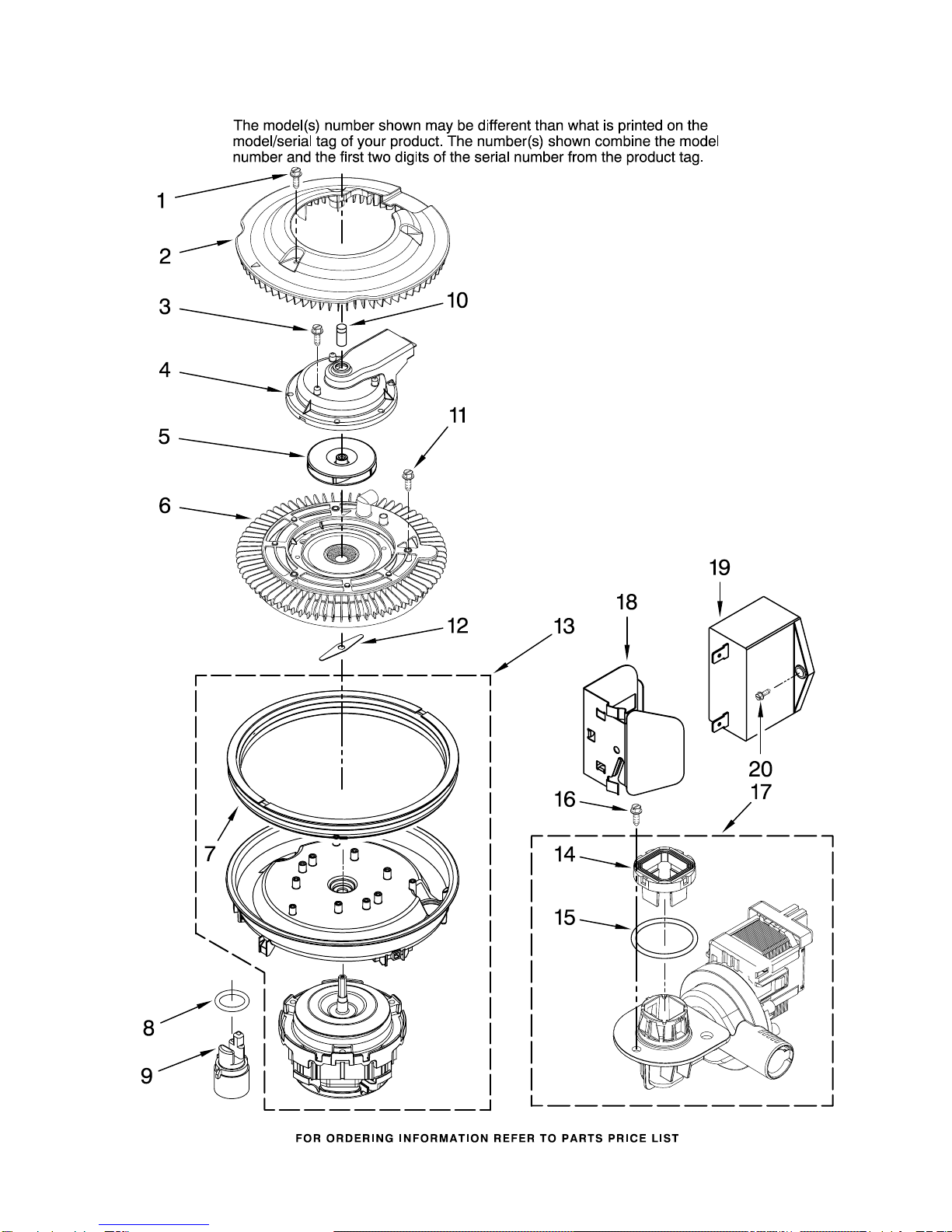

PUMP AND MOTOR PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

PUMP AND MOTOR PARTS

For Models: MDB6701AWB10, MDB6701AWW10, MDB6701AWQ10, MDB6701AWS10

(Black) (White) (Bisque) (Stainless)

W10208589

Illus. Part

No. No. DESCRIPTION

1 99002666 Screw

2 99003468 Guard, Filter

3 99002668 Screw

4 99003145 Discharge, Housing

Assembly

5 99002659 Wash Impeller

Assembly

W10142623

Filter/Flowplate

Assembly

7 99002663 Gasket, Motor

Mount

8 99002651 O−Ring, Turbidity

Sensor

W10120019

Sensor, Turbidity

10 99003697 Pivot, Wash Arm

11 99002668 Screw

12 99003427 Chopper

13 99003430 Wash Motor Assy.

14 99003309 Flapper, Drain

Pump Inlet

15 99002857 O−Ring, Drain Pump

16 99002740 Screw

17 99003141 Drain Pump Assy.

W10167912

Sheild, Capacitor

19 99002665 Capacitor

20 99002601 Screw
