TOP AND CONSOLE PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

7−08 Printed in U.S.A. (LT) (psw) Part No. W10208627 Rev. A

29" ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10057349

Use & Care Guide

W10057358

Tech Sheet

W10134980

Installation,

Diagnostic Guide

W10057355

Guide,

Quick Start

2 Top

3980634 White

W10193964

Red Metallic

W10111012

Harness, Main

4 Panel, Console

W10164450

White

W10164451

Red Metallic

(Includes Buttons

& Control Board

Item. 13)

5 3394427 Clip, Harness

W10006840

Bracket, Console

(Includes Items:

21.)

7 94614 Terminal

8 3936144 Plug, Terminal

9 3390647 Screw, 8−18 x 1/2

W10185550

Power Cable

User Interface

W10177245

Medallion

12 3395683 Connector,

(Motor)

13 98139 Screw, 8−32 x 1/32

W10164576

Knob, Assembly

W10170293

Guide, Light

Cycle Internal

W10171504

Foil−Display

W10112267

Foam−Seal

W10185548

Harness,

User−Interface

W10171502

Fram−Light

(Guide Display)

W10164578

Guide, Light

(3−Way Digital)

W10170295

Frame−Light Guide

W10164567

Cycle, Light Guide

W10172298

Bushing, Knob

W10164609

User−Interface

25 8572039 Seal,

User Interface

26 8540513 Screw

27 8540282 Screw

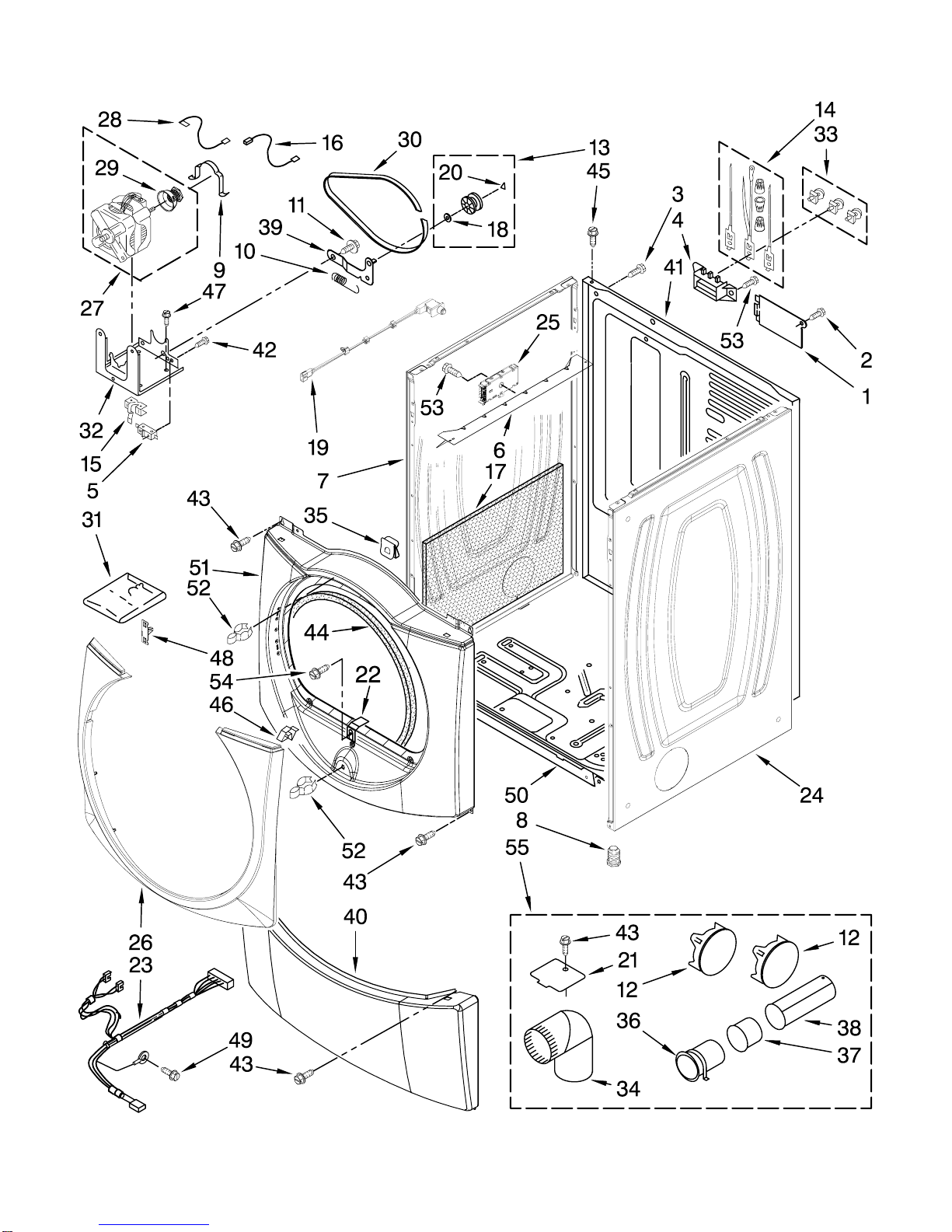

CABINET PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

CABINET PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8576583 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw, 10−32 x 5/8

(Ground)

4 3397659 Block, Terminal

W10167612

Switch, Broken

Belt

6 8563727 Bracket, Control

7 Panel, Side (L.H.)

W10192435

White

W10193954

Red Metallic

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

W10151499

Midnight Grey

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

W10128772

Sound Panel

W10121334

Washer

W10128087

Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

W10181463

Harness,

Digital Interface

24 Panel, Side (R.H.)

W10192446

White

W10193957

Red Metallic

W10182366

Control Board

26 Trim−Ring

Assembly

W10164746

White

W10190563

Red Metallic

(Includes

Item. 48 )

27 8538263 Motor, Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

W10112954

Belt, Drive

31 8541503 Kit,

Stack Assembly

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 62825 Clip, S−Type (3)

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 Panel, Toe

W10116271

White

W10193962

Red Metallic

W10180481

Panel, Rear

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 343641 Screw, 10−16 x 1/2

W10129065

Trim−Clip

Metal

49 359625 Screw−Ground

50 8519207 Base, Cabinet

51 Front Panel

W10153275

White

W10193967

Red Metallic

(Includes

Illus. 44)

52 696144 Strike, Door (2)

53 90767 Screw, 8−18 x 3/8

54 3357011 Screw, 10−16 x 1/2

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

55 279818 White

W10186596

Midnight Grey

BULKHEAD PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

BULKHEAD PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

9 3392519 Thermal − Fuse

(91 C)

10 3402841 Lens,

Drum Light

11 489463 Screw, 8−18 x 5/8

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

W10080170

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563745 Exhaust Pipe

23 3394985 Housing, Outlet

24 697693 Baffle, Drum

W10181466

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

W10166807

Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 90767 Screw, 8−18 x 3/8

30 8519245 Bulkhead, Front

31 8299979 Grille, Outlet

32 359625 Screw, 8−18 x 1/2

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

38 8066208 Clip, Spring

39 3394986 Spring, Lint

Screen Door

W10049370

Lint Screen

41 697770 Seal, Cover Plate

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544769 Housing−Slot

Heater Box

47 280148 Thermal Cut−Off

(Includes Illus.

No. 48)

48 8557403 Thermostat 295 F

(146 C)

49 8544770 Housing−Tab

Heater Box

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

52 8544776 Flange,

Heater Box

DOOR PARTS

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10085210

Label,

Hinge Hole

W10139920

Door Hinge

Assembly

W10180119

Cover,

Door Hinge

4 9742177 Screw, 8−18 x 5/8

W10048910

Screw−Plug

W10180118

Door−Intermediate

W10193522

Handle Ring

8 690081 Door Catch

Assembly (Lower)

W10159996

Screw,

10−24 x 3/64

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 8 & 14)

11 355515 Screw,

8−18 x 11/16

W10193530

Door, Outer

Assembly

W10180117

Door Mask

14 3398175 Door Catch

Assembly (Upper)

15 8580116 Pad−Handle

W10180120

Door−Shield

17 8519354 Retainer−Window

Lower

18 8519356 Retainer−Window

Upper

19 3393258 Screw,

20 8579662 Seal−Window

21 8566254 Glass−Window

W10139457

Seal−Door

W10171571

Screen, Door

OPTIONAL PARTS (NOT INCLUDED)

For Models: MEDE300VW0, MEDE300VF0

(White) (Red Metallic)

W10208627

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

8579666A Kit,

Door Reversing
