CABINET PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

11−07 Litho In U.S.A. (pl) Part No. W10175871 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137641

Use & Care Guide

W10123455

Energy Guide

W10165418

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

M0310731 Black

4 B5759649 Gasket

5 67006118 Roller AssY. (2)

6 67003868 Foot, Brake

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Hinge

67001012 Black

11 67005822 Screw

12 67006473 Screw

13 67003331 Cover, Water Line

14 67006303 Screw (3)

15 Hinge, Center

67007043 Black

12566604ED

Hinge, Top

17 Cover, Corner

67003485 Black

18 67001067 Clip, Drain

19 67007174 Bracket, Foot (2)

20 67006564 Screw (4)

21 67006101 Cover, Unit

22 Grille, Toe

67006954 Black

23 M0114003 Clip, Speed

24 67001066 Tube, Drain

25 67006425 Screw

26 67003796 Fiber, Acoustic

27 67001097 Cover, Water Valve

28 M0108105 Clamp, Tube

W10137519

Elbow, Fill Tube

30 67006287 Screw

31 M1205302 Rivet

32 M0286708 Nut, Speed

33 67005127 Roller

34 12456801 Bracket, Roller

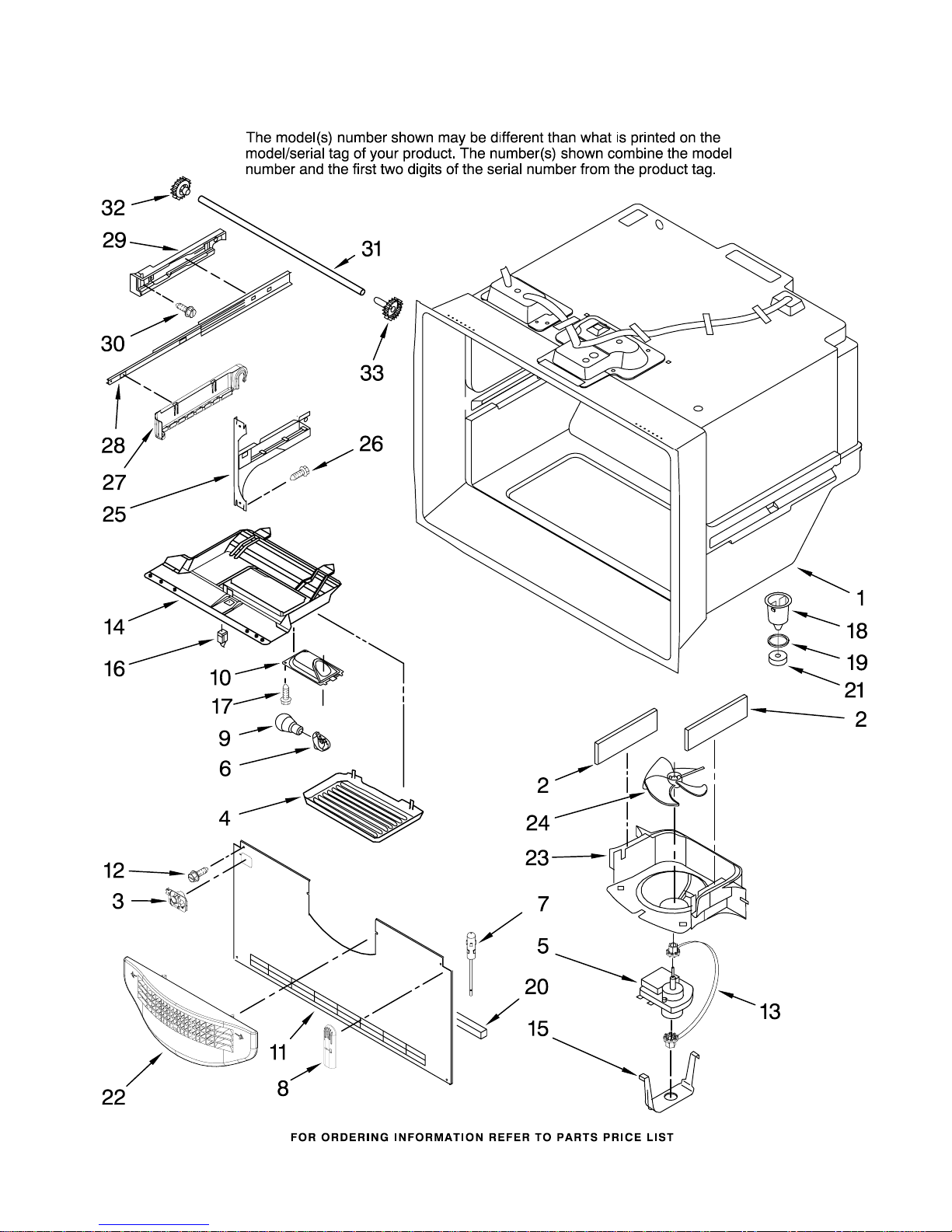

FREEZER LINER PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

FREEZER LINER PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67005874 Guide, Fill Tube

4 67003905 Cover, Light

5 67003636 Motor, Evaporator

Y12570701

Socket, Light

7 12002355 Thermistor

8 67003924 Cover, Thermistor

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005872 Cover, Evaporator

12 67006425 Screw

W10121318

Grommet

14 67003906 Module, Light

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 67001776 Gasket, Bottom

21 B8381501 Gasket

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10122147

Left

W10122148

Right

26 67006473 Screw (8)

27 Cradle, Basket

67004014 Left

67004015 Right

W10120018

Slide, Drawer (2)

29 Adapter, Slide

W10128118

Left

W10128119

Right

30 67006406 Screw (6)

31 67004261 Shaft

32 12002497 Gear (Left)

(Includes Item 33)

33 12002497 Gear (Right)

(Includes Item 32)

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

W10165719

Stainless

2 Handle, Door

W10136871

Stainless

3 Gasket, Door

W10130587

Black

4 67002935 Screw, Handle

5 67006408 Screw (8)

6 Plug, Button (2)

67004838 Black

7 67006113 Mount, Handle

REFRIGERATOR LINER PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Module, Light

3 67004058 Overlay

4 67003898 Module, Control

W10165748

Board, Control

(Incl Instr Sheet)

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

17 M0310343 Plug Button

White

Following Parts Not Illustrated

67004033 Harness, Controls

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

REFRIGERATOR DOOR PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

W10175929

Stainless

(For MBR2256KES12)

W10175930

Stainless

(For MBL2256KES12)

2 67002935 Screw, Handle

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67004040 Bucket, Medium (4)

6 67006113 Mount, Handle

7 Plug, Button (2)

67004838 Black

8 Gasket, Door

W10131327

Black

9 Handle, Door

W10136871

Stainless

10 67006287 Screw

11 Stop, Door

67003780 Black

12 67006439 Nameplate

13 67001748 Retainer, Ref Door

14 Bushing (4)

67004978 Black

15 Closure, Door

67003639 Black

16 67215−2 Tray, Egg

UNIT PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

UNIT PARTS

For Models: MBL2256KES12, MBR2256KES12

(Stainless) (Stainless)

W10175871

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005744 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10167036

Tube, Discharge

W10119856

Harness, Evap.

Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Heater, Defrost

W10136415

Clip, Capacitor

W10136414

Start Device

13 61003210 Gasket

W10165425

Thermostat,

Defrost

15 67005680 Grommet (2)

16 67006573 Screw

W10169124

Grommet (4)

18 67006132 Condenser

19 67006432 Screw

20 67001080 Tray, Drip

21 67006737 Screw

22 12001919 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060301 Harness, Unit

with Power Cord

27 2317845 Drier

W10130129

Compressor

(Includes items

11,12,17,27,29)

29 2264017 Capacitor

30 67006434 Axle, Roller (2)

W10158508

Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller (2)

W10137529

Grommet, Cond. (4)

37 10623002 Clip, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
