Maytag MAV9504EWW Handbuch

Repair

Parts

List

MODEL NUMBER

MAV9504EWW

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

WASHER

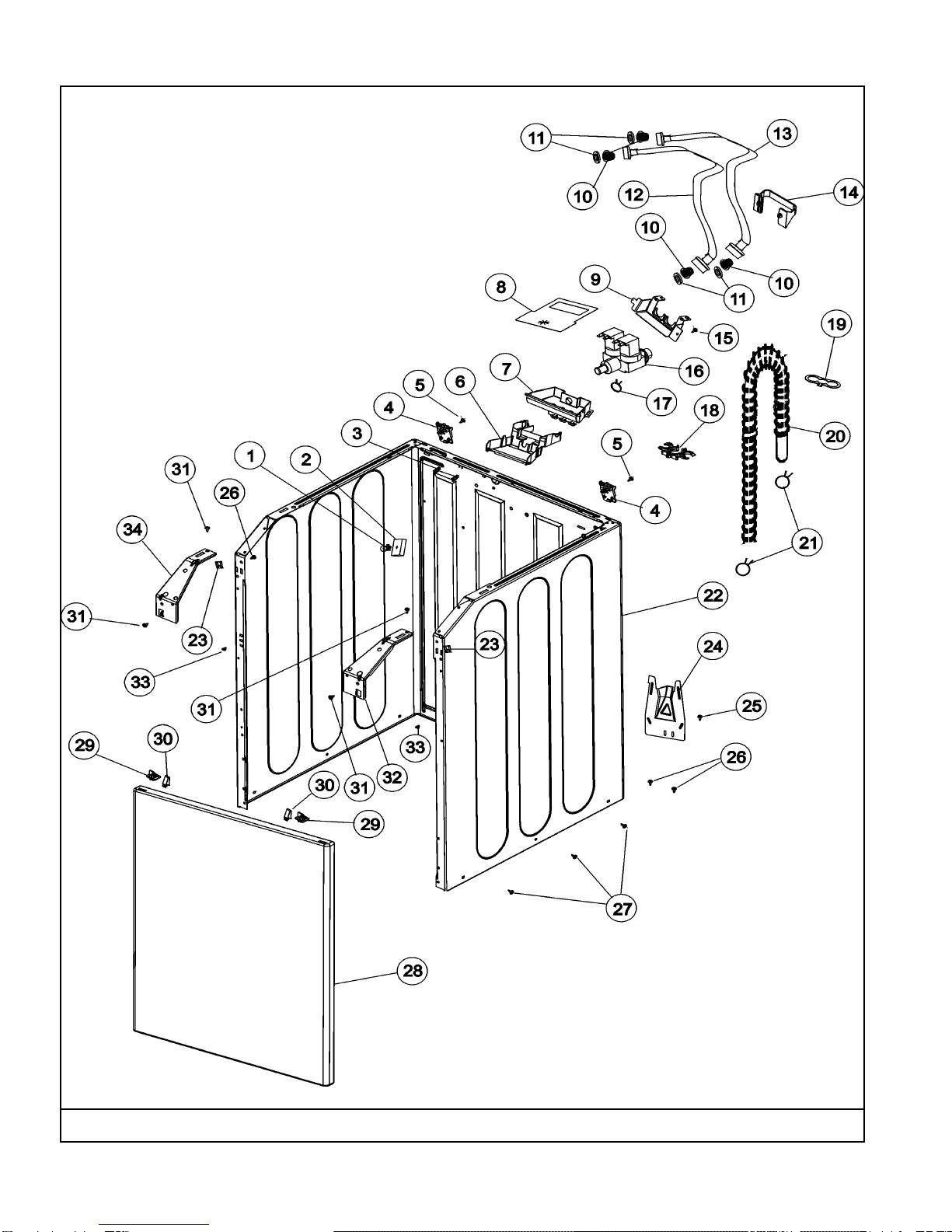

Section: CABINET

LW12-109

Model: MAV9504EWW

CABINET

No. Part No. Description

Section:

Series Qty

1 22003086 CLIP, AIR DOME HOSE 10 1

2 22003461 PAD, PRESSURE SWITCH 10 1

3 22003298 RETAINER, WIRE 10 1

4 22004095 HINGE, PLASTIC 10 2

5 22001995 SCREW 10 2

6 22004053 LOWER INJECTOR, FLUME 10 1

7 22004361 UPPR INJECTOR/THERMOSTAT ASSY 10 1

8 22004251 WATER VALVE SHIELD 10 1

9 22003376 BRACKET, WATER VALVE Note: SCREW, VALVE TO BRACKET 10 1

10 22002960 STRAINER, WASHER INLET 10 4

11 Y013783 GASKET, INLET HOSE 10 4

12 21001316 HOSE, INLET (HOT) 10 1

13 33-7891 HOSE, 4' INLET 10 1

14 22003429 RETAINER, FILL HOSE 10 1

15 22002300 SCREW 10 1

16 22004333 WATER VALVE 10 1

17 22002838 CLAMP, SPRING----S Note: WASHER, INLET HOSE 10 1

18 22002765 CLIP, HOSE 10 1

19 22003814 RETAINER, DRAIN HOSE 10 1

20 22003410 HOSE, DRAIN 10 1

21 22003596 CLAMP, HOSE 10 2

22 N 22003553 CABINET ASSY. (WHT-AS PKD) 10 1

23 213280 FRONT PANEL BRACKET/FASTENER 10 2

24 22002704 COVER, DRAIN HOSE 10 1

25 N 313561 SCREW----NA Note: SCREW, HINGE 10 1

26 33002190 SCREW (#10-3/8") 10 2

27 22003409 SCREW----NA 10 6

28 22002737 PANEL, FRONT (WHT) 10 1

29 22002013 STOP, SHIPPING 10 2

30 25-7220 CLIP, CABINET TOP 10 2

31 22003735 SCREW, #10-16X1/2 AB TRUSS 10 4

32 22002839 BRACE, CABINET (RT) 10 1

33 22002965 HOLE PLUG 10 2

34 22002840 BRACE, CABINET (LT) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TUB

LW13-78

Model: MAV9504EWW

TUB

No. Part No. Description

Section:

Series Qty

1 22004043 AGITATOR/AUGER ASSY (AS PK) 10 1

2 21001510 SCREW Note: SCREW, TUB 10 4

3 22002933 SCREW 10 6

4 25-7948 SCREW, AGITATOR RETENTION 10 1

5 22003434 GASKET, HUB/BOTTOM ISOLATOR 10 1

6 35-3686 GASKET, TUB TO HOUSING 10 1

7 22003647 BOLT, SHOULDER,THREAD CUTTING 10 4

8 35-2328 SEAL, TUB TOP 10 1

9 22003285 HOSE, TUB TO PUMP 10 1

- 22003368 SPINNER TOP 10 1

10 22004240 CRIMPED SPINNER ASSY AS PK 10 1

- 22003431 WASHER, STAINLESS STEEL FLAT 10 1

11 35-3685 GASKET, BASKET TO CENTERPOST 10 1

12 22002742 TUB, OUTER 10 1

13 22003237 AIR DOME HOSE 10 1

14 22003985 SOFTENER DISPENSER ASSEMBLY Note: (INCL. DISPENSER CUP) 10 1

15 12002452 TUB COVER/BLEACH CUP KIT 12 1

15 22004184 TUB COVER ASSY - AS PACK 10 1

16 22003433 RING, INSULATING BOTTOM 10 1

17 22003595 GASKET, ISOLATOR (FOAM) 10 1

- 22003458 BLOCK, TUB (ATL) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TRANSMISSION

LW15-41

Model: MAV9504EWW

TRANSMISSION

No. Part No. Description

Section:

Series Qty

1 25-7941 "O" RING 10 1

2 21001065 SCREW,#10-24X.50 HXNIBHD Note: SCREW, STATOR 10 6

3 12001797 KIT, PULLEY & DUST CAP 10 1

4 LA-2007 CAM REPLACEMENT KIT 10 1

5 21001533 SEAL NUT ASSEMBLY 10 1

6 35-2082 WASHER,1.25ODX.530IDX.062 Note: WASHER, FLAT 10 1

- 35-2132 WASHER,1.25ODX.530IDX.032 Note: WASHER, FLAT 10 1

7 21001515 BASKET HUB ASSEMBLY 10 1

8 25-7854 RING, RETAINING 10 1

9 12001598 TUB SEAL ASSEMBLY 10 1

10 35-2205 BEARING, SPIN 10 1

11 35-2974 TUB SEAL/HUB ASSY (HT TRANS) 10 1

12 21001511 HOUSING/LWR.BEARING ASSY. 10 1

- 35-2205 BEARING, SPIN 10 1

13 21001518 SUPPORT, TUB 10 1

14 21001532 BRACE, TUB 10 3

15 25-7895 SCREW, SUSP HSG TO LWR BRG ASY Note: SCREW, TUB BRACE 10 6

16 21001163 HOUSING, SUSPENSION 10 1

17 35-2017 RETAINER, BRAKE SPRING 10 1

18 31001285 SPRING, BRAKE 10 1

19 25-7930 SCREW 5/16-18X3/4 Note: SCREW, TUB BRACE 10 6

20 21001509 SCREW,HIGH PERFORMANCE PLASTIC Note: SCREW, SUSPENSION HOUSING 10 3

21 35-2948 BRAKE ROTOR & LINING ASSY Note: BRAKE ROTOR & LINING ASSEMBLY 10 1

22 21001161 SNUBBER 10 1

23 35-2018 STATOR, BRAKE 10 1

24 12500036 THRUST BEARING KIT 10 1

25 21001536 TRANS. ASSY.(W/O SEAL/BEARING) Note: TRANSMISSION ASSY.(DUAL DRIVE)COMPONENTS

OF THIS ASSEMBLY NOT SOLD SEPARATELY 10 1

- 21001867 HT TRANS/SEAL HUB ASSEMBLY 10 1

26 21001508 HOUSING/BEARING ASSY. Note: (INCL TUB SEAL, TUB GASKET BASKET GASKET) 10 1

- 21001868 SEAL HUB ASSEMBLY (HT TRAN) 10 1

27 35-2010 SEAL,TRANSMISSION HOUSING(LIP) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BASE

LW10-40

Model: MAV9504EWW

BASE

No. Part No. Description

Section:

Series Qty

1 22004376 SPRING, MOTOR PIVOT 10 1

- 21001506 PULLEY, MOTOR-60 HZ Note: FOR MOTORS BUILT BEFORE 8-18-03 10 1

2 21001950 MOTOR, 2SP 1/2HP 120/60 HI-TOR 10 1

- 22004297 PULLEY Note: FOR MOTORS BUILT AFTER 8-18-03 21 1

3 22002721 SHIELD, MOTOR 10 1

- 22002019 SCREW 10 2

- 22003438 SLEEVE, PUMP (ATL) 10 1

4 21001873 PUMP 10 1

- 22004055 SCREW HEX HD PUMP TO BASE 10 3

5 25-7833 SCREW Note: SCREW, MOTOR/BASE 10 2

6 25-7834 WASHER Note: WASHER, MOTOR/BASE SCREW 10 2

7 33-9946 ISOLATOR, MOTOR 10 2

8 35-3570 WASHER, MOTOR PIVOT Note: WASHER, PIVOT 10 2

9 21001366 PLATE, MOTOR 10 1

- 22003817 SCREW, SERRATED WASHER HEAD HX 10 1

- 35-2065 PAD, MOTOR PLATE 10 1

10 35-3646 ISOLATOR, MOTOR PLATE 10 1

- 22004348 SLIDE, MOTOR PIVOT 10 2

11 25-7831 SPACER 10 2

12 33-9946 ISOLATOR, MOTOR 10 1

13 22002853 CLAMP, HOSE 10 2

14 35-3571 SLIDE, MOTOR PIVOT 10 2

15 33-9967 WASHER, MOTOR ISOLATOR 10 2

16 25-7047 WASHER, FLAT 10 2

17 25-7325 NUT, MOTOR PLATE ASY TO MOTOR Note: NUT, MOTOR PLATE ASSEMBLY 10 2

18 21001598 SPRING, SUSPENSION 10 6

19 21001166 HOOK, SUSPENSION SPRING 10 3

20 21001754 BAR, STABILIZER 10 1

21 35-2046 BRACKET, STABILIZER 10 2

22 35-2052 PIN, STABILIZER 10 1

23 35-3020 FOOT PAD ASSY. (REAR) 10 2

24 33002190 SCREW (#10-3/8") Note: SCREW, CABINET TO BASE 10 3

25 22003390 BASE (AS PACKED) 10 1

- 22003817 SCREW, SERRATED WASHER HEAD HX Note: SCREW, GROUND WIRE 10 1

- 22002781 PAD, SOUND DEFLECTOR (BASE) 10 1

26 25-7845 SPEEDNUT Note: SPEEDNUT, MOTOR 10 2

- 33002190 SCREW (#10-3/8") 10 2

- 22004045 CLIP, LOWER FRONT PANEL 10 2

27 22002239 CLIP, LOWER FRONT PANEL 10 2

28 35-3507 FOOT & PAD ASSY 10 2

29 N 25-7951 WASHER, SUSPENSION HOOK 10 3

30 22003483 BELT, DRIVE 10 1

31 25-7830 SPACER 10 2

32 22002782 PAD, FOAM (SOUND DAMPENER) 10 4

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

SUPPLEMENTAL INFORMATION

No. Part No. Description

Section:

Series Qty

1 62620660 MANUAL, USE & CARE 10 1

2 22004369 GUIDE, ENERGY HANG TAG 10 1

3 22004362 HARNESS, WIRE - LOWER 10 1

4 22004403 WIRE HARNESS 13 1

4 22004366 HARNESS,WIRE - UPPER 10 1

5 22003061 CORD, POWER (AS WRAPPED) 10 1

6 211881 GROMMET, CORD 10 1

7 22003817 SCREW, SERRATED WASHER HEAD HX 10 1

9 22003512 INSULATION, CABINET 10 1

10 22003218 LAUNDERING TIPS (TRILINGUAL) 10 1

11 22003511 INSULATION 10 1

12 16010358 MANUAL, SERVICE 10 1

- 20000021 LIP SEAL TOOL KIT 10 1

- 20001120 PLIERS, QB PRODUCTS HOSE 10 1

- 22002898 TOOL, SEAL NUT 10 1

- 22002922 TOOL, SPRING REMOVAL 10 1

- 35-2968 SPANNER WRENCH BASKET DRIVE HU 10 1

- 12002012 BRAKE/BEARING TOOL (COMPLETE) 10 1

- N 20001057 MOVER, APPLIANCE 10 1

- 20001069 MULTI-WRENCH, FLAT 10 1

- 20001120 PLIERS, QB PRODUCTS HOSE 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
