PRODUCT MODEL NUMBERS

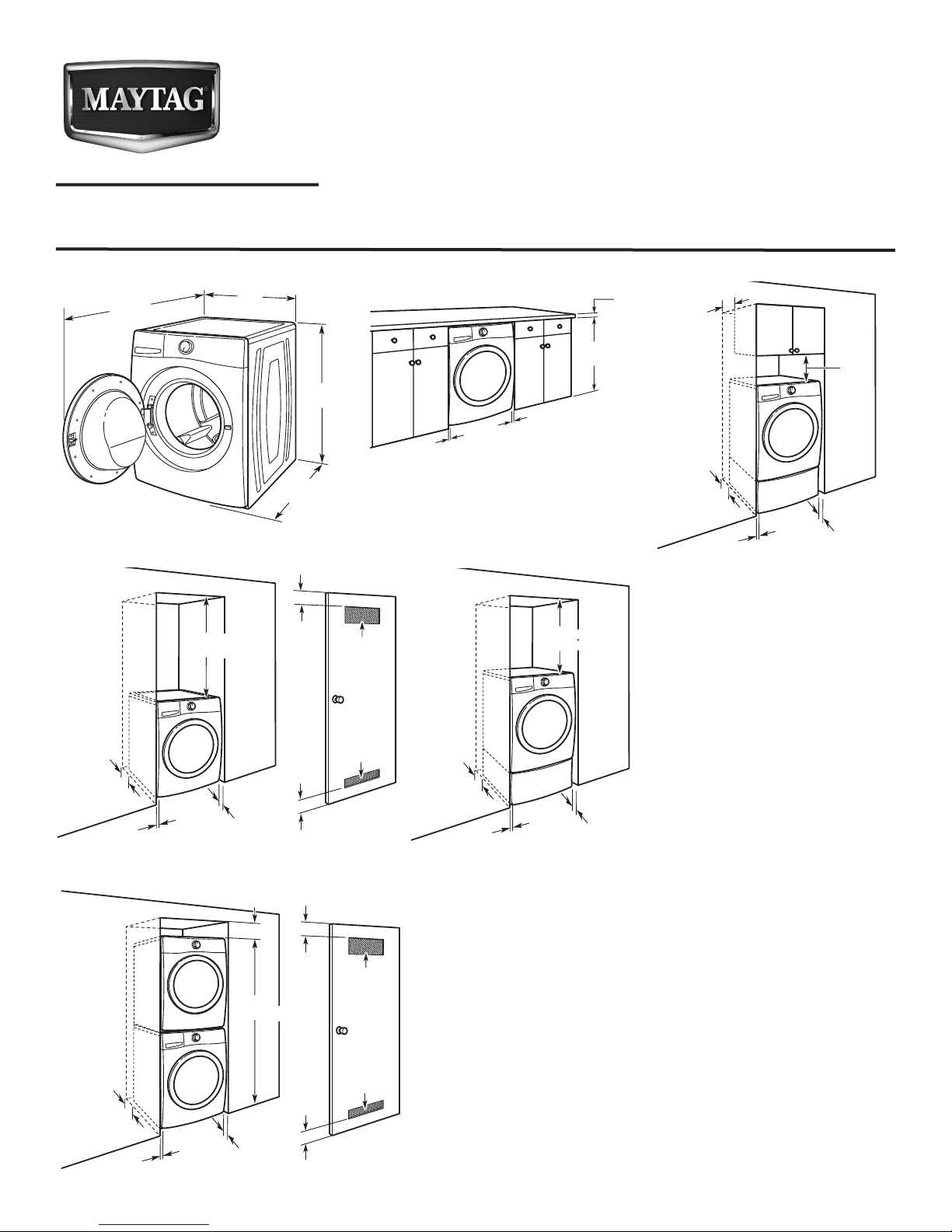

Washer Dimensions: Undercounter installation -

washer only:

Cabinet installation:

Recessed or closet installation -

with pedestal

W10408696B

06/2011

MHWE201Y, MHWE251Y,

MHWE301Y

Washer

Recessed area or closet installation -

without pedestal

Recessed or closet installation -

stacked washer and dryer

301/2"

(775 mm)

27"

(686 mm)

36"

(914 mm)

501/4"

(1276 mm)

48" min.

(1220 mm)

(25 mm)

(102 mm)

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

(25 mm)

51/4"

(133 mm)

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

72"

(1829 mm)

12"

(305 mm)

(25 mm)

36" min.

(914 mm)

(50 mm)

(25 mm)

(102 mm)

24" min.

(610 mm)

38" min.

(965 mm)

(25 mm)

(178 mm)

(25 mm)

(102 mm)

(229 mm)

(25 mm)

All dimensions show recommended spacing allowed, except for

closet door ventilation openings which are the minimum required.

For each arrangement, consider allowing more space for ease of

installation and servicing, and spacing for companion appliances

and clearances for walls, doors, and oor moldings.

Space must be large enough to allow door to fully open.

Add spacing of 1" (25 mm) on all sides of washer to reduce

noise transfer. If a closet door or louvered door is installed, top

and bottom air openings in door are required.

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation

our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.

ELECTRICAL REQUIREMENTS

A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is

recommended that a separate circuit serving only this appliance be provided.

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum

carry-away capacity: 17 gal. (64 L) per minute. A 1/4" (6 mm)

diameter to 1" (25 mm) diameter Standpipe Adapter Kit is

available (Part Number 3363920). Top of standpipe must be

at least 30" (762 mm) high; install no higher than 96" (2.4 m)

from bottom of washer. If you have an overhead sewer and

need to pump higher than 96 inches, a sump pump and

associated hardware are needed. See “Alternative Parts”.

30"

(762 mm)

41/2"

(113 mm)

DRAIN SYSTEM

Drain system can be installed using a oor drain, wall standpipe, oor standpipe, or laundry tub. Select method you need.

IMPORTANT: To avoid siphoning, only 41/2" (113 mm) of drain hose should be inside standpipe. Always secure drain hose with

beaded tie strap.

Floor standpipe drain system

Floor drain system requires a Siphon Break Kit (Part Number

285834), 2 Connector Kits (Part Number 285835), and an

Extension Drain Hose (Part Number 285863) that may be

purchased separately. See “Alternative Parts”. Minimum siphon

break height: 28" (710 mm) from bottom of washer. (Additional

hoses may be needed.)

30"

(762 mm)

28"

(710 mm)

Minimum capacity: 20 gal. (76 L). Top of laundry tub must

be at least 30" (762 mm) above oor; install no higher than

96" (2.4 m) from bottom of washer.

Floor drain system

41/2"

(113 mm)

30"

(762 mm)

30"

(762 mm)

Wall standpipe drain system

41/2"

(113 mm)

See requirements for oor standpipe drain system.

Laundry tub drain system
