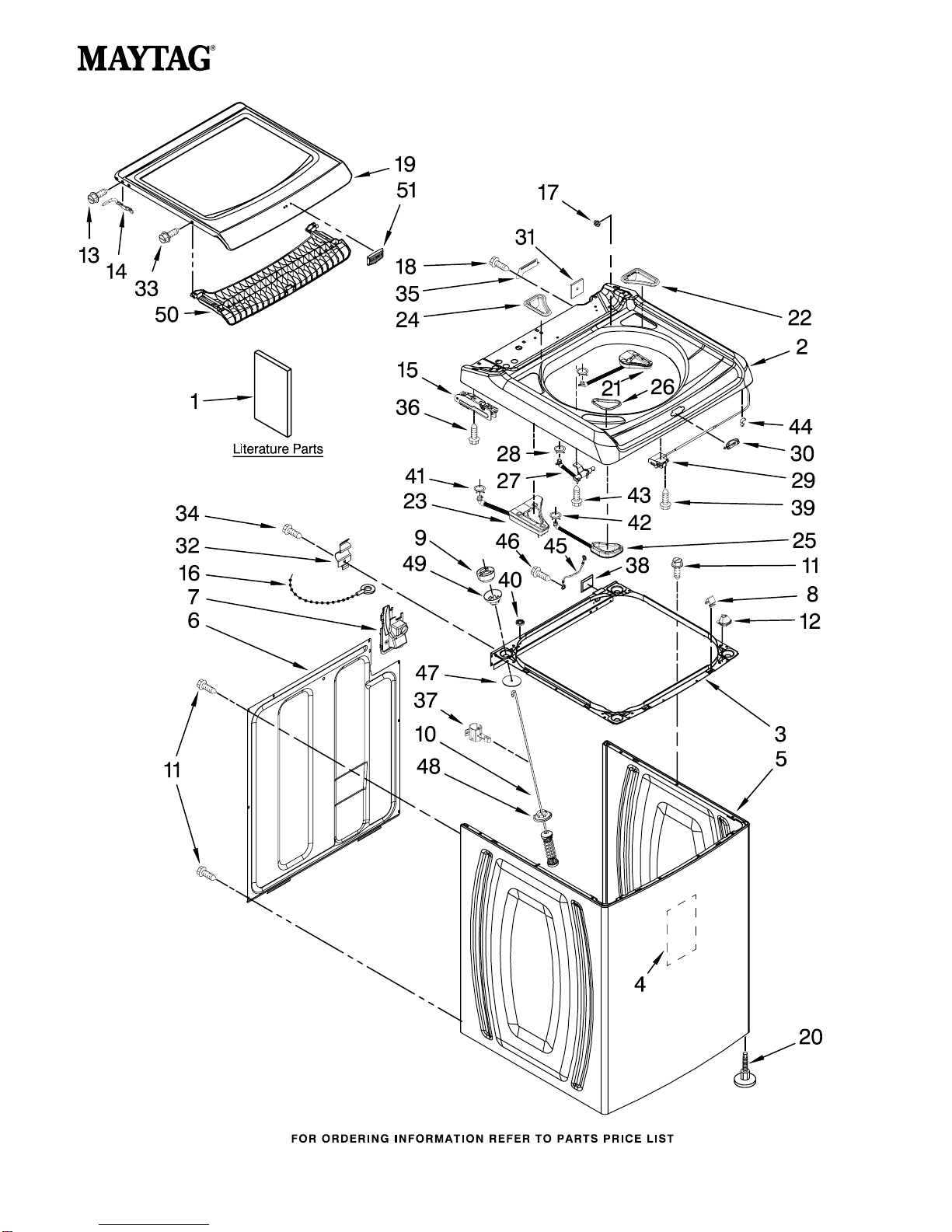

TOP AND CABINET PARTS

FOR MODEL: MVWB450WQ0

(White)

5−09 Printed In U.S.A. (drd)(bay) Part No. W10270227 Rev. A

AUTOMATIC WASHER

TOP AND CABINET PARTS

FOR MODEL: MVWB450WQ0

(White)

W10270227

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

W10240438

English/French

W10240439

Spanish

Use & Care Guide

W10092824

English/French

W10092825

Spanish

W10093831

Tech Sheet

Improved Wash

Performance Sheet

W10026652

English/French

W10178406

Spanish

W10187317

Wiring Diagram

W10092819

Energy Guide

W10141678

Top

W10162604

Frame Assembly,

Cabinet Top

(Includes Item 38)

W10177046

Sound Absorber,

Cabinet

5 8566097 Cabinet

6 8566090 Panel, Rear

W10160572

Retainer, Drain

Hose Storage

8 8563785 Lock, Top− Front (2)

W10111536

Ball, Suspension

(Set Of 4 −

Includes Item 49)

W10256514

Damper Assembly,

Tub Suspension

(Set Of 4−Includes

Items 9, 47, 48 & 49)

11 1157158 Screw, 8−18 x 3/8

W10042120

Locator, Top (2)

W10119828

Screw, Lid

Hinge Mounting (4)

14 8563964 Hinge Arm, Lid (2)

15 Hinge, Spring

Assembly

W10141680

(Left)

W10141679

(Right)

W10155270

Cable Tie

W10119519

Bearing, Lid

Hinge (2)

18 3390647 Screw, 8−18 x 1/2

W10119497

Lid Assembly

W10240448

Foot Assembly,

Leveling (4)

W10172146

Dispenser,

Fabric Softener

W10136371

Bezel, Fabric

Softener Dispenser

W10187307

Dispenser,

Stain Remover

24 8563876 Bezel, Stain

Remover Dispenser

W10172154

Dispenser,

Detergent

26 8563877 Bezel, Detergent

Dispenser

W10106990

Nozzle Assembly,

Fresh Water

28 371503 Clamp, Hose

W10059230

Lock Assembly, Lid

30 8572019 Bezel, Lid Lock

W10161707

Top Foam Seal

32 8564456 Hinge, Top (2)

33 8563892 Screw (2)

34 343641 Screw,

10−16 x 1/2 (2)

35 8563941 Cover, Harness

36 693995 Screw, 8−18 x 3/8

37 8543784 Bracket,

Drain Hose

38 8578386 Shield, Wire

Harness

39 8281136 Screw, 10−16 x 3/4

40 8576476 Spacer, Rear

(Cabinet/Top)

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

44 90016 Clip, Harness (5)

45 8281736 Wire,

Ground Jumper

46 3400076 Screw, 10−32 x 5/8

47 8577896 Washer, Suspension

Umbrella (4)

48 8564017 Cup,

Suspension (4)

W10167599

Bushing,

Suspension (Set Of

4−Includes Item 9)

W10119520

Liner, Lid

W10153170

Medallion

CONTROL PANEL PARTS

FOR MODEL: MVWB450WQ0

(White)

W10270227

CONTROL PANEL PARTS

FOR MODEL: MVWB450WQ0

(White)

W10270227

Illus. Part

No. No. DESCRIPTION

W10253697

Control Unit

Assembly,

Machine & Motor

W10141695

Gasket, Valve Tray

W10110213

Tray Assembly,

Console (Includes

Items 2 & 4)

W10141693

Gasket,

Console/Tray

5 8577408 Valve, Log

Assembly

(Includes Item 21)

Assembly

W10051126

Knob, Control

W10260186

User Interface

W10004990

Screw, 6−20 x 1.2

W10090757

Console

W10051124

Cover, Rear−

User Interface

W10003770

Screw,

6−19 x 1/2 (3)

W10022060

Nut, Push−In (3)

W10052600

Screw, 8−18 x 3/4

14 8565324 Screw,

10−16 x 1.75

15 8281136 Screw, 8−18 x 3/4

16 3407203 Cord Assembly,

Power

17 98460 Nut, Push−In (2)

W10242307

Washer, Water

Inlet Hose

(1−1/16 x 5/8)(4)

19 Hose, Water Inlet

W10194208

Cold Water

8571378 Hot Water

20 3351614 Screw, Power

Cord Ground

21 3407187 Harness,

Thermistor

MOTOR, BASKET AND TUB PARTS

FOR MODEL: MVWB450WQ0

(White)

W10270227

MOTOR, BASKET AND TUB PARTS

FOR MODEL: MVWB450WQ0

(White)

W10270227

Illus. Part

No. No. DESCRIPTION

W10149460

Cap, Impeller

W10076270

Screw & Washer

Assembly

W10076260

Washer

W10242338

Tub Ring

(Includes Item 25)

5 8572540 Hose Pressure

Switch

W10141017

Impeller

(Washplate)

7 8533953 Screw,

8−16 x 1.000 (6)

W10118114

Hub, Basket−Driven

(Includes Item 9)

9 8545953 Hub, Basket−Driver

(Includes Item 8)

W10118182

Basket Assembly

(Includes Items

7, 8, & 9)

W10128830

Tub & Drive Shaft

Assembly

W10137697

Harness, Lower

(Includes Item 5)

W10005430

Clamp, Pressure

Hose Retainer

14 8533957 Screw, 10−16 x 1/2

W10137698

Shield,

Drive Motor

(Includes Item 16)

16 8565172 Tube, Buffer

(Set Of 4)

17 8565170 Stator, Motor

(Includes Item 18)

18 8557836 Plate, Stator

(Set Of 2)

19 8534042 Screw,

1/4−20 x .968 (4)

W10137685

RPS Assembly

21 8565177 Rotor, Main Drive

Motor (Includes

Item 22)

22 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

23 8533928 Screw,

8−18 x 3/4 (2)

W10222008

Filter, Dual

Pump Hood

W10205824

Absorber,

Impact (4)

PUMP PARTS

FOR MODEL: MVWB450WQ0

(White)

W10270227

Illus. Part

No. No. DESCRIPTION

W10155921

Pump Assembly,

Drain

W10236686

Hose, Drain

3 8543774 Hose, Recirc

W10049400

Pump Assembly,

Recirc

W10004910

Screw,

12−16 x 1−1/8

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting (2)

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8182768 Clamp,

Drain Pump Hose

13 8576642 Retainer,

Drain Hose

14 3347868 Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

18 8578572 Shield,

Recirc Pump

OPTIONAL PARTS (NOT INCLUDED)

FOR MODEL: MVWB450WQ0

(White)

W10270227

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose

ACCESSORY PARTS

W10135699

Affresh

Odor Remover

8212546RP

Inlet Hoses, 4 Ft.

(Two Black Hoses

W/Straight Ends &

4 Rubber Washers)

8212641RP

Inlet Hoses, 5 Ft.

(Two Black Hoses

W/Straight Ends &

4 Rubber Washers)

8212545RP

Inlet Hoses, 5 Ft.

(One Red Hose

& One Blue Hose

W/Straight Ends &

4 Rubber Washers)

8212487RP

Inlet Hoses, 5 Ft.

(Two Braided Hoses

W/Straight Ends &

4 Rubber Washers)

8212637RP

Inlet Hoses, 6 Ft.

(Two Black Hoses

W/One Straight

End & One

90 Degree End &

4 Rubber Washers)

8212638RP

Inlet Hoses, 6 Ft.

(Two Braided Hoses

W/One Straight

End & One

90 Degree End &

4 Rubber Washers)

285448A Hose Washers

(Package of 4)

285452A Hose Screen

(Package of 2)
