Maytag PAV2300AWW Handbuch

Repair

Parts

List

MODEL NUMBER

PAV2300AWW

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

WASHER

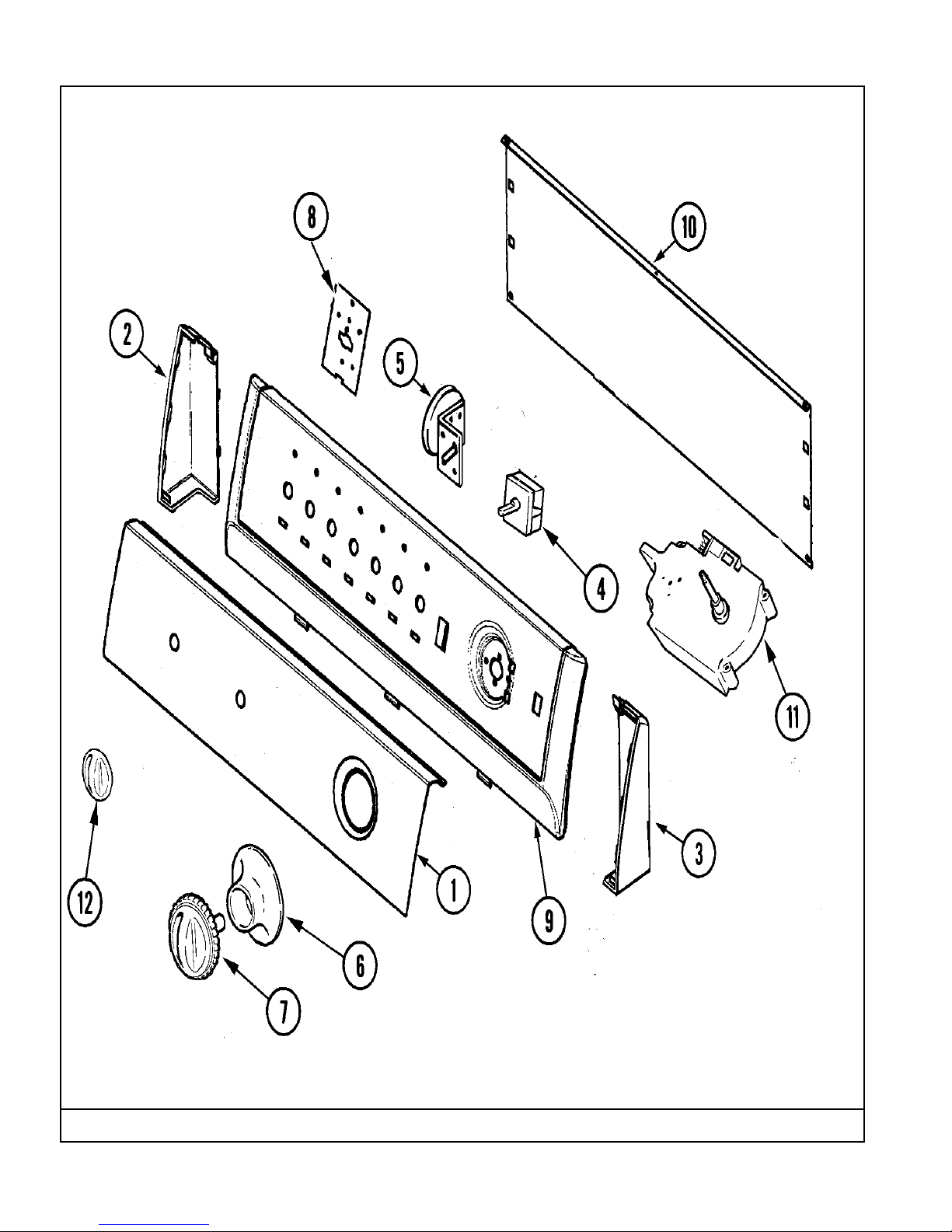

Section: CONTROL PANEL

LW11-122

Model: PAV2300AWW

CONTROL PANEL

No. Part No. Description

Section:

Series Qty

1 21001729 PANEL, CONTROL (WHT) 10 1

2 21001519 ENDCAP (WHT-LT) Note: CAP, END (LT) (WHT) 10 1

- 25-3092 SCREW Note: SCREW, END CAP 10 2

3 21001523 ENDCAP (WHT-RT) Note: CAP, END (RT) (WHT) 10 1

4 21001226 SWITCH, WATER TEMP. 4 POSITION 10 1

- 25-3092 SCREW Note: SCREW, SWITCH 10 2

5 21001554 SWITCH, WATER LEVEL 10 1

5 21001554 SWITCH, WATER LEVEL 16 1

5 21001882 SWITCH, PRESSURE (EMZ) 18 1

5 21001882 SWITCH, PRESSURE (EMZ) 20 1

5 21001882 SWITCH, PRESSURE (EMZ) 15 1

- 25-3092 SCREW Note: SCREW, SWITCH 10 2

6 21001600 SKIRT, TIMER (WHT) 10 1

7 21001594 KNOB, TIMER (WHT) 10 1

8 21001517 SHIELD, CONTROL (1 POS.) 10 2

- 31001193 PAD, SHIELD 10 3

- 53-2504 SPACER, CONTROL SHIELD 10 2

9 21001604 FRAME, CONTROL PANEL (WHT) 10 1

10 21001527 SHIELD, REAR (BACK PANEL) 10 1

- 25-3457 SCREW, SEMS Note: SCREW, REAR SHIELD (SEMS) 10 1

- 25-3092 SCREW Note: SCREW, REAR SHIELD 10 2

11 21001522 TIMER 10 1

- 25-3092 SCREW Note: SCREW, TIMER 10 2

12 21001525 KNOB, SELECTOR (WHT) Note: KNOB, SELECTOR (WHT) 10 1

- 21001571 MANUAL, USE & CARE Note: INSERT, USE & CARE 10 1

- 21001419 MANUAL, LAUNDERING TIPS 10 1

- 21001717 MANUAL, USE & CARE (TRILINGUAL 10 1

- 21001883 HARNESS, WIRING 18 1

- N 21001787 HARNESS, WIRE 16 1

- 21001883 HARNESS, WIRING 15 1

- N 21001787 HARNESS, WIRE 10 1

- 21001883 HARNESS, WIRING 20 1

- 12002417 WIRE KIT (HERRIN LAUNDRY) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TOP

LW16-12

Model: PAV2300AWW

TOP

No. Part No. Description

Section:

Series Qty

1 35-2026 LID (WHT) (DOOR) 10 1

2 43-0057 ACTUATOR, DOOR SWITCH 10 1

3 25-7438 SCREW Note: SCREW, ACTUATOR 10 1

4 35-2045 PIN, HINGE 10 2

5 25-7893 SCREW Note: SCREW, HINGE PIN 10 2

6 35-2044 HINGE, LID 10 2

7 35-0581 BUMPER, DOOR (LID) Note: BUMPER, LID 10 2

8 35-2063 BUSHING, INSULATOR Note: BUSHING, INSULATOR (LARGE) 10 1

9 21001137 LID SWITCH ASSY.-W/LEADS Note: LID SWITCH ASSY. (W/LEADS) 10 1

10 21001136 SCREW, SWITCH/HOUSING Note: SCREW, LID SWITCH 10 2

11 21001148 SWITCH, LID/DOOR SAFETY SPIN 10 1

12 21001135 HOUSING, LID SWITCH 10 1

13 N 25-7878 CLIP Note: CLIP, LID SWITCH LEVER 10 1

14 21001134 LEVER, LID SWITCH 10 1

15 21001602 TOP, CABINET (WHT) 10 1

16 21001597 DISPENSER, BLEACH 10 1

17 21001592 CORD, POWER 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CABINET

LW12-3

Model: PAV2300AWW

CABINET

No. Part No. Description

Section:

Series Qty

1 25-7893 SCREW Note: SCREW, HINGE 10 2

2 35-2846 HINGE, CABINET TOP 14 2

2 21001751 HINGE, CABINET (PLASTIC) 13 2

2 35-2846 HINGE, CABINET TOP 10 2

3 35-4128 PAD, HINGE 10 2

4 25-7027 CLIP, WIRING Note: CLIP, FOAM PAD 10 1

5 N 35-0706 PAD, FOAM 10 1

6 53-0643 PIN, LOCATOR 10 2

7 25-7220 CLIP, CABINET TOP 10 2

8 25-0224 NUT, LOCATOR PIN 10 2

9 53-0643 PIN, LOCATOR 10 2

- 53-0200 SLEEVE, LOCATOR PIN 10 2

10 35-2084 PANEL, FRONT (WHT) 10 1

- 21001281 DAMPER, SOUND PAD 10 2

- 25-7732 SCREW Note: SCREW, CLIP 10 2

11 53-0120 CLIP, FRONT PANEL 10 2

12 35-4129 BUMPER, CABINET 10 4

13 35-2106 CABINET ASSY. (WHT) Note: CABINET ASSEMBLY (WHT) 10 1

13 12001801 KIT, CABINET/REAR SHIELD (WHT) 14 1

13 21001753 ASSEMBLY, CABINET (WHT) 13 1

14 33-2653 BUMPER, CABINET Note: BUMPER, CABINET 10 1

15 35-2108 SHIELD,REAR(NLA,ORDER CAB KIT) 10 1

16 25-7732 SCREW Note: SCREW, REAR SHIELD 10 2

17 21001396 VALVE, WATER (120V) 10 1

17 21001747 VALVE, WATER 14 1

18 25-7867 CLAMP Note: CLAMP, INLET HOSE 10 2

19 35-2378 HOSE, FLUME/DIVERTER (RUBBER) 10 1

20 21001060 HOSE, PRESSURE SWITCH 10 1

21 25-7796 CLAMP, PRESSURE SWITCH HOSE 10 2

22 21001512 HOSE, DRAIN (CUFF) 10 1

23 33-9537 RETAINER Note: RETAINER, DRAIN HOSE 10 1

24 33-7891 HOSE, 4' INLET 10 1

24 35-0874 HOSE, INLET 10 1

25 33-4264N STRAINER & WASHER KIT 10 2

26 25-7080 CLAMP, DISCHARGE HOSE Note: CLAMP, DRAIN HOSE 10 1

27 35-2051 FLUME, WATER INLET 10 1

28 25-3092 SCREW Note: SCREW, FLUME 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TRANSMISSION

LW15-23

Model: PAV2300AWW

TRANSMISSION

No. Part No. Description

Section:

Series Qty

1 25-7941 "O" RING Note: "O" RING, AGTR DRIVE SHAFT 10 1

2 21001065 SCREW,#10-24X.50 HXNIBHD Note: SCREW, STATOR 10 6

3 12001797 KIT, PULLEY & DUST CAP 12 1

3 35-3829 PULLEY, DRIVE Note: PULLEY, DRIVE (PLASTIC) 10 1

4 LA-2007 CAM REPLACEMENT KIT 10 1

5 21001533 SEAL NUT ASSEMBLY 10 1

- 35-2132 WASHER,1.25ODX.530IDX.032 Note: WASHER, FLAT 10 1

6 35-2082 WASHER,1.25ODX.530IDX.062 Note: WASHER, FLAT 10 1

7 21001515 BASKET HUB ASSEMBLY 10 1

8 25-7854 RING, RETAINING 10 1

9 21001508 HOUSING/BEARING ASSY. 10 1

10 35-2205 BEARING, SPIN 10 1

11 35-2007 CAP, DUST 10 1

11 ------ NOT REQUIRED PART OR SEE NOTE Note: KITTED WITH PULLEY ITEM #3 12 1

12 21001511 HOUSING/LWR.BEARING ASSY. 10 1

- 35-2205 BEARING, SPIN 10 1

13 21001518 SUPPORT, TUB 10 1

14 21001532 BRACE, TUB 10 3

15 25-7895 SCREW, SUSP HSG TO LWR BRG ASY Note: SCREW, TUB BRACE 10 6

16 21001163 HOUSING, SUSPENSION 10 1

17 35-2017 RETAINER, BRAKE SPRING 10 1

18 31001285 SPRING, BRAKE 10 1

19 25-7930 SCREW 5/16-18X3/4 Note: SCREW, TUB BRACE 10 6

20 21001509 SCREW,HIGH PERFORMANCE PLASTIC Note: SCREW, SUSPENSION HOUSING 10 3

21 35-2948 BRAKE ROTOR & LINING ASSY Note: BRAKE ROTOR & LINING ASSEMBLY 10 1

22 21001161 SNUBBER 10 1

23 35-2018 STATOR, BRAKE 10 1

24 12500036 THRUST BEARING KIT 10 1

25 21001536 TRANS. ASSY.(W/O SEAL/BEARING) Note: TRANSMISSION ASSY.(DUAL DRIVE)COMPONENTS OF

THIS ASSEMBLY NOT SOLD SEPARATELY

10 1

26 12001598 TUB SEAL ASSEMBLY Note: (INCL TUB SEAL, TUB GASKET BASKET GASKET) 10 1

27 35-2974 TUB SEAL/HUB ASSY (HT TRANS) Note: SEAL, TUB 10 1

28 35-2010 SEAL,TRANSMISSION HOUSING(LIP) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

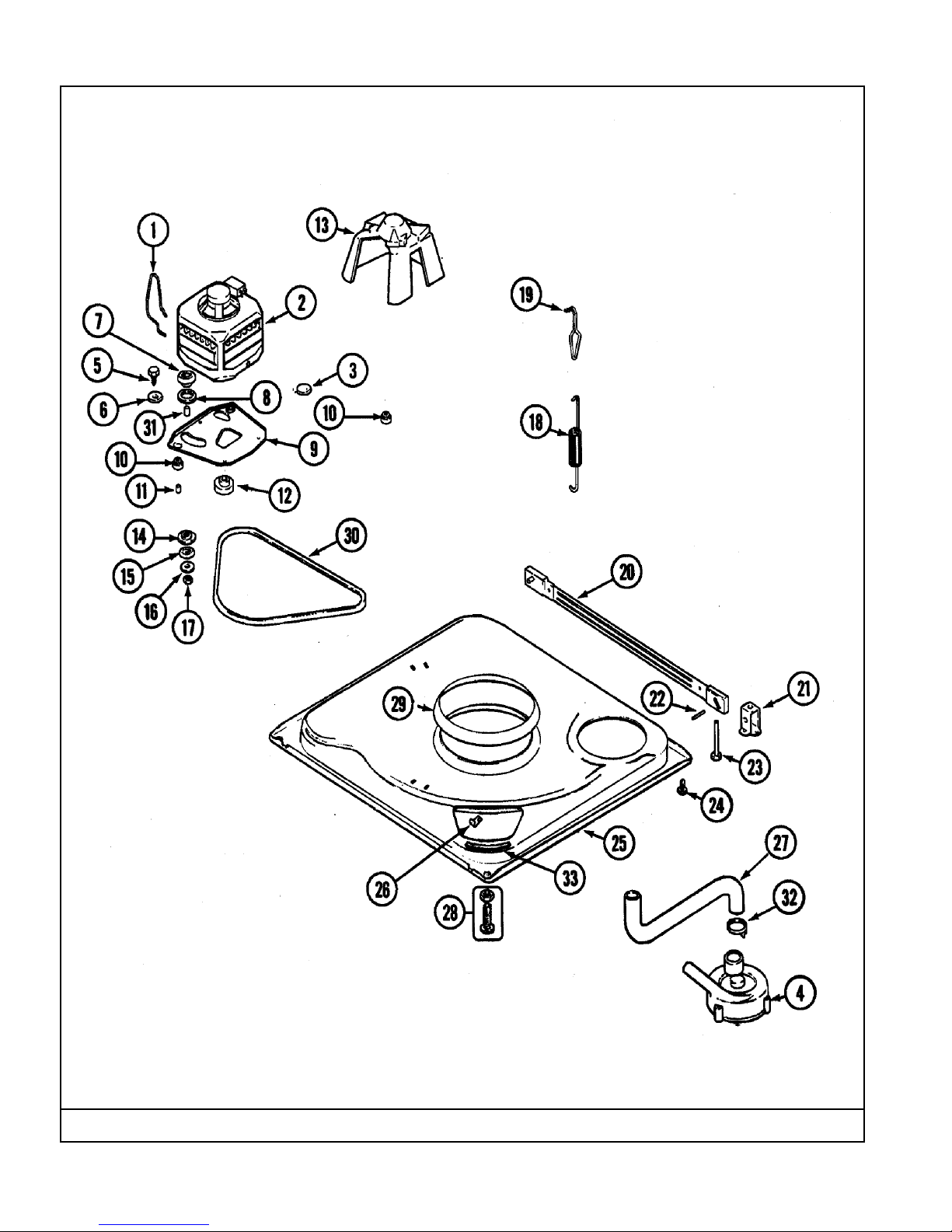

Section: BASE

LW10-36

Model: PAV2300AWW
