INSTRUCTIONS AND PARTS LIST

SERIES TEL 25-2K-I (1:1)

SS-316

Instructions and Parts List

INDEX

Typical installation ..................... 1

Warnings .................................... 1

Pressure relief procedure ............ 2

Operating instructions ................ 2

Cleaning ................................... 3

Parts drawing & list .................... 5

Troubleshooting guide ............. 10

BASE

DISOLVENTE

DE LIMPIEZA

CATALIZADOR

BASE

RESINA

WARNING

ATTENTION!! Read and understand all instructions carefully before operating equipment.

INJECTION HAZARD

This equipment generates very high fluid pressure. Spray from the gun, leaks or ruptured components

can inject fluid through your skin and into your body and cause extremely serious bodily injury.

The spray gun should never be handled carelessly, nor spray directed toward any part of the body.

Never put hand or fingers over the spray tip.

Be sure equipment safety devices are operating properly before each use.

If any fluid appears to penetrate your skin, get emergency medical care at once. Do not treat as a

simple cut. Tell the doctor exactly what fluid was injected.

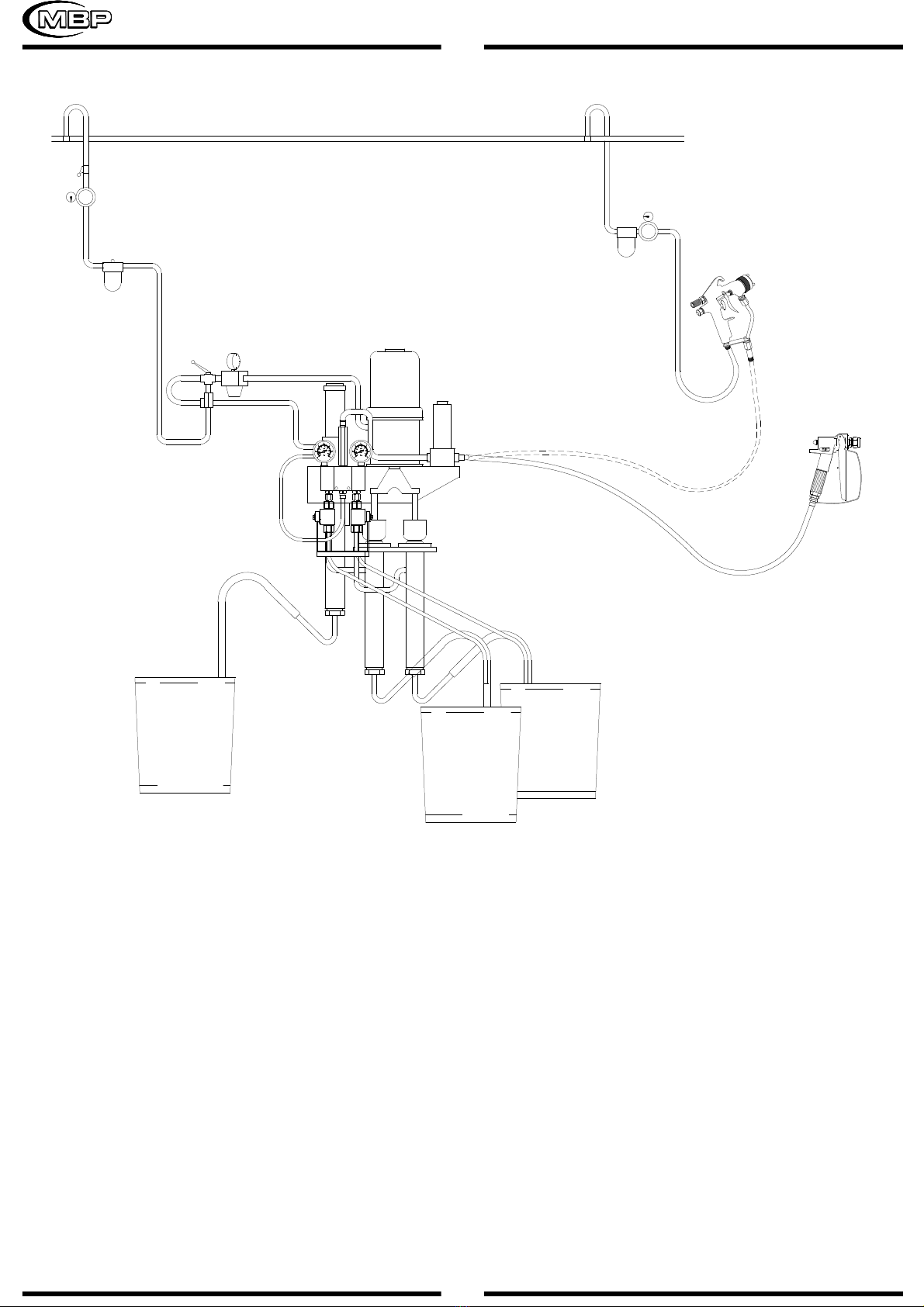

TYPICAL INSTALLATION

The pump must be connected to ground with a ground wire which is supplied with the

pump (4 mm2of section and a clamp).

SPRAY GUN: Obtain grounding through connection to a properly grounded fluid hose

and pump.

OBJECT BEING SPRAYED: Use ground wire and clamp.

AIR COMPRESOR: Follow air compressor manufacturer’s recommendations.

Use ONLY METAL PAILS, which are conductive. Do not place the pail on a non-

conductive surface, such as paper or cardboard, which interrupts the grounding

continuity.

1.-

2.-

3.-

4.-

5.-

FIRE HAZARD

Static electricity is created by the high velocity flow of fluid through the pump and hose. If every

part of spray equipment is not properly grounded, sparking may occur, and the system may become

hazardous. Check the entire system for positive grounding.

GROUNDING

Before starting to work the pump must be connected to ground:

1.-

2.-

3.-

4.-

5.-

6.-

7.-

8.-

Engage the gun safety latch.

Turn off the air to the pump.

Close the air inlet valve.

Disengage the gun safety latch.

Hold a metal part of the gun firmily to the side of a grounded metal pail, and trigger the

gun safety latch.

Engage the gun safety latch.

Open the drain valves (fig.1), having a grounded metal container ready to catch the

drainage.

Leave the drain valves open until you are ready to spray again.

PRESSURE RELIEF PROCEDURE

CLEANING

• Turn off the air inlet valve (fig.1).

• Remove the spray tip and trigger gun to relieve pressure.

• Set the air inlet valve ‘’A’’(fig.2) in position nº2. Now, the cleaning pump will start to pumpìng solvent.

• Trigger the gun until the solvent runs clear.

When the pump stay a long time without working, is necessary to circulate solvent throuugh the three

suction pipes.

OPERATING INSTRUCTIONS

Follow all instructions above, be sure that fittings at pump outlet and at gun are tight. Use two wrench to

tighten the maing fitting.

Fill the packing nut with oil to help prolong the packing life.

• Turn on the air to the pump (fig.1), but the position of this valve must to be ‘’close air’’.

• Check that the A, B and C valves are in position ‘’1’’ before open the air valve.

• Put the suction pipes into the respective containers:

‘’C’’ to base product (varnish)

‘’B’’to catalyst

• Open the air inlet valve (fig.1) and turn on the air regulator until the pump begins to cycle. Allow the

pump to cycle slowly until all air is purged from the fluid lines. The lines are purged when the fluids

emitted from the drain valves ‘’B’’and ‘’C’’is flowing in a steady stream.

•The pump is ready.

AIR INLET VALVE

‘’OPEN AIR’’

AIR INLET

‘’CLOSE AIR’’

(fig.1)

2 1

VALVE ‘’A’’

AIR REGULATOR ‘’X’’

(fig.2)

AIR MOTOR

16A.200.00

(fig. 3)

CAP

JOINT

CYLINDER

ROD

SUPPORT

YOKE

ROD

SCREW

CLIP

PISTON

STEM

JOINT

ROD

JOINT

SLEEVE

JOINT

PLATE

BASE

SCREW

ROCKER

SPRING

ROD

CLIP

NUT

JOINT

RETAINER

GROUND

WIRE GROUND

Nº REF. DESCRIPCION Q

22 23

*11

*12

*14

*16

*24

*27

*28

*Included in KIT.054

A.110.02

C.JT0.01

A.210.01

A.120.04

A.220.07

A.120.08

A.221.00

C.TJ0.02

A.240.02

A.240.01

A.122.00

C.JT0.05

A.220.11

C.JT0.07

CB2.015

C.JT0.06

A.130.02

A.250.01

C.TA0.01

C.TC0.01

A.120.01

A.120.02

A.120.03

A.120.05

A.120.06

A.150.02

A.120.10

A.220.09

CAR 125

101.400.00

101.620.00

(fig. 4)

B B

18.200.02

16.000.04

CPA.101

CTA.005

18.200.01PR

16.000.07PR

16.200.03PR

B.100.00PR

CTU.101PR

CNA.176

16.300.00X

16.313.00X

G.100.06PR

CNB.016

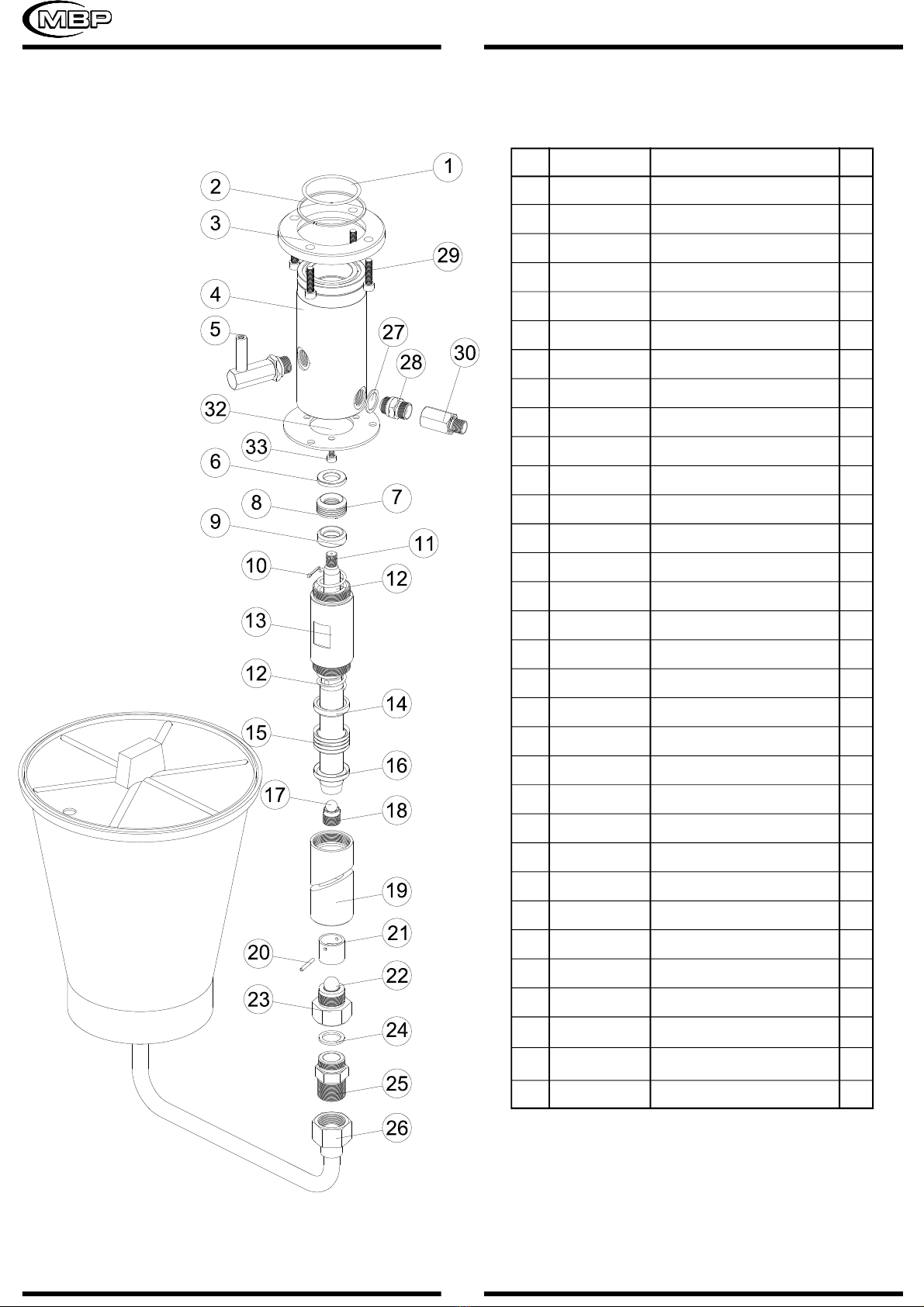

DISPLACEMENT PUMP ASSEMBLAGE FOR TEL 25-2K SS-316

UNION

SCREW

TIE

COUPLING

SUPPORT

PUMPA (BASE)

PUMP B (CATALYST)

NUT

COUPLING

SUCTION

FILTER

COUPLING

GAUGE

Nº REF. DESCRIPTION Q

PUMP A&B

(fig. 5)

* Included in KIT.015PR

NOTE: Fix parts 9 and 16 with loctite 542 or

similar (wait 1 hour before start running the unit).

PACKING NUT

FEMALE GLAND

PACKING

MALE GLAND

HOUSING

JOINT

SLEEVE

ROD

WASHER

MALE GLAND

PACKING

FEMALE GLAND

BALL

PISTON

RETAINER

JOINT

BALL

VALVE

*11

*12

*13

*14

B.100.00PR

Nº REF. DESCRIPTION Q

B.120.00PR

B.131.01PR

B.131.02 PA

B.131.02 T

B.131.03PR

B.110.00PR

B.100.01

B.100.12PR

B.100.13PR

B.141.01PR

B.141.02PR

B.141.03 PA

B.141.03 T

B.141.04PR

CBO.101PR

B.151.00PR

B.100.04PR

B.100.05PR

B.100.06

CBO.104PR

B.160.00PR

AIR MOTOR ‘‘CLEANING PUMP’’

(fig. 6)

CTB.002

080.100.01

CNA.065

CTB.012

080.120.00

080.100.05

080.170.05

080.100.08

080.150.00

080.100.07

080.100.04

CTB.030

080.110.00

080.140.00

080.100.09

080.100.11

080.100.10

CTU.002

CTG.009

080.130.00

080.100.02

CAR.112

CAB.005

080.100.03

080.170.01

CJT.022

080.170.02

CJT.023

080.170.03

080.171.00

080.170.04

CJT.024

080.100.13

CAR.118

080.800.00

080.100.12

CJT.025

080.100.14

080.100.06

SCREW

COVER

ELBOW

SCREW

COVER

SNUBBER

GUIDE

WASHER

AIR DISPENSER

HOUSING

SNUBBER

SCREW

MOTOR BODY

SPRING SUPPORT

SPRING BUTT END

SPRING

SUPPORT

NUT

SCREW

PLUG

BUSHING

RETAINER

RING

SEAT

PISTON

JOINT

SEAT

JOINT

WASHER

ROD

JOINT

CYLINDER

RETAINER

KEEPING BACK

MOTOR BASE

JOINT

PIPE

RING

Nº REF. DESCRIPTION Q

*23

*28

*35

*Included in KIT.055

DISPLACEMENT PUMP ‘‘CLEANING PUMP’’

(fig. 7)

*14

*15

*16

CJT.026

CAR.111

080.200.03

080.200.01

080.210.00

080.200.04X

B.131.02

B.930.04

080.200.06X

CPA.109

080.200.16

080.200.07

080.200.08X

080.200.12X

080.200.13

080.200.15X

CB0110

080.230.00

080.200.09

080.200.11

080.200.10

CB0.111

080.220.00X

080.200.19

080.000.01X

D.200.00X

CAR.015

080.240.00X

CTB.013

CNA.046

16.000.01

CTB.019

JOINT

RETAINER

BRIDLE

BODY

OIL TUBE

FEMALE GLAND

PACKING

MALE GLAND

ROD

SPRING

CYLINDER

MALE GLANG

PACKING

FEMALE GLAND

BALL

PISTON VALVE

HOUSING

BALL GUIDE

BALL

INLET VALVE

JOINT

COUPLING

FLUID SUCCION

WASHER

ANTIRRETORNO

SCREW

COUPLING

SUPPORT

SCREW

Nº REF. DESCRIPTION Q

* Included in KIT 024X

NOTE: Fix parts 11 and 18 with loctite 542 or

similar (wait 4 hour before start running the unit).
