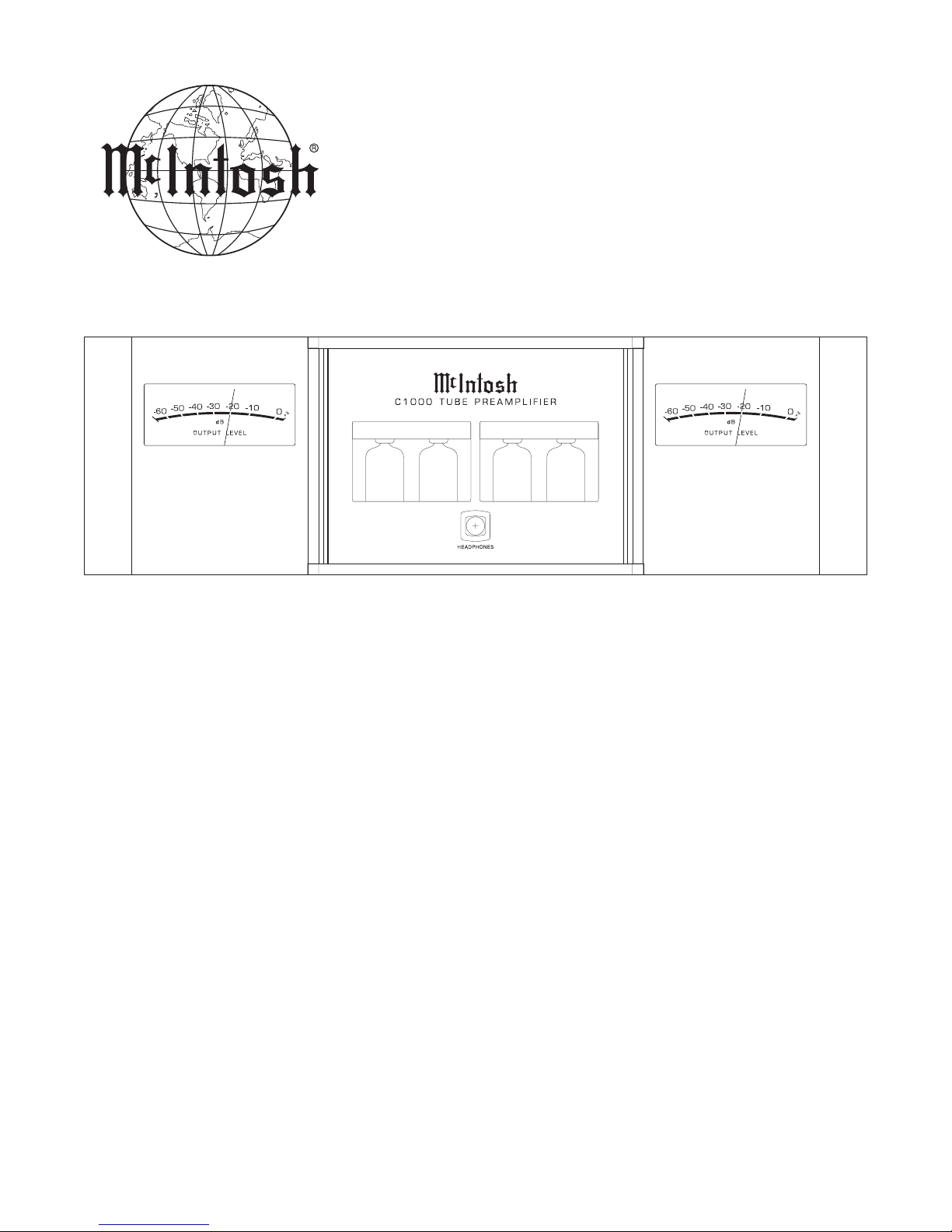

PREAMPLIFIER

C1000T

SERVICE MANUAL

Performance Specifications ........................................ 2

Notes ......................................................................... 2

Rear Panel.................................................................. 3

Section Location ........................................................ 3

Block Diagram ........................................................... 4

Interconnection Diagram ...................................... 5 - 6

Main Left Schematic and PCB............................ 7 - 18

Main Right Schematic and PCB ........................ 19 - 30

Phono MC ........................................................ 31 - 32

Balance I/O Left Schematic and PCB ................ 33 - 34

Balance I/O Right Schematic and PCB .............. 35 - 36

Balance Switching Left Schematic and PCB ...... 37 - 38

Balance Switching Right Schematic and PCB.... 39 - 40

Meter Schematic and PCB................................. 41 - 42

Headphone Schematic and PCB ....................... 43 - 44

Integrator Schematic and PCB.................................. 45

Parts List............................................................ 47 - 56

ExplodedView and Parts List............................. 57 - 58

Repacking Instructions ............................................. 61

CONTENTS

C1000T

PREAMPLIFIER

PRELIMINARY

PERFORMANCE SPECIFICATIONS

1. The heavy notes on the schematic denote the primary

signal path.

2. Unless otherwise noted, all voltages indicated on the

schematics are measured under the following conditions:

a. AC input at 120 volts, 50/60Hz.

b. All voltages are +/-10% with respect to ground. A

high impedance (10 megaohm) voltmeter must be used.

3. Unless otherwise specified:

a. Resistor values are in ohms.

b. Capacitor values are microfarads (uF).

c. Inductor values are in microhenries (uH).

4. On PC board drawings, Square pad indicates:

a. Polarized Capacitors - Positive

b. Diodes - Cathode

c. Others - Pin 1

5. WARNING

Parts marked with the symbol have critical

characteristics. Use only replacement parts recom

mended by the manufacturer.

6. Use McIntosh Remote Control Model HR052 with the

MVP861.

NOTES

General Specifications

Power Requirements

100 Volts, 50/60Hz at 120 watts

110 Volts, 50/60Hz at 120 watts

120 Volts, 50/60Hz at 120 watts

220 Volts, 50/60Hz at 120 watts

230 Volts, 50/60Hz at 120 watts

240 Volts, 50/60Hz at 120 watts

Note: Refer to the rear panel of the C1000 Controller for the

correct voltage.

Overall Dimensions

C1000C:

Width is 17-1/2 inches (44.45cm)

Height is 6 inches (15.24cm) including feet

Depth is 24 inches (61.0cm) including the Front Panel, Knobs

and Interconnect Cables1

C1000P:

Width is 17-1/2 inches (44.45cm)

Height is 6 inches (15.24cm) including feet

Depth is 24 inches (61.0cm) including the Front Panel and

Interconnect Cables1

C1000T:

Width is 17-1/2 inches (44.45cm)

Height is 6 inches (15.24cm) including feet

Depth is 24 inches (61.0cm) including the Front Panel

and Interconnect Cables1

Weight

C1000C - 39.0 pounds (17.7 kg) net

61.4 pounds (27.9 kg) in shipping carton

C1000P - 33.0 pounds (15.0 kg) net

53.6 pounds (24.3 kg) in shipping carton

C1000T - 34.0 pounds (15.4 kg) net

54.6 pounds (24.8 kg) in shipping carton

1Interconnect Cables are supplied with the C1000

Preamplifier and C1000 Tube Preamplifier. They are

used to connect Preamplifier(s) to the C1000 Controller.

PREAMPLIFIER

C1000T

REAR PANEL

SECTION LOCATIONS

TOP VIEW WITH COVER REMOVED

BLOCK DIAGRAM

PREAMPLIFIER

C1000T

5 6

INTERCONNECT

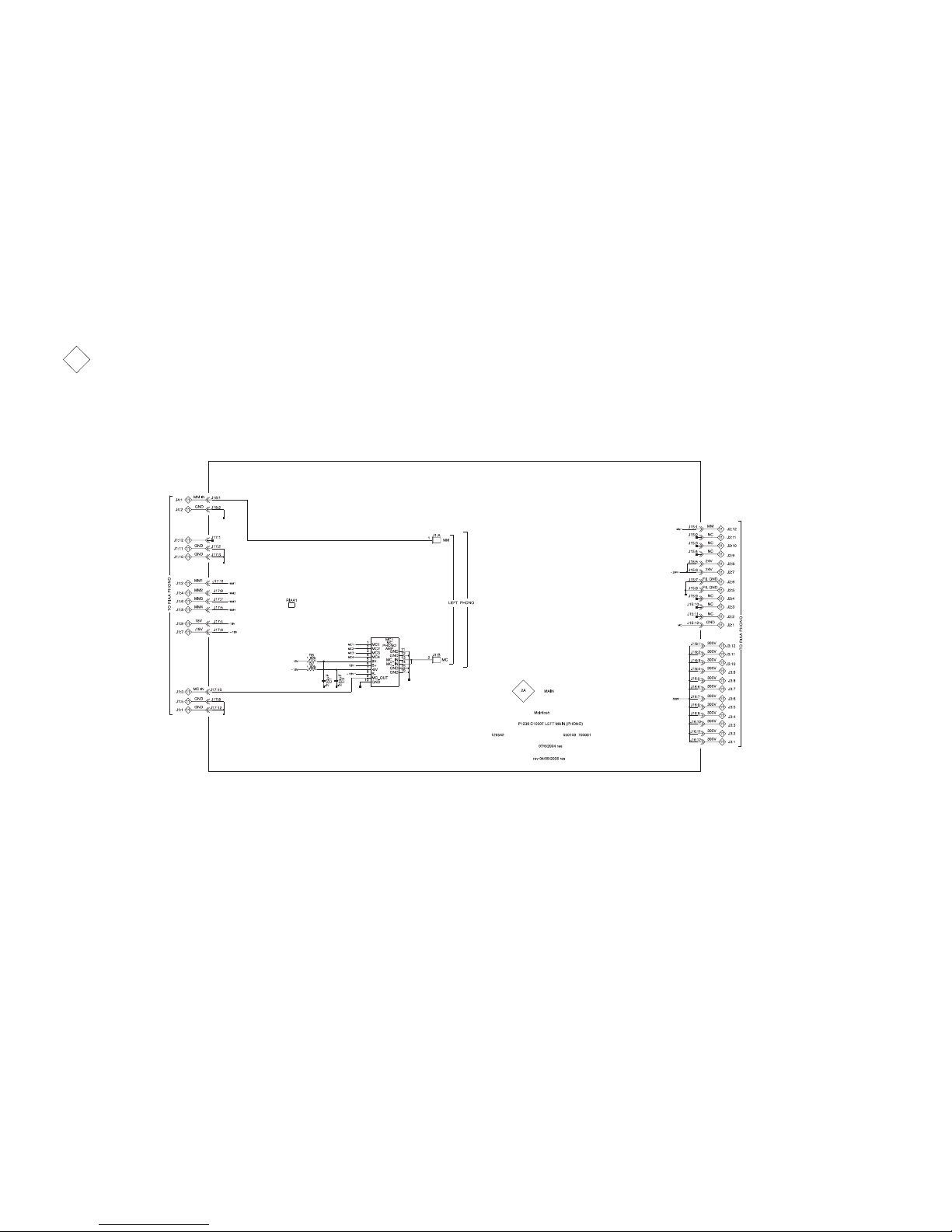

MAIN LEFT

129542 SH 1 OF 5

PREAMPLIFIER

C1000T

910

MAIN LEFT

129542 SH 2 OF 5

11 12

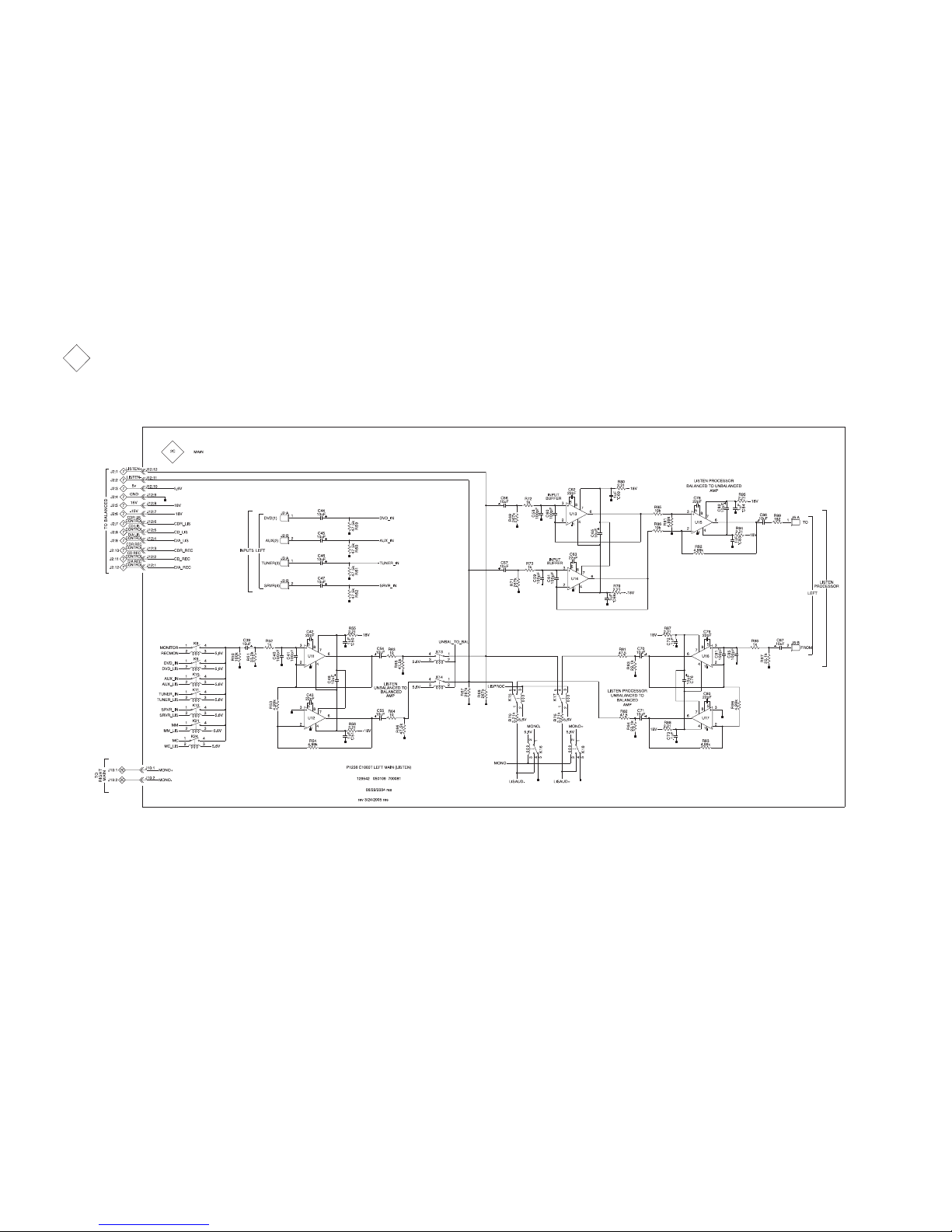

MAIN LEFT

129542 SH 3 OF 5

PREAMPLIFIER

C1000T

13 14

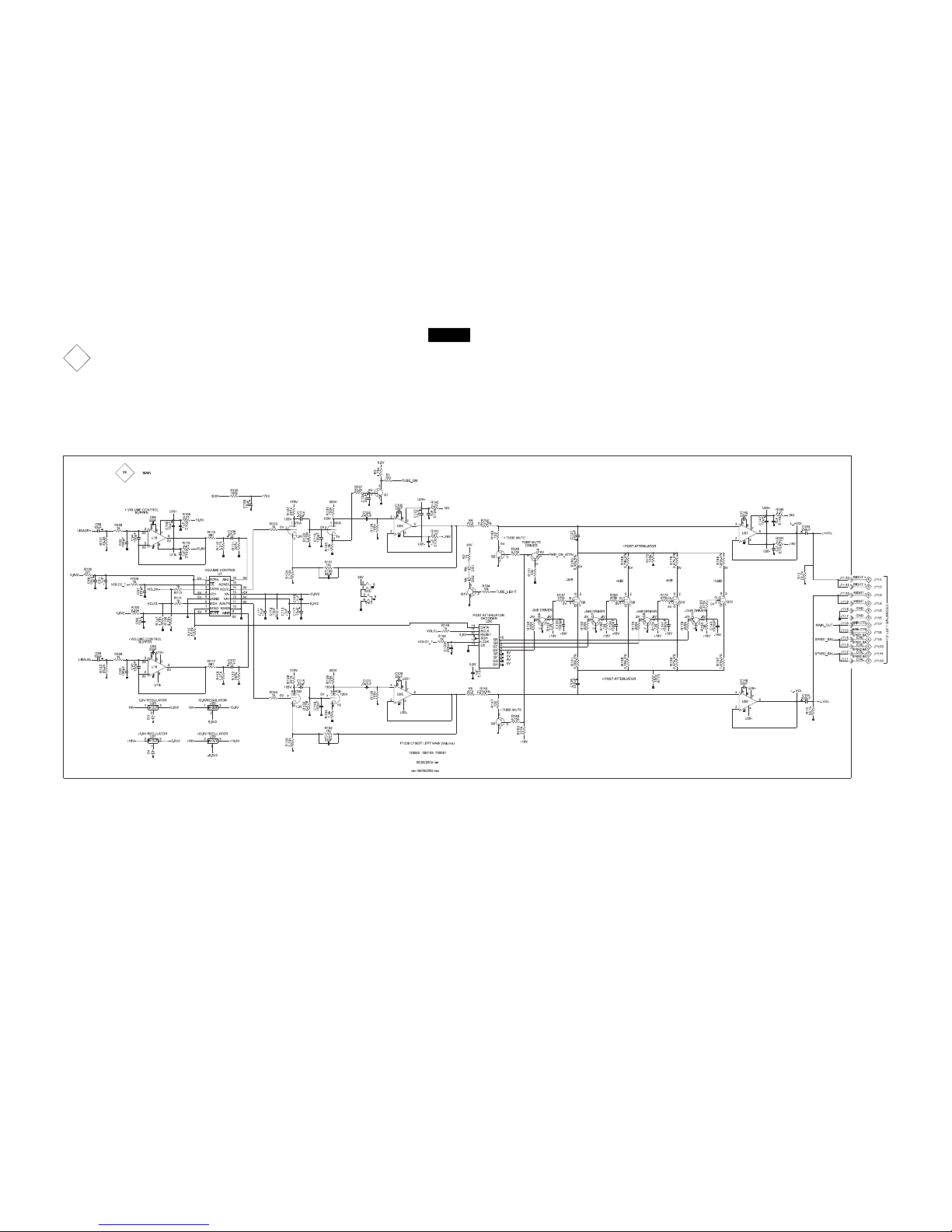

MAIN LEFT

129542 SH 4 OF 5

15 16

MAIN LEFT

129542 SH 5 OF 5
