40 Watt Mixer Amplifier Owners Manual

with Media Player

Model #USB-80

MCM Electronics

Centerville, Ohio

www.mcmelectronics.com

USB-80 Mixer Amplifier Owners Manual

SAFETY INSTRUCTIONS

•Please be sure to read all the instructions carefully before using this product.

•As several safety messages are printed in this instruction sheet, please be sure to observe these

as they are important.

•It is recommended that this manual be kept for future reference.

•Do not store or use this device in dusty or humid locations, or in direct exposure to sunlight.

•Take care to protect the power cord from damage, pinching or being stepped on, primarily where

the cord attaches to the amplifier and at the plug.

•Do not defeat the polarized or grounding feature of the power cord plug. If the plug will not fit in

your outlet, consult a licensed electrician.

•Disconnect the power cord during electrical storms, or when the product will be unused for long

periods.

•Servicing is highly recommended if product is damaged in any way, when the power cord is

damaged, when liquid has been spilled or objects have fallen into the device. Servicing will also

be required when this device has been exposed to rain, does not operate normally, or has been

subject to high level of physical shock.

•Servicing should be done only by qualified personnel.

The lightning flash with arrow within a triangle indicates that parts

inside are a risk of electrical shock.

The exclamation point within a triangle indicates that important

operation or service instructions are located within the products

accompanying paperwork.

FEATURES

•Built in USB and SD/MMC card reader with MP3player

•Infrared remote control of all MP3player options

•LCD Display of audio track being played

•Sequential, programmable and random track playing

•Single Channel (monaural) 40 Watt RMS output amplifier

•Speaker outputs for 4Ω, 8Ωand 16Ωspeaker systems, plus 70V for distributed systems

•Fixed line level REC output

•Four input mixer with three microphone and one line level input

•Separate level control for each mixer input

•Master bass and treble controls

•110VAC or 12VDC operation

APPLICATIONS

This amplifier is suitable for background music and paging use in small retail, commercial and industrial

environments. The inclusion of an MP3player with USB and SD/MMC card reader allows easy addition of

hours of music to any environment. The reader will directly read MP3and WMA files from standard thumb

drives and flash memory. Files may be played in the order they appear on the drive, in a preprogrammed

order, or randomly.

USB-80 Mixer Amplifier Owners Manual

Front Panel Description

1. Output Power Meter

Displays relative output level of the amplifier. Left most yellow indicator acts as power indicator for the

amplifier and will remain continuously lit when power is turned on.

2. Input #1~3 Level Controls

Adjusts individual level input for the three mic inputs. Fully counterclockwise position is off for each input.

This adjustment affects all inputs as fed to the amplifier and the REC output.

3. Input #4 Level Control

Adjusts input level for the AUX input as well as the MP3player. Fully counterclockwise position includes a

detent off position which turns power off to the MP3player. This adjustment affects all inputs as fed to the

amplifier and the REC output.

4. Treble control (master)

This control adjusts high frequencies centered at 10KHz at a rate of ±10dB. This adjustment affects all

inputs as fed to the amplifier, but not to the REC output.

5. Power Switch

Rocker type switch turns on the amplifier when in the UP position.

6. Microphone #1~3 Inputs

Each 1/4" female jack accepts balanced mic level input.

7. AUX #4 Input

1/4" female jack accepts unbalanced line level input. Signal fed to this input will be mixed with the

program material from the MP3player, with the level of both being the same.

8. Bass control (master)

This control adjusts low frequencies centered at 100Hz at a rate of ±10dB. This adjustment affects all

inputs as fed to the amplifier, but not to the REC output.

9. LCD Display

Upon insertion of the flash memory, the player will determine the total number of music files present, and

then automatically begin playing the first file. The display shows a numeric value for each file, from 1 to

the total number of files present, up to 999.

10. Previous File Select

During song play, depressing this button will revert back to the previous file on the thumb drive or flash

memory. From that point, each time the Previous File Select button is depressed, the player will increment

back one file on the play list. Once the first file is reached, depressing the button will jump to the last song

on the play list.

11. Next File Select

Depressing this button will advance to the next file on the thumb drive or flash memory. From that point,

each time the Next File Select button is depressed, the player will increment forward one file on the play

list. Once the last file is reached, depressing the button will return to the beginning of the play list.

12. Stop

Depressing this button will stop the play of the current file.

USB-80 Mixer Amplifier Owners Manual

13. Play/Pause

Depressing this button will start playing the current file displayed on the screen from the beginning.

Depressing this button while a song is playing will pause that song at its current point. Depressing again

will resume play from the paused point. Repeatedly depressing the Play/Pause button will toggle the

player between Pause and Play action.

14. SD/MMC Card Slot

This slot accepts standard SD or MMC flash memory, readily available from MCM Electronics or any

computer retailer. The player will read MP3and WMA files directly from the flash memory, regardless of

whether the file is in the root directory or sub folders. Other files (music or otherwise) that reside on the

flash memory will be ignored.

15. IR Sensor

Receives remote control commands from the included IR remote control.

16. USB Flash Memory Interface

This slot accepts standard USB thumb drives, readily available from MCM Electronics or any computer

retailer. The player will read MP3and WMA files directly from the thumb drive, regardless if the file is in

the root directory or sub folders. Other files (music or otherwise) on the drive will be ignored.

17. Repeat

Selects the repeat function for the MP3player. Depressing this button will toggle the player between three

Repeat modes; OFF, Repeat Current File, Repeat All Files.

Rear Panel Description

18. DC Fuse Holder

Holder contains fuse that provides protection when amplifier is powered by 12VDC. This fuse should be

replaced only with a 7A / 250V fast blow type fuse.

19. Speaker Output Terminal Strip

Provides screw terminal speaker connection. Note that taps exist for 4, 8 and 16 ohm speakers, as well as

for distributed 70V systems. It is critical that only one tap be used when connecting speakers.

Note: Improper speaker connection can lead to permanent damage to the amplifier.

20. Record Output

1/4" female jack provides line level output, intended to drive the input of a tape or similar recorder. It

may also be used to drive a separate amplifiers line level input for additional zones.

21. DC Power Input Terminal Strip

Provides screw terminal power connection when unit is powered by 12VDC. Note connections are labeled

(+) and (–). It is critical that correct polarity is observed.

Note: Incorrect polarity will result in permanent damage to the amplifier.

22. AC Fuse Holder

Holder contains fuse that provides protection when amplifier is powered by 120VAC. This fuse should be

replaced only with a 2A / 250V fast blow type fuse.

23. AC Power Cord Inlet

AC power cord is permanently attached to this amplifier and may not be removed.

USB-80 Mixer Amplifier Owners Manual

Speaker Connection

It is possible to connect any number of speakers to this amplifier, from a single unit to 20 or more.

However, it is critical that proper wiring configurations are used, otherwise potentially poor performance,

and likely permanent amplifier damage will result. Generally speaking, speaker systems can be classified

in two groups. Low impedance speakers, such as 8ohm, which are typical of those used in home audio and

other high fidelity applications, and 70V high impedance type, normally found in larger scale commercial

background music and paging systems.

Low Impedance Speakers

Most commonly, these speakers are 8 ohm (Ω), but may also be 4Ω, 16Ωor some other value. When

connecting a single speaker to the amplifier, simply match the impedance of the speaker to the label

shown on the terminal strip. If the exact impedance is not available, connect to the next LOWEST tap. For

instance, if the speaker impedance is 6Ω, connect to the 4Ωtap.

The adjacent illustration shows connection of a single 8Ωspeaker to the

amplifier.

If multiple speakers are connected, they may be connected in series, as

shown in the adjacent illustration. In this case, you simply add the

impedance of each speaker. Two 8Ωspeakers connected in series

create a 16 load. This arrangement is normally only practical when four

or fewer speakers are used.

The adjacent illustration demonstrates a parallel connection. In this

case all speakers must be the same impedance. You divide the

impedance of one speaker by the total number of speakers connected.

Two 8Ωspeakers connected in parallel creates a 4Ωload. This

arrangement is normally only practical when four or fewer speakers are

used.

USB-80 Mixer Amplifier Owners Manual

Low Impedance Speakers (cont)

In certain cases, it may be necessary to use a

combination of series and parallel wiring to achieve

the desired impedance.

The adjacent illustration demonstrates a common

method of connecting four 8Ωspeakers, and

maintaining a combined 8Ωload.

In this case, speakers are separated into pairs,

connected in series. Each series pair yields 16Ω.

Since both sets are then connected in parallel, the net

impedance is 8Ω.

In this second example of a

combination of series and parallel

wiring, eight 8Ωspeakers are

combined to create a combined 4Ω

load.

In this case, speakers are separated

into pairs, connected in series. Each

of the four series pair yields 16Ω.

Since the four pairs are then

connected in parallel, the net

impedance is 4Ω.

USB-80 Mixer Amplifier Owners Manual

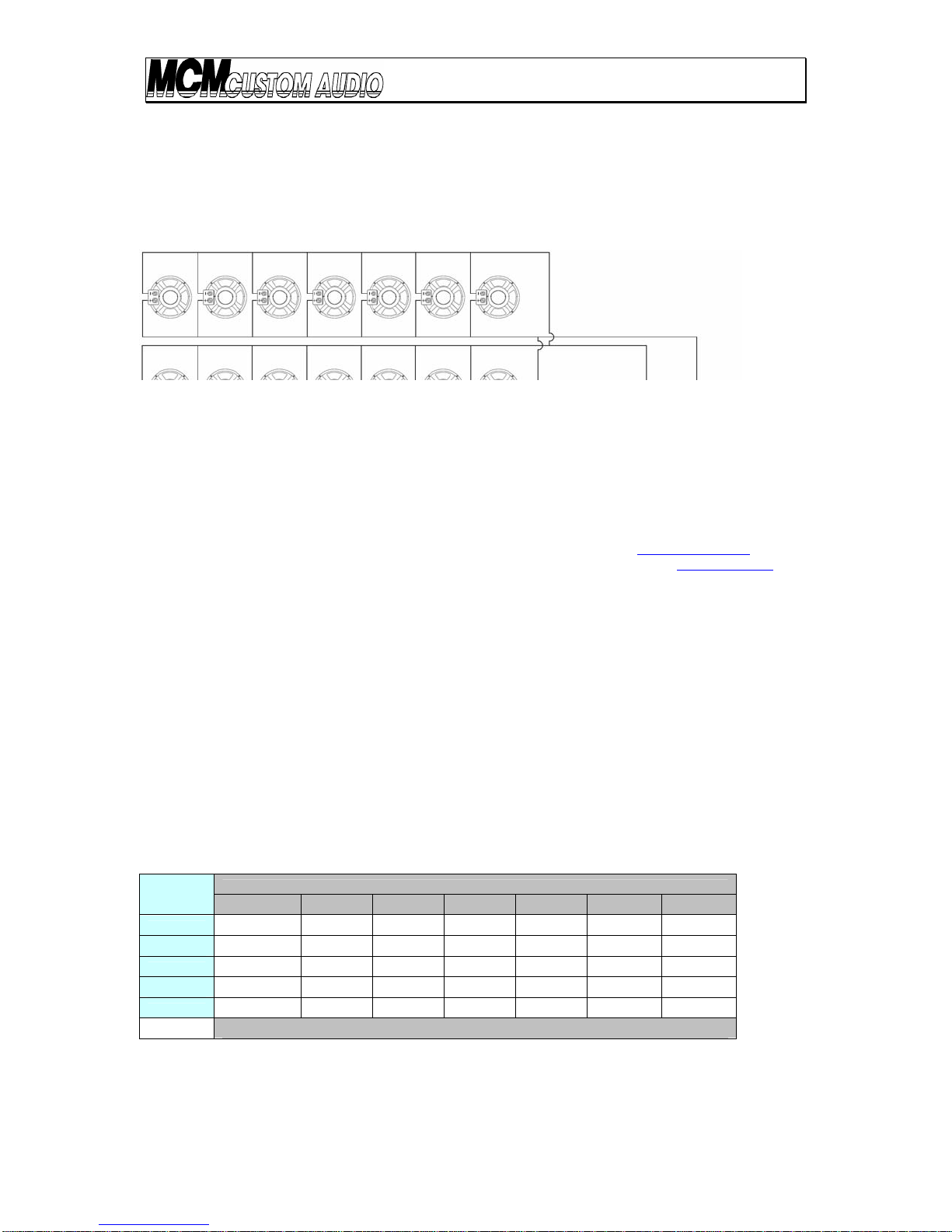

70V Distributed Speakers

These high impedance speakers are typically used in application requiring a large number of speakers, or

when extremely long speaker wire runs are necessary. In this application, all speakers are connected in

parallel, and may be wired in a "daisy chain" configuration. It is not necessary to "home run" wire from

each speaker back to the amplifier. Shown below is a very typical arrangement of (14) 70V speakers

connected to the USB-80 amplifier.

Typically, speakers having attached 70V transformers will have multiple wattage taps available for

connection. For example, the very popular MCM Custom Audio ceiling speaker, Model #555-9018, includes

taps for 0.325W, 0.625W, 1.25W, 2.5W, 5W and 10W. The popular outdoor speaker Model #80-492

includes a rotary selector for selection of 5W, 10W, 20W and 30W.

In the above case, any number of speakers can be connected to a 70V amplifier output, as long as the

total wattage of all speaker taps does not exceed the total RMS wattage rating of the amplifier. For

example, if tapped at 1.25 watts, a total of (32) Model #555-9018 ceiling speakers could be connected to

the 555-9750 amplifier. If tapped at 5W, a total of (8) Model #80-492 outdoor speakers could be

connected.

A second benefit of this type of arrangement is the ability to vary sound level in different areas. If higher

volume is desired in some areas than others, simply select a higher tap in those areas. This is completely

suitable as long as the total of all speaker taps does not exceed the rated output of the amplifier.

As mentioned above, these speakers are much higher impedance than conventional consumer high fidelity

speaker systems. For example, a 70V speaker, tapped at 1W will have a nominal impedance of 5,000Ω. If

tapped at 5W, the same speaker would have an impedance of 1,000Ω. Because of this, loss from long

speaker wire runs is greatly reduced.

70V Distributed Speakers (cont)

The following chart shows typical maximum lengths allowable in 70V systems

Output power per wire run

Wire

Gauge 5W 10W 15W 30W 50W 100W 200W

16 10,000 7,000 4,600 2,300 1,400 700 350

18 9,000 4,500 2,800 1,400 830 415 205

20 5,500 2,700 1,800 900 540 270 135

22 3,400 1,700 1,100 550 330 115 60

24 2,100 1,000 700 350 210 105 50

Maximum distance of cable run (ft.)

For example, it is desired to locate a 10W paging horn some distance from an office in a large warehouse.

Considering wiring requirements, the length of the speaker cable will need to be approximately 4,000 ft.

As shown above, 18 gauge wire will be suitable for this installation.

USB-80 Mixer Amplifier Owners Manual

Installation of the Amplifier

•Be certain that the power is removed from the amplifier

•Locate the amplifier in a suitable shelf or tabletop. If positioned with other components, it is not

recommended that other devices be located on top of the amplifier.

•Connect speakers as described in the previous pages

•Connect desired input sources such as microphones to the MIC inputs, or a line level device to the

AUX input

•Make certain that the volume controls for each of the #1~4 inputs are set to the minimum

•Make certain that the power switch is in the OFF (down) position

•Connect the amplifier to a suitable 12VDC or 120VAC power source. Note that at full output power,

this amplifier will require approximately 6A if connected to a 12VDC source.

•The amplifier is now ready for use

Operating the amplifier

•If this is the first time operating the amplifier, make certain that all volume adjustments are set to

the minimum position

•Be certain that the amplifier is connected to a suitable power source and speakers are properly

connected

•Turn the amplifier power switch to the ON (up) position

•The leftmost yellow OUTPUT indicator should light

•If microphones are connected, speak into the microphone and adjust the appropriate volume

control until the mic volume reaches the desired level

•If a line level device is connected to the AUX input. adjust the appropriate volume control until the

volume reaches the desired level

•Adjust the Bass and Treble controls to the desired level

•If an SD or MMC card, or USB thumb drive is inserted into the appropriate slot, the amplifier will

automatically begin playing the first music file (see details below)

•The AUX volume level control will simultaneously adjust the level of the AUX input and the MP3

player

•The AUX volume control has an OFF detent in the full counterclockwise position. In this OFF

position, power is removed from the MP3player

•While audio is played through he amplifier, the LED OUTPUT indicator will show relative power

output

Operating the MP3Player

The built in media player is compatible with all MPP

3and WMA audio files, and will play them automatically

when media is inserted into the player. It should be noted however that certain MP3files downloaded from

subscription services may contain copyright protection that will prevent them from being played in this

unit. Also, this unit will not read iTunes files downloaded for the iPod. As with any MP3player, the most

reliable source for music files to play on this amplifier is MP3or WMA files created from ripping CD's or

copying vinyl on a standard PC.

Operation

•Make certain the amplifier power switch is in the ON position

•Make certain the AUX volume level is fully counterclockwise in the OFF position

•Insert a thumb drive, SD or MMC card containing desired music files

•Turn the MPP

3player on by rotating the AUX volume control clockwise to the 9 o'clock position

•The LCD display will remain blank while the MP3player determines the number of music files on the

inserted media. Depending upon the number of music files, this may take several seconds.

•The display will show 001 and begin playing the first song

•Adjust the AUX volume control to the desired level

•The MPP

3 player will sequentially play each song and stop after finishing the last

•Songs may be manually repeated or skipped using the PREV and NEXT buttons

•Pressing the STOP button once will stop the song, pressing play again will start the current song

again from the point it was stopped

•Pressing the STOP button twice will cause the MP3 player to revert back to the beginning of the list

•PLAY and PAUSE functions are both located on the same button

•Pressing play will begin the current song. Pressing while the song is playing will pause the song.

Pressing again will cause the song to resume from the point where it was paused

•REPEAT button toggles between two modes. R1 will continually repeat the song playing, R-ALL will

repeat all songs on the media device in order

USB-80 Mixer Amplifier Owners Manual

Using the IR Remote Control

The included IR remote control will allows remote operation of

all front panel controls, plus additional functions.

Shaded area buttons labeled 0~9 –Allow individual track selection by number. Simply key in the

desired track. Approximately one second after depressing the last button, the MPP

3player will play the

desired track

Four arrow buttons on bottom – Replicates controls located on the front panel of the MP3player

RAN – Selects random function. Pressing this button will cause the player to randomly select the files on

the media instead of playing them in order. The display flashes the track number while in the random

mode.

A>B – Allows the user to select a desired clip of any length to repeat continuously. While clip is playing,

depress the A>B button one time. Wait a few seconds and press the button again. The selected clip will

then continuously repeat. This will occur until the A>B button is depressed a third time to exit this mode.

REP – Replicates the REPEAT control located on the front of the MPP

3player.

PROG – Allows a specific list of files to be played in a preset order. Depress the PROG button one time to

enter the program mode. Once in this mode, use the 0~9 keys to select the first song to be played, then

pres the PROG button. Use the 0~9 keys again to select the second song and pres PROG again. Continue

to do this until all desired songs are selected, then press the PROG button twice. Then press the PLAY

button to begin playing the sequence.

Note: The program sequence will be lost if the media is removed from the amplifier, or if the power is

switched off.

USB/SD – If media is plugged into both the USB and SD/MMC card slot, this button will toggle between

the two.

Amplifier Specifications

Power output: 40W RMS, driving an 8Ωload

Output transformer taps: 4Ω, 8Ω, 16Ωand 70V

Frequency response: 50Hz ~ 20KHz ±3dB

THD: <1.0% at rated output at 1KHz

Power requirements: 120VAC, 60Hz, 120W

12VDC, 6A (max)

Dimensions: 4 1/8" (H) x 15" (W) x 10" (D)

Weight: 14 lbs.

Inhaltsverzeichnis

Andere MCM Electronics Verstärker Handbücher

MCM Electronics

MCM Electronics 555-4945 Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung
