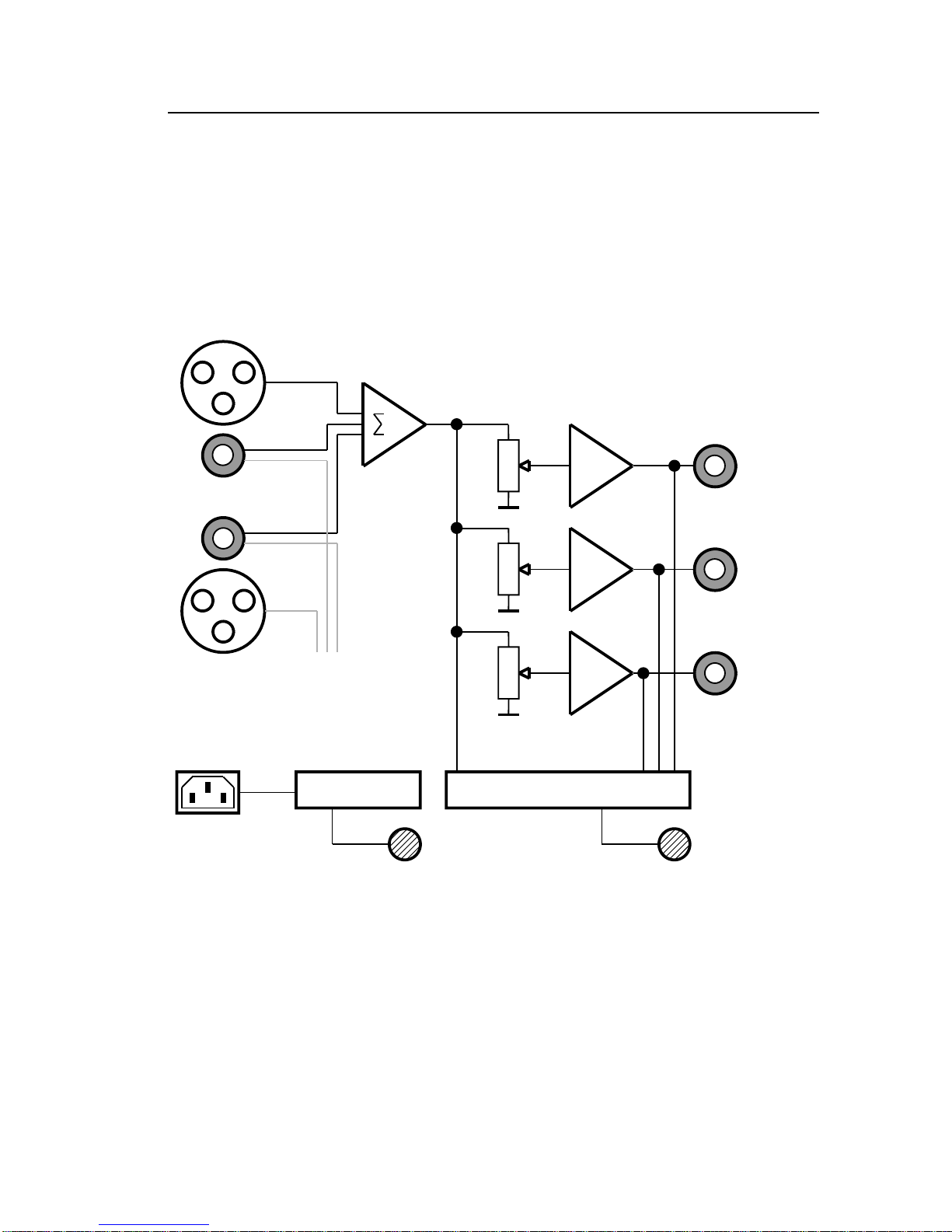

SPECIFICATIONS
INPUTS
Balanced:
Two channels transformerless left and right inputs.
Nominal level +4 dBm, 1.2 Vrms
Maximum level +28 dBm, 19.4 Vrms.
Balanced impedance 10 kOhms.
Common mode impedance 5 kOhms.
Protection Against phantom power.
Connectors 3 point female XLR.
Unbalanced:
Two channel independant stereophonic inputs.
Nominal level +4 dBm, 1.2 Vrms.
Maximal level +14 dBm, 3.9 Vrms.
Impedance 2 kOhms.
Connectors 2 stereophonic 6.35mm JACK.
OUTPUTS
Unbalanced:
Maximum level for 0.5 % distorsion:
+ 19.2 dBm, 7.0 Vrms, 1000 mWatt on 50 Ohms.
+ 21.7 dBm, 9.5 Vrms, 600 mWatt on 150 Ohms.
+ 21.8 dBm, 9.6 Vrms, 310 mWatt on 300 Ohms.
+ 22.0 dBm, 9.8 Vrms, 160 mWatt on 600 Ohms.
Nominal level + 13.9 dBm, 3.8 Vrms, 300 mWatt on 50 Ohms.
+ 18.7 dBm, 6.7 Vrms, 300 mWatt on 150 Ohms.
+ 21.7 dBm, 9.4 Vrms, 300 mWatt on 300 Ohms.
+ 21.7 dBm, 9.4 Vrms, 150 mWatt on 600 Ohms.
Impedance less than 0.5 Ohm at 1 kHz.
Connectors 3 stereophonic 6.35 mm JACK.
TRANSFER
Bandwidth 20 Hz/20 kHz at +/- 0.3 dB
Rise/Fall time 2 µs
Phase shift < -1˚ from 20Hz to 1 kHz
< -8˚ at 10 kHz
< -13˚ at 20 kHz
Maximum gain 16 dB on balanced inputs
Distorsion at 1kHz 0.020 % on 50 Ohms at 300 mWatt output.
0.015 % on 150 Ohms at 300 mWatt output.
0.015 % on 300 Ohms at 300 mWatt output.
0.015 % on 600 Ohms at 150 mWatt output.
Signal to noise ratio 110 dB at +4 dBm input, 20 Hz/20 kHz, potentiometer on median position.
125 dB at +20 dBm input, 20 Hz/20 kHz, potentiometer on median position.
Residual noise - 115 dBm, 20 Hz/20 kHz, potentiometer on median position.
- 100 dBm, 20 Hz/20 kHz, potentiometer on maximum position.
GENERAL
Power Supply 230 Vac or 120 Vac mains voltage (set internally).
45 to 65 Hz frequency.
consumption < 10W.
FRB connector. (option 80)
CEI connector. (option 81)
Indicators left and right overload, 6 dB before clipping.
input DC voltage greater than 100mV.
Operating temperature -10 ˚C to 40 ˚C.
Storage temperature -20 ˚C to 60 ˚C.
Size 220x170x55 mm.
Weight 1600 g.
