MV800 IO Expansion Option User Manual
Version: V01
1 Product Information
1.1 Designation rule
1.2 Functions and specifications
MV810-IO01 option provides IO expansions for the MV800 drive series. Its
functions and specifications are described below:
1.2.1 Function features
(1) Three DI expansions
(2) Two relay output expansions
(3) Provides external 24VDC power supply
(4) Eurostyle pluggable terminal blocks
1.2.2 Technical specifications
Product
Terminal
Specifications
Simple IO
expansion
option
DI9–DI11
Multi-function input terminals set by P41.00–P41.02;
Support NPN/PNP input, selected by P41.03, active
level: 9 to 30 V;
Power supplied by the option’s terminal (24VDC) or
external 24 V DC (see wiring details in 4.2.2.4 of the
full edition of the drive’s user manual);
Support filtering and switch-on/off delay.
2
1.3 Terminal description
1.3.1 Layout

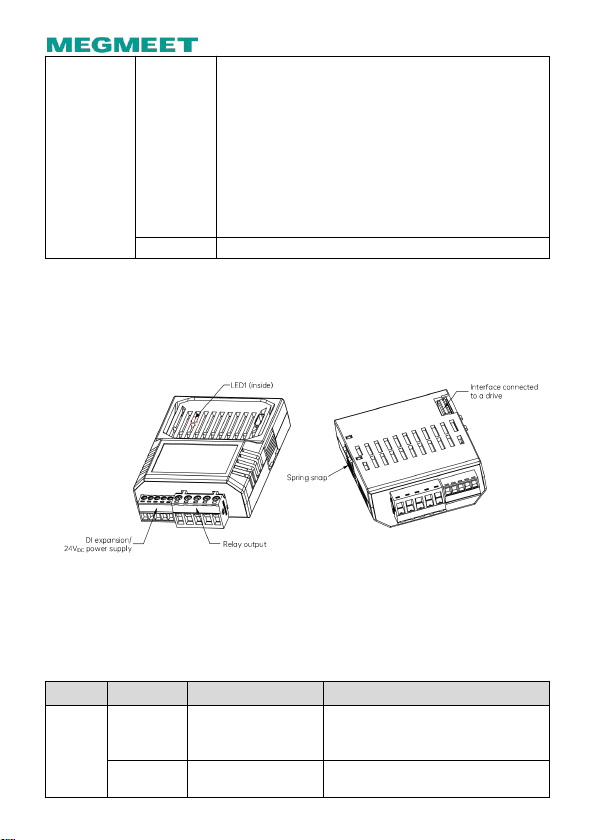

The following figure shows the front and back views of MV810-IO01.
Fig. 1
1.3.2 LED indicator description
MV810-IO01 has an LED indicator inside (see Fig. 1). See the LED description
below:
LED
Status
Description
Action
LED1
(red)
Steady on
Normal power
supply for the IO
option
No need for actions
Off
No power supply for
the IO option
Check whether the IO option is
connected to the drive properly
RO2–RO3
Multi-function output terminals set by P41.13–P41.14;
RO2 contains one TA2/TB2 (normally closed), one
TA2/TC2 (normally open); contact capacity: 250 V
AC/3 A，30 V DC/1 A;
RO3 contains one TA3/TC3 (normally open); contact
capacity: 250 V AC/2 A，30 V DC/1 A;
Support output polarity and switch-on/off delay
(see wiring details in 4.2.2.6 of the full edition of the
drive’s user manual).
24 V, GND
Power output: +24 V DC, ±5%, <200 mA
3
1.3.3 Function codes
Table field
Description
Default value
It is the factory setting value of the function code.
Property
○: indicates the function code can be modified in the running
status.
×: indicates the function code can be modified in the stop
status.
*: indicates the function code is read-only and cannot be
modified.
Function
code
Name
Description
Default
value
Property
P40.00
Option type
0: No communication option
1: PROFINET
2: EtherCAT
3: IO option
0
×
P40.01
Detection
time for
options
0.0 to 10.0 s
No timeout detection when set
to 0
0.0 s
○
P41.00
DI9 function
selection
0: No function
1: Forward RUN
2: Reverse RUN
3: Forward jog
4: Reverse jog
5: Three-wire control
6: Multi-reference terminal 1
7: Multi-reference terminal 2
8: Multi-reference terminal 3
9: Multi-reference terminal 4
10: Acceleration/Deceleration
time terminal 1
11: Acceleration/Deceleration
time terminal 2
12: Reserved
13: Frequency up/down setting
clear
14: Frequency increase
0
○
P41.01
DI10 function
selection
0
○
P41.02
DI11 function
selection
0
○
4
Function
code
Name
Description
Default
value
Property
command (UP)
15: Frequency decrease
command (DN)
16: External fault NO input
17: External fault NC input
18–72: Refer to the full edition
of the drive’s user manual
P41.03
Terminal
open-circuit
voltage
0: Digital terminal open-circuit
voltage 0 V
1: Digital terminal open-circuit
voltage 24 V
1
○
P41.04
DI9 to DI11
active mode
Ones:
0: DI9 positive logic active
1: DI9 negative logic active
Tens:
0: DI10 positive logic active
1: DI10 negative logic active
Hundreds:
0: DI11 positive logic active
1: DI11 negative logic active
Thousands: Reserved
0
○
P41.06
DI filter time
Used to set the filter time for DI
terminal sampling. It is
recommended to increase the
parameter when there is strong
interference to avoid
misoperation.
Range: 0.000 to 1.000 s
0.10 s
○
P41.07
DI9 switch-on
delay time
Used to set the delay time for
level jump upon switch-on/off
of digital input terminals.
Range: 0.0 to 600.0 s
0.0 s
○
P41.08
DI9
switch-off
delay time
0.0 s
○
5
Function
code
Name
Description
Default
value
Property
P41.09
DI10
switch-on
delay time
0.0 s
○
P41.10
DI10
switch-off
delay time
0.0 s
○
P41.11
DI11
switch-on
delay time
0.0 s
○
P41.12
DI11
switch-off
delay time
0.0 s
○
P41.13
RO2 output
selection
0: Disabled
1: AC drive in running
2: Forward running
3: Reverse running
4: Frequency reach signal (FAR)
5: Frequency-level detection
signal (FDT1)
6: Frequency-level detection
signal (FDT2)
7: Overload detection signal
(OL)
8: Lockout for undervoltage
(LU)
9: External fault stop (EXT)
10: Frequency upper limit (FHL)
11: Frequency lower limit (FLL)
12: Zero-speed running
13: Simple PLC stage completion
14: PLC cycle completion
15: Current running duration
reach
16: Accumulated running
duration reach
0
○
P41.14
RO3 output
selection
0
○
6
Function
code
Name
Description
Default
value
Property
17: AC drive ready to run (RDY)
18: AC drive fault
19–47: Refer to the full edition
of the drive’s user manual
P41.15
Output
terminal
polarity
selection
Ones:
0: RO2 positive logic active
1: RO2 negative logic active
Tens:
0: RO3 positive logic active
1: RO3 negative logic active
Hundreds: Reserved
Thousands: Reserved
0
○
P41.16
RO2
switch-on
delay time
Used to set the delay time for
level jump upon switch-on/off
of output terminals.
Range: 0.0 to 600.0 s
0.0 s
○
P41.17
RO2
switch-off
delay time
0.0 s
○
P41.18
RO3
switch-on
delay time
0.0 s
○
P41.19
RO3
switch-off
delay time
0.0 s
○
P50.00
Option type
status view
0: No communication option
1: PROFINET
2: EtherCAT
3: IO option
0
*
P50.03
DI status of
the IO option
0 to 0x111
0: Disabled 1: Enabled
0
*
P50.04
DO status of
the IO option
0 to 0x11
0: Disabled 1: Enabled
0
*
7
2 Installation
The installation position, interface and steps of MV810-IO01 are described below:
2.1 Installation position
MV800 drive series provides two positions for
installation of accessory cards and options: position 1
and position 2 in the right figure (taking enclosure B as
an example, similar for other enclosures), where
position 1 is used to install various PG cards and position
2 is used to install PN options, ECAT options, IO options
and so on.
2.2 Installation interface
The electrical interface of the MV810 IO
option is connected to the drive as
shown in the right figure.
8
2.3 Installation steps
Installation method: front side mounting of IO option
(1) When the drive is powered off, press the granulated part on the middle-upper
of the lower cover, slide it down firmly to take down the cover, as shown in Fig.
2-a.
(2) Use a straight screwdriver to pry open the dustproof cap, as shown in Fig. 2-b.
(3) Install the IO option: hold the expansion box (a bus card inside) upwards
(indicators up), then align the expansion box with the electrical bus interface
of the installation position 2, and press down horizontally to buckle the spring
snap of the expansion box into the groove at the lower part of the drive, as
shown in Fig. 2-c and Fig. 2-d.
(4) The bus card is successfully installed, as shown in Fig. 2-e.
a
cde
b
Groove
Snap
Fig. 2 IO option installation steps
9
SHENZHEN MEGMEET ELECTRICAL CO., LTD.
Address: 5th Floor, Block B, Unisplendor Information Harbor, Langshan Road,
Nanshan District, Shenzhen, 518057, China
Tel: +86-755-86600500
Fax: +86-755-86600562
Zip code: 518057
Website: https://www.megmeet.com/
All rights reserved. The contents in this document are subject to change without
notice.
Warranty bill of communication option
Customer company:
Detailed address:
Contact:
Tel:
Option model:
Option No:
Purchase date:
Service unit:
Contact:
Tel:
Maintenance date:
SHENZHEN
MEGMEET
ELECTRICAL CO.,
LTD.
Certificate
Checker:
Manufacturing date:
The product has
been tested in line
with design
standards and
approved for
leaving the factory.
