SX1018HP Ethernet Managed Blade Switch

User Guide for HP c-Class BladeSystems

PNs: SX1018HP

Rev 1.0

Document Number: 4159

Rev 1.0

Mellanox Technologies

350 Oakmead Parkway Suite 100

Sunnyvale, CA 94085

U.S.A.

www.mellanox.com

Tel: (408) 970-3400

Fax: (408) 970-3403

Mellanox Technologies, Ltd.

Beit Mellanox

PO Box 586 Yokneam 20692

Israel

www.mellanox.com

Tel: +972 (0)74 723 7200

Fax: +972 (0)4 959 3245

Mellanox®, Mellanox logo, BridgeX®, ConnectX®, CORE-Direct®, InfiniBridge®, InfiniHost®, InfiniScale®,

MLNX-OS®, PhyX®, SwitchX®, UFM®, Virtual Protocol Interconnect® and Voltaire® are registered trademarks of

Mellanox Technologies, Ltd.

Connect-IB™, FabricIT™, Mellanox Open Ethernet™, MetroX™, MetroDX™, ScalableHPC™, Unbreakable-Link™ are

trademarks of Mellanox Technologies, Ltd.

All other trademarks are property of their respective owners.

NOTE:

THIS HARDWARE, SOFTWARE OR TEST SUITE PRODUCT (“PRODUCT(S)”) AND ITS RELATED

DOCUMENTATION ARE PROVIDED BY MELLANOX TECHNOLOGIES “AS-IS” WITH ALL FAULTS OF ANY

KIND AND SOLELY FOR THE PURPOSE OF AIDING THE CUSTOMER IN TESTING APPLICATIONS THAT USE

THE PRODUCTS IN DESIGNATED SOLUTIONS. THE CUSTOMER'S MANUFACTURING TEST ENVIRONMENT

HAS NOT MET THE STANDARDS SET BY MELLANOX TECHNOLOGIES TO FULLY QUALIFY THE

PRODUCTO(S) AND/OR THE SYSTEM USING IT. THEREFORE, MELLANOX TECHNOLOGIES CANNOT AND

DOES NOT GUARANTEE OR WARRANT THAT THE PRODUCTS WILL OPERATE WITH THE HIGHEST

QUALITY. ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT

ARE DISCLAIMED. IN NO EVENT SHALL MELLANOX BE LIABLE TO CUSTOMER OR ANY THIRD PARTIES

FOR ANY DIRECT, INDIRECT, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES OF ANY KIND

(INCLUDING, BUT NOT LIMITED TO, PAYMENT FOR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY

THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY FROM THE USE OF THE PRODUCT(S) AND RELATED

DOCUMENTATION EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0

Mellanox Technologies 3

Table of Contents

Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Documentation Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

HP contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 1 Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.2 Kit contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3 Mellanox SX1018HP Ethernet Switch Connector Bays . . . . . . . . . . . . . . . . 10

1.4 Mellanox SX1018HP Ethernet Switch LEDs. . . . . . . . . . . . . . . . . . . . . . . . . 12

Chapter 2 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.1 Installing the Mellanox SX1018HP Ethernet Switch. . . . . . . . . . . . . . . . . . . 13

2.2 Installing and Removing Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 3 Configuring the Switch the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 4 Removing the Mellanox SX1018HP Ethernet Switch for Service. . . . . . . . 22

Chapter 5 Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1 Regulatory Compliance Identification Numbers . . . . . . . . . . . . . . . . . . . . . . 23

5.2 Federal Communications Commission Notice. . . . . . . . . . . . . . . . . . . . . . . . 23

5.3 Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.4 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.5 Canadian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.6 European Union regulatory notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.7 Japanese class A notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.8 BSMI Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.9 Korean class A notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.10 Chinese notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Rev 1.0

Mellanox Technologies

List of Figures

Figure 1: SX1018HP Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 2: HP BLade System Onboard Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 3: QSFP Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 4: Breakout or Fanout Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 5: Port Splitting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 6: Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 7: Removing a Divider from the HP BladeSystem c7000 Enclosure Bay . . . . . 13

Figure 8: Install Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 9: QSFP+ Cable Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 10: Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 11: Cable Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 12: Removing the Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 13: For EU harmonized telecommunications products . . . . . . . . . . . . . . . . . . . . 24

Figure 14: For EU non-harmonized telecommunications products . . . . . . . . . . . . . . . . 24

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0

Mellanox Technologies 5

List of Tables

Table 1 Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Table 2 Reference Documents and Web Sites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 3 LED Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 4 QSFP Cable Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 5 Serial Terminal Program Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 6 Configuration Wizard Session - DHCP Configuration (Example) . . . . . . . . 17

Table 7 Configuration Wizard Session - Static IP Configuration . . . . . . . . . . . . . . . . 19

Table 8 Configuration Wizard Session - Zeroconf Configuration. . . . . . . . . . . . . . . . 20

Rev 1.0

Mellanox Technologies

Revision

Documentation Feedback

HP is committed to providing documentation that meets your needs. To help us improve the doc-

umentation, send any errors, suggestions, or comments to Documentation Feedback

(docsfeedback@hp.com).

Include the document title and part number, version number, or the URL when submitting your

feedback.

HP contact information

For United States and worldwide contact information, see the Contact HP website

(http://www.hp.com/ ).

In the United States:

• To contact HP by phone, call 1-800-334-5144. For continuous quality improvement,

calls may be recorded or monitored.

• It you have purchased a Care Pack (service upgrade), see the Support & Drivers website

(http://www8.hp.com/us/en/support-drivers.html). If the problem cannot be resolved at the web-

site, call 1-800-633-3600. For more information about Care Packs, see the HP website 

((http://www.hp.com/services/carepack).

Table 1 - Document Revision History

Date Revision Description of changes

April 2013 1.0 Initial release

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0

Mellanox Technologies 7

About this Manual

This manual describes the installation and basic use of the Mellanox SX1018HP switch which is

based on the SwitchX-2 switch device.

Related Documentation

Additional Documentation available from Mellanox:

All of these documents can be found on the Mellanox Website. They are available either through

the product pages or through the support page with a login and password.

Conventions

Throughout this manual, the name and the term switch are used to describe the switch unless

explicitly indicated otherwise.

Table 2 - Reference Documents and Web Sites

Document Name Description

HP BladeSystem Technical

Resources You can download the documentation for components referenced in this

installation guide from the HP Blade System Technical Resources web-

site:

http://www.hp.com/go/bladesystem/documentation

Check the HP BladeSystem Technical Resources Website frequently for

updates.

HP BladeSystem Onboard

Administrator User Guide http://www.hp.com/support/

BladeSystem_Onboard_Administrator_UG_en

Various HP BladeSystem

Onboard Administrator Manuals http://www.hp.com/support/

BladeSystem_Onboard_Administrator_Manuals_en

HP BladeSystem Onboard

Administrator CLI User Manual http://www.hp.com/support/

BladeSystem_Onboard_Administrator_CLI_UG_en

HP BladeSystem Onboard

Administrator - How to Make

"SHOW ALL" Inventory Report

http://www.hp.com/support/

BladeSystem_Onboard_Administrator_SHOW_ALL_Inv_Rpt_en

HP CLI Reference Manual http://www.hp.com/support/MLNX-OS_CLI_SX1018HP_UG_en

HP MLNX-OS User Manual http://www.hp.com/support/

MLNX_OS_EthernetManagedBladeSwitch_UG_en

HP SW release Notes for the

MLNX-OS software http://www.hp.com/support/MLNX-OS_SX1018HP_RN_en

Rev 1.0

Mellanox Technologies

The following icons are used throughout this document to indicate information that is important

to the user.

This icon indicates information that is helpful to the user.

This icon indicates a situation that can potentially cause damage to hardware or soft-

ware.

BEWARE! This icon indicates a situation that can potentially cause personal injury or

damage to hardware or software.

This icon makes a recommendation.

SX1018HP Ethernet Managed Blade Switch HW User Manual Rev 1.0

Mellanox Technologies 9

1 Preparing for Installation

1.1 Audience

This document is intended for HP service representatives and other persons trained to install

hardware options in HP BladeSystem configurations. Such persons are expected to understand

the hazards of working in this environment and to take suitable precautions to minimize danger

to themselves and others.

1.2 Kit contents

The kit contains the following items:

• Mellanox SX1018HP Ethernet Switch for HP c-Class BladeSystems—689638-B21 (see Figure

• Warranty documentation

Figure 1: SX1018HP Ethernet Switch

Additional information

Mezzanine NIC installation determines interconnect bay assignments for switch installation. For

more information on the association between the mezzanine connector and the interconnect bays,

see the following documents under Mezzanine-to-Interconnect Mappings on the HP BladeSys-

tem Technical Resources website:

• HP BladeSystem c7000 Enclosure Setup and Installation Guide:

http://www.hp.com/go/bladesystem/documentation

For specific port connections for each server blade, see the HP BladeSystem Onboard Adminis-

trator User Guide. Connections differ by server blade type. The information contained in this

document explains the cabling between the SX1018HP Ethernet Switch and the network

switches.

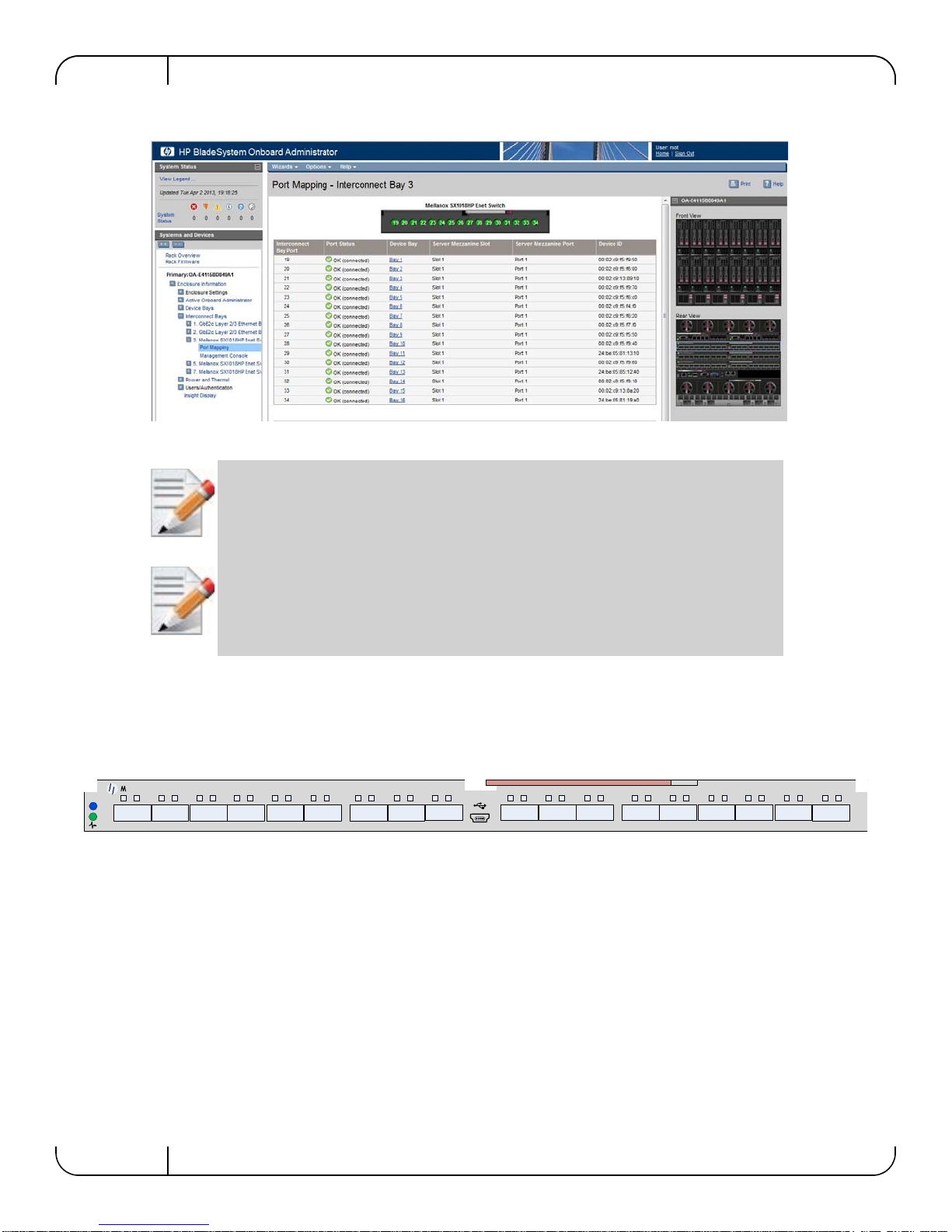

The HP Onboard Administrator screen example (see Figure 2) is a reference for port mapping.

This kit does not include cables. You must order the cables separately.

Your particular switch might look slightly different.

181716151413121110123456 789

UID P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/APL/APL/APL/A

hp ellanox SX1018HP Ethernet Switch

Preparing for InstallationRev 1.0

Mellanox Technologies

Figure 2: HP BLade System Onboard Administrator

You can install up to 18 cables in the uplink ports on the SX1018HP Ethernet Switch.

1.3 Mellanox SX1018HP Ethernet Switch Connector Bays

Figure 3: QSFP Connectors

1.3.1 Uplink Ports

The ports labelled 1 to 18 are external uplink ports. You can install up to 18 40GbE QSFP+

cables or combinations of 40 GbE and 10GbE ports. The maximum number of 10GbE ports

available using this switch and breakout cables is 34.

1.3.2 Breakout Cables

Splitting the Data Stream Using Breakout (Fanout) Cables.

Specific ports can be split by using a QSFP 1X4 breakout cable to split one 40 GbE port into 4

lanes (4 SFP+ connectors 10GbE each). These 4 lanes then go, one lane to each of the 4 SFP+

connectors. Some ports can be split into 2 10 Gb/s ports, using lanes 1 and 2 only. When a QSFP

40GbE is supported in interconnect bays 3 to 8 only.

Your screen image might vary by switch type.

181716151413121110123456 789

UID P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/A P L/APL/APL/APL/A

hp ellanox SX1018HP Ethernet Switch

Andere Handbücher für Mellanox SX1018

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mellanox Technologies Schalten Handbücher

Mellanox Technologies

Mellanox Technologies Spectrum SN2700 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MIS5600Q-10DNC Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MSX6512-4R Handbuch

Mellanox Technologies

Mellanox Technologies MIS5025 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies Vantage 8500 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies SwitchX-2 MSX1012B-1BFS Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies InfiniScale MTS3600Q-1BNC Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MIS5300 Handbuch

Mellanox Technologies

Mellanox Technologies Spectrum SN2100 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies SwitchX-2 MSX6005F-1BFS Gebrauchsanweisung

Mellanox Technologies

Mellanox Technologies IS5025 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MIS5200Q-4DNC Handbuch

Mellanox Technologies

Mellanox Technologies SX10XX Gebrauchsanweisung

Mellanox Technologies

Mellanox Technologies SwitchX-2 MSX6018F-1SFS Gebrauchsanweisung

Mellanox Technologies

Mellanox Technologies MetroDX MTX6000-2SFS Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies IS5025D-1BRC Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies SX6518-NR Handbuch

Mellanox Technologies

Mellanox Technologies MTS3610 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MIS5024 Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MSX6512-NR Handbuch

Mellanox Technologies

Mellanox Technologies MIS5022Q-1BFR Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies MIS5600Q-10DNC Bedienungsanleitung

Mellanox Technologies

Mellanox Technologies SX6710 Gebrauchsanweisung

Mellanox Technologies

Mellanox Technologies InfiniScale III M2401G 20Gb/s InfiniBand Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
