BL50S – Box PC for Storage

Applications (AMD)

20BL50S00 E2 – 2014-12-10

User Manual

Configuration example

BL50S - Box PC for Storage Applications (AMD)

MEN Mikro Elektronik GmbH 2

20BL50S00 E2 – 2014-12-10

BL50S - Box PC for Storage Applications (AMD)

The BL50S is a maintenance-free box computer that has been designed for storage

applications such as content servers or video recorders. It offers two external SATA

shuttles with hot-plugging support.

On the front of the BL50S as many as 5 Gigabit Ethernet interfaces are accessible.

Four of these ports share one Gigabit Ethernet port from the chipset via a switch,

while one port is used exclusively as Gigabit Ethernet uplink. The four ports routed

over the switch support Power-over-Ethernet.

One PCI Express Mini Card slot with two SIM card slots offers the possibility to

implement the wide range of functionality available on this form factor. This

includes for example mobile service standards GSM (2G), UMTS (3G), LTE (4G)

and derivates, wireless communication standards WLAN / Wi-Fi IEEE 802.11 and

derivates as well as positioning systems GPS or GLONASS.

The BL50S is powered by an AMD Embedded G-Series APU (Accelerated

Processing Unit), the T48N, running at 1.4 GHz. The G-Series combines low-power

CPUs and advanced GPUs, in this case an AMD Radeon HD 6310, into a single

embedded device. The use of the Embedded G-Series makes for high scalability in

CPU (single/dual core) and graphics performance (various Radeon GPUs or none at

all).

The BL50S is equipped with 2 GB of DDR3 SDRAM and offers SD card and

mSATA slots. The system is designed for fanless operation at temperatures from -40

to +70°C (+85°C for up to 10 minutes), its special aluminum housing with cooling

fins serves as a heatsink for the internal electronics and in this way provides

conduction cooling.

The BL50S supports one DisplayPort interface with a resolution of 2560×1600. In

addition, a multitude of other I/O is available at the front panel, including two USB

2.0 and variable slots for legacy serial I/O (e.g. RS232) or CAN bus.

The BL50S comes with its own integrated class S2 wide-range power supply with

24 and 36 VDC nominal input voltage (10 to 50.4 V) and a power consumption of

30 W and is in compliance with EN 50155 and ISO 7637-2 (E-mark for

automotive). The power can be switched on and off using an ignition signal on the

power connector, and a run-down time after switching off the power can be adjusted

by software.

The combination of the various CPU/GPU options with the available selection of

external interfaces makes for an extremely flexible system design that can quickly

be tailored to a vast number of applications.

Diagram

MEN Mikro Elektronik GmbH 3

20BL50S00 E2 – 2014-12-10

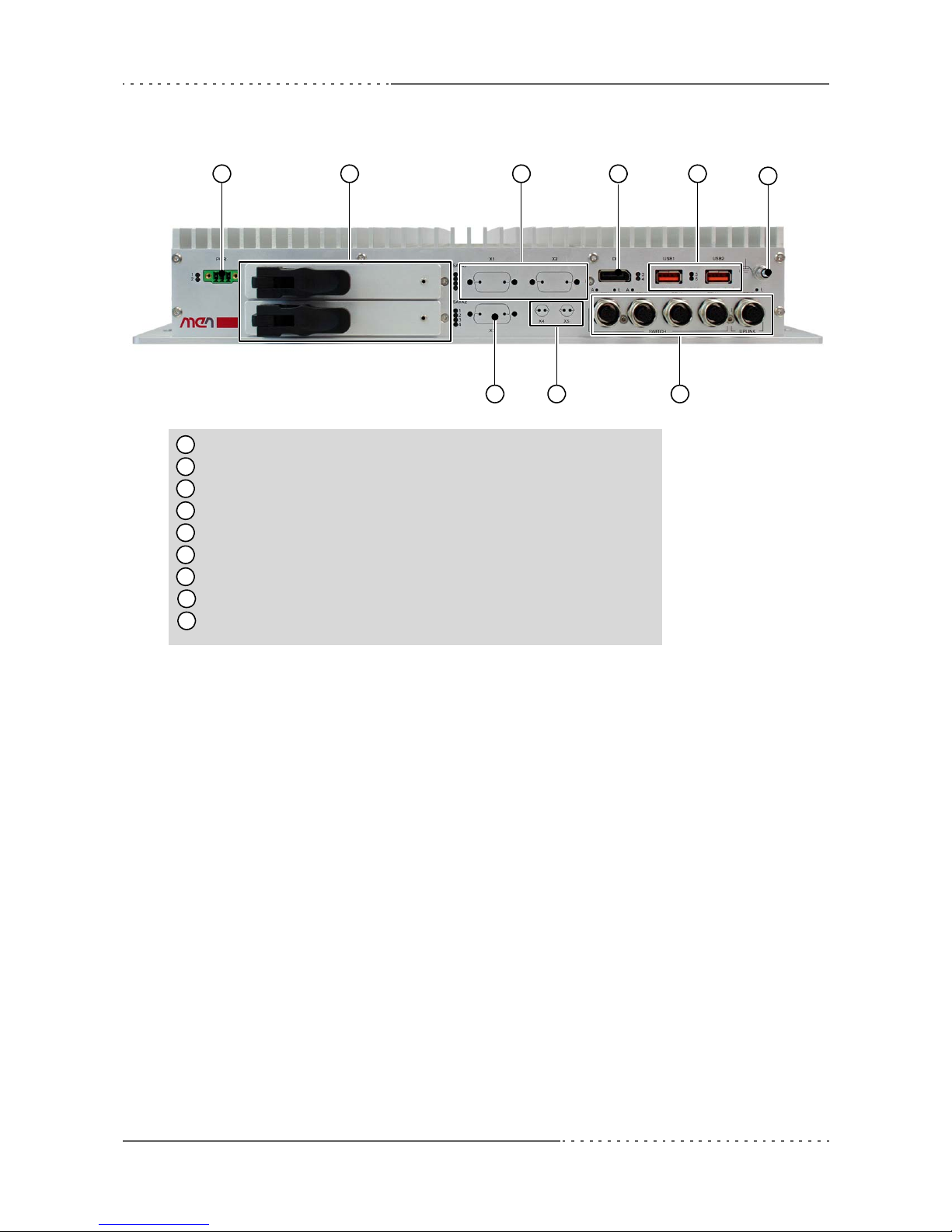

Diagram

2HardDiskShuttles

5GigabitEthernet(4‐portEthernetswitchandoneuplinkport)

2USB2.0

PSUconnector(10V‐50.4V)

1DisplayPort

2antennaconnectorcutoutsforPCIExpressMiniCard

1 2 3 4 5

2SA‐AdaptercutoutsforRS232,RS485/422,CAN,IBISmaster,IBISslaveorGPIO

CutoutforHDAudio

Earthingstud

Technical Data

MEN Mikro Elektronik GmbH 4

20BL50S00 E2 – 2014-12-10

Technical Data

CPU

• AMD Embedded G-Series T48N

-Dual-Core

- 1.4 GHz processor core frequency

- Accelerated Processing Unit (APU), also includes GPU (see Graphics)

Controller Hub

•AMDA55E

Memory

• 64 KB L1 and 512 KB L2 cache

• 2 GB DDR3 SDRAM system memory

-Soldered

- 1066 MT/s

Mass Storage

• One SD card slot

•OnemSATAslot

- SATA Revision 2.x support

- Transfer rates up to 300 MB/s (3 Gbit/s)

• Serial ATA (SATA)

- Two external shuttles for 2.5" SATA HDD/SSD drive

- SATA Revision 2.x support

- Transfer rates up to 300 MB/s (3 Gbit/s)

- Hot-pluggable (with independent devices)

- Status LEDs

Graphics

• AMD Radeon™ HD 6310

- Maximum resolution: 2560x1600

• 3D Graphics Acceleration

- Full DirectX® 11 support, including full speed 32-bit floating point per

component operations

- Shader Model 5

- OpenCL™ 1.1 support

- OpenGL® 4.0 support

• Motion Video Acceleration

- Dedicated hardware (UVD 3) for H.264, VC-1 and MPEG2 decoding

- HD HQV and SD HQV support: noise removal, detail enhancement, color

enhancement, cadence detection, sharpness, and advanced de-interlacing

- Super up-conversion for SD to HD resolutions

Technical Data

MEN Mikro Elektronik GmbH 5

20BL50S00 E2 – 2014-12-10

Ethernet Uplink

• One Gigabit Ethernet uplink

- Via one M12 connector at the front

Gigabit Ethernet Switch Functionality

• Four 10/100/1000Base-T ports at front panel

- Via four M12 connectors

• High-speed non-blocking, store-and-forward switching

• Port configuration: copper, 10/100 and 1000 Mbit/s

• Auto-negotiation / Auto MDI/MDIX crossover on all ports

• Layer2-based Policy Control List

• 8K MAC address lookup table with automatic learning and aging

• Supported Protocols and Standards

- Ethernet flow control (IEEE 802.3x)

- Link aggregation LACP / EtherChannel (IEEE 802.3ad, 2005)

- Priority-based switching, Quality of Service/DiffServ, tagged frames, Layer2-

based 801.1Q VLAN-ID packet routing (IEEE 802.1p)

- Port-based authentication on registered MAC Address Lists

- Power over Ethernet support (IEEE 802.3af / IEEE 802.3at, Type 1)

- VLAN/port-based VLANs GVRP/MVRP (IEEE 802.1Q Rev D5.0, 2005)

• Power over Ethernet functionality

- PSE (Power Sourcing Equipment) function

- Supports supply classes 0 to 4

- Supplies up to four PD devices (up to 28 W total)

- 1x 25 W PoE+ (Class 4)

- 2x 12.96 W (Class 3 / class 0)

- 4x 6.5 W (Class 2)

Front I/O

• 1 DisplayPort® 1.1a interface

- AUX channel and hot plug detection

•2USB2.0

- Via Series A connector

• 4-port Gigabit Ethernet switch

- Via four M12 connectors

• 1 Gigabit Ethernet uplink

- Via one M12 connector

• 2 SA-Adapter slots for legacy serial I/O

- For RS232, RS422/485, CAN, IBIS master, IBIS slave, GPIO

• 24 status LEDs

- 10 for Ethernet link and activity status

- 2 for general board status

- 4 user LEDs

- 8 SATA LEDs

Technical Data

MEN Mikro Elektronik GmbH 6

20BL50S00 E2 – 2014-12-10

1 PCI Express® Mini Card slot

• For functions such as

- Mobile service standards: GSM (2G), UMTS (3G), LTE (4G) and derivates

- Wireless communication: WLAN / WiFi IEEE 802.11 and derivates

- Positioning: GPS, GLONASS, GALILEO

• 2 SIM card slots (Dual SIM)

• PCI Express® and USB interface

Real-Time Clock

• Buffered by Gold Cap for up to 72 h

Electrical Specifications

• Isolation voltage 1,500 VDC against shield

• Supply voltage:

- 24V and 36V nominal input voltage according to EN50155

- 24V nominal input voltage according to ISO 7637-2 (E-mark) requirements

- 10 to 50.4 V input voltage range

- EN 50155 power interruption class S2

- Ignition signal at the front

• Power consumption: 14.4 W with T48N CPU with Windows® 7 operating

system and 1 Gb Ethernet connection

Mechanical Specifications

• Dimensions: Height 66 mm x Width 390 mm x Length 215 mm

• Weight: approx. 4.25 kg

• IP20 protection

Environmental Specifications

• Temperature range (operation):

- -40°C to 70°C (screened), with up to 85°C for 10 minutes according to class

Tx (EN 50155)

- Fanless operation

• Temperature range (storage): -40..+85°C

• Relative humidity (operation): max. 95% non-condensing

• Relative humidity (storage): max. 95% non-condensing

• Altitude: -300 m to +3,000 m

• Shock: 50 m/s², 30 ms (EN 61373)

• Vibration (function): 1 m/s², 5 Hz – 150 Hz (EN 61373)

• Vibration (lifetime): 7.9 m/s², 5 Hz – 150 Hz (EN 61373)

• Conformal coating of internal components

MTBF

• 267 047 h @ 40°C according to IEC/TR 62380 (RDF 2000)

Technical Data

MEN Mikro Elektronik GmbH 7

20BL50S00 E2 – 2014-12-10

Safety

• Flammability

-UL94V-0

• Fire Protection

- EN 45545-2

• Electrical Safety

- EN 50153

- EN 50155

EMC Conformity (Automotive)

• ECE R10 (E-mark)

• ISO 10605 (ESD)

EMC Conformity (Railway)

• EN 50121-3-2

BIOS

• InsydeH2O™ UEFI Framework

Software Support

•Windows®7

• Windows® Embedded Standard 7

•Linux

For more information on supported operating system versions and

drivers see the online data sheet.

Configuration Options

MEN Mikro Elektronik GmbH 8

20BL50S00 E2 – 2014-12-10

Configuration Options

APU

• AMD T56N, 1.65 GHz Dual Core, 18W, AMD Radeon™ HD 6320

• AMD T56E, 1.65 GHz Dual Core, 18W, AMD Radeon™ HD 6250

• AMD T48N, 1.4 GHz Dual Core, 18W, AMD Radeon™ HD 6310

• AMD T48E, 1.4 GHz Dual Core, 18W, AMD Radeon™ HD 6250

• AMD T40N, 1.0 GHz Dual Core, 9W, AMD Radeon™ HD 6290

• AMD T40E, 1.0 GHz Dual Core, 6.4W, AMD Radeon™ HD 6250

• AMD T52R, 1.5 GHz Single Core, 18W, AMD Radeon™ HD 6310

• AMD T44R, 1.2 GHz Single Core, 9W, AMD Radeon™ HD 6250

• AMD T40R, 1.0 GHz Single Core, 5.5W, AMD Radeon™ HD 6250

• AMD T16R, 615 MHz Single Core, 4.5W, AMD Radeon™ HD 6250

• AMD T48L, 1.4 GHz Dual Core, 18W

• AMD T30L, 1.4 GHz Single Core, 18W

• AMD T24L, 1000 MHz Single Core, 5W

Memory

• Up to 4 GB DDR3 SDRAM system memory

• SATA hard-disk/solid state drive (mounted within housing)

Graphics

• Maximum resolution depending on GPU

- 2560x1600 (all DisplayPort® interfaces) with Radeon™ HD 6310 and 6320

- 1920x1200 (all DisplayPort® interfaces) with Radeon™ HD 6250 and 6290

I/O

•Ethernet

- One Fast Ethernet uplink and one 4-port Fast Ethernet switch on five M12

connectors, or

- One Gigabit Ethernet uplink and one 4-port Fast Ethernet switch on five M12

connectors

• HD audio interface

- HD audio codec

- Audio stereo in

- Audio stereo out

-SPDIFout

• Antenna connectors

- Various types available on the market (SMA, reverse SMA, QMA, FME...)

•SA-Adapters

- Serial interfaces: RS232, RS422/485, GPIO

- Fieldbus: IBIS master, IBIS slave, CAN bus

Electrical Specifications

• Input voltages of 48V, 72V and 110V can be implemented on request

Configuration Options

MEN Mikro Elektronik GmbH 9

20BL50S00 E2 – 2014-12-10

Mechanical Specifications

• Other IP protection classes possible on request

As the product concept is very flexible, there are many other configuration

possibilities. Please contact our sales team if you do not find your required

function in the options. Please note that some of these options may only be

available for large volumes.

For available standard configurations see the online data sheet.

Product Safety

MEN Mikro Elektronik GmbH 10

20BL50S00 E2 – 2014-12-10

Product Safety

Electrostatic Discharge (ESD)

Computer boards and components contain electrostatic sensitive

devices. Electrostatic discharge (ESD) can damage components. To

protect the board and other components against damage from static

electricity, you should follow some precautions whenever you work on

your computer.

• Power down and unplug your computer system when working on the

inside.

• Hold components by the edges and try not to touch the IC chips,

leads, or circuitry.

• Use a grounded wrist strap before handling computer components.

• Place components on a grounded antistatic pad or on the bag that

came with the component whenever the components are separated

from the system.

• Only store the board in its original ESD-protected packaging. Retain

the original packaging in case you need to return the board to MEN

for repair.

Inhaltsverzeichnis

Andere MEN Mikro Elektronik Desktop Handbücher

MEN Mikro Elektronik

MEN Mikro Elektronik A11 Bedienungsanleitung

Beliebte Desktop Handbücher anderer Marken

HP m9060n - Pavilion - Elite Technisches Datenblatt

Asus

Asus E210 Series Bedienungsanleitung

Dell

Dell Inspiron 600m Bedienungsanleitung

Dell

Dell Inspiron 3662 Bedienungsanleitung

TotalFlow

TotalFlow uFLO Bedienungsanleitung

HP Presario SV7000 - Desktop PC Bedienungsanleitung

HP ProDesk 400 G5 Handbuch

Logitech

Logitech MK320 Bedienungsanleitung

Dell

Dell XPS 730 H2C Bedienungsanleitung

Sony

Sony Vaio Series Bedienungsanleitung

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Bedienungsanleitung

Alto

Alto MD 250 Bedienungsanleitung

Lenovo

Lenovo ThinkCentre Edge 72 Handbuch

Lenovo

Lenovo ThinkStation D20 Handbuch

Arbor Technology

Arbor Technology FPC-7800 Series Bedienungsanleitung

Sony

Sony VAIO VGX-TP1 Series Bedienungsanleitung

Asus

Asus Eee Box B204 Bedienungsanleitung

Dell

Dell Optiplex 9010 All In One Bedienungsanleitung
