Meraki MX60W

Hardware Installation Guide

April 2012

Meraki MX60W Installation Guide

MX60W Overview | 2

www.meraki.com

660 Alabama St.

San Francisco, California 94110

Phone: +1 415 632 5800

Fax: +1 415 632 5899

Trademarks:!Meraki®!is!a!registered!trademark!of!Meraki,!Inc.!

Meraki MX60W Installation Guide

MX60W Overview | 3

Trademarks

Meraki, Meraki MX60W, and Meraki Cloud Controller are trademarks of Meraki, Inc. Other brand and product names

are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Meraki reserves the right to make

changes to the products described in this document without notice. Meraki does not assume any liability that may

occur due to the use or application of the product(s) or circuit layout(s) described herein.

Warranty

Meraki, Inc. provides a limited warranty on this product. Warranty details may be found at www.meraki.com/legal.

Scope of the Document and Related Publications

The MX60W Hardware Installation Guide describes the installation procedure for the MX60W cloud-managed routers.

Additional reference documents are available online at: www.meraki.com/library/products.

Meraki MX60W Installation Guide

MX60W Overview | 4

Table of Contents

Trademarks...................................................................................................................... 3!

Statement of Conditions ................................................................................................ 3!

Warranty .......................................................................................................................... 3!

Scope of the Document and Related Publications ...................................................... 3!

1!MX60W Overview ...................................................................................................... 5!

1.1!Package Contents ................................................................................................................................5!

1.2!The MX60W Front Panel......................................................................................................................5!

1.2.1!LED Color Rules................................................................................................................................5!

1.2.2!Power-on Sequence..........................................................................................................................5!

1.3!The MX60W Back Panel ......................................................................................................................6!

1.3.1!Internet Port.......................................................................................................................................6!

1.3.2!LAN Ports ..........................................................................................................................................6!

1.3.3!USB Port ...........................................................................................................................................6!

1.3.4!Reset Button......................................................................................................................................6!

2!Pre-Deployment Setup.............................................................................................. 7!

2.1!Dashboard Settings..............................................................................................................................7!

2.1.1!Setting Up a New Dashboard Account..............................................................................................7!

2.1.2!Using an Existing Dashboard Account..............................................................................................7!

2.2!Firewall Settings ...................................................................................................................................7!

2.3!Local Management Console.................................................................................................................7!

2.4!Network Settings ..................................................................................................................................8!

2.4.1!Router Mode: Gateway to the Internet ..............................................................................................8!

2.4.2!Passthrough Mode: Behind an Existing Router and/or Firewall........................................................9!

Meraki MX60W Installation Guide

MX60W Overview | 5

1 MX60W Overview

The Meraki MX60W is an enterprise router designed for distributed

deployments that require remote administration. It is ideal for network

administrators who demand both ease of deployment and a state-of-the-

art feature set.

1.1 Package Contents

1.2 The MX60W Front Panel

There are 3 types of LED in MX60W

•Power light: First one from the left

•WAN light: Second one from the left

•LAN lights: The four LEDs that are grouped together and

numbered 1 - 4

1.2.1 LED Color Rules

•Solid Green: Fully operational

•Flashing Green: Operational but operation (ex: upgrade) in

progress

•Solid Orange: Operation in progress, device will be operational

shortly

•Flashing Orange: Alert indicating that device requires attention.

Dashboard will contain additional information about the alert.

1.2.2 Power-on Sequence

1. All lights will flash twice on power on.

2. Power light will turn solid orange after the flash

3. Power light will turn green after the unit has been able to

contact the Meraki dashboard and download its configuration

4. WAN light will be off during boot and when no WAN link.

MX60 Power Adapter CAT5 Ethernet Cables Wall Screws & Anchors

1234

Meraki MX60W Installation Guide

| 6

5. WAN light will turn orange after boot up and initial link.

6. WAN light will turn green when Internet connection detected.

7. WAN light will start flashing orange after 5 minutes, if there a

WAN link is found, but there is no proper Internet connection.

8. LAN lights will turn green if any device is connected on the

LAN side or they will be off otherwise.

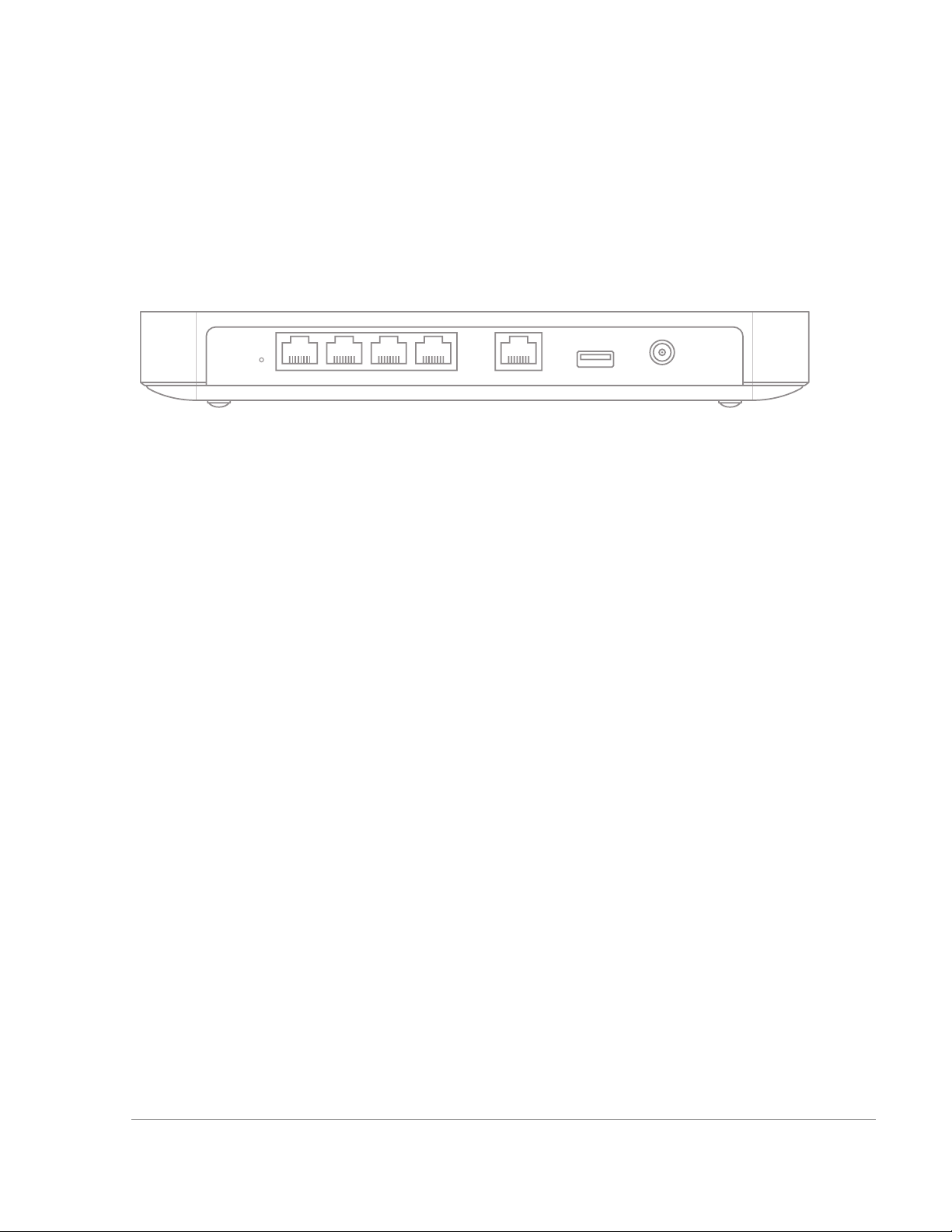

1.3 The MX60W Back Panel

1.3.1 Internet Port

The MX60W supports only one Internet / WAN connection

1.3.2 LAN Ports

The MX60W has four LAN ports, called LAN 1, LAN 2, LAN 3, and LAN

4. These ports can be connected to devices like computers, printers,

access points, or Ethernet switches.

1.3.3 USB Port

The MX60W has one USB 2.0 port. This port is reserved for future use.

1.3.4 Reset Button

Pushing the reset button for 30 sec. will default the MX60W to its

factory-reset values.

1.3.5

Reset LAN 4 LAN 3 LAN 2 LAN 1 Internet USB Power

Meraki MX60W Installation Guide

Pre-Deployment Setup | 7

2 Pre-Deployment Setup

2.1 Dashboard Settings

2.1.1 Setting Up a New Dashboard Account

Step 1: Create an account.

To manage Meraki networks through the Dashboard, you need to create

an account at http://dashboard.meraki.com. Assuming you are the

network administrator, your email address will be used as the login ID.

Step 2: Add a Cloud-Managed Router to your account.

After logging into your account, click on “Configure” and then “Add

routers.” Enter the order number or the serial number of the Cloud-

Managed Router, choose a name for the router, and provide the router’s

physical location (in order to accurately place it on the integrated

Google map or floor plan). Click the “Add routers” button on the bottom

of the page.

2.1.2 Using an Existing Dashboard Account

If you have an existing Dashboard account that you use for Meraki

wireless, you need to create a separate network in the Dashboard for

each Cloud-Managed Router that you plan to deploy.

Follow Step 2 above to add a Cloud-Managed Router to your account.

You can use the “Network” pull-down option on the overview page to

navigate between networks.

2.2 Firewall Settings

If your Cloud-Managed Router will be placed behind a firewall, you will

need to allow outgoing connections on particular ports to particular IP

addresses. The most current list of outbound ports and IP addresses

can be found here:

http://tinyurl.com/y79une3

2.3 Local Management Console

If you need to assign static IP to MX60W, you need to use the local

management console. The local console is also viewing some local

settings, such as whether an upgrade is in progress or the device is

connected to the Internet.

To access the local management console, simply follow these

instructions:

1. Connect the router to a power supply.

2. Using a client machine (e.g., a laptop), connect to the Cloud-

Managed Router through any of the LAN ports (by plugging

one end of an Ethernet cable into the client machine, and the

Meraki MX60W Installation Guide

Pre-Deployment Setup | 8

other end of the Ethernet cable into the one of the router’s LAN

ports).

3. Using a web browser on the client machine, access the

router’s built-in web server by browsing to

http://setup.meraki.com.

4. Note that you do not have to be connected to the Internet to

reach this address, as you are simply connecting to a web

service running locally on the router.

Network*Settings*

All Meraki Cloud-Managed Routers must have an IP address. The

following section describes how to configure your local area network

prior to deploying a Meraki Cloud-Managed Router. Please check with

your ISP to make sure you have the adequate Ethernet handoff device

(e.g., T1, MPLS, ADSL or Cable modem), as the Cloud-Managed

Router only supports RJ45 Ethernet connectivity.

2.3.1 Router Mode: Gateway to the Internet

In router mode, the Cloud-Managed Router will provide network address

translation (NAT) services. Therefore it requires two IP addresses, one

that is recognized by the WAN interface and another that is recognized

by the LAN interface.

Internet (WAN) IP address settings:

Please follow these instructions if you need to set a static IP address for

the Internet port. IF you are going to set the Internet port settings

automatically through DHCP, you can skip these instructions.

1. If you need to assign static IP address, connect to the

router’s local management console using the instructions

in section 2.3.

2. Follow the on-screen instructions to set up a static IP

address.

3. Now connect the Internet port on the router to your ISP

modem or the upstream device that is ultimately

connected to the WAN.

4. On your client machine, connected to one of the LAN

ports, go to http://dashboard.meraki.com.

5. Login to your account and go to the network that you

already created for the new Cloud-Managed Router (see

section 2.1). Confirm that your router is connected to the

Dashboard and that the status is online. If you have a

problem, visit the Meraki online knowledge base at:

http://www.meraki.com/support/.

6. You are now ready to begin monitoring your network

through the Meraki Dashboard.

Meraki MX60W Installation Guide

Pre-Deployment Setup | 9

LAN IP address settings:

These settings let you create a new local subnet that will be served

through the LAN 1 – LAN 4 ports of the Cloud-Managed Router.

1. Using a web browser on the client machine (e.g., a

laptop), go to http://dashboard.meraki.com.

2. Login to your account and go to the network that you

already created for the new Cloud-Managed Router (see

section 2.1). Confirm that your router is connected to the

Dashboard and that the status is online.

3. Navigate to “Configure ->Router settings.”

4. Choose “Run NAT only” or “Run a DHCP server and

NAT.”

5. Choose a local subnet base address and subnet mask.

6. Choose an IP address for the Cloud-Managed Router.

Please note that if you have chosen “Run a DHCP server

and NAT,” Dashboard will prepopulate the “Router IP” field

with a suitable IP address for the Cloud-Managed Router.

If necessary, you can override the IP address with a

choice of your own.

7. Set up your DNS servers. You can either use Google’s or

OpenDNS’ servers or simply enter your own DNS server

instruction.

8. Optionally, provide the DNS domain information for your

organization.

7. To test your settings, refresh your laptop / desktop

network settings (e.g., simply disconnect the client device

from the LAN port of the Cloud-Managed Router and then

connect it again). If you have a problem, visit the Meraki

online knowledge base at http://www.meraki.com/support/.

9. You are now ready to begin monitoring your network

through the Meraki Dashboard.

2.3.2 Passthrough Mode: Behind an Existing Router and/or Firewall

In passthrough mode, the Meraki Cloud-Managed Router is transparent

to the rest of the network. You should use passthrough mode if you

don’t want your router to provide routing functions. In this mode, the

router requires one IP address.

Internet (WAN) IP address settings:

The Internet (WAN) IP address is the only setting that must be applied

locally, prior to connecting to the Internet. Please follow the same

instructions as in the Router Mode section above.

Meraki MX60W Installation Guide

Pre-Deployment Setup | 10

2.4 Installation Instructions

Cables, Power, and Antennas included

•2VDC Power adapter.

•Cat5e patch cables.

•Dual Band Omni Joint-and-Knuckle Antennas.

2.4.1 Desk

1. Place the MX60 on the desk surface

2. Attach the 3 (included) antennas. Bend them to a right angle so

they all point “up”.

3. Attach network and power cables as needed

2.4.2 Wall (Instructions for Drywall/hollow wall installation)

Material Included in “Wall Mounting hardware”:

•4 wall anchors.

•4 wall mounting screws.

Tools needed:

•Phillips screwdriver

•Hammer

•Drill with 1⁄4 inch bit

It is recommended to install the MX60W so the logo is oriented “right

side up”. However the mounting crosses on the base support upside

down or right angle orientations as well.

1. Drill 2 1/4” holes in the wall, spaced 5 1/8” apart

2. Insert included Wall anchors. If you have a wall material other than

drywall, use appropriate anchors for your wall.

3. Screw in included mounting screws. Top when approximately 5-

8mm of screw is showing outside the anchor material.

4. Hang the MX60W on the two mounting screw heads

5. Attach the 3 (included) antennas. Point them away from the body of

the MX60W.

6. Attach network and power cables as needed

Inhaltsverzeichnis

Andere Meraki Netzwerk-Router Handbücher

Meraki

Meraki MX60 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
