METHVEN MK2 Bedienungsanleitung

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

  

Australia

  

  

www.methven.com

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

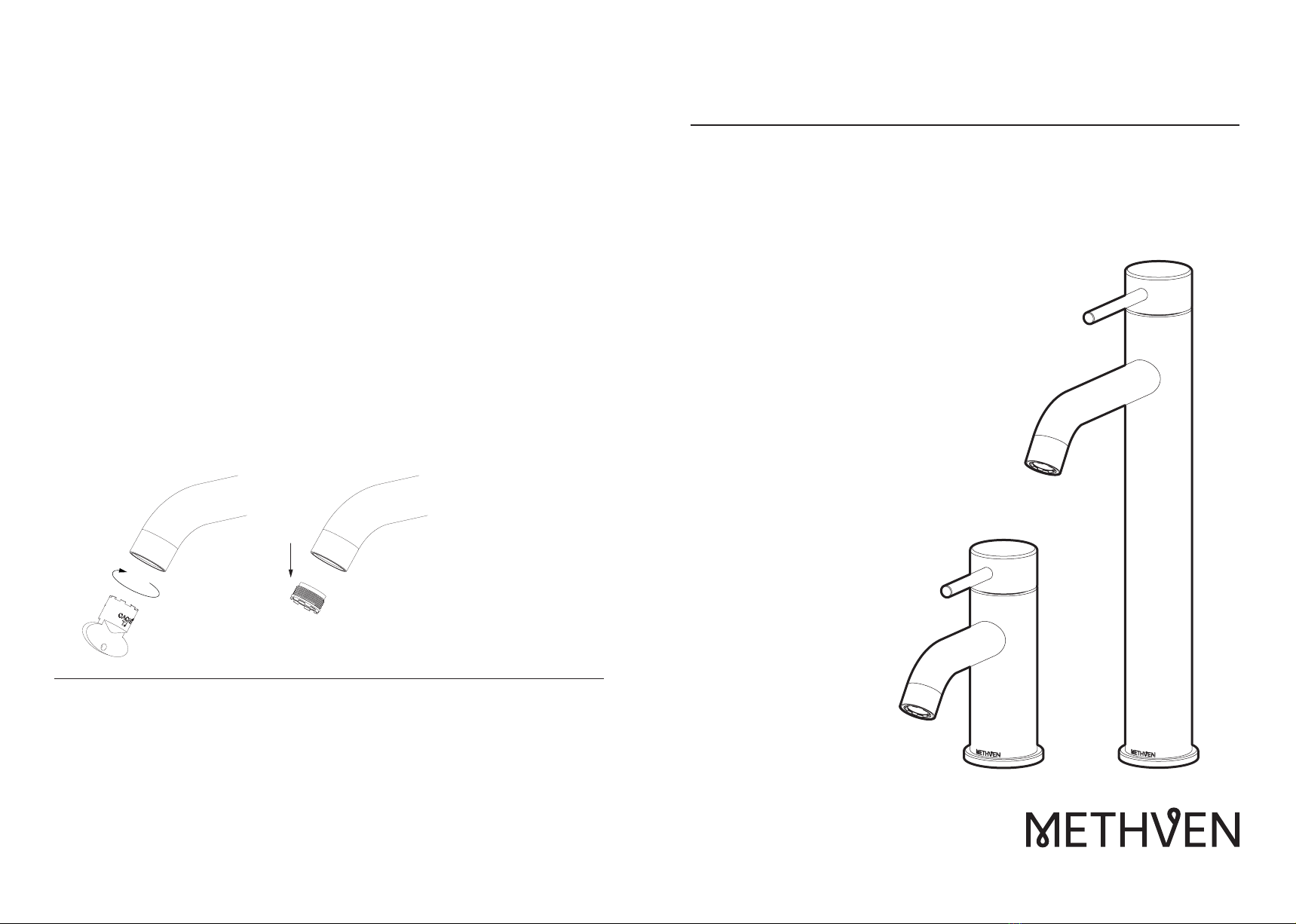

Periodically the stream shaper should be removed as shown below and cleaned under running water.

Care and Cleaning:

IS  ISSUE B

Technical Speciﬁcations:

Operating Pressure:

Min: 150kPa/1.5bar

Max: 1000kPa/10bar*

Optimum: 150kPa/1.5bar - 500kPa/5bar

Operating Temperature:

Hot: Max 80°C*

Cold: Min 5°C

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

MINIMALIST MK2 BASIN MIXER

Installation Guide

Cold

Hot

Max 40mm

35mm min

38mm max

1. Cut a single hole minimum

35mm/maximum 38mm

diameter into the mounting

surface.

2. Assemble o-ring to the

bottom of the base plate and

assemble to the bottom of the

mixer.

3. Feed the mixer’s hoses and

mounting studs through the

hole cut in the mounting

surface, and position the

mixer where required.

5. Fit the mounting gasket,

mounting plate and mounting

nuts onto the mounting

studs. Tighten in place from

under the mounting surface.

6. Connect the ﬂexible hoses to

the hot and cold supplies

(hot on the left, cold on the

right).

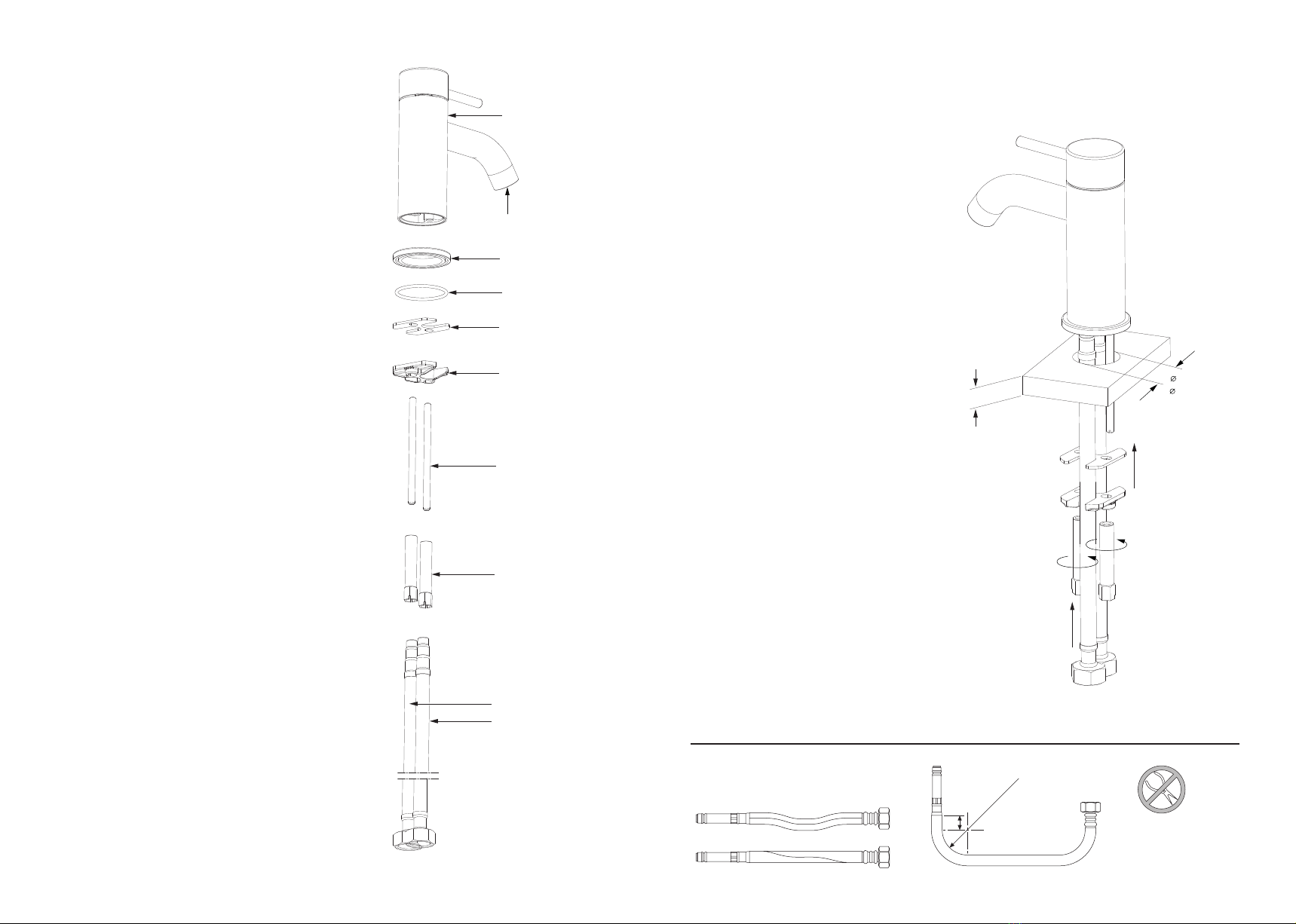

Installation:

Stream Shaper

Mounting Gasket

O-ring

Mounting Nuts

Flexible Inlet Hoses:

Hot

Cold

Mounting Studs

Mounting Plate

Base Plate

Mixer Assembly

Correct

Incorrect

Do not stretch or twist hose

DO NOT crush

hose or swaged

ends

R35mm Min

20mm

•

IMPORTANT: Please read all of the

instructions before installation.

General:

Methven recommends this product is installed

by a licensed plumber in compliance with all

relevant regional regulations.

Do not hydrostatic test the installation with

this mixer installed. Damage to the ceramic

cartridge may occur.

All pipe work must be thoroughly ﬂushed prior

to the installation of the mixer.

In-line ﬁlters must be ﬁtted on both hot and

cold supplies to prevent foreign particles

damaging the ceramic cartridge.

Do not remove the ceramic cartridge from the

mixer when installing.

After installation all connections must be

checked for leaks.

All outlets used primarily for personal hygiene

shall deliver water at a safe temperature as per

regional regulations.

This mixer is not recommended for use in

uncontrolled heating systems such as

wet-backs or solar heating units unless a

suitable tempering valve is ﬁtted.

If limited water ﬂow is experienced, locate

aerator and ﬁlter washers and clean away

foreign material as required.

It is the responsibility of the installer to ensure

a waterproof seal is achieved between the

product and mounting surface. If in doubt

about the quality of the seal, remove the

product and reinstall using silicone to ensure a

seal is achieved.

•
