INTRODUCTION

Metrologic’s MX009 USB Cable is a device that converts serial RS232 formatted

data to either USB Keyboard or USB Serial communication protocol. The MX009

can be used with all Metrologic products equipped with an RS232 interface, as

well as all versions of Metrologic PowerLink compatible scanners.

All versions of Metrologic’s PowerLink compatible scanners are equipped

with RS232 transmit and receive communication lines.

•HOW DOES THE MX009 USB CABLE OPERATE?

The scanner transmits scanned data via RS232 communication to the

MX009. The MX009 then converts the data from RS232 to either USB

Keyboard or USB Serial data. The MX009 will only function with Metrologic

scanners that are equipped with RS232 communication capabilities. All

PowerLink compatible scanners are equipped with the ability to

communicate RS232 independent of the interface purchased. For a list of

Metrologic PowerLink compatible scanners, refer to page 5.

Some older Metrologic scanners may not be used with an MX009

since they have only one interface available. For example, the

MS951 with OCIA interface will not function with an MX009

because it does not have RS232 capabilities.

•WHAT IS THE DIFFERENCE BETWEEN

USB KEYBOARD EMULATION AND USB SERIAL EMULATION?

When the MX009 is set-up for Keyboard Emulation, the scanned data will

appear in the active PC application as if the keys were pressed on the PC’s

keyboard.

When the MX009 is set-up to communicate as a USB Serial device, the data

emulates serial (RS232) data through the use of a Metrologic developed

driver. The device will then work with existing serial (RS232) applications.

The drivers can be downloaded at:

For Windows 2000/XP Operating Systems

ftp://ftp.metrologic.com/pub/download/software/mtlgpos.zip

For Windows 98 (Second Edition) Operating System

ftp://ftp.metrologic.com/pub/download/software/mtlgpos98.zip

The MX009 leaves the factory set for either USB Keyboard Emulation or

USB Serial Emulation. Refer to pages 8 - 18 of this manual to determine the

set-up of your MX009.

INTRODUCTION

•HOW IS THE MX009 CONFIGURED FOR USB KEYBOARD EMULATION?

This guide contains the configuration bar codes necessary to ensure that the

scanner communicates properly with the MX009. The scanner

communicates using RS232 protocol. The default (RS232) settings of the

scanner are as follows:

•For Non-PowerLink Scanners

9600 baud, 7 data bits, 2 stop bits and space parity

•For PowerLink Scanners

9600 baud, 8 data bits, 1 stop bits and no parity

In addition, the scanner uses ACK/NAK and XON/XOFF software

handshaking, and the data transmission ends with both carriage return and

line feed suffixes.

On non-PowerLink scanners, the 1st and 2nd prefixes are used to set the

country of the keyboard.

NOTE #1

Please note, some of the older Metrologic products allow for a maximum

of 2 prefixes. Because 2 prefixes are required for setting the country,

custom prefixes cannot be set on these products. Please refer to the

scanner configuration guide for the number of configurable prefixes

available on your product.

Example #1: MS951, German Keyboard, Bar Code = 012345, No custom

prefixes available.

Configuration: <Ctl-V> <D> <012345> <CR><LF>

Pref #1 Pref #2 Data Terminators

Data Transmitted = 012345<CR>

Prefixes #1 and #2 specify the German keyboard and the <CR> <LF>

terminators are needed by the MX009 for framing the data. Only 2 custom

prefixes are available on the MS951*, MS6720, MS700, MS860, Tech

Series, IS4120* and IS4220*.

* Discontinued Models

INTRODUCTION (CONT.)

•HOW IS THE MX009 CONFIGURED FOR USB SERIAL EMULATION?

This guide contains the configuration bar codes necessary to ensure that the

scanner communicates properly with the MX009. The scanner

communicates using RS232 protocol. The default (RS232) settings of the

scanner are as follows:

•For Non-PowerLink Scanners

9600 baud, 7 data bits, 2 stop bits and space parity

•For PowerLink Scanners

9600 baud, 8 data bits, 1 stop bits and no parity

In addition, the scanner uses ACK/NAK and XON/XOFF software

handshaking, and the data transmission ends with both carriage return and

line feed suffixes.

NOTE #2

When using USB Serial, special prefixes are not required.

MX009 USB CABLE OPTIONS

PART NUMBER CONNECTOR TYPE

STRAIGHT

COILED

USB

END

SCANNER

END

COMPATIBLE SCANNER MODELS

Discontinued scanner models

are shown in grey.

MX009-2MA7

Type A

10-pin

RJ45

Male

All versions of the:

MS6220, MS6520, IS6520, MS7100, MS7220,

MS9500, MS3580 and IS3580

MX009-2FA7

Type A

10-pin

RJ45

Female

MS6720-14, IS4225-14, IS4225-81

MS951-14, MS961-14, IS4220-14, IS4220-81

MX009-2WA7 S Type A

25-pin

D-Sub

Female

MS860-1, MS860-2, MS860-11, MS860-17

MS700-1, MS700-2, MS700-11, MS700-17

MX009-2MB7

Locking

Type A

10-pin

RJ45

Male

All versions of the:

MS6220, MS6520, IS6520, MS7100, MS7220,

MS9500, MS3580 and IS3580

MX009-2FB7

Locking

Type A

10-pin

RJ45

Female

MS6720-14, IS4225-14, IS4225-81

MS951-14, MS961-14, IS4220-14, IS4220-81

MX009 USB KEYBOARD EMULATION CABLES

MX009-2WB7 S

Locking

Type A

25-pin

D-Sub

Female

MS860-1, MS860-2, MS860-11, MS860-17,

MS700-1, MS700-2, MS700-11, MS700-17

PART NUMBER CONNECTOR TYPE

STRAIGHT

COILED

USB

END

SCANNER

END

COMPATIBLE SCANNER MODELS

Discontinued scanner models

are shown in grey.

MX009-2MA8

Type A

10-pin

RJ45

Male

All versions of the:

MS6220, MS6520, IS6520, MS7100, MS7220,

MS9500, MS3580 and IS3580

MX009-2FA8

Type A

10-pin

RJ45

Female

MS6720-14, IS4225-14, IS4225-81

MS951-14, MS961-14, IS4220-14, IS4220-81

MX009-2WA8 S Type A

25-pin

D-Sub

Female

MS860-1, MS860-2, MS860-11, MS860-17

MS700-1, MS700-2, MS700-11, MS700-17

MX009-2MB8

Locking

Type A

10-pin

RJ45

Male

All versions of the:

MS6220, MS6520, IS6520, MS7100, MS7220,

MS9500, MS3580 and IS3580

MX009-2FB8

Locking

Type A

10-pin

RJ45

Female

MS6720-14, IS4225-14, IS4225-81

MS951-14, MS961-14, IS4220-14, IS4220-81

MX009 USB SERIAL EMULATION CABLES

MX009-2WB8 S

Locking

Type A

25-pin

D-Sub

Female

MS860-1, MS860-2, MS860-11, MS860-17

MS700-1, MS700-2, MS700-11, MS700-17

MX009 PART NUMBER DESIGNATION AND ACCESSORIES

PARTS AND ACCESSORIES

Part No. Description

MX009 USB Converter Cable

MX009-2xx7xUSB Keyboard Emulation Cable

MX009-2xx8xUSB Serial Emulation Cable

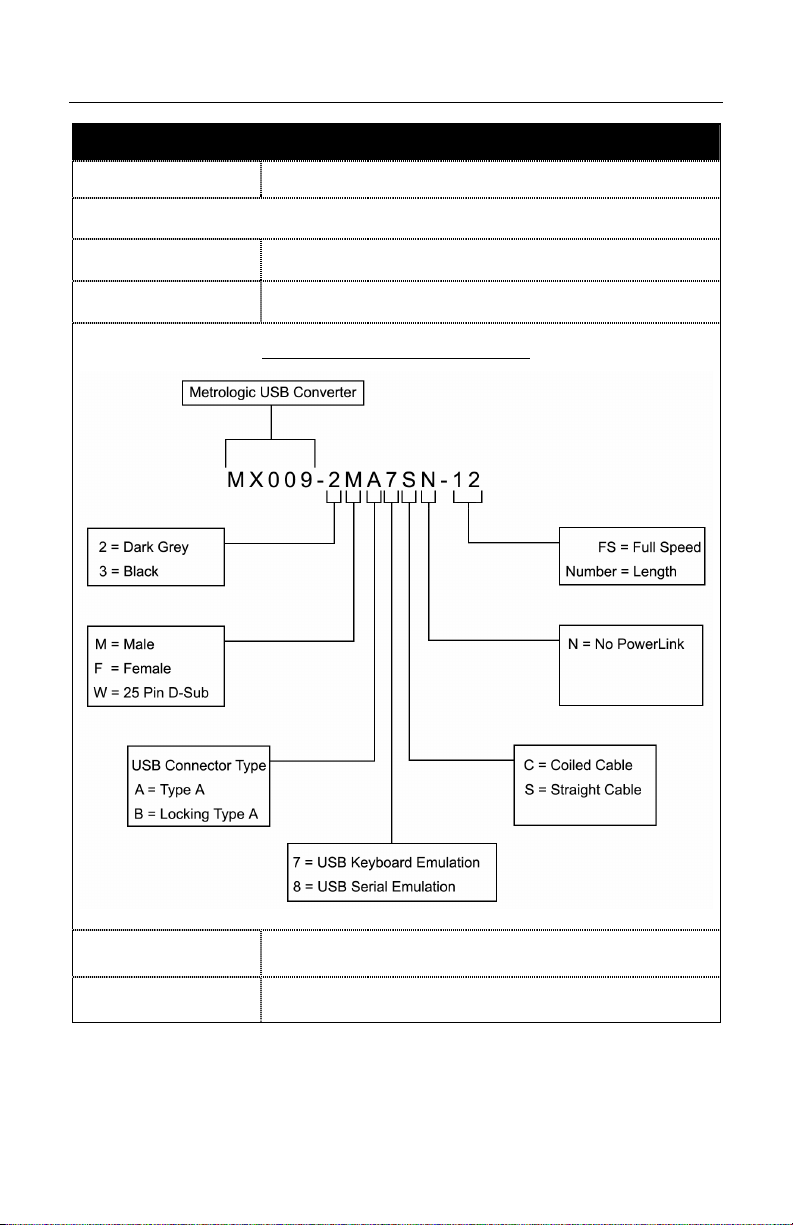

PART NUMBER DESIGNATION

Application

Dependent AC to DC Power Transformer (Optional)

00-02574XMX009 USB Converter Cable Configuration Guide †

†Available for download on Metrologic's website, www.metrologic.com.

To order additional items, contact the dealer, distributor or call Metrologic’s Customer

Service Department at 1-800-METRO or 1-800-436-3876.

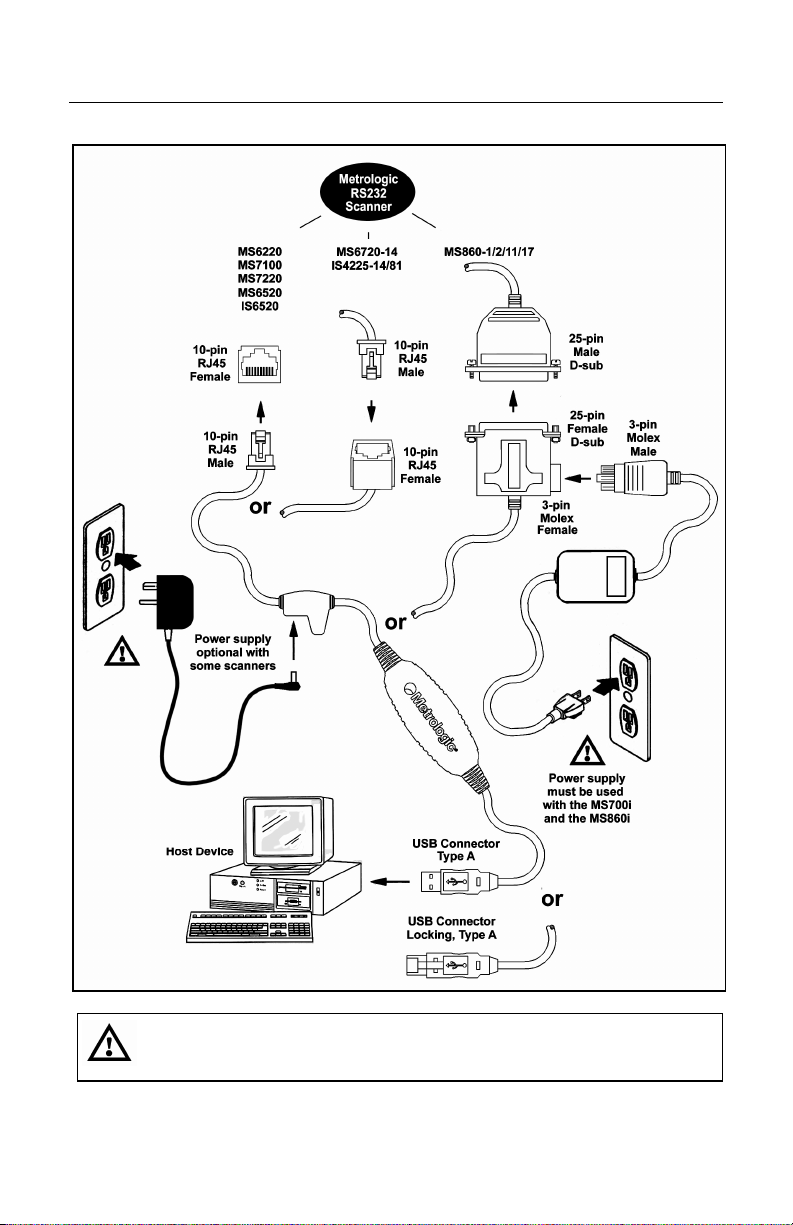

CABLE INSTALLATION

Make sure the AC input requirements of the power supply match

the AC outlet. The outlet should be near the equipment and easily

accessible.
