Microchip Technology ATBTLC1000 Xplained Pro Bedienungsanleitung

ATBTLC1000-XPRO

ATBTLC1000 Xplained Pro User Guide

Introduction

The ATBTLC1000 Xplained Pro is an extension board to evaluate the performance of the ultra-low power

Bluetooth® Low Energy 5.0 ATBTLC1000-MR110CA module. The ATBTLC1000 Xplained Pro board is

designed to provide BLE functionality to the Xplained Pro evaluation platform. This kit provides access to

the features of the ATBTLC1000-MR110CA module and explains how to integrate the module in a custom

design.

Features

• ATBTLC1000-MR110CA Bluetooth Module

– Compliant with Bluetooth V5.0 Core Specification, ETSI EN 300 328 and EN 300 440 Class 2,

FCC CFR47 Part 15, and ARIB STD-T66

– ARM® Cortex®-M0 32-bit processor

• AT30TSE758A Digital Temperature Sensor

– Integrated temperature sensor, non-volatile registers, and serial EEPROM

– Two wire I2C and SMBus compatible serial interface

• Xplained Pro Hardware Identification System using ATSHA204A

• Power LED

• Power Debugger Support using Current Measurement Header

• Provision for External Flash (Footprint Only). Recommended MPN: IS25LD020-JNLE.

• Debug I2C Header

• Debug UART/SPI Extension Port

• CHIP EN Switch for ATBTLC1000 Module (Footprint Only)

• SWD Header

• 32 kHz Crystal

Table of Contents

Introduction......................................................................................................................1

Features.......................................................................................................................... 1

1. Kit Overview.............................................................................................................. 4

2. Getting Started.......................................................................................................... 5

2.1. Xplained Pro Quick Start.............................................................................................................. 5

2.2. Design Documentation and Relevant Links................................................................................. 5

3. Xplained Pro.............................................................................................................. 7

3.1. Hardware Identification System....................................................................................................7

3.2. Xplained Pro Standard Extension Header....................................................................................7

4. Hardware Specifications............................................................................................9

4.1. Electrical Characteristics.............................................................................................................. 9

4.2. Headers and Connectors............................................................................................................. 9

4.3. Peripherals................................................................................................................................. 11

5. Hardware Revision History and Known Issues........................................................13

5.1. Identifying Product ID and Revision........................................................................................... 13

5.2. Revision 2...................................................................................................................................13

6. ATBTLC1000XPRO-ADP Adapter Board................................................................ 15

6.1. Kit Overview............................................................................................................................... 15

6.2. Need for the Kit ......................................................................................................................... 15

6.3. Hardware....................................................................................................................................15

7. Evaluation Kit Interface Details (Without Adapter Board)........................................17

8. Document Revision History..................................................................................... 19

The Microchip Web Site................................................................................................ 20

Customer Change Notification Service..........................................................................20

Customer Support......................................................................................................... 20

Microchip Devices Code Protection Feature................................................................. 20

Legal Notice...................................................................................................................21

Trademarks................................................................................................................... 21

Quality Management System Certified by DNV.............................................................22

ATBTLC1000-XPRO

Worldwide Sales and Service........................................................................................23

ATBTLC1000-XPRO

1. Kit Overview

The ATBTLC1000 Xplained Pro is an extension board containing the ultra-low power Bluetooth module

ATBTLC1000-MR110CA for the Xplained Pro platform. The kit can be connected to any extension header

on an Xplained Pro MCU board.

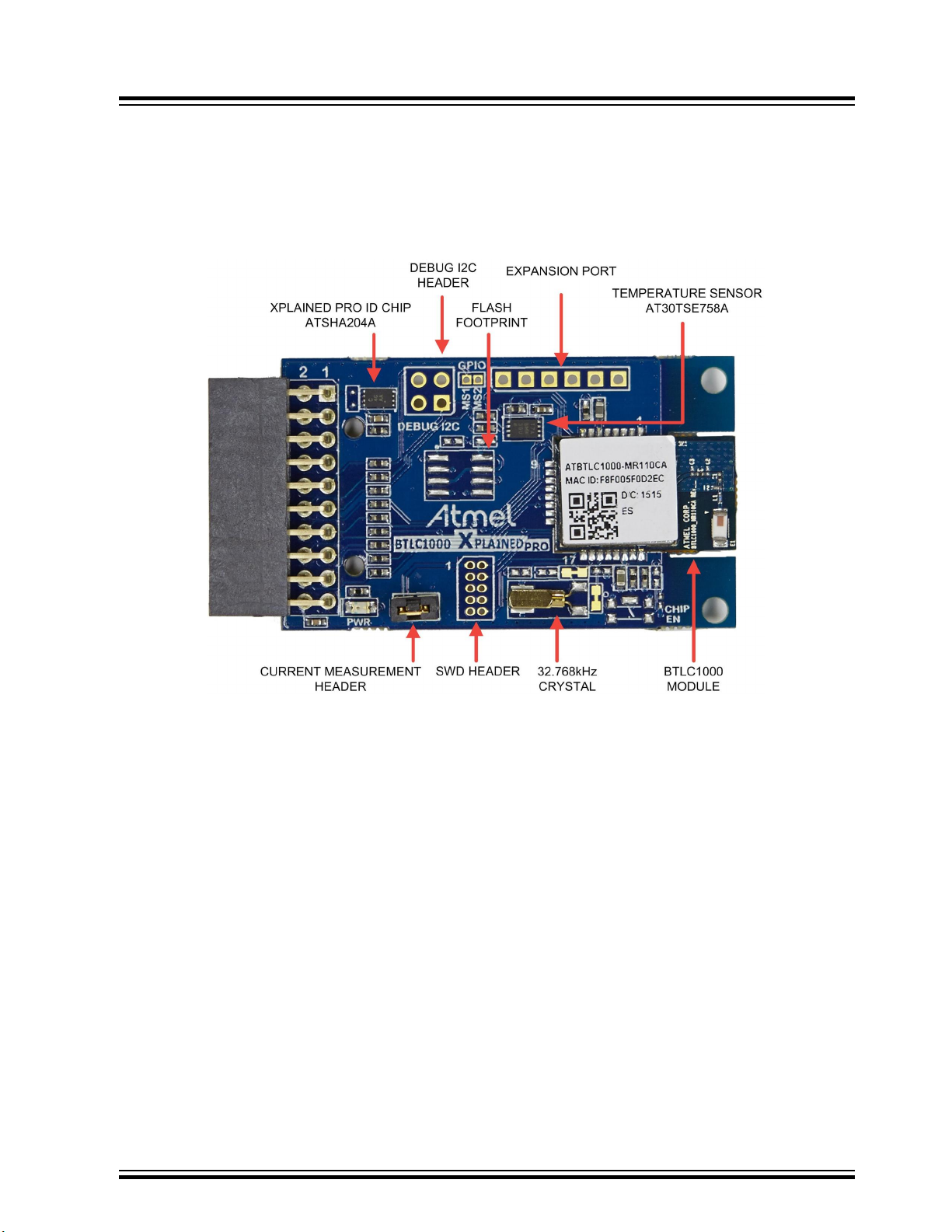

Figure 1-1. ATBTLC1000 Xplained Pro Extension Board

ATBTLC1000-XPRO

Kit Overview

2. Getting Started

2.1 Xplained Pro Quick Start

Steps to start exploring the Xplained Pro platform:

1. Download and install Atmel Studio.

2. Launch Atmel Studio.

3. Connect the ATBTLC1000 Xplained Pro extension board with an Xplained Pro MCU board and

connect a USB cable to the DEBUG USB port on the Xplained Pro MCU board.

When the Xplained Pro MCU kit is connected to the computer for the first time, the operating system

installs the driver software automatically. This driver supports 32-bit and 64-bit versions of Microsoft®

Windows® XP, Windows Vista®, Windows 7, Windows 8, Windows 10, and Windows Server 2012.

When the Xplained Pro MCU board is powered, the power LED (green) glows, and Atmel Studio

automatically detects the specific Xplained Pro MCU and extension board(s) that are connected. The

landing page of the kit in the Atmel Studio has an option to launch the Atmel Software Framework (ASF)

and the Atmel START example application codes for the kit. The target device is programmed and

debugged by the on-board embedded debugger and therefore no external programmer or debugger tool

is required.

2.2 Design Documentation and Relevant Links

The following list contains links to the most relevant documents and software for the ATBTLC1000

Xplained Pro.

•Xplained Products - Xplained evaluation kits are a series of easy-to-use evaluation kits for Microchip

microcontrollers and other Microchip products.

– Xplained Nano - used for low pin count devices and provides a minimalistic solution with access

to all I/O pins of the target microcontroller.

– Xplained Mini - used for medium pin count devices and adds Arduino Uno compatible header

footprint and a prototyping area.

– Xplained Pro - used for medium-to-high pin count devices that features advanced debugging

and standardized extensions for peripheral functions.

Note: All the above kits have on-board programmers/debuggers, which creates a set of low-cost

boards for evaluation and demonstration of features and capabilities of different Microchip products.

•Atmel Studio - Free IDE for the development of C/C++ and assembler code for microcontrollers.

•EDBG User Guide - User guide containing more information about the on-board Embedded

Debugger.

•Data Visualizer - Data Visualizer is a program used for processing and visualizing data. The Data

Visualizer can receive data from various sources such as the EDBG Data Gateway Interface found

on Curiosity Nano and Xplained Pro boards and COM Ports.

•Advanced Software Framework - MCU software library providing a large collection of embedded

software for MCUs.

•Design Documentation - Package containing CAD source, schematics, BOM, assembly drawings, 3D

plots, layer plots, and so on.

•ATBTLC1000 Xplained Pro on Microchip website - Microchip website link.

ATBTLC1000-XPRO

Getting Started

•ATBTLC1000 BluSDK - Software, firmware, applications, and tools packages. Located in the

software section of the page.

ATBTLC1000-XPRO

Getting Started

3. Xplained Pro

Xplained Pro is an evaluation platform which contains a series of microcontroller boards (evaluation kits)

and extension boards. Atmel Studio is used to program and debug the microcontrollers on these boards.

Atmel Studio includes Advanced Software Framework (ASF) and Atmel START, which has drivers and

demo code, and Data Visualizer, which supports data streaming and advanced debugging. Xplained Pro

evaluation kits can be connected to a wide range of Xplained Pro extension boards through standardized

headers and connectors. Xplained Pro extension boards have identification (ID) chips to uniquely identify

which boards are connected to the Xplained Pro evaluation kits.

3.1 Hardware Identification System

All Xplained Pro extension boards come with an identification chip (ATSHA204A CryptoAuthentication™

chip) to uniquely identify the boards that are connected to the Xplained Pro Evaluation Kit. This chip

contains information that identifies the extension with its name and some extra data. When an Xplained

Pro extension is connected to an Xplained Pro Evaluation Kit, the information is read and sent to the

Atmel Studio. The following table shows the data fields stored in the ID chip with example content.

Table 3-1. Xplained Pro ID Chip Content

Data Field Data Type Example Content

Manufacturer ASCII string Microchip'\0'

Product name ASCII string Segment LCD1 Xplained Pro'\0'

Product revision ASCII string 02'\0'

Product serial number ASCII string 1774020200000010’\0’

Minimum voltage [mV] uint16_t 3000

Maximum voltage [mV] uint16_t 3600

Maximum current [mA] uint16_t 30

3.2 Xplained Pro Standard Extension Header

All Xplained Pro kits have many dual-row, 20-pin, 100 mil extension headers. The Xplained Pro MCU

boards have male headers, while the Xplained Pro extensions have their female counterparts. The

following table provides the pin description of all the connected pins.

Info: Not all pins are always connected on all extension headers.

The extension headers can be used to connect a variety of Xplained Pro extensions to Xplained Pro MCU

boards or to access the pins of the target microcontroller on the Xplained Pro boards.

ATBTLC1000-XPRO

Xplained Pro

Table 3-2. Xplained Pro Standard Extension Header

Pin Number Pin Name Description

1 ID Pin to communicate with the ID chip on an extension board.

2 GND Ground

3 ADC(+) Analog-to-Digital Converter; alternatively, a pin for the positive

terminal of a differential ADC.

4 ADC(-) Analog-to-Digital Converter; alternatively, a pin for the negative

terminal of a differential ADC.

5 GPIO1 General purpose I/O pin.

6 GPIO2 General purpose I/O pin.

7 PWM(+) Pulse-Width Modulation; alternatively, a pin for the positive part of a

differential PWM.

8 PWM(-) Pulse-Width Modulation; alternatively, a pin for the negative part of a

differential PWM.

9 IRQ/GPIO Interrupt request pin and/or general purpose I/O pin.

10 SPI_SS_B/

GPIO

Slave select pin for Serial Peripheral Interface (SPI) and/or general

purpose I/O pin.

11 I2C_SDA Data pin for I2C interface. Always connected, bus type.

12 I2C_SCL Clock pin for I2C interface. Always connected, bus type.

13 UART_RX Receiver pin of target device UART.

14 UART_TX Transmitter pin of target device UART.

15 SPI_SS_A Slave select for SPI. This pin should preferably not be connected to

anything else.

16 SPI_MOSI SPI master out slave in pin. Always connected, bus type.

17 SPI_MISO SPI master in slave out pin. Always connected, bus type.

18 SPI_SCK SPI clock pin. Always connected, bus type.

19 GND Ground pin for extension boards.

20 VCC Power pin for extension boards.

ATBTLC1000-XPRO

Xplained Pro

4. Hardware Specifications

4.1 Electrical Characteristics

ATBTLC1000 Xplained Pro can be connected to several Xplained Pro MCU boards and manually

connected to other hardware. Xplained Pro MCU board(s) that does not have 3.3V as its primary target

voltage will read all ID devices on connected extensions to check if they support the target voltage before

enabling it to the extension headers. The table below shows the static content written in the ID chip.

Table 4-1. ATBTLC1000 Xplained Pro ID Chip Content

Data field Content

Product name ATBTLC1000-XPRO

Minimum operation voltage 1.8V

Maximum operation voltage 3.6V

Maximum current 10mA

See also Hardware Identification System.

4.2 Headers and Connectors

4.2.1 ATBTLC1000 Xplained Pro Extension Header

The ATBTLC1000 Xplained Pro implements one Xplained Pro standard extension header marked with

EXT1 in silkscreen. This header helps to connect the board to an Xplained Pro MCU board. The pinout

definition for the extension header is shown in the following table.

Table 4-2. ATBTLC1000 Xplained Pro Extension Header EXT1

Pin on EXT1 Function Description

1 ID Communication line to the ID chip

2 GND Ground

3 NC Not connected

4 NC Not connected

5 NC Not connected

6 GPIO/WAKE Always-on external wake up

7 NC Not connected

8 PWM-/RTC_CLKP 32.768 kHz RTC clock (optional feature)

9 GPIO_MS1 Mixed signal/Analog interface pin

10 GPIO/CHIP_EN Master enable for chip

11 TWI_SDA I2C SDA

ATBTLC1000-XPRO

Hardware Specifications

...........continued

Pin on EXT1 Function Description

12 TWI_SCL I2C SCL

13 UART_TX UART TX

14 UART_RX UART RX

15 SPI_SS_A SPI SS

16 SPI_MOSI SPI MOSI

17 SPI_MISO SPI MISO

18 SPI_SCK SPI Clock

19 GND Ground

20 VCC Target supply voltage

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
