Thank you for purchasing a Universal TechBox™ UTB-A2-14 or UTB-HR-A2-14. Please read

these instructions thoroughly before installing or assembling this product.

PRODUCT FEATURES

THANK YOU

Universal TechBox™ Series

UTB-A2-14 and UTB-HR-A2-14

Instruction Sheet

• Convenient system protects equipment and may be mounted underneath furniture.

• Accommodates both 1 and 2 RU configurations.

• Available in full- and half-rack models.

• Lock mechanism for added security.

• Universal mounting system cutout on the bottom designed to accommodate small devices.

NOTE:

• This product is compatible with select Forward accessories.

• These instructions apply to both UTB-A2-14 (full-rack) and

UTB-HR-A2-14 (half-rack models).

Page 2

WEIGHT RATING

Model Numbers Weight Rating

UTB-A2-14 and UTB-HR-A2-14 35 lbs. (15.9 kg) Maximum Total Rated Load

WARNING: This product is intended for use only with the products and maximum weights indicated. Use with other products or

products heavier than the maximum weights indicated may result in instability causing possible injury. Total equipment weight must

not exceed 35 lbs. (15.9 kg).

AVERTISSEMENT: Cette produit est conçu pour être utilisé uniquement avec les produits et les poids maximum indiqué. unique-

ment avec les produits et les poids maximaux indiqués. En cas d'utilisation avec d'autres produits ou des produits plus lourds que

le poids maximal indiqué, le chariot peut devenir instable et causer des blessures. Le poids total de l'équipement ne doit pas

dépasser 15.9 kg (35 lbs).

SUPPLIED COMPONENTS AND HARDWARE

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, understand and follow the following information can result in serious personal injury, damage to the

equipment or voiding of the warranty. It is the responsibility of the Installer/User to ensure that this product is loaded according to

specifications.

WARNING: Middle Atlantic Products, Inc. electrical systems conform to and should be properly grounded in compliance with

requirements of the current National Electrical Code or codes administered by local authorities.

All electrical products may present a possible shock or fire hazard if improperly installed or used. Middle Atlantic Products, Inc.

electrical products may bear the mark of a Nationally Recognized Testing Laboratory (NRTL) and should be installed in confor-

mance with current local and/or the National Electrical Code.

WARNING: A warning alerts you to a situation that could result in serious personal injury or death.

AVERTISSEMENT: Un avertissement vous avertit d'une situation pouvant entraîner des blessures graves ou la mort.

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ

AVERTISSEMENT:Refus de lire, comprendre et suivre la renseignements suivants peut traduire par de graves blessures, des

dommages à l'équipement ou invalider la garantie. Il est la responsabilité de l'installateur / utilisateur de s'assurer que ce produit

est chargé conformément aux spécifications.

AVERTISSEMENT: Middle Atlantic Products, Inc. électrique systèmes conformes à devraient être mis à la terre dans conformité

avec les exigences de la National actuelle ou comme les codes électrique administré par les autorités locales autorités.

Tous les produits électriques peuvent présenter un choc ou un incendie danger si elle est mal installé ou utilisé. Middle Atlantic

Products, Inc. produits électriques peuvent porter la marque d'un Nationally Recognized Testing Laboratory (NRTL) et doit être

installé en conformité avec courant local et/ou le National Electrical Code.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Clean only with dry cloth.

• Only use attachments/accessories specified by the manufacturer.

• Lire ces instructions.

• Conservez ces instructions.

• Respectez tous les avertissements.

• Suivez toutes les instructions.

• Nettoyer uniquement avec un chiffon sec.

• N'utilisez que des accessoires spécifiés par le fabricant.

DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

DANGER TENSION DANGEREUSE: Le symbole de la pointe de flèche, dans un triangle équilatéral, est destiné à alerter l'utilisateur sur la

présence de tension dangereuse non isolée dans l'enceinte du produit qui peut être d'une ampleur suffisante pour constituer un risque d'électrocu-

tion.

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phil. screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

FOR RACKRAIL PAIR, BOX TOP, AND BOX BOTTOM

(5x) 10-32 x 5

Studs

(5x)

10-32 Flange Nut

Page 3

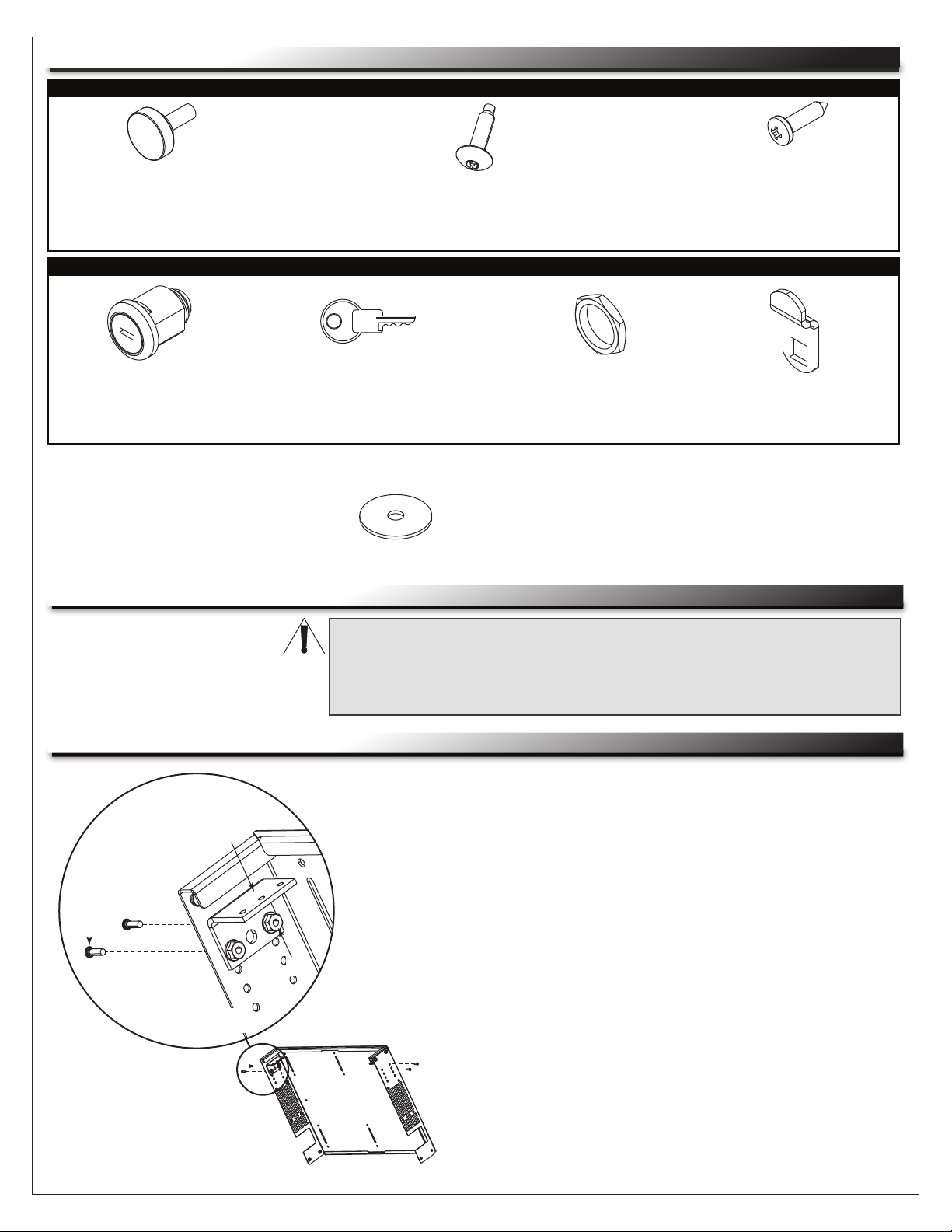

SUPPLIED COMPONENTS AND HARDWARE (CONTINUED)

INSTALLING RACKRAIL AND THUMBSCREWS TO THE BOX TOP

NOTE: Decide if you’re going to configure your

Universal TechBox for a 1 RU or 2 RU assembly before

proceeding.

1. Based on 1 RU or 2 RU assembly, mount the corresponding

sized rackrail pair using (4x) studs (A) from the outside of the

box top through the smaller holes of the rackrail into (4x)

flange nuts (B) as shown. (FIGURE A)

FIGURE A

FACEPLATE LOCK

FOR RACKRAIL PAIR, BOX TOP, AND BOX BOTTOM

(4x) Key

(Model No. B399A-FD)

(2x)

Cylinder

(2x) 3/4-24

Lock Nut

(2x) Cam

(4x) 10-32 x 3/4” HTX

Security Screw

• #2 Phillips Screwdriver

• Hammer

• 7/8” Socket

• HTX Security Screw Bit

(Model No. TBIT, Provided)

REQUIRED TOOLS

WARNING: Use tools with caution and follow all necessary safety

protocols.

AVERTISSEMENT: Utiliser des outils avec prudence et suivre

tous les protocoles de sécurité nécessaires.

Rackrail

(1 RU Piece Shown)

Box Top

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phil. screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

(10x) 10 x 3/4”

Phil. Pan Head

Wood Screw

(8x) 10-32 x 3/4”

Thumb Screw

(20x) Washer

NOTE: Washers included

for equipment mounting

convenience.

Page 4

INSTALLING RACKRAIL AND THUMBSCREWS TO THE BOX TOP (CONTINUED)

ATTACHNG THE BOX TOP TO THE UNDERSIDE OF YOUR FURNITURE

2. Use (2x per side) thumb screws (C, pictured) or security screws (D) and partially attach them

(approximately 3 full turns) on each side of the box top as shown. (FIGURE B)

NOTE: Attach thumb screws or security screws to the box top

based on your chosen 1 RU or 1 RU configuration as follows.

1 RU: Use the upper threaded holes.

2 RU: Use the lower threaded holes.

NOTE:

• Verify the thickness of your furniture can accommodate the 10 x 3/4” wood screws (E) used in this topic

before proceeding.

• Consider any seating accommodations when positioning the box top to the underside of your furniture.

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phillips screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

FIGURE B

Box Top

C or D

Upper Threaded Holes

for 1 RU Configuration

Lower Threaded Holes

for 2 RU Configuration

Box Top

FIGURE C

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phil. screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

Slot

(Shaded)

Page 5

ATTACHNG THE BOX BOTTOM TO THE BOX TOP

ATTACHNG THE BOX TOP TO THE UNDERSIDE OF YOUR FURNITURE (CONTINUED)

FOR FULL-RACK MODELS ONLY: Use (4x) additional wood screws (E) through fixed holes and slots

on the box top and into the underside of your furniture as shown. (FIGURE D)

FOR HALF-RACK MODELS ONLY: Use (2x) additional wood screws (E) through fixed holes and slots

on the box top and into the underside of your furniture.

4. Use racksrews (not provided) to install your equipment on to the rackrails.

2. Tighten all thumb screws (by hand) or security screws (using the security bit provided).

FIGURE D

Box Top

Fixed Hole

(Shaded)

Slot

(Shaded)

1. Move the box bottom up and backward to hook the slots on to the thumb screws (C, pictured) or

security screws (D) on each side of the box top as shown. (FIGURE E)

FIGURE E

NOTE: Carefully position installed equipment cabling through

the side openings on the both sides towards the rear of the box

top and bottom during this attachment procedure.

NOTE: Side view of box top.

NOTE: Side view of box bottom.

Box Top

Box Bottom

C or D

Side

Openings

(Shaded)

Side Openings (Shaded)

Page 6

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phil. screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

INSTALLING THE LOCK ON THE FACEPLATE (OPTIONAL)

1. If you are using the lock, use a hammer to carefully tap out the perforated hole on the faceplate as

shown. (FIGURE F)

3. Use the key (G) to twist the lock cylinder (F) in to the

vertical position and then remove the key.

(FIGURE H)

5. Use a key to twist the lock cylinder in to the horizontal (open)

position and then attach the cam (J) to the cylinder using the lock

washer and screw as shown. (FIGURE H)

2. Insert a lock cylinder (F) with pre-installed key (G)

through the hole in the faceplate.

(FIGURE G)

4. Use a 7/8" socket and a lock nut (H) to attach the

cylider to the faceplate. (FIGURE J)

FIGURE F

NOTE: The 1 RU

faceplate

is shown.

Perforated Hole

Knockout

FIGURE H

Twist and remove key when

lock is in vertical position.

FIGURE G

FIGURE J

FIGURE K

Lock Washer

and Screw

Page 7

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phil. screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

1. Attach the flange on the lower side of the faceplate inside the lip of the box bottom front, and then push

the faceplate into place. (FIGURE L)

ATTACHNG THE FACEPLATE TO THE BOX

FIGURE L

FACEPLATE ATTACHMENT WITHOUT THE LOCK: Use (2x) thumb screws (C) through the faceplate

and into the overlapping threads on the box bottom and top on each side of the front as shown.

(FIGURE M)

FACEPLATE ATTACHMENT WITH THE LOCK: Use a key (G) to twist the lock cylinder (F) in to the

horizontal (open) position, push the top of the faceplate into the top of the box, and then twist the key

in the lock cylinder in to the vertical (locked) position.

NOTE: When the lock is used, the (2x) thumb screws (C) may be installed, but are not necessary.

7. Install the other faceplate to the back of the box by repeating "Installing the Lock on the Faceplate

(Optional)" on page 6 and "Attachng the Faceplate to the Box" on page 7.

FIGURE M

Page 8

WARRANTY

For warranty information, refer to http://www.middleatlantic.com/company/about-us.aspx#warranty

Corporate Headquarters

Voice: 973-839-1011 - Fax: 973-839-1976 - International Voice: +1 973-839-8821 -

Fax: +1 973-839-4982 - www.middleatlantic.com - [email protected]

Middle Atlantic Canada

Voice: 613-836-2501 - Fax: 613-836-2690 - ca.middleatlantic.com -

[email protected]

Middle Atlantic EMEA Technical Support

Voice: +31 (0) 495 726002 - [email protected]

Factory Distribution

United States: New Jersey, California, Illinois - Canada: Ontario - The Netherlands: Weert

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company.

TIP: You may want to provide a 19”

(482.6 mm) inward depth from the edge of

your furniture in order to provide adequate leg

clearance.

1. Use a #2 Phil. screwdriver and (2x) wood

screws (E) through slots in diagonally

opposite corners of your box top to attach the

top into into the underside of your furniture as

shown. (FIGURE C)

2. Make final positioning adjustments to your box

top while tightening the two wood screws.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Middle Atlantic Products Rack & Stand Handbücher

Middle Atlantic Products

Middle Atlantic Products C5MM1 Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products RSHSUB-1S Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products SPN-R4 Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products VDM-2X1-WM Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products WMRK Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products Display Station Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products Lace Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products MRK AXS Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products VDM-600-M Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products DS-600SP-AL Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products Display Station Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products AX-SXR Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products TOR-2-20SP Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products UD1 Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products DS Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products ESSEX SIDE Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products MMB Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products AXS Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products Display Station DS-1000-SC-AL Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products C3 Slim Line Credenza Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products MK Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products RK-GD Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products Essex MMR Series Bedienungsanleitung

Middle Atlantic Products

Middle Atlantic Products SFR Series Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
