OWNER'S OPERATING AND

INSTALLATION MANUAL

for domestic and standard export ovens

Middleby Cooking Systems Group • 1400 Toastmaster Drive • Elgin, IL 60120 • (847)741-3300 • FAX (847)741-4406

PS636 Series Gas Ovens

P/N 66639

December 2014Rev. E

PS636 Series

Gas

Domestic & Std Export

ENGLISH

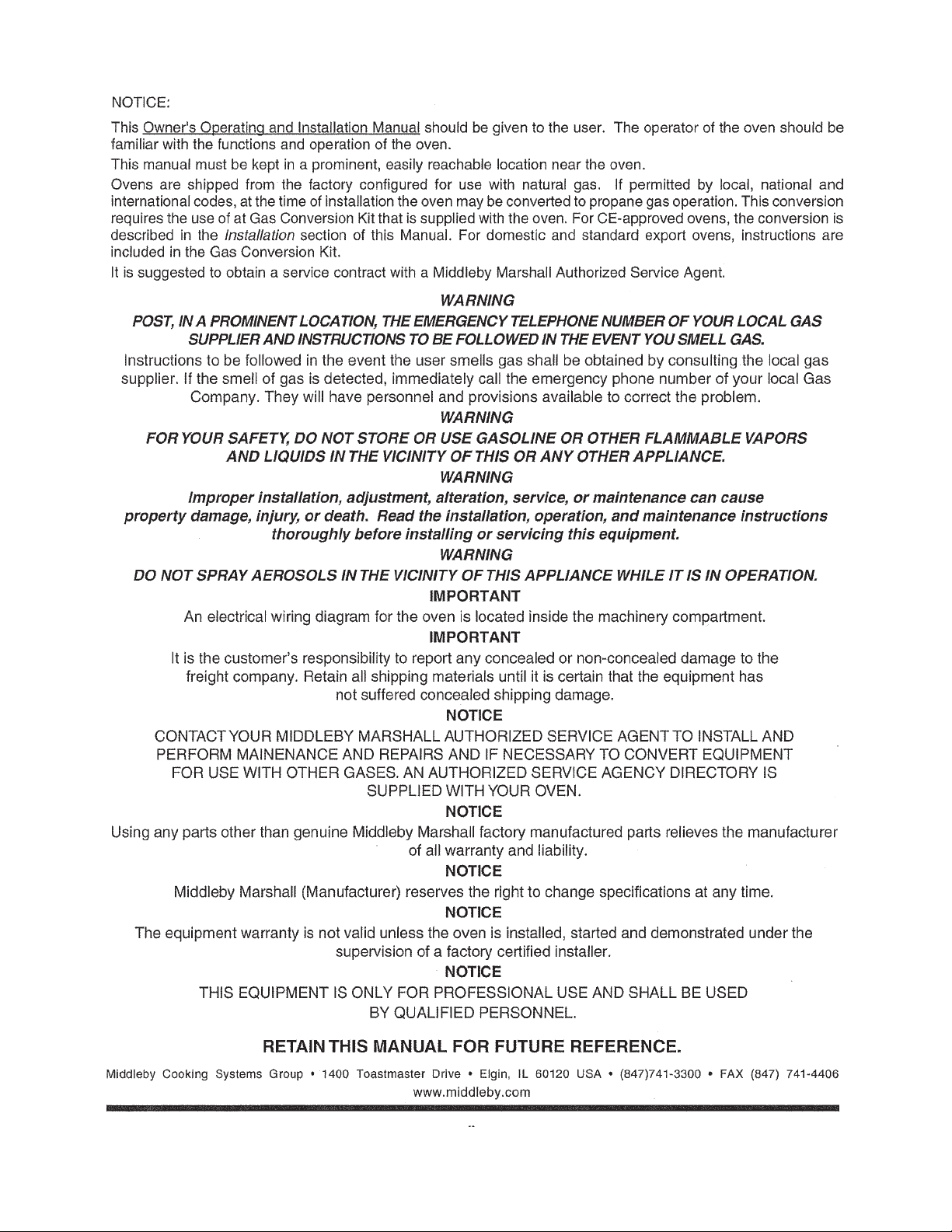

Model: Combinations:

• PS636G Gas • Single Oven

• Double Oven (Two-Stack)

• Triple Oven (Three-Stack)

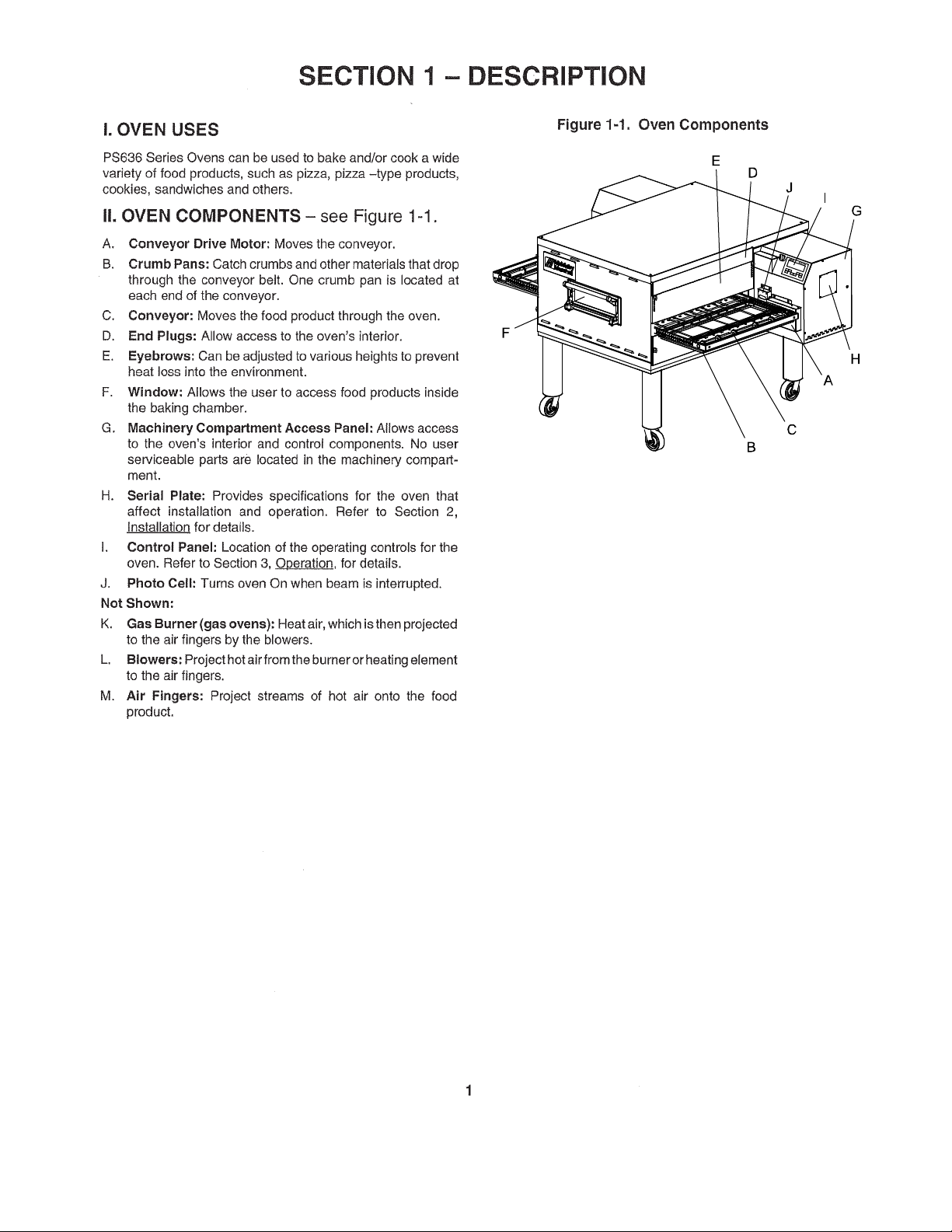

I. OVEN SPECIFICATIONS

Table 1-1 Dimensions Single Oven Double Oven Triple Oven

Overall Height 44″(1118mm) 62-3/8” (1635mm) 69-3/4″(1171mm)

Overall Depth 44-1/2″(1130mm) 44-1/2” (1130mm) 44-1/2” (1130mm)

Overall Length (w/o exit trays) 65-3/4″(1670mm) 65-3/4″(1670mm) 65-3/4″(1670mm)

Conveyor Width – belt width is 24″25-1/2″(648mm) 25-1/2″(648mm) 25-1/2″(648mm)

or 2 x 11” (279mm) or 2 x 11” (279mm) or 2 x 11” (279mm)

Recommended Minimum Clearances

Rear of Oven to Wall 0″(0mm) 0″(0mm) 0″(0mm)

Control end of conveyor to Wall 2″(50.8mm) 2″(50.8mm) 2″(50.8mm)

Non-control end of conveyor to Wall) 2″(50.8mm) 2″(50.8mm) 2″(50.8mm)

Table 1-2: General Specications PS636 GAS 24″ Belt

Weight 734 lbs. (333kg)

Rated Heat Input 75,000 BTU (18,892kcal, 22 kW/hr)

Maximum Operation Temperature 600°F / 315°C

Air Blowers Four Blowers at 3400 RPM (max)

Warmup Time 15 min.

Table 1-3: Electrical specications for PS363G gas ovens

Main Blower Control Circuit Phase Freq Current Poles Wires

Voltage Voltage Draw

208-240VAC 208-240VAC 1Ph 50/60Hz 4-3 Amp 2 Pole 3 Wire (2 hot, 1 gd)

Table 1-4: Gas orice and pressure specications for PS636G gas ovens

Gas Main Orice I.D. Supply (Inlet) Orice (Manifold) Bypass

Type PS745G Pressure Pressure Pressure

Natural 0.094 (2.375120mm) 8-12″W.C. (19.9 - 29.9mbar) 3.5″W.C. (8.7mbar) 0.3-0.35″W.C. (0.8-0.9 mbar)

Propane 0.057″(1.45mm) 11-14″W.C. (27.4 - 34.9mbar) 10.0″W.C. (24.9mbar) 0.9-1.0″W.C. (2.2-2.5 mbar)

IMPORTANT – Additional electrical information is provided on the oven’s serial plate, and on the wiring diagram inside the

machinery compartment.

NOTE

Wiring Diagrams are contained in Section 5 of this Manual

and are also located inside the oven at the

bottom of the Control Panel.

Additional electrical information is provided on the oven's serial plate.

This Manual Must Be Kept For Future Reference

GAS ORIFICE AND PRESSURE SPECIFICATIONS (PER OVEN CAVITY) - CE OVENS

AT,BG,CR

CZ,DK,EE

FI,GR,HR FI,CR,GR BG,CY,CR BE,CY,CZ

HU,IS,IE IE,HR,LU CZ,DK,EE EE,FR

IT,LV,LT NL,PL,SK SW,CH FI,GR,HR GR,IE,IT

NO,PT,RO SI,ES,CH AT,DK LV,LT,LU PL LT,LU,LV

SK,SI,ES DE TR,GB,CY CY,CZ NO,FI MT,NL,NO AT,DE PT,RO,SK

Main SE,CH,TR LU BE CZ,DE,MT DE,MT NI,CR SK,SI,SE HU,SK ES,CH Orice Rated

Gas Orice GB NL PL FR SK SK FR TR CH GB,PL (Manifold) Heat

Type dia.

I2H

I2L

I2E

I2E+

I3P

I3B/P

I3+

Pressure Input

G20 .0935″20 -- 20 20 -- -- -- -- -- -- 3.5” w.c. 22kW

Natural (2.375 mm) mbar mbar mbar 8.7mbar

G25 .0935″-- 25 -- -- -- -- -- -- -- 3.5” w.c. 22kW

Natural (2.375 mm) mbar -- 8.7mbar .

G30 .057″-- -- -- -- -- -- 28-30/50 30 37/50 28-30 10.0” w.c. 24.6kW

Butane (1.45 mm) mbar mbar mbar mbar 24.9mbar

G31 .057″-- -- -- -- 37 50 30 37/50 37 10.0” w.c. 22kW

Propane (1.45 mm) mbar mbar -- mbar mbar mbar 24.9mbar

SECTION 2 – INSTALLATION

WARNING – After any conversions, readjustments, or service work on the oven:

• Perform a gas leak test. • Test for proper combustion and gas supply.

• Test for correct air supply, particularly to the • Check that the ventilation system is in operation.

burner blower.

WARNING - Keep the appliance area free and clear of combustibles.

WARNING – The oven must be installed on an even (level) non-ammable ooring and any adjacent

walls must be non-ammable. Recommended minimum clearances are specied in the Description

section of this manual.

WARNING – Do not obstruct the ow of combustion and ventilation air to and from your oven. There

must be no obstructions around or underneath the oven. Constructional changes to the area where

the oven is installed shall not affect the air supply to the oven.

CAUTION: To reduce the risk of re, the appliance is to be mounted on oors of noncombustible construction

with noncombustible ooring and surface nish and with no combustible material against the underside there-

of, or on noncombustible slabs or arches having no combustible material against the underside thereof, such

construction shall in all cases extend not less than 12 inches (304mm) beyond the equipment on all sides.

CAUTION: For additional installation information, contact your local Authorized Service Agent.

NOTE – There must be adequate clearance between the oven and combustible construction. Clearance must

also be provided for servicing and for proper operation.

NOTE – An electrical wiring diagram for the oven is located inside the machinery compartment.

NOTE: All aspects of the oven installation, including placement, utility connections, and ventilation require-

ments, must conform with any applicable local, national, or international codes. These codes supersede the

requirements and guidelines provided in this manual.

NOTE: In the USA, the oven installation must conform to local codes. In the absence of local codes, gas oven

installations must conform with the National Fuel Gas Code, ANSI Z223.1. Gas and electric ovens, when

installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with

the National Electrical Code (NEC), or ANSI/NFPA70.

NOTE: In Canada, the oven installation must conform with local codes. In the absence of local codes, gas

oven installations must conform with the Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane

Gas Installation Code, CAN/CGA-B149.2, as applicable. Gas and electric ovens, when installed, must be

electrically grounded in accordance with local codes, or in the absence of local codes, with the Canadian

Electrical Code

CSA C22.2.

NOTE: In Australia, the oven installation must conform with local codes. In the absence of local codes, gas

oven installations must conform with the requirements of AS5601/AG601, Gas, Electricity, and any other

relevant statutory regulations.

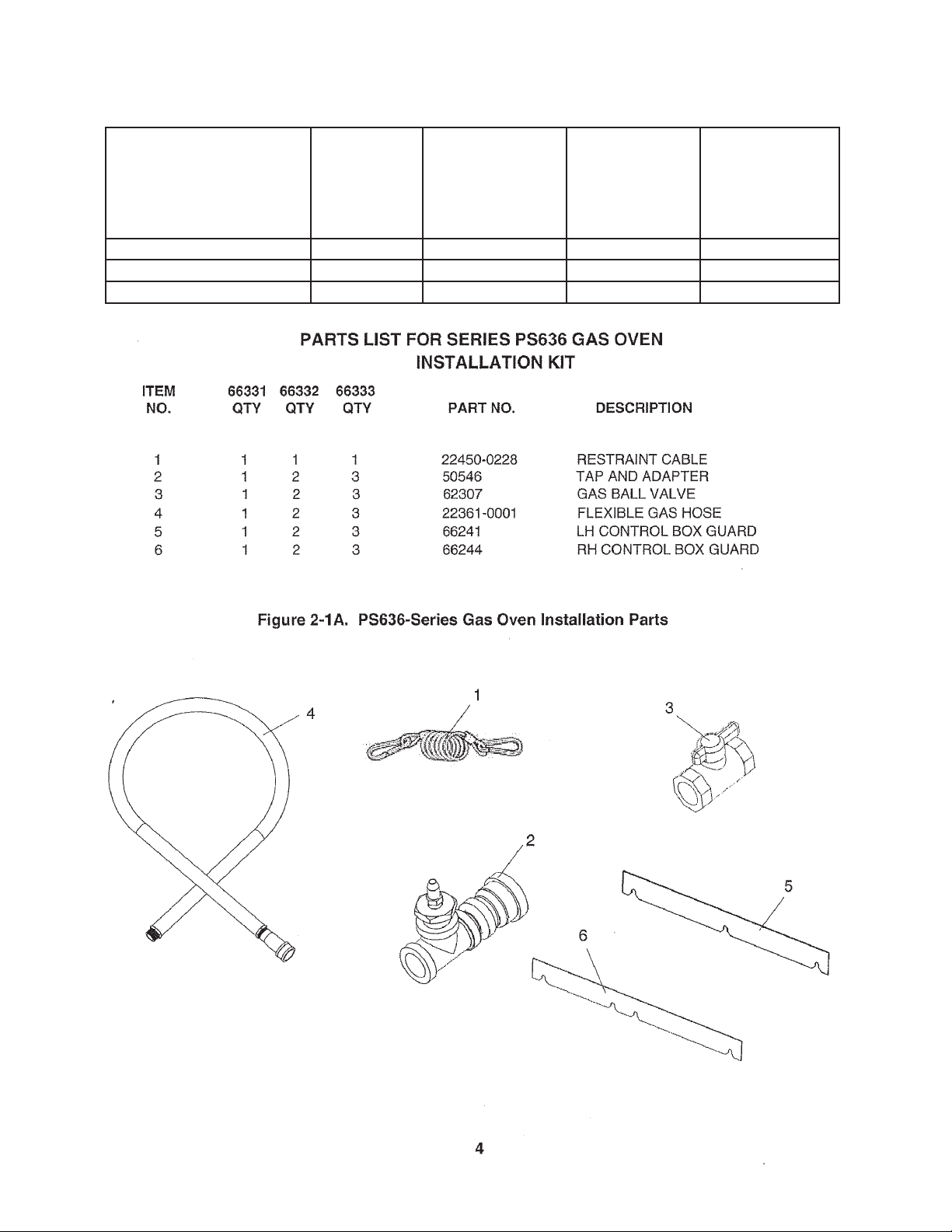

PS636 24” OVEN INSTALLATION

REQUIRED KITS AND EQUIPMENT

Type Of Installation

PS636

Gas Oven

Installation

Kit

PS636

Single Oven

Option Base w/

15” Legs,

Casters & Top

Kit

P/N 66129

PS636

Double Oven

Option Base w/

15” Legs,

Casters & Top

Kit

P/N 66027

PS636

Triple Oven

Option Base w/

15” Legs,

Casters & Top

Kit

P/N 6xxxx

PS636 Single Gas Oven 66331 1

PS636 Double Gas Oven 66332 1

PS636 Triple Gas Oven 66333 1

III. VENTILATION SYSTEM B. Recommendations

NOTE THAT THE HOOD DIMENSIONS SHOWN IN

FIGURE 2-5 ARE RECOMMENDATIONS ONLY.

LOCAL, NATIONAL AND INTERNATIONAL CODES MUST

BE FOLLOWED WHEN INSTALLING THE

VENTILATION SYSTEM. ANY APPLICABLE CODES

SUPERSEDE THE RECOMMENDATIONS SHOWN IN

THIS MANUAL. IN AUSTRALIA COMPLIANCE TO REGU-

LATIONS AS5601/AG601 IS MANDATORY.

sign. Consult the hood manufacturer or ventilation engineer

To avoid a negative pressure condition in the kitchen area,

return air must be brought back to replenish the air that was

exhausted. A negative pressure in the kitchen can cause

heat- related problems to the oven components as if there

were no ventilation at all. The best method of supplying

return air is through the heating, ventilation and air condition-

ing (HVAC) system. Through the HVAC system, the air can

be temperature-controlled for summer and winter. Return air

can also be brought in directly from outside the building, but

detrimental effects can result from extreme seasonal hot and

cold temperatures from the outdoors.

NOTE: Return air from the mechanically driven system

must not blow at the opening of the baking chamber.

Poor oven baking performance will result.

C. Other ventilation concerns

• Special locations, conditions, or problems may require the

services of a ventilation engineer or specialist.

• Inadequate ventilation can inhibit oven performance.

• It is recommended that the ventilation system and duct

hood manufacturer and/or HVAC engineer or specialist.

A. Requirements

CAUTION: Gas oven installations REQUIRE a mechani-

cally driven ventilation system with electrical

exhaust air sensing control.

A mechanically driven ventilation system is STRONGLY

RECOMMENDED for electric oven installations.

PROPER VENTILATION OF THE OVEN IS THE RE-

SPONSIBILITY OF THE OWNER.

IMPORTANT

Where national or local codes re-

pression equipment or other

supplementary equipment, DO NOT

mount the

equipment directly to the oven.

MOUNTING SUCH EQUIPMENT ON

THE OVEN MAY:

• VOID AGENCY CERTIFICATIONS

• RESTRICT SERVICE ACCESS

• LEAD TO INCREASED SERVICE

EXPENSES FOR THE OWNER

Figure 2-5. Ventilation System

6″(152mm)

minimum

(Typical - both

ends of oven)

2″(51mm)

minimum

3″(76mm)

minimum

2″(51mm)

minimum

IV. ASSEMBLY

A. Top Panel and Base Pad Assembly

1. Install the four leg extensions onto the base pad using

the 3/8″-16 × 1″screws, 3/8″flat washers, and

3/8″lockwashers supplied in the Base Pad Kit. See

sion face OUTWARDS. One rear leg should be attached

using three 3/8″-16 × 1″screws and the 3/4″eyebolt, as

shown in Figure 2-6. This eyebolt acts as the anchor point

for the restraint cable assembly (see Part C, Restraint

Cable Installation).

2. If your oven is equipped with the lower shelf, position it

in place as shown in Figure 2-6. Check that the lip on the

shelf faces DOWN. Seal joint between leg and shelf with

NSF listed silicone.

3. Install one caster onto each leg extension, as shown in

Figure 2-7. Use the 3/8″-16 × 1″screws, 3/8″

ers, and 3/8″lockwashers supplied in the Installation Kit.

The locking casters should be installed at the FRONT of

the oven. The non-locking casters should be installed at

the REAR of the oven.

4. Install the lower oven cavity onto the base pad.

See Fig 2-7.

5. For single ovens ONLY:

Install the top panel using the screws included in the base

pad kit, as shown in Figure 2-8. Then, skip ahead to Part

C, Restraint Cable Installation.

For double or triple ovens:

Continue on to Part B, Stacking. Note that the top panel

should NOT be installed for double and triple ovens until

after stacking the oven cavities.

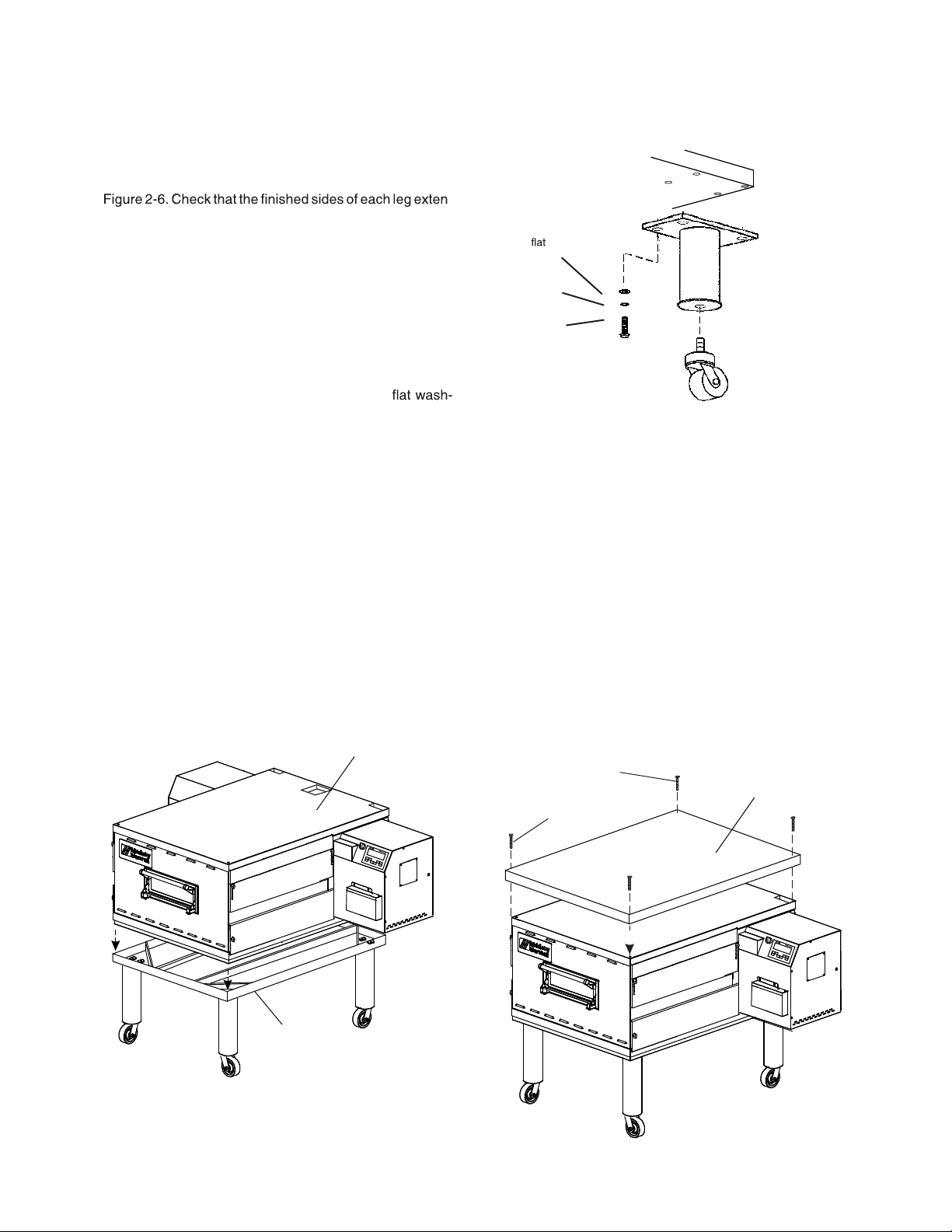

Figure 2-6. Leg extension and casters installation

Figure 2-7. Base pad Installation

Assembled

base pad

Bottom oven

cavity

#10-32 × 3/4″

screw length

Top

panel

Figure 2-8. Top panel installation

1/2″

washer

1/2″lock

washer

1/2″-13 × 1-1/4″

hex screw

#10-32 × 2-1/2″

screw length

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Middleby Marshall Ofen Handbücher

Middleby Marshall

Middleby Marshall PS360 SERIES Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS500 Series Handbuch

Middleby Marshall

Middleby Marshall PS540G SERIES Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS200 series Betriebsanleitung

Middleby Marshall

Middleby Marshall PS555G GAS Technisches Datenblatt

Middleby Marshall

Middleby Marshall PS740G Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS740E Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS540 (Double) Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS3240G Series Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS360G Series Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS200 Tandem Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS360WB70-L Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS670 Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS2620 Series Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS528G Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS536GS Bedienungsanleitung

Middleby Marshall

Middleby Marshall Model PS536 Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS745 Series Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS870 Series Technisches Datenblatt

Middleby Marshall

Middleby Marshall Model PS536 Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS555 series Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS770 Series Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS840G Bedienungsanleitung

Middleby Marshall

Middleby Marshall PS570S Bedienungsanleitung

Beliebte Ofen Handbücher anderer Marken

Bosch

Bosch HVA531NS0 Bedienungsanleitung

Electrolux

Electrolux EOF6P46X Bedienungsanleitung

NEFF

NEFF B44S32 5GB Series Bedienungsanleitung

Combi

Combi BLODGETT BC142GDS Bedienungsanleitung

AEG

AEG COMPETENCE 311704300 Bedienungsanleitung

Falcon

Falcon DOMINATOR PLUS G3106 Series Benutzerhandbuch

Rational

Rational SCC WE 61G Bedienungsanleitung

Smeg

Smeg DOSPA38X Installations- und Betriebshandbuch

Electrolux

Electrolux air-o-convect 20 GN 2/1 Bedienungsanleitung

Miele

Miele HR 1954-2 Bedienungsanleitung

KHIND

KHIND OT50 Bedienungsanleitung

Henny Penny

Henny Penny Smoker Box Bedienungsanleitung

Lang

Lang ECOD-AP Bedienungsanleitung

AEG

AEG BEK455310M Bedienungsanleitung

Frigidaire

Frigidaire FNGE90JGR Bedienungsanleitung

Hotpoint

Hotpoint FE9 S831 JSH IX Bedienungsanleitung

GE Advantium SCB2000 Bedienungsanleitung

AEG

AEG DE401301DM Bedienungsanleitung
