Midea NY1507-17QR Bedienungsanleitung

维修手册 Service Manual, 2017 v1.0

1/ 20

维修手册 Service Manual

适用机型 Applicable Models

机型编码 Model No.

electronic

NY1507-17QR

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and

specific appearance and configuration are subject to the real product)

编制 Prepared by

梁军文

审核 Reviewed by

胡焱然

批准 Approved by

杨超

维修手册 Service Manual, 2017 v1.0

2/ 20

重要安全通知

本维修手册仅用于具有适当电气、电子和机械经验背景的维修人员使用。

任何修理主要装置的测试均可能导致人身伤害和财产损失。

制造商或经销商不对本资料的内容和解释负责。

美的环境电器

技术手册

版权@2017

保留全部版权。未经美的环境电器海外销售公司书面批准，不得以任何形式全部或部分复制本手

册。

Important Safety Notice

The Maintenance Manual is only for the use of maintenance personnel with certain experience and

background in electrical, electronic and mechanical field.

Any attempt to repair main devices may lead to personal injury and property loss.

Manufacturers or distributors are not responsible for the content of the Manual and interpretation

thereof.

Midea Environment Appliance

Technical Maintenance Manual

written approval by the Overseas Sales Corporation of Midea Environment Appliance.

警告标语，此页不

需要修改

维修手册 Service Manual, 2017 v1.0

3/ 20

1. 安全警示规范 Safety Warning Code

WARNING

1Read these instructions.

2Keep these instructions.

3Follow all instructions.

4Do not use this appliance near water. This appliance is intended to be used in

household and similar environments.

5Clean only with a damp cloth.

6Install in accordance with the manufacturer’s instructions.

7Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

8Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where the exit from the appliance.

9Do not attempt to modify or extend the power cord of this appliance.

10 Unplug this appliance during lightning storms or when it will not be used for long

periods of time.

11 Make sure that the available AC power matches the voltage requirements of this

appliance.

12 Do not handle the plug with wet hands. This could result in an electric shock.

13 Unplug the power cord by holding the plug, never by pulling the cord.

14 Do not turn the appliance on or off by plugging or unplugging the power cord.

15 Refer all servicing to qualified service personnel. Servicing is required when the

appliance has been damaged in any way, such as the power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the appliance, the

appliance has been exposed to rain or moisture, does not operate normally, or has

been dropped.

16 To reduce the risk of fire or electric shock, do not expose this appliance to rain,

moisture, dripping, or splashing.

17 This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

18 Children should be supervised to ensure that they do not play with the appliance.

19 If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent, or similarly qualified person, in order to avoid a hazard.

警告标语，此页不

需要修改

维修手册 Service Manual, 2017 v1.0

4/ 20

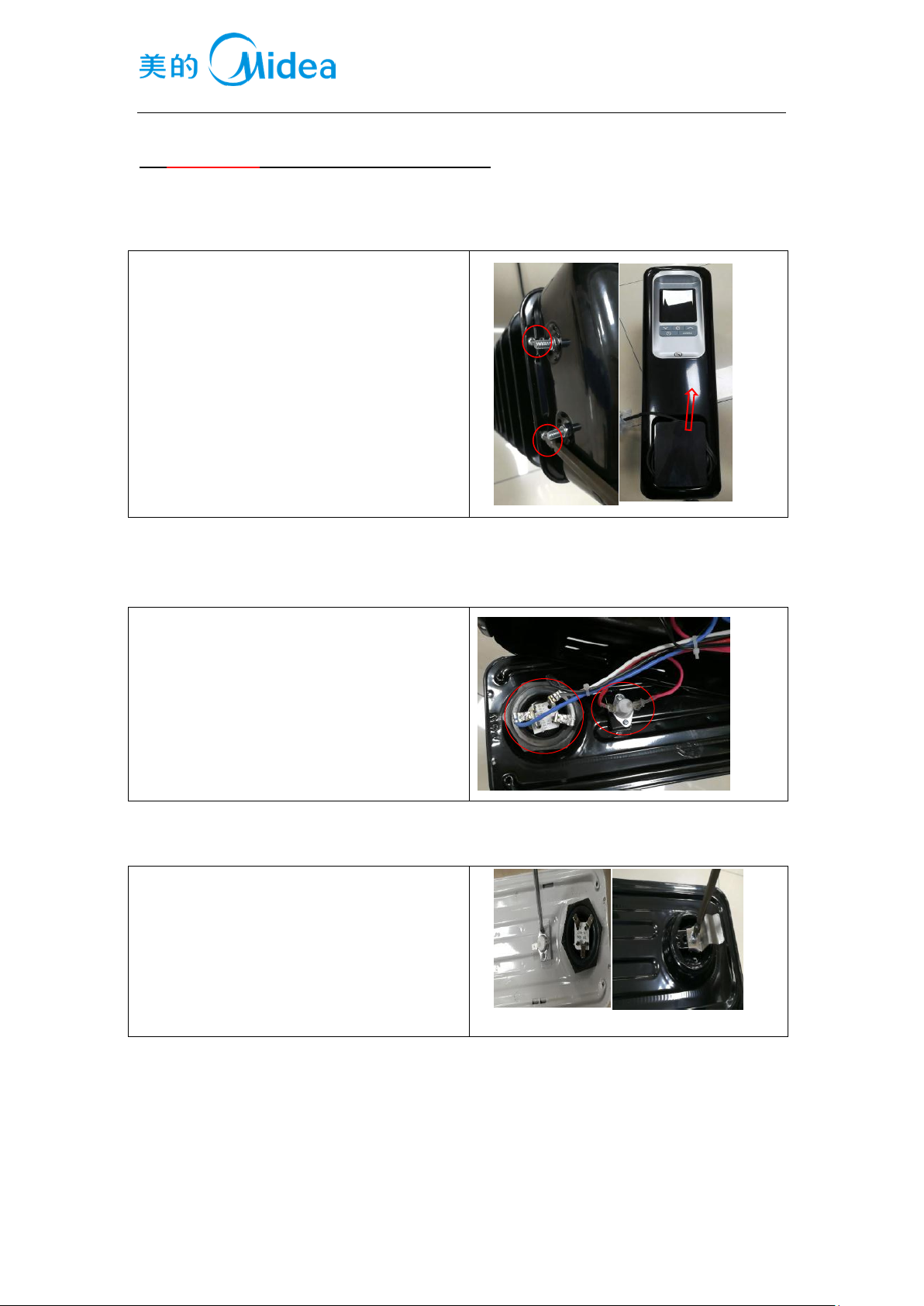

2. 整机拆卸 Dismantling of appliance

2.1 拆卸控制箱组件 Remove control box assembly

1.使用十字螺丝刀将控制箱 2颗固定螺钉拆

开；

2.按箭头方向推出控制箱，拆卸控制箱。

1. Disassemble 2 fixing screws of the control box

with a phillips screwdriver;

2. Push out the control box according to the

arrow direction and remove the control box.

2.2 拆卸发热管及限温器上接插端子 Remove the socket terminals on the heating pipe and temperature

limiting device

使用尖嘴钳将发热管、限温器上接插端子拔

除；(有焊锡的端子需要使用电烙铁辅助拆除)

Use needle-nosed pliers to remove the inserted

terminals on the heating pipe and temperature

limiting device;(solder terminals need to be

removed with the help of an electric soldering

iron)

2.3 拆卸限温器固定支架及控制箱支架 Remove the thermostat fixing bracket and control box bracket

1.使用螺钉刀拆卸限温器螺钉，取下限温器

2.使用十字螺丝刀拆卸控制箱支架

1. Remove the screw of temperature limiting

device with screw knife and take the lower limit

thermostat

2. Remove the control box bracket with a

screwdriver

维修手册 Service Manual, 2017 v1.0

5/ 20

2.4 拆卸尾部螺钉 Remove rear screw

使用专用套筒将两个尾部螺钉拆开

Use a special sleeve to remove the two rear

screws

2.5 拆卸控制箱内部隔离防火盒/倾倒开关 Remove the internal fire isolation box/dump switch of the

control box

1.使用十字螺丝刀拆掉内部防火盒 4个螺钉

2.从卡扣固定中拆下倾倒开关

3.拆除卡扣后取消隔离罩

1. Remove 4 screws of internal fire box with a

cross screwdriver

2. Remove the tipping switch from the buckle

holder

3. Remove the isolation cover after removing the

buckle

2.6 拆卸控制箱所有插接端子 Remove all plug terminals of the control box

1. 使用尖嘴钳将控制箱内部所有接插端子拔

除；(有焊锡的端子需要使用电烙铁辅助拆除)

1. Remove all socket terminals inside the control

box with needle-nose pliers;(solder terminals

need to be removed with the help of an electric

soldering iron)

2.7 拆卸瓷座上两螺母 Remove two nuts from porcelain seat

使用专用规格套筒或钳子将瓷座上两固定螺

母拆开；

Use special specification sleeve or pliers to

disassemble the two fixed nuts on the porcelain

seat;

维修手册 Service Manual, 2017 v1.0

6/ 20

2.8 瓷座压线板固定螺钉 Porcelain base press wire plate fixing screw

1.使用十字螺丝刀将压线板固定螺钉拆开；

2. 使用十字螺丝刀将瓷座固定螺钉拆开，

3.取下瓷座及压线板

1. Use a phillips screwdriver to disassemble the

fixing screw of the wire pressing plate;

2. Use a phillips screwdriver to disassemble the

fixing screw of the porcelain seat.

3. Remove the porcelain base and pressure plate

2.9 拆卸收线板、电源线、感温探头 Remove the take-up plate, power cord and temperature sensor

1.将压线板垫板取下

2.将收线板卡扣拆除后拆卸感温探头，拆下

收线板

3.将电源线拆下

4.拆下出线胶圈

1. Remove the gasket plate

2. Remove the temperature sensor after

removing the buckle of the taking-in plate,

and remove the taking-in plate

Remove the power cord

4. Remove the outgoing apron

2.10 拆卸 PCB 支架 Remove PCB holder

1.使用十字螺丝刀或者电批/风批将 PCB

支架的固定螺钉（2颗ST3.9*6）拆下；

2.将PCB 支架翻转，使用十字螺丝刀或者

电批/风批将电源板的固定螺钉（1颗

ST3.9*15）拆下

1. Remove the fixed screw (2 ST3.9*6) of

PCB bracket with a phillips screwdriver or

an electrical/air batch;

2. Turn the PCB bracket over and remove

the fixing screw (1 ST3.9*15) of the power

plate with a phillips screwdriver or a

batch/air batch

维修手册 Service Manual, 2017 v1.0

7/ 20

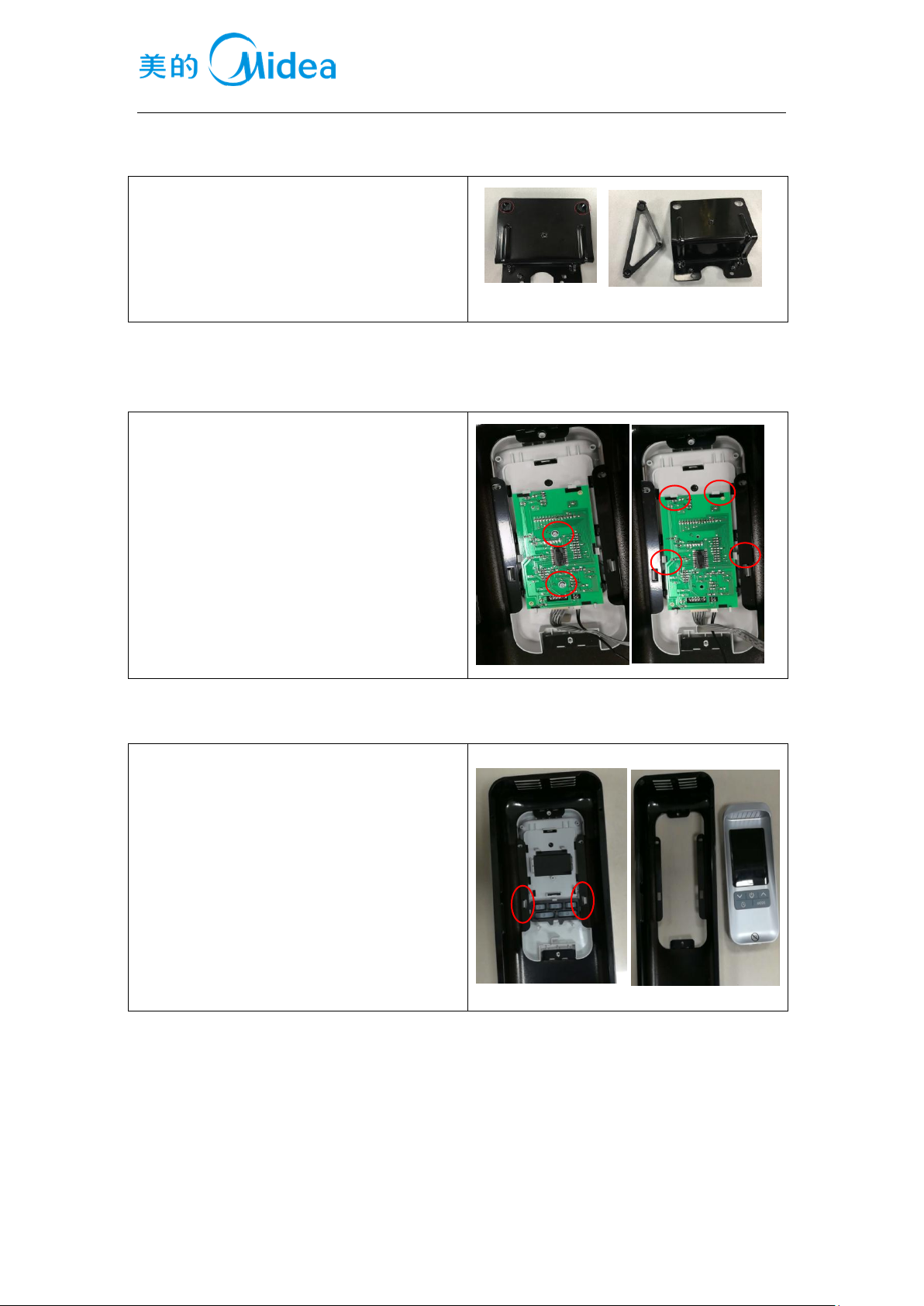

2.11 拆卸电路板支架 Remove circuit board bracket

1. 使用手或者尖嘴钳，将电路板支架背面两个

卡扣按住往内侧推，可取出电路板支架；

1. Use hand or needle-nosed pliers to press the

two buckles on the back of the circuit board

bracket and push them to the inside to remove

the circuit board bracket;

2.12 拆卸控制电路板 Remove control circuit board

1.拆卸固定控制电路板 2颗螺钉（2颗

ST2.9*9.5）

2.拆卸卡扣取出控制电路板

1. Remove 2 screws (2 ST2.9*9.5) to fix the

control circuit board

2. Remove the card and remove the control

circuit board

2.13 拆卸控制面板组件 Remove control panel components

1. 拆卸卡扣取出控制面板组件

1. Remove the card and remove the control panel

components

维修手册 Service Manual, 2017 v1.0

8/ 20

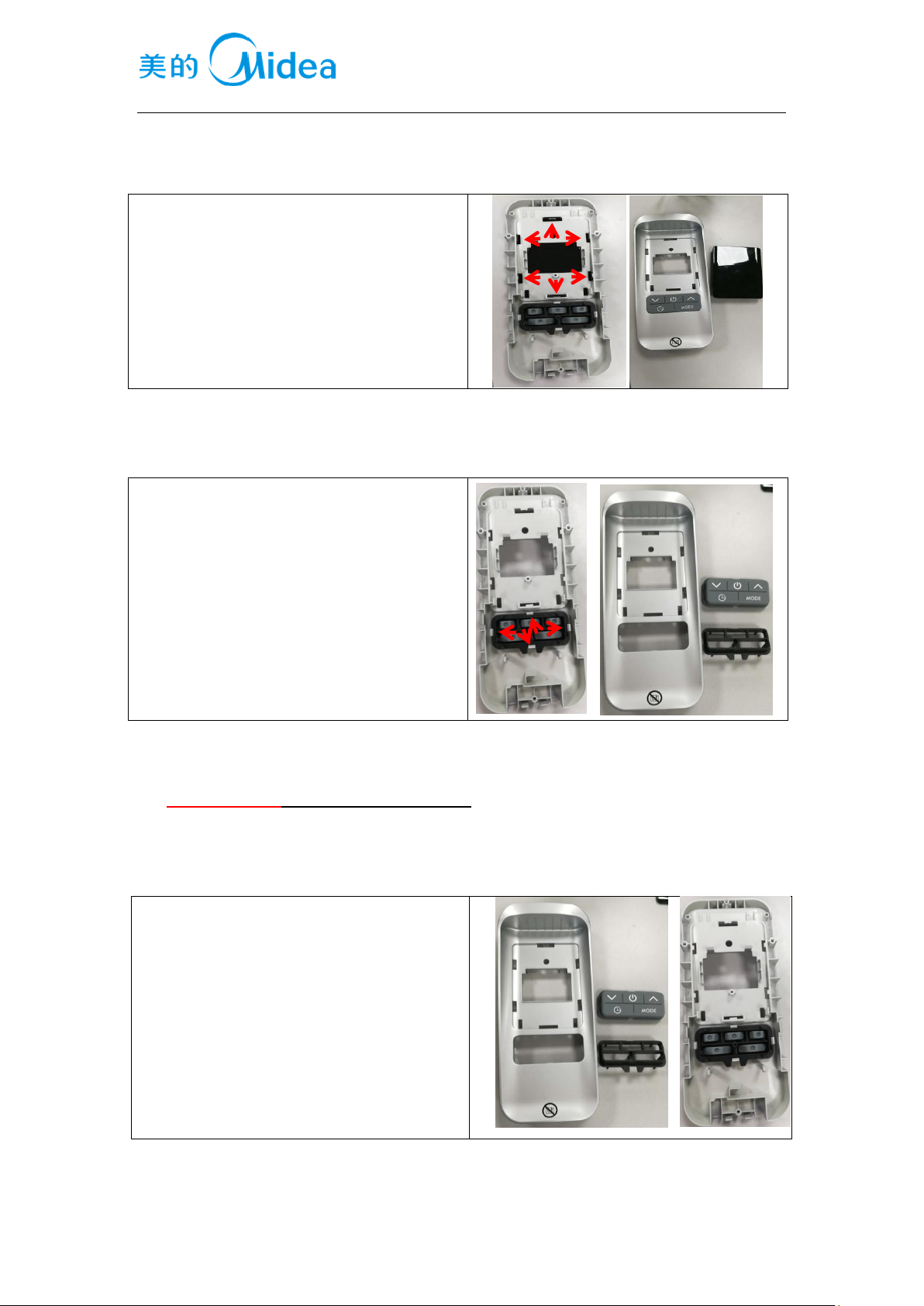

2.14 拆卸透明视窗 Remove transparent window

1. 将透明视窗从卡扣（6个扣位）中拆卸出

1. Remove the transparent window from the snap

(6 snap positions)

2.15 拆卸控制板支架及按键 Remove control board bracket and keys

1. 将控制板支架从卡扣（4个扣位）中拆卸

出

2.拆卸按键

1. Remove the control board bracket from the

buckle (4 buckle positions)

2. Remove the key

3. 整机的安装 Machine installation

3.1 安装控制板支架及按键 Install control board bracket and key

1.将控制支架及按键按要求安装到控制面板

（控制支架与控制面板 4个卡扣固定）

1. Install the control bracket and keys as required

to the control panel (the control bracket and

control panel are fixed with 4 buckles)

维修手册 Service Manual, 2017 v1.0

9/ 20

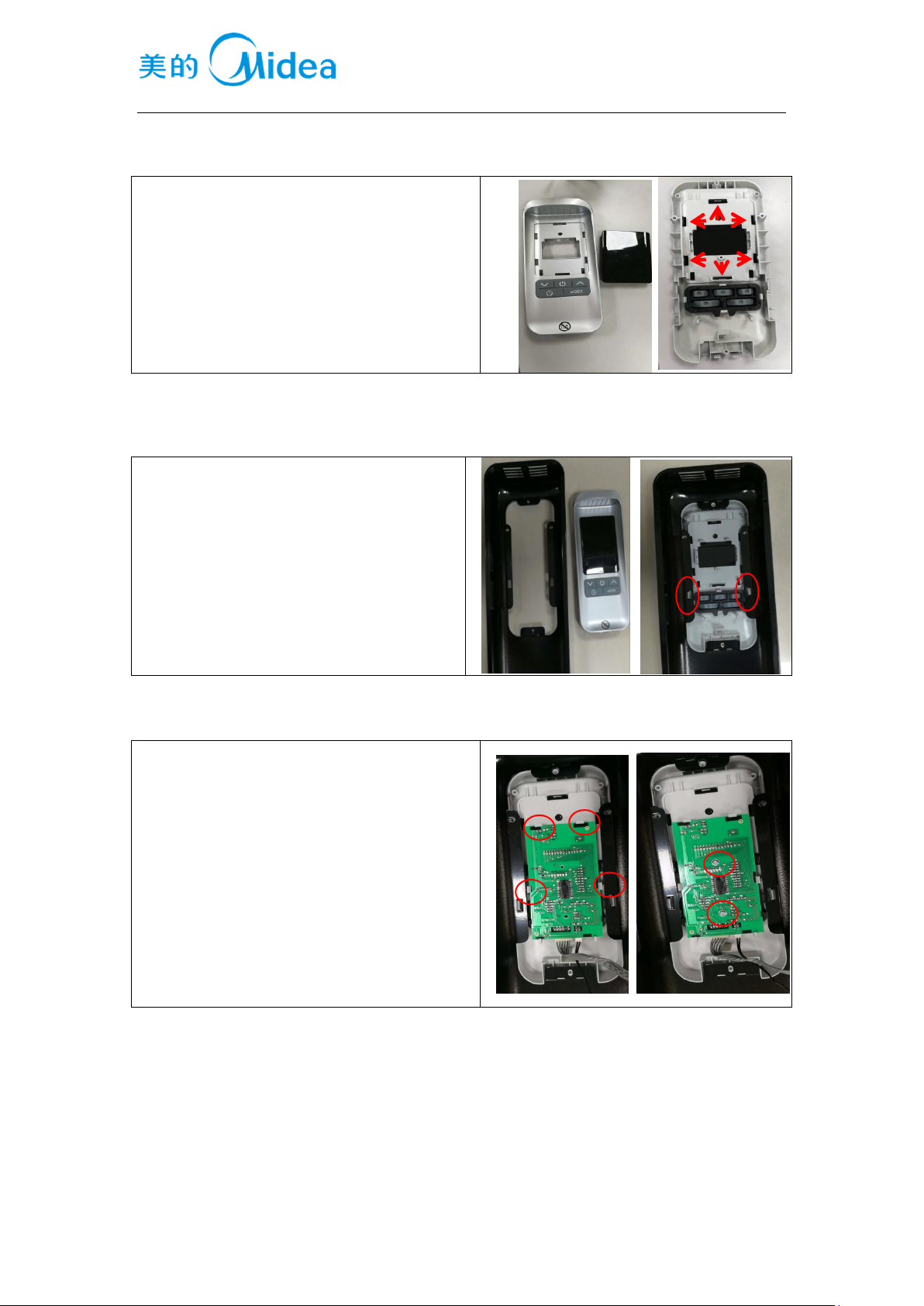

3.2 安装透明视窗 Install transparent Windows

1.将透明视窗安装到控制面板上（透明视窗使用

6个卡扣固定）

1. Install the transparent window on the control

panel (the transparent window is fixed with 6

clasps)

3.3 安装控制面板组件 Install control panel components

将安装好的控制面板组件与控制箱装配好（控

制面板与控制箱用 2个扣位预固定）

Assemble the installed control panel

components and control box (the control panel

and control box are pre-fixed with 2 buckle

positions)

3.4 安装控制电路板 Install control circuit board

1.将控制控制电路板放入卡扣中固定

2.固定控制电路板 2颗螺钉（2颗ST2.9*9.5）

1. Fix the control circuit board in the buckle

2. Fix 2 screws to control circuit board (2

ST2.9*9.5)

维修手册 Service Manual, 2017 v1.0

10 / 20

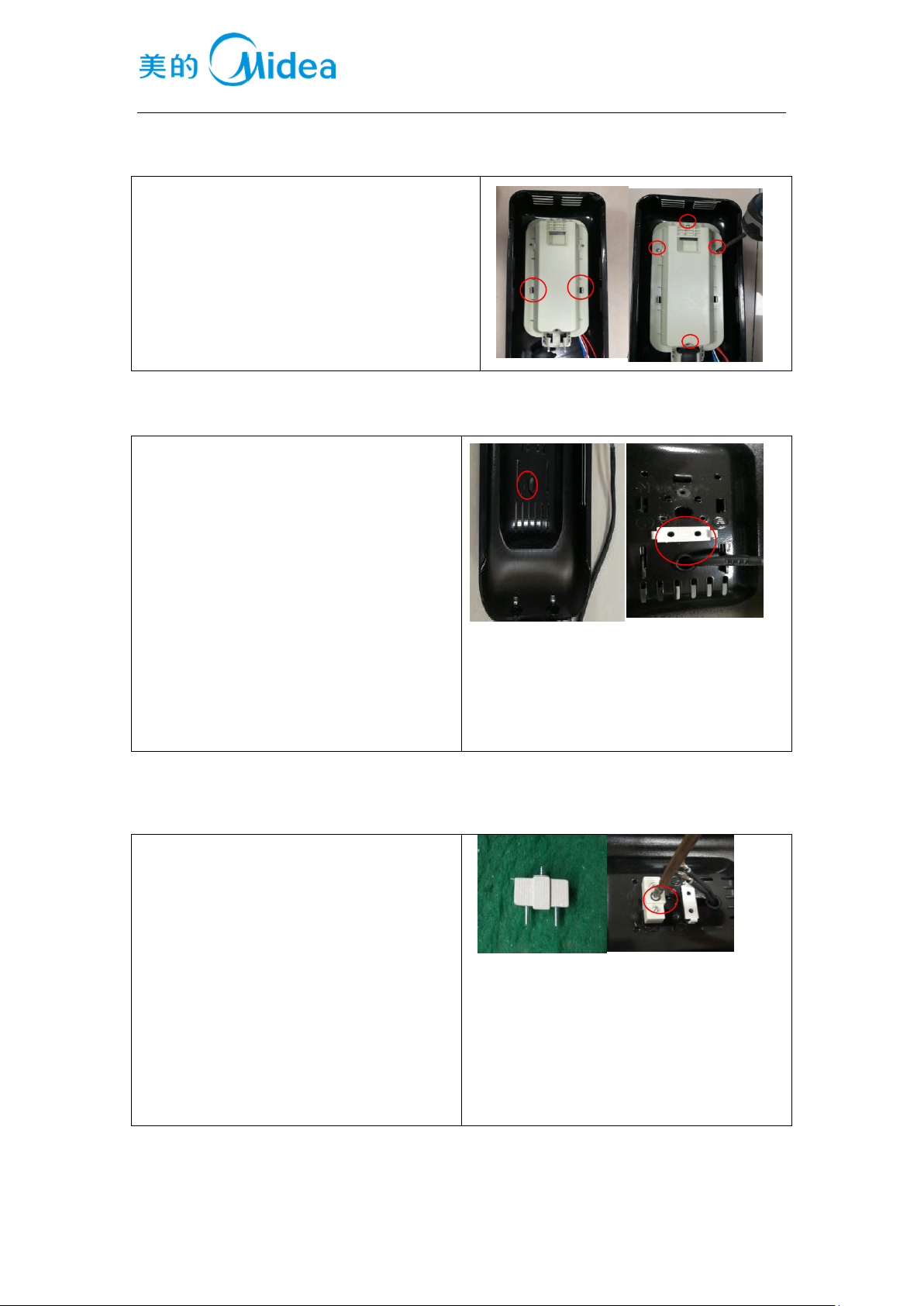

3.5 安装隔离罩 Install isolation cover

1. 将隔离罩安装到控制面板上，使用卡扣固定

好

2.使用十字螺丝刀固定隔离罩 4个螺钉

1. Install the isolation cover on the control panel

and fix it with the buckle

2. Use a cross screwdriver to fix 4 screws of the

isolation cover

3.6 安装出线胶圈、电源线 Install outgoing gasket and power cord

1.使用螺丝刀将出线胶圈压入控制箱安装孔

中。

2.取电源线从控制箱外穿入出线胶圈孔中；

3.将压线板垫板压入控制箱安装孔中。

1. Press the outgoing rubber ring into the

mounting hole of the control box with a

screwdriver.

2. Take the power cord out of the control box

and insert it into the hole of the outgoing

apron;

3. Press the liner plate into the mounting hole

of the control box.

3.7 安装接线瓷座 Install wiring porcelain base

1、取两个 M4*14 螺钉穿入瓷座两侧六角孔

中；

2、使用十字螺丝刀将瓷座用螺钉固定在控制

箱或控制盒对应位置上；

1. Take two M4*14 screws and insert them into

hexagonal holes on both sides of the porcelain

seat;

2. Use a phillips screwdriver to fix the porcelain

seat on the corresponding position of the

control box or control box with screws;
