OWNER’S MANUAL
MODEL:NY23ECF-13L
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
GD Midea Environment Appliances MFG.Co.,Ltd.
No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town,
Zhongshan, Guangdong 528425 P.R.China
145X210MM
1
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic precautions
should always be followed to reduce the risk of fire,
electrical shock and injury to persons , including the
following:
1. Read all instructions before using heater.
2. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet (0.9m) from the heater. Allow
heater to cool before moving and then use the built-in
handle for easy movement.
3. Extreme caution is necessary when heater is used by or
near children and whenever heater is left unattended.
4. Always unplug the heater when it is not in use.
5. Do not operate any heater with a damaged cord or plug,
or after the heater malfunctions, or has been dropped or
damaged in any manner. Return heater to the
manufacturer for examination, electrical or mechanical
adjustment, or repair.
6. Do not use heater outdoors. This product is intended for
normal household indoor use only.
7. This heater is not intended for use in bathrooms, laundry
areas or similar moist indoor locations. Never locate
heater where it may fall into a bathtub or other water
container.
8. Do not run power cord under carpeting. Do not cover
cord with throw rugs, runners or the like. Arrange cord
away from traffic areas and where it will not be tripped
over.
9. To disconnect heater, set controls to OFF, then remove
plug from outlet.
18. This appliance is not intended for used by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliances by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
2
10. Keep this heater clean. DO NOT allow foreign objects
to enter any ventilation or exhaust opening as this may
cause electric shock, or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces, like
a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or flammable
liquids are used or stored.
13. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
14. Warning: In order to avoid overheating, do not cover
the heater.
15. Do not use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.
16. The heater must not be located immediately below a
socket-outlet.
17. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard. Use of an
extension cord is not recommended. However, if it is
absolutely necessary ensure the cord is short as
possible (long cords coiled up can overheat, as well as
cause tripping accidents).
3
19.
20. This heater is filled with a precise quantity of special oil.
Repairs requiring opening of oil-container are only to be
made by the manufacturer or his service agent who
should be contacted if there is an oil leak. When
scrapping the heater, follow the regulations concerning
the disposal of oil.
21. CAUTION — Some parts of this product can become
very hot and cause burns. Particular attention has to be
given where children and vulnerable people are present.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
22. – Do not use this heater if it has been dropped;
– Do not use if there are visible signs of damage to the
heater;
– Use this heater on a horizontal and stable surface.
– WARNING: Do not use this heater in small rooms
when they are occupied by persons not capable of
leaving the room on their own, unless constant supervi-
sion is provided.
– WARNING: To reduce the risk of fire, keep textiles,
curtains, or any other flammable material a minimum
distance of 1 m from the air outlet.
4
WARNING: IN ORDER TO AVOID OVERHEATING,
DO NOT COVER THE HEATER.

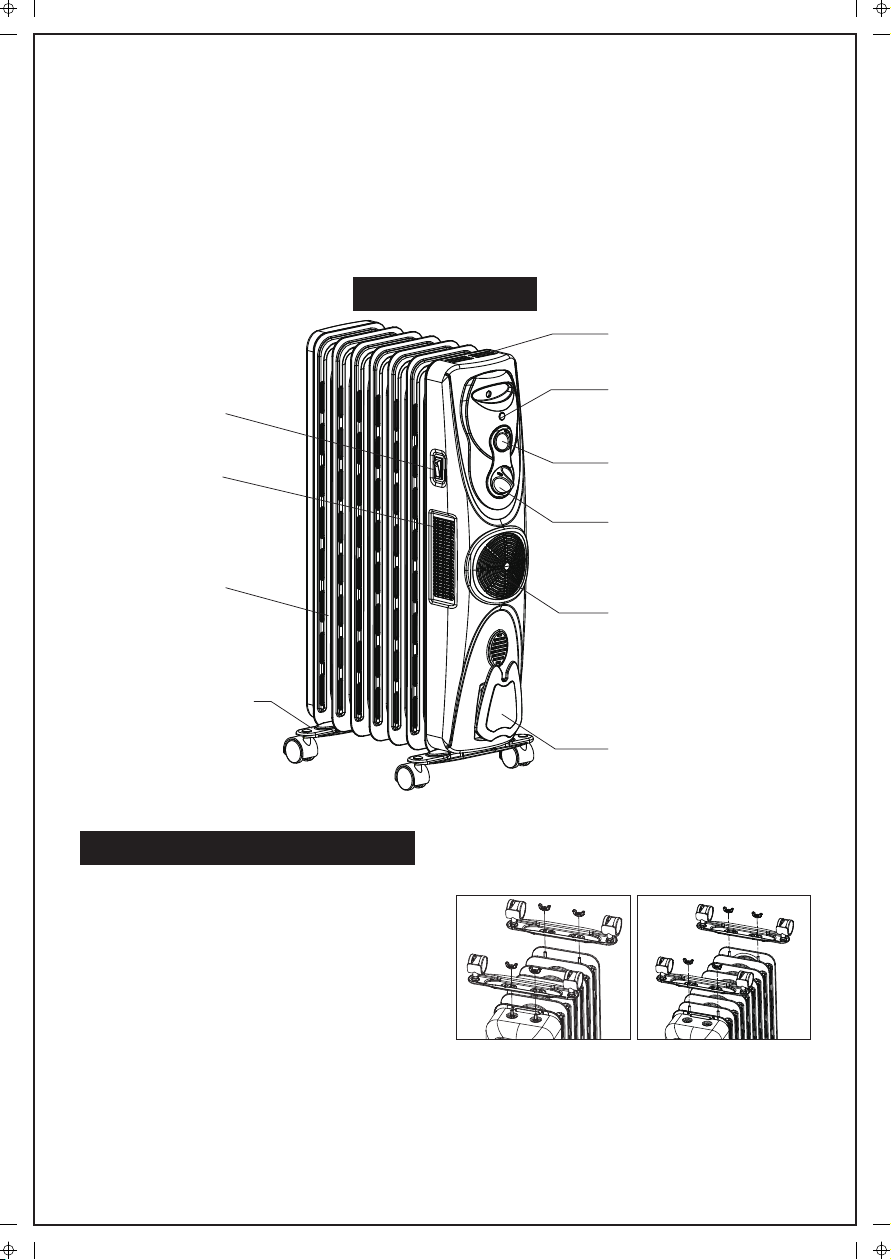

PART FIGURE
Cord wrap
Caster assembly
Air Outlet
Power Indicator Light
Power Switch Knob
Thermostat Knob
Radiating unit
Air Outlet
Air Outlet
Fan switch
Use of oil filled radiator
[Installation of the caster assembly]
1.Place the heater body inversely with the
bottom upward.
2.Connect and tighten two wheel carrier
plates to the body with butterfly nuts as
shown in the figure.
3.Place the heater upward after it is
installed securely with the wheels touching
the ground.
7 fins heater caster assembling 9\11\13 fins heater caster assembling
WARNING: Risk of fire. Do not operate heater without wheel assemblies
attached. Operate heater in upright position only (wheels on bottom,
controls on top). Any other position could create a hazardous situation.
Ensure that the surface beneath the heater is clean and free of any
obstructions. It is not recommended that this heater be placed on
high-pile carpeting or any other surface that impedes the flow of air
underneath the heater.
This heater include an a visual alarm to warn that parts of the heater are
getting excessively hot. If the alarm flashes, immediately turn the heater
off and inspect for any objects on or adjacent to the heater that may
cause high temperatures. DO NOT OPERATE THE HEATER WITH THE
ALARM FLASHING.
1. Insert the plug into the suitable wall outlet.
1) Never use the unit in place where is not even, make sure there is nothing
flammable or easy deform object within 1 meter (36 inches).
2) Insert the plug after setting the thermostat to “MIN” position and setting the
power selected switches to “OFF” position.
3) Do not cover the unit.
4) The heater is suitable for operation on an A.C. electricity supply having the
same voltage as that show on its rating label.
2. Rotate power switch to the "Max" position then turn thermostat to the "high"
position, at this moment, the unit begins to work, when the temperature rises to
which you are satisfied with, slowly turn the thermostat counter clockwise until
the indicating light of the key for power choice is out, and the room temperature
thus can keep constant. If you want to raise or lower the room temperature, you
can make another regulation: Turn the thermostat clockwise to raise the
temperature and counterclockwise to lower it, or press only one shift of power
switches to “ON” position.
3. Turbo function
Press the switch to “ON” position, the fan heater begins to work separately and
used as a fan heater. The temperature in the room will rise rapidly.
NOTES:
1) The pilot lamp will be on only if the temperature is below the setting value of
the thermostat.
2) The room must be sealed in good condition, if not, it will not make good
result because of the influx of heat.
3) The outlets of the control chamber must be kept ventilative, if not, undue
move of the thermostat may occur.
4. After use, turn the power switch to the “OFF” position first, then turn the
thermostat to the “MIN” position, and pull out the power supply plug.
OPERATING INSTRUCTION
5
6
SAFTEY FEATURES
Thermal cut-off: This heater includes a thermal cut-off that shuts the heater off if it
overheats due to abnormal conditions. If this occurs, turn the heater off, unplug it,
and inspect and remove any objects on or adjacent to the heater. Allow it to cool for
a few minutes, and then plug it back in and resume normal operation.
Tip-over switch: This heater includes a safety tip-over protection feature that will
shut the heater off in case it is tipped over. If, at any time, the heater tips over,
please put the heater back in the upright position. The heater will resume its normal
operation.
MAIN TECHNOLOGY SPECIFICATIONS
Power supply: AC220-240V ~ 50Hz
MODEL FAN LO MID HI
POWER REGULATION RANGE (W)
NY23ECF-13L 500 1000 1300 2300
1. The electric heater should be cleaned regularly to wipe out the dust on the
surface of flanges. As this may influence the radiating efficiency.
2. Disconnect electricity supply and allow radiator to cool, wipe out dust with a
soft damp cloth. Do not use detergent or abrasives.
3. Do not scrap the surfaces of flanges with sharp hard tools, to avoid surfaces
getting rusty, because of damage of the paint coat.
CLEANING AND MAINTENANCE INSTRUCTION
