Operating instructions

for vented tumble dryer

T 284

To avoid the risk of accidents

or damage to the appliance

it is essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 07 627 980

en-GB

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your appliance.

Please do not therefore dispose of your

appliance with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre or contact your Dealer for

advice. Ensure that it presents no

danger to children while being stored

for disposal.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

–Load according to the optimum

amount of laundry recommended for

the programme being used (see

"Programme chart").

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

– Make sure the room in which the

dryer is located is well ventilated.

– Make sure the fluff filter is clean

before using the dryer.

– Check all parts of the ventilation

system on a regular basis and

remove any build up of fluff etc.

–The vent ducting should be as short,

straight and smooth as possible to

minimise any resistance to the air

throughflow.

Caring for the environment

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

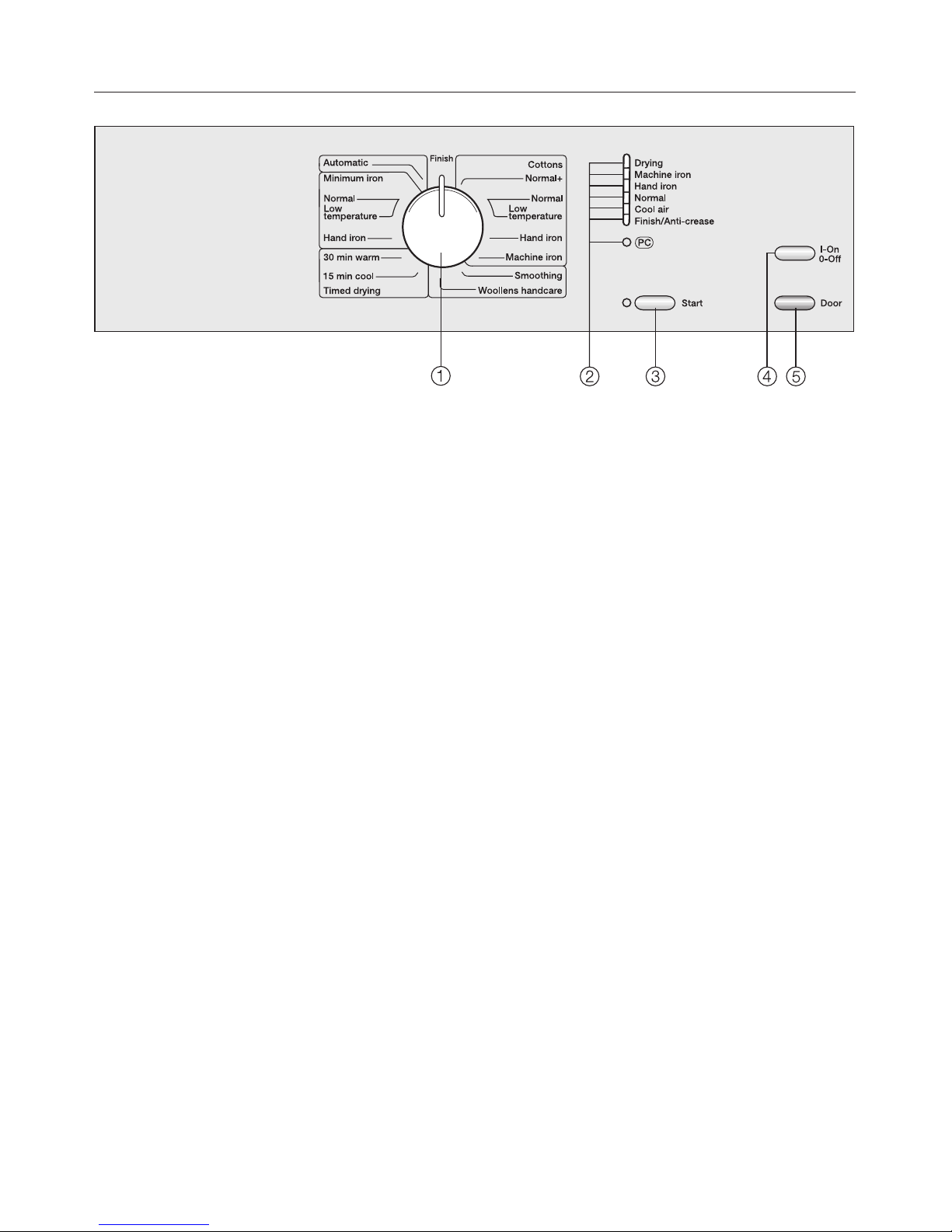

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Care symbols.....................................................11

Tips on drying ....................................................11

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Brief instructions ..................................................12

Low temperature................................................13

Changing the programme sequence ..................................14

Changing a programme once it has started...........................14

Cancelling a programme once it has started and then selecting a different

programme ....................................................14

Cancelling a programme once it has started and then removing the laundry . 14

Adding or removing laundry after a programme has started ..............14

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning the fluff filter ..............................................17

Cleaning the grilles in the door opening ................................18

Cleaning the tumble dryer ...........................................18

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

General problems .................................................19

Check and fault messages ..........................................22

Changing the lamp ................................................23

After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Repairs..........................................................24

Future updates (PC) ...............................................24

Appliance guarantee ...............................................24

Optional accessories ...............................................24

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Front view........................................................25

Rear view ........................................................26

Installation site ....................................................26

Transporting the appliance to its installation site .......................26

Building under a continous worktop / in a kitchen run ...................26

Levelling the appliance...........................................27

Washer-dryer stack..............................................27

Contents

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Electrical connection U.K. ...........................................28

Installation - venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

General .........................................................29

Calculating the effective duct length : ..................................30

Installation to the rear, left or right side of the appliance ...................31

Venting systems...................................................32

aFlexible ducting hose ............................................32

bPlastic piping...................................................34

cConnect directly to a wall vent .....................................35

Washer-dryer stack ................................................36

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Altering the residual moisture level in the Cottons programmes..............40

Altering the residual moisture level in the Minimum iron programme ..........41

Anti-crease ......................................................42

Activating and deactivating the buzzer .................................43

Altering the standard drying level in the Automatic programme..............44

Extending the cooling down time .....................................45

Standby .........................................................46

Contents

~It is essential to read these

instructions.

This tumble dryer conforms to

current safety requirements.

Inappropriate use can, however,

lead to personal injury and damage

to property.

To avoid the risk of accidents and

damage to the tumble dryer, please

read these instructions carefully

before using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This tumble dryer is for domestic

use only and can only be used to dry

items which have been washed in a

water solution and which are marked on

the manufacturer's care label as being

suitable for tumble drying. "Dry

cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be

dangerous. Miele cannot be held liable

for damage resulting from incorrect or

improper use or operation.

~This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of

experience or knowledge, unless they

are supervised whilst using it or have

been shown how to use it by a person

responsible for their safety.

Safety with children

~Keep children away from the tumble

dryer at all times. It is not a toy! To

avoid the risk of injury do not allow

them to play on or near it or to play with

its controls. Supervise children whilst

you are using it.

~Older children may only use it if its

operation has been clearly explained to

them, and they are able to use it safely,

recognising the dangers of incorrect

use.

Warning and Safety instructions

Technical safety

~Before setting up the tumble dryer,

check it for any externally visible

damage.

Do not install or use a damaged tumble

dryer.

~Before connecting the tumble dryer,

ensure that the connection data on the

data plate (voltage and connected

load) match the mains electricity

supply. If in any doubt, consult a

qualified electrician.

~The electrical safety of this tumble

dryer can only be guaranteed when

continuity is complete between it and

an effective earthing system which

complies with current local and national

safety regulations. It is most important

that this basic safety requirement is

present and regularly tested, and

where there is any doubt the household

wiring system should be inspected by a

qualified electrician. Miele cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

~Do not connect the tumble dryer to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

tumble dryer (e.g. danger of

overheating).

~Unauthorised repairs could result in

unforeseen dangers for the user, for

which Miele cannot accept liability.

Repairs should only be undertaken by a

Miele approved service technician.

Ensure current is not supplied to the

tumble dryer until after maintenance or

repair work has been carried out.

~Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

tumble dryer be guaranteed.

~If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

~In the event of a fault or for cleaning

purposes, the tumble dryer is only

completely isolated from the electricity

supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is disconnected, or

– the screw-out fuse is removed (in

countries where this is applicable).

~This tumble dryer may only be used

in mobile installations such as ships if a

risk assessment of the installation has

been carried out by a suitably qualified

engineer.

~In countries where there are areas

which may be subject to infestation by

cockroaches or other vermin, pay

particular attention to keeping the

tumble dryer and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the guarantee.

~Do not make any alterations to the

tumble dryer, unless authorised to do

so by Miele.

Warning and Safety instructions

Correct use

~To prevent the risk of fire, the

following textiles must not be dried in

this tumble dryer:

–items which have not been washed.

–items, such as workwear, which have

not been thoroughly cleaned and

which are still soiled with grease, oil

or other deposits (such as

cosmetics, lotions etc).

If items have not been thoroughly

cleaned there is a danger that these

might ignite when heated, even after

they have been removed from the

dryer at the end of the programme.

– items (e.g. mops and floorheads)

which have been treated with

inflammable cleaning agents or

contain residues of acetone, alcohol,

benzine, petrol, stain remover,

turpentine, wax, wax remover or

other chemicals.

– items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

When washing such heavily soiled

items ensure that you use sufficient

detergent and select a high

temperature. If in doubt, wash the

items several times.

~To prevent the risk of fire, the

following must not be dried in this

tumble dryer:

–items which have been cleaned

using chemicals (e.g. professional

dry-cleaning agents).

–fabrics which contain a large

proportion of rubber, foam rubber or

rubber-like materials. For example,

products made from latex foam

rubber, shower caps, waterproof

textiles, rubberised articles and items

of clothing and pillows with foam

rubber filling.

– damaged items which contain

padding or fillings (e.g. pillows,

jackets). When damaged, the filling

can get out with the risk of igniting in

the dryer.

~In many programmes, the heating

phase is followed by a cooling down

phase to ensure that the items are not

too hot to handle when you remove

them (this also avoids the danger of the

laundry self-igniting). The programme is

not finished until the cooling down

phase has been completed.

Ensure that you always wait until the

end of the programme before removing

the laundry.

~Warning: Do not switch the tumble

dryer off before the end of the drying

programme. If this was done and the

laundry was then removed immediately

it could give off a great amount of heat.

~Fabric conditioner and similar

products must be used according to

the instructions on the manufacturer's

packaging.

Warning and Safety instructions

~The dryer must not be used without

the fluff filter in place or if the fluff filter

is damaged in any way.

~The fluff filter must be cleaned

regularly.

~The tumble dryer must not be used

without vent ducting in place.

~The tumble dryer must not be

connected to a chimney or vent flue

which is in use.

~Do not install the tumble dryer in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the tumble dryer may not

be able to operate properly.

The ambient room temperature should

be between +2°C and +35°C

~Check all parts of the extraction

system on a regular basis (e.g. wall

vent, external grille, bends in the

ducting etc.) and make sure they are all

free of any hindrance. A build-up of fluff

will prevent a free flow of air through the

system. If the dryer is to be connected

to an existing ducting system, this must

be checked for suitability beforehand.

~The exhaust air must not be vented

into a chimney or vent flue which is in

use, nor should it be connected to

ducting which ventilates rooms with

fireplaces. It would be dangerous if

smoke or exhaust fumes were drawn

back into the room.

~Adequate ventilation is essential to

avoid the danger of asphyxia and

toxic fumes where another appliance

which also uses the room air (e.g. gas,

oil or coal fired heater, continuous flow

or other water heater) is installed in the

same or an adjacent room.

To ensure safe operation, and to

prevent gases given off by these

appliances being drawn back into the

room, an underpressure of 0.04 mbar is

the maximum permissible.

Ventilation can be maintained by:

–air inlets in the external wall which

cannot be closed or blocked, or

– by fitting a window contact switch

which ensures that the tumble dryer

can only be operated when the

window is opened wide enough.

If in doubt, the advice of a competent

builder must be sought.

~Always keep the area around the

tumble dryer free of dust and fluff.

Particles of dirt entering the dryer can

lead to blockages occurring.

Warning and Safety instructions

~Do not let anyone sit or lean on the

door, as this can cause the tumble

dryer to tip up.

~Always close the door after use. This

way you will avoid the danger of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

~The tumble dryer must not be hosed

down.

Accessories

~Only use genuine Miele spare parts

and accessories with this appliance.

If non-Miele parts are used, guarantee,

performance and product liability

claims may be invalidated.

Miele cannot be held liable for

damage caused by non-compliance

with these Warning and Safety

instructions.

Warning and Safety instructions

aProgramme selector

The programme selector can be

turned clockwise or anti-clockwise.

bProgramme sequence and check

lamps

cStart button

Press the Start button to start a

programme.

The Start indicator lamp will flash as

soon as a programme can be

started. It lights up constantly once

the programme has started.

dI-On/0-Off button

To switch the appliance on or off / to

interrupt a programme.

The Finish/Anti-crease lamp will light

up as confirmation that the tumble

dryer has been switched on.

eDoor Button

To open the door / to cancel a

programme.

Pressing this button will open the

door even when the appliance is

switched off at the mains.

If the appliance is switched on at the

mains and the door is opened the

drum lighting will come on. It will go

out a few minutes later to save

energy.

Control panel

Inhaltsverzeichnis

Andere Miele Trockner Handbücher

Miele

Miele PT 5136 OS Bedienungsanleitung

Miele

Miele T 8002 VENT ED DRYER - OPERATING AND Technisches Datenblatt

Miele

Miele TSF 763 WP Bedienungsanleitung

Miele

Miele T 679 Ci Bedienungsanleitung

Miele

Miele Allerdry T 4464 C Bedienungsanleitung

Miele

Miele PT 5186 Bedienungsanleitung

Miele

Miele PT 5136 OS Technisches Datenblatt

Miele

Miele Novotronic T 560 C Bedienungsanleitung

Miele

Miele PDR 944 EL Bedienungsanleitung

Miele

Miele T 6751 Bedienungsanleitung

Miele

Miele TWV 780 WP Bedienungsanleitung

Miele

Miele PDR 514 Bedienungsanleitung

Miele

Miele T 8432 C Bedienungsanleitung

Miele

Miele NOVOTRONIC T 7634 Bedienungsanleitung

Miele

Miele PT 5136 OS Bedienungsanleitung

Miele

Miele PDR 511 HP Bedienungsanleitung

Miele

Miele T 7944 C Bedienungsanleitung

Miele

Miele TWC220WP Bedienungsanleitung

Miele

Miele PDR 914 Bedienungsanleitung

Miele

Miele TOUCHTRONIC T 8002 Stücklistenhandbuch

Miele

Miele VENTED DRYER T 1302 Handbuch

Miele

Miele TCF 640 WP Bedienungsanleitung

Miele

Miele T 8947 WP Bedienungsanleitung

Miele

Miele T 640 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung

Frigidaire

Frigidaire CAQE7077KW0 Betriebsanleitung
