Migatronic ZETA 60 Bedienungsanleitung

50113777

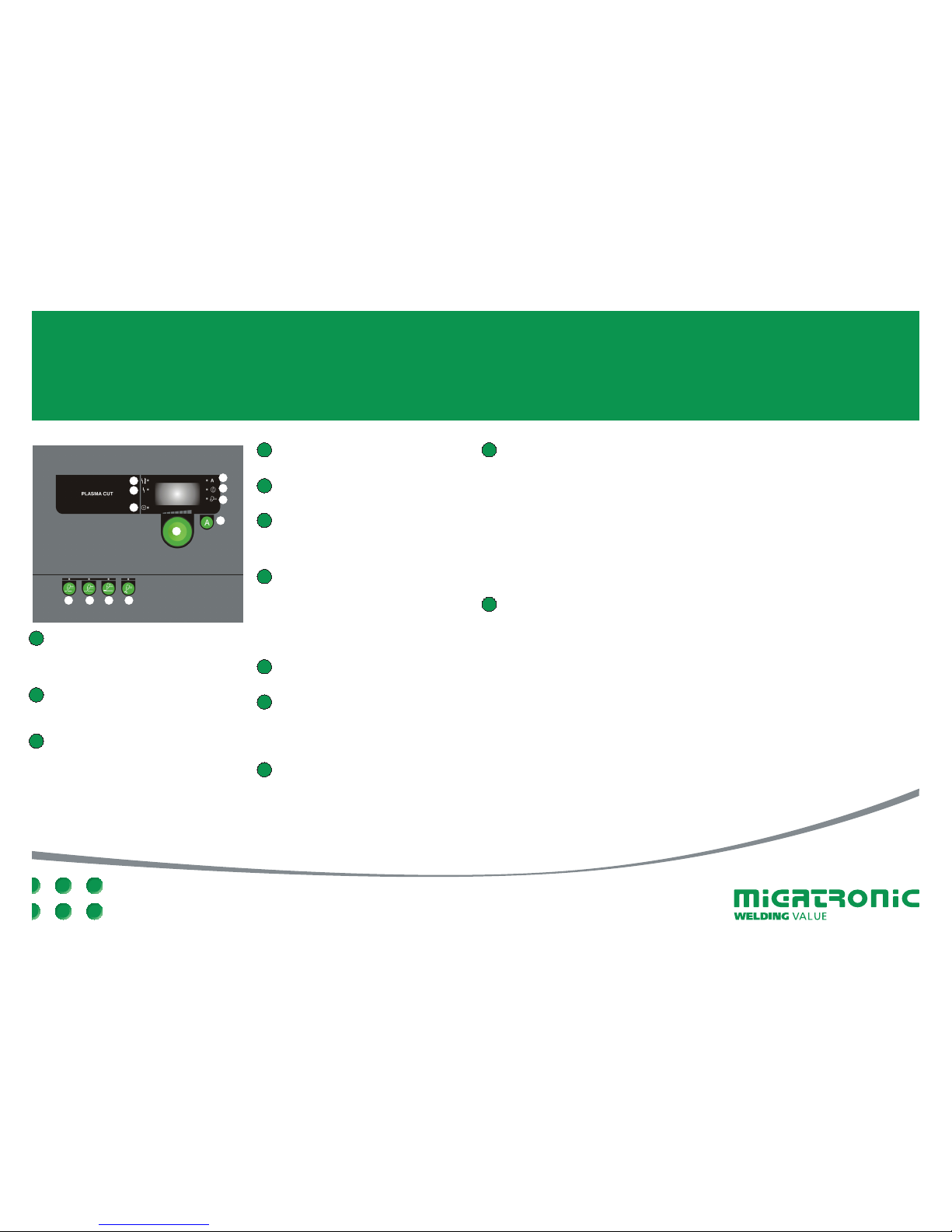

QUICKGUIDE

ZETA 60 I100

10A 30A 45A 60A

0 5 10 15 20

0.9

1.0

1.1

1.2

10A 30A 45A 60A 75A 85A 100A

0 5 101520253035

0.9

1.0

1.1

1.2

1.4

1.5

1.6

Expected quality cut

Dividing cut with reduced quality

Zeta 60

Zeta 100

Please regard the table as a guideline for choice of nozzle size/A compared with maximum

plate thickness for cutting in mild steel. In the case of cutting in other materials, the possible

cutting capacity and cutting speed are reduced.

Amperage

setting (A)

Amperage

setting (A)

Nozzle size mm

Plate thickness mm

1Control knob

Control knob for setting the cutting current:

20-60A for Zeta 60, and

20-100A for Zeta 100.

2Cutting voltage

The LED shines for safety reasons when

there is voltage on the cutting torch.

3Overheating

The LED shines if cutting is interrupted due

to overheating of the machine. The machine

will reconnect automatically after a short

cooling period.

4 Mains error

Low voltage.

5 Cutting current

The LED indicates cutting current.

6 Air pressure

The LED shines if the air pressure falls

to below 3 bar. The machine stops

automatically.

7 Torch error

The LED ﬂashes if there is a short circuit in

the torch. The machine stops automatically.

The LED shines if the torch body is assembled

incorrectly. Always turn off the machine

when changing the spare parts. There is a

risk of high voltage and electric chock.

8 Normal cutting

This function should be used in general.

9 ”Grid” cutting

This function should only be used under

special conditions (e.g. cutting in punched

plates or metal grids); Automatic change-

over between pilot arc and cutting arc.

10 Plasma gouging (Zeta 100 only)

This function is for gouging out

material/welds.

11 Air pressure test

Zeta 60: The gas valve will open without

igniting the arc. This function allows check

and adjustment of the air pressure on

the gauge positioned on the back of the

machine. The air pressure should be

min. 3.5bar for cutting.

Zeta 100: An electrical detection of

over/under pressure is present and

therefore the meter in the regulator has

been removed. The air pressure should be

min. 3.5 bar for cutting and 2.5 bar for

gouging.

12 A (Zeta 100 only)

Display of arc voltage or cutting current.

The key pad must be pressed for 3 seconds

and the LED next to the “A” indicator

will be turned off, when the arc voltage

is displayed. Repress = return to cutting

current.

QUICKGUIDE ZETA 60 I100

910 11
