MiLAN MIL-W2331G Bedienungsanleitung

IEEE 802.11g

Wireless LAN Access Point

MIL-W2331G

USER GUIDE

Regulatory Approval

- FCC Class A

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)

issued by the Commission of the European Community Compliance with these directives imply conformity to the following

European Norms:

EN55022 (CISPR 22) - Radio Frequency Interference

EN61000-X - Electromagnetic Immunity

EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

MiLAN Technology warrants to the original consumer or purchaser that each of it's products,

and

all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

MiLAN Technology makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall MiLAN Technology be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. MiLAN Technology will in no case cover

damages arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the

United States and/or other countries.

To Contact MiLAN Technology

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach MiLAN Technology technical support at:

E-mail: [email protected]

Telephone: +1.408.744.2751

Fax: +1.408.744.2771

MiLAN Technology

1329 Moffett Park Drive

Sunnyvale, CA 94089

United States of America

Telephone: +1.408.744.2775

Fax: +1.408.744.2793

http://www.milan.com

[email protected]

Table of Contents

1. Introduction

Package Contents

2. Hardware Installation

Desktop Installation

Power On

Side Panel

3. Web-based Configuration

Accessing the Web-based Configuration Utility

System configuration

3.1 Local Area Network (LAN) Settings

3.2 Wireless Settings

3.3 Wireless Distribution System (WDS) Links

3.4 Wireless Security

3.4.1 ACL

3.4.2 WEP

3.4.3 RADIUS

3.4.4 802.1x Security

3.4.5 WPA

3.5 Install Wizard

3.6 Status

Appendix A: FCC Information

Introduction

The next-generation wireless LAN device – 54Mbps 802.11g Wireless Access

Point, brings an extremely high performance to the wireless realm. Fully

compliant with IEEE802.11g standard, the 54Mbps 802.11g Wireless Access Point

also provides powerful features such as the WDS, WPA security, SNMP and more.

Maximize network efficiency while minimizing your network investment and

maintenance costs.

Package Contents

Unpack the contents of the package and verify them against the checklist below.

 MIL-W2331G Wireless LAN Access Point

 DC Power Adapter

 Users Guide

If any item is missing or damaged, please contact your local dealer for service.

Hardware Installation

Desktop Installation

Connect the 54Mbps 802.11g Wireless Access Point to a hub (in Bridge mode) or

a PC with a UTP Ethernet cable. The cross-over cable must be used when

connecting the Access Point directly to a PC.

Power On

Connect the power adapter to the power socket on the 54Mbps 802.11g Wireless

Access Point. Connect the other end of the power pack into an appropriate

electrical outlet.

Note 1: Use of a power adapter other than the one supplied with the 54Mbps

802.11g Wireless Access Point may result in damage to the product.

Side Panel

The button on the Access Point side panel labeled “DEFAULT” enables the user

to restore the 54Mbps Wireless LAN Access Point to its default setting. This

may be used to reset the password to the default, as well as all other settings.

To restore the Access Point default settings, press the “DEFAULT” button on the

side panel of the Wireless Access Point for 10 seconds, then release the button

and wait for the system to reboot. The rebooting process will last approximately

30 seconds. Upon completion, the 54Mbps 802.11g Wireless Access Point

default settings will be restored and the Access Point can be configured again

with the Web-based Configuration Utility.

Web-based Configuration

The 54Mbps 802.11g Wireless Access Point allows configuration through a

Web-based Configuration Utility. The following instructions will complete the

installation of the Wireless Access Point.

Accessing the Web-based Configuration Utility

1. Connect a computer to the Access Point either through wireless or wired

connection. Set a fixed IP address, within the range of 192.168.1.X to the

computer, where X cannot be 254. When attempting to use a wireless

connection, configure the computer advanced options as:

SSID: default

WEP: disable

2. Activate the web browser and enter in the IP address of the AP in the Address

or location field and press Enter. The default value of the Access Point is

192.168.1.254.

3. Follow the on-screen instructions to enter the system password then press

Enter. The default password is “private”.

System Configuration

The Web-based Configuration Utility provides 3 items to monitor and configure

the Wireless Access Point: Configuration, Install Wizard and Status. These

core options are essential to enable the Access Point to work properly.

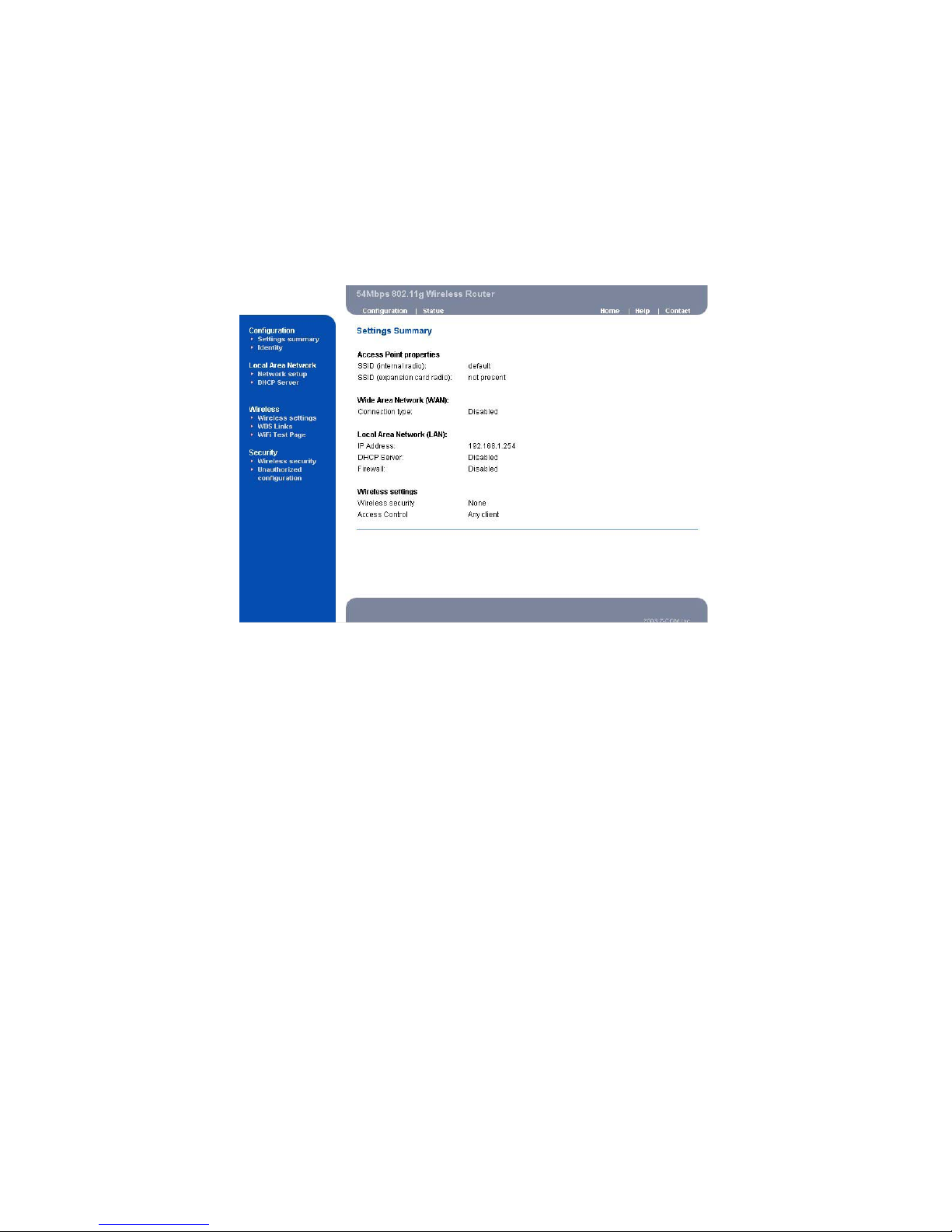

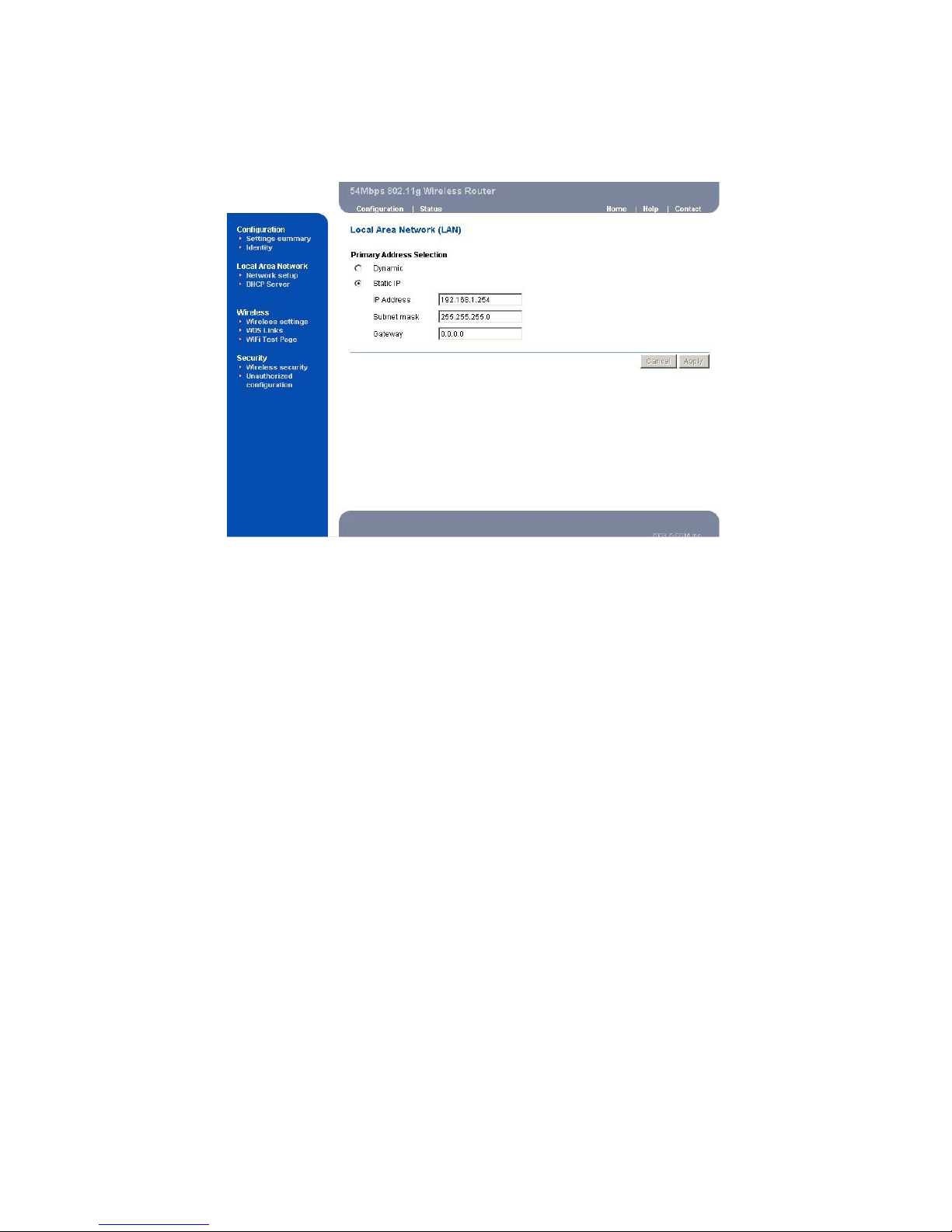

3.1 Local Area Network (LAN) Settings:

Three options are provided for the Local Area Network setup:

• Local Area Network

• External DHCP

• Internal DHCP

If an external DHCP server will be used, select Dynamic for the Primary Address

Selection. Otherwise, set the Primary Address Selection to Static IP.

The third choice, internal DHCP server, is available under the Static IP option.

Enter the setting on the DHCP server page and enable the default DHCP server.

Once DHCP is enabled, set the IP address for Static IP in the range of the DHCP

server where the default DHCP server is usually enabled. Click the Apply

button to save the new configuration.

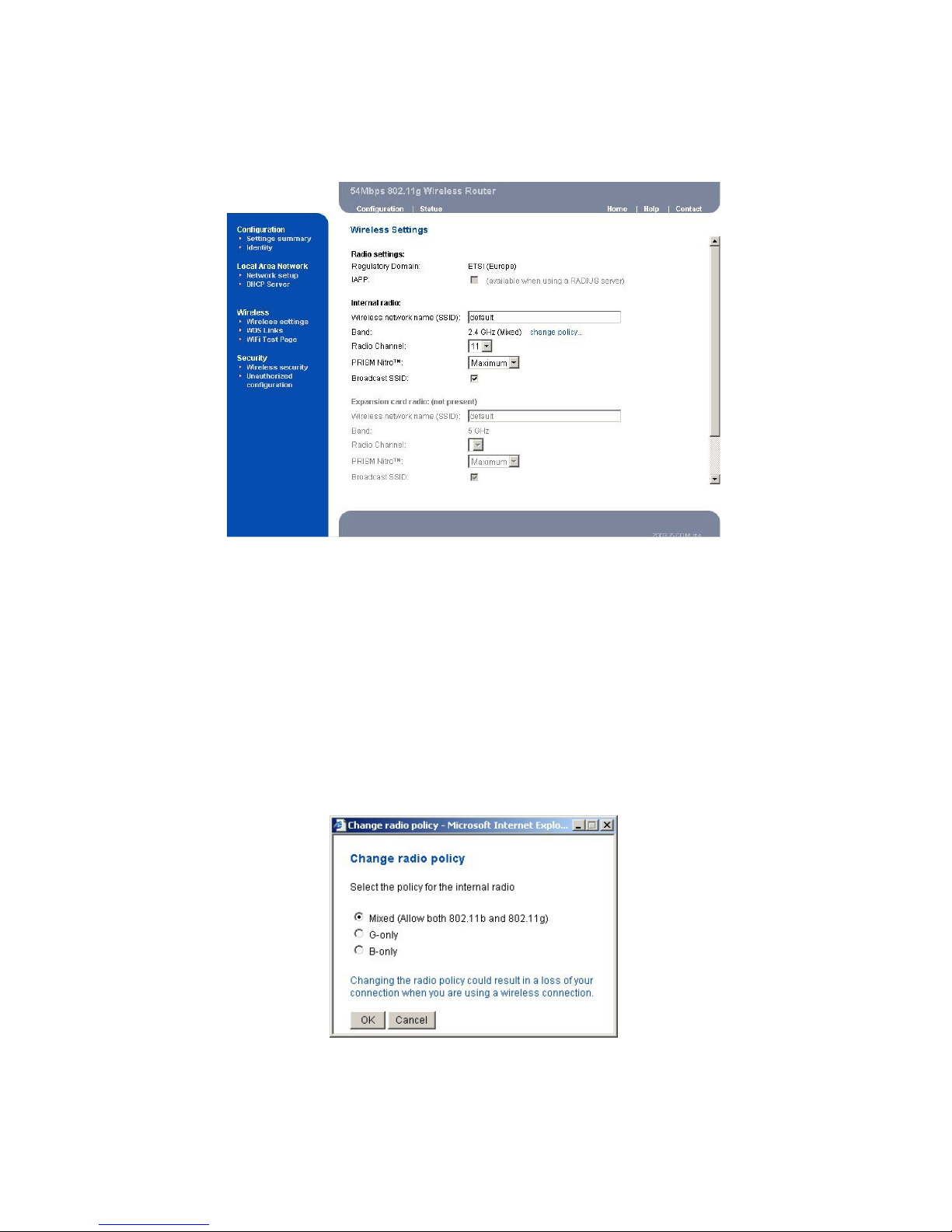

3.2 Wireless Settings

The wireless settings will impact the coverage and the performance of the

Wireless Access Point. The Access Point can be operated in three different

bandwidth scenarios:

• G-only (High rate 54Mbps)

• B-only (Low rate 11Mbps )

• Mixed (both below 54M and 11Mbps).

To change the bandwidth setting, click on the change policy… link and select

the appropriate radio policy. Click the OK button to save the new configuration.

Note: Changing the radio policy could result in a loss of connection when using a

wireless connection to the Web-based Configuration Utility.

To deliver the throughput enhancement in both mixed and g-only networks, Prism

NitroTM mode can be enabled by using Intersil’s packet bursting technology. The

burst size is adjustable and typically the bigger burst packet, the more 11g

transmission sharing will occur while a mixed network is in effect.

Deselect the Broadcast SSID option to logically hide the Access Point. The

Access Point will refuse any connection request from an unrecognized Network

ID.
